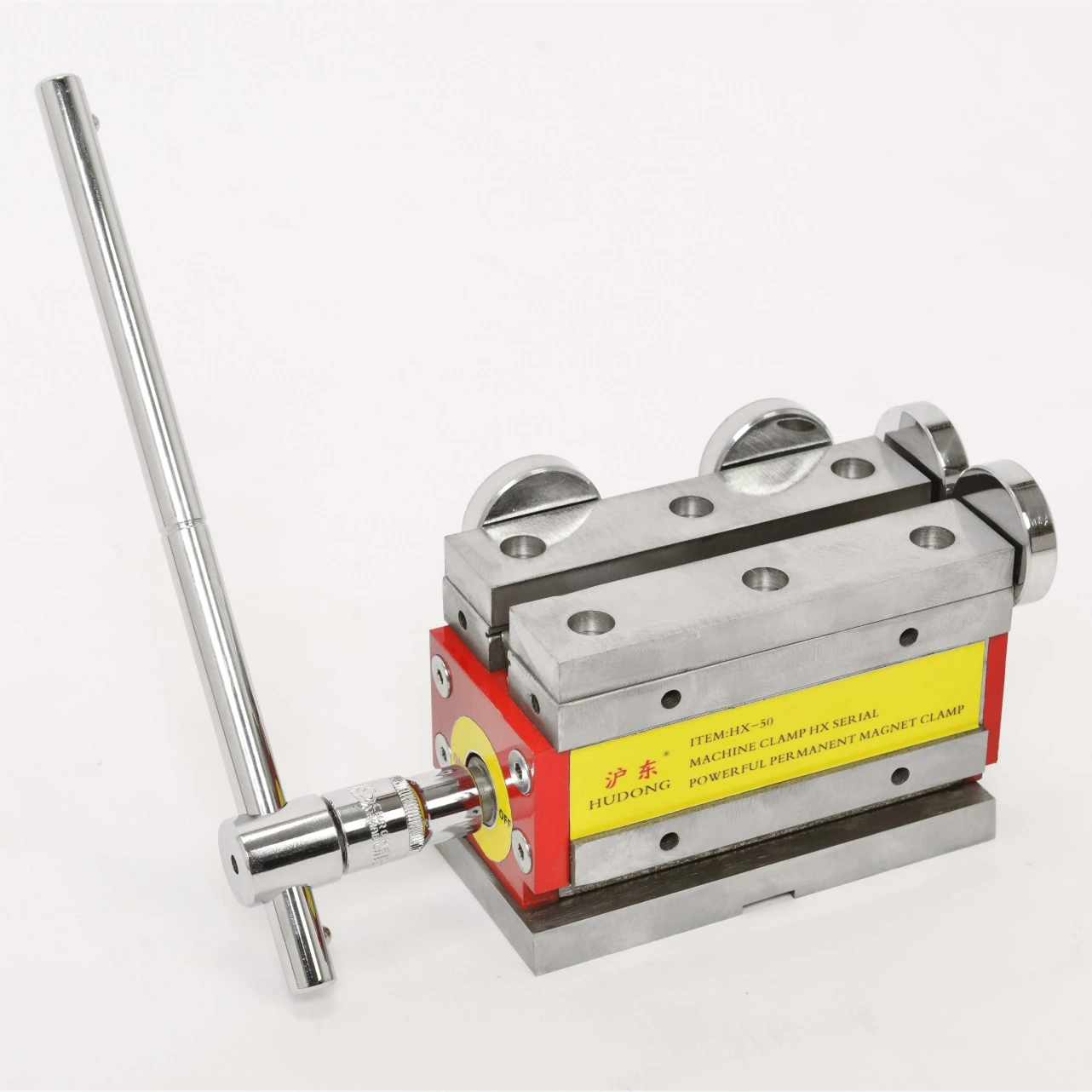

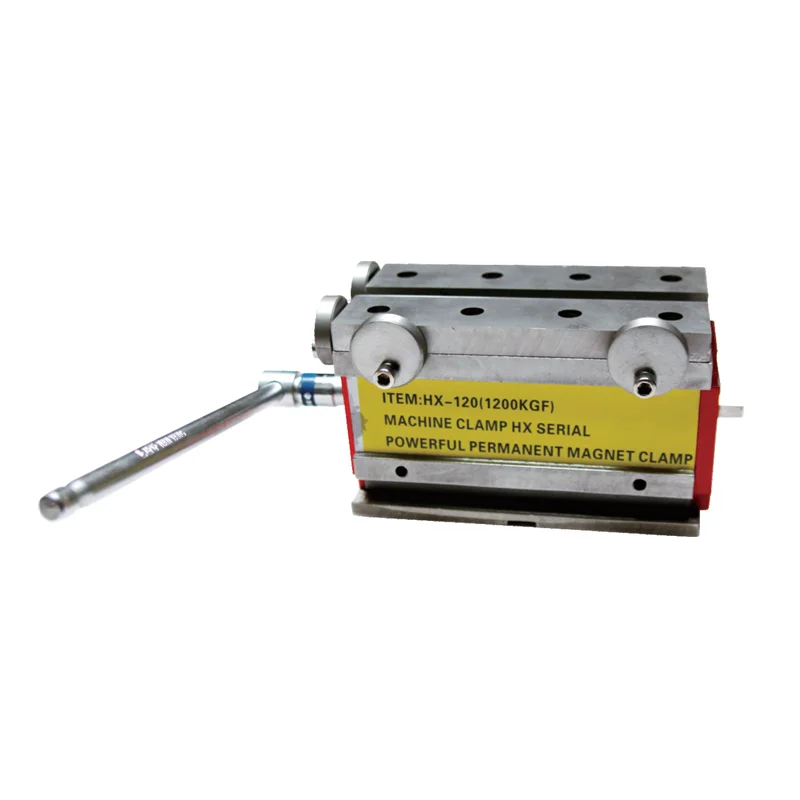

30 Years Factory Wholesale HX Series Switch typed Permanent Magnetic Clamping Block
- Category: Magnetic Lifter >>>
- Supplier: Xiamen,Zhaobao,Perm,Magnet,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Note:
* The material price fluctuates greatly, price is for reference only, please confirm with us before ordering.
* WE HAVE THE RIGHT NOT TO DELIVER GOODS WITHOUT CONFIRMATION.
Product Description
HC series can complete suck and release of automatic cycle by itselfwithout electric supply, which operating simple, using safe and reliable. ltis wildly used in molding, mechanism manufacturing and dockyard. It canbe used single, or combine for large and long steel plate,steel billet orother steel. It has long useful life,and it is an ideal lifting equipment ofsaving energy.

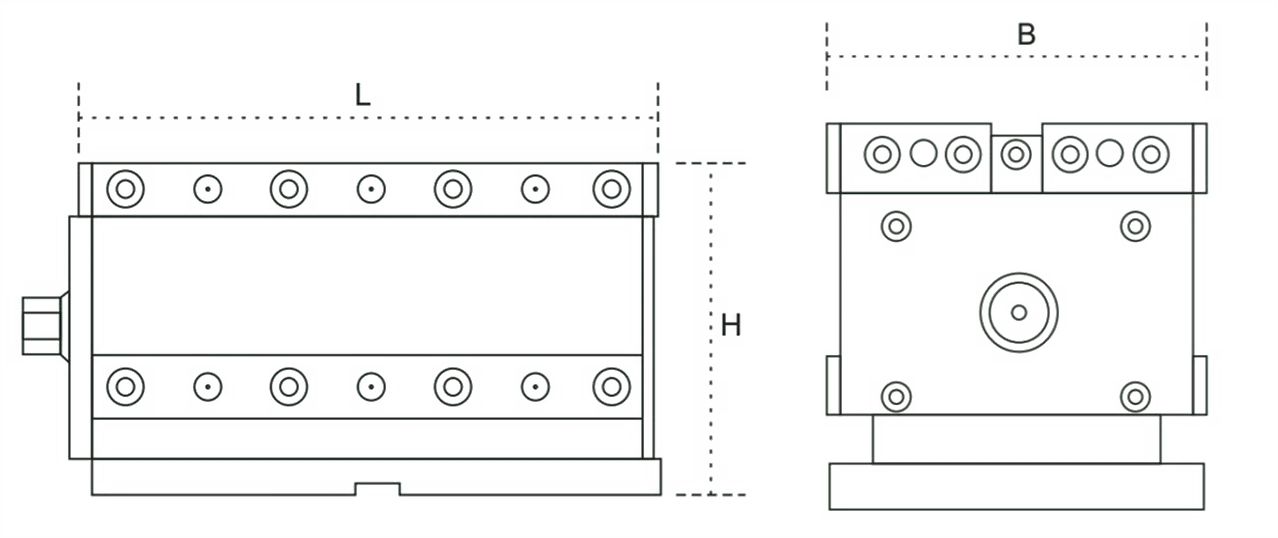

Dimension table of HX series permanent magnet lifter | ||||||||||||
Model | CLAMP POWER | STICKNESS (min) | L (mm) | B (mm) | H (mm) | WEIGHT (kg) | ||||||
HX-50 | 500 kgf | 10mm | 113 | 101 | 73.3 | 6 | ||||||
HX-75 | 1000 kgf | 10mm | 216 | 115 | 93.3 | 18 | ||||||
HX-120 | 1500 kgf | 15mm | 234 | 130 | 93.3 | 20 | ||||||
HX-210 | 2000 kgf | 25mm | 275 | 132 | 93.3 | 26 | ||||||
Product Details
▼
Product Shows
Why Choose Us
30 Years Magnet Manufacturer--ZHAOBAO MAGNET
1. Annual output of NdFeB Magnet has been more than 5000 tons
2. More than 60000m2 workshop
3. More than 500 employees
4. More than 50 engineers
5. Welcome to visit our factory
Conventional: +/-0.05mm, +/-0.1mm
Customized: +/-0.03mm, +/-0.02mm, +/-0.01mm
Independent production from raw materials to finished products
We have mastered all NdFeB production equipment and technology, and has a number of patents
We have mastered all NdFeB production equipment and technology, and has a number of patents
Excellent sales team, one to one service
7 * 12 hours online service
Reply within 8 hours at night or on holidays
Certifications
We have independent patents and intellectual property rights, and have passed a number of international authoritative certifications, such as IATF16949 (ISO9001), ISO14001, ROHS, REACH, EN71, CE, CP65, CPSIA, ASTM, etc..
We are the only factory capable of passing CHCC certification!
Delivery:
Global Supply
Door to door deliveryTrade term: DDP, DDU, CIF, FOB, EXW, etc..
Channel: Air, express, sea, train, truck, etc..
Payment:
Support: L/C, Westerm Union, D/P, D/A, T/T, MoneyGram, Credit Card, PayPal, etc..
Our Company
Exhibition
Berlin coil, motor insulation and electrical manufacturing exhibition
Production Process
Independent production from raw materials to finished products
Production Equipment
Have mastered a full set of production and testing equipment
Testing Equipment
More than 20 inspection processes in the whole process!
FAQ
Q: Are you trader or manufacturer?
A: We are manufacturer, we have our own factory for more than 30 years.We are one of the earliest enterprises engaged in the production of rare earth permanent magnet materials.
Q: What's the payment method?
A: We support Credit Card,T/T, L/C, western Union, D/P,D/A, MoneyGram, etc...
Lower than 5000 usd, 100% in advance; more than 5000 usd,30% in advance.Also can be negotiated.
Q: May I get some samples to test?
A: Yes, we can provide samples, if there is some stock, sample will be free. You just need to pay shipping cost.
Q: What's the lead time?
A: According to the quantity and size, if there is enough stock, delivery time will be within 5 days; Otherwise we need 10-20 days for production.
Q: What's the MOQ?
A: No MOQ, small quantity can be sold as samples.
Q: What if the goods are damaged?
A: If you need, we can help you buy goods insurance.
Certainly, even if there is no insurance, we will send an additional part in the next shipment.
Certainly, even if there is no insurance, we will send an additional part in the next shipment.
Q:How to ensure product quality?
A: We have 20 years of production experience and 15 years of service experience in European and American markets. Disney, calendar, Samsung, apple and Huawei are all our customers. We have a good reputation, although we can rest assured. If you are still worried, we can provide you with the test report.
A: We have 20 years of production experience and 15 years of service experience in European and American markets. Disney, calendar, Samsung, apple and Huawei are all our customers. We have a good reputation, although we can rest assured. If you are still worried, we can provide you with the test report.
