12 В 24 в 36 в 48 в 60 в 42 в 5 в 6 в 7 в 8 в 9 в 10 в 14 в 15 в 16 в 17 в 18 в 19 в 20 в 25 в блок питания ac dc адаптер питания зарядное устройство
- Category: Power Supplies >>>
- Supplier: Dongguan,Intai,Power,Supply,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Description

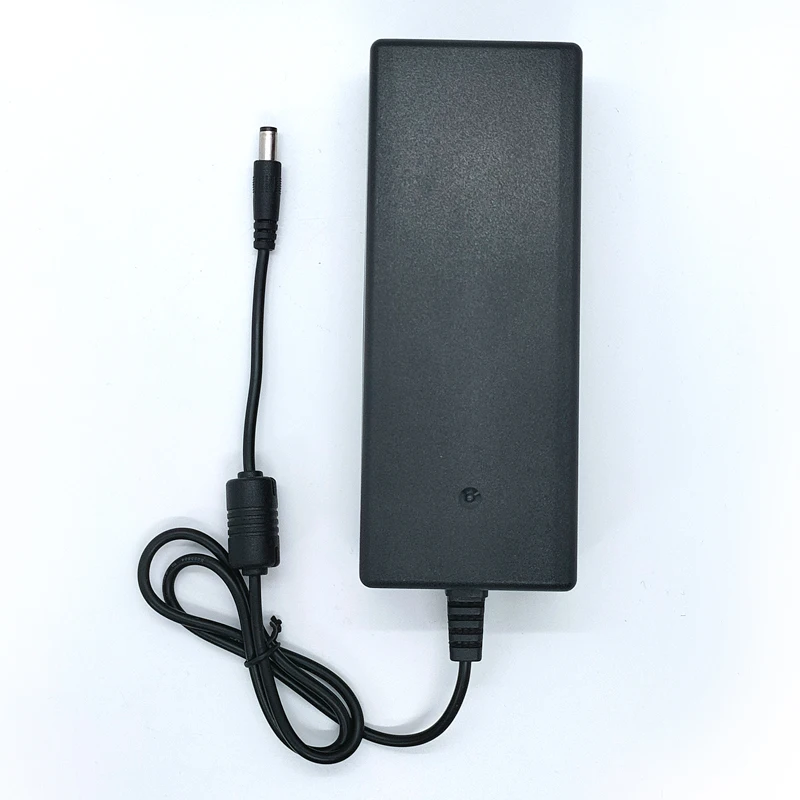

The 24v 5a 6a 8a power adapter low noise switching power supply adapter is built with the latest power supply technologies and the quality components materials to enable high performance. High-frequency AC-to-DC flyback converter with green-mode power-saving operation enables high power density and lowest no-load power consumption, to comply with global efficiency standards including DoE Level VI and EU CoC V5 Tier-2. The 24v 5a 6a 8a power supply features full protection to maximize the reliability includes OLP(Over Load Protection), OVP(Over Voltage Protection), output short-circuit protection. Intai switching power supply is known for its high reliability. The Switch power supply incorporates a pair of U shaped internal heat sinks to achieve efficient natural convection cooling, enable higher operation temperatures with reliability.
Product Specificatio
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.21W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.9 | |
Output | Output Voltage | 24V±5% |
Rated Current | 5A 6A 8A | |
Ripple & Noise | 150mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.62368-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN62368-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS62368.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J62368-1(H26) | Certificate Number: JD 50300674 |
Company Information
Certificate
FAQ
Do you have a MOQ requirement? |
| What is the lead time? 3~5 days for testing samples, 2~3 weeks for mass production |
| Can I pay by Paypal for testing samples? Yes |
| What if there are quality problems with the products I bought? We take the following measures to ensure the quality of products |
| 1, Strict management of product design |
| 2, All products on sale are safety certificated |
| 3, Strict production process control |
| 4, Two hours burn-in testing on 100% products |
| 5, Carrying out random finally inspection on each lot |
| There will no defective in large scale. However, as our quality level AQL is: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5, defective is allowed for one or few pieces. We offer 3 year warranty for all items. We provide replacements for all defective products have had at our costs as long as you have picture to prove that these products are broken in the normal use. If you are our regular customer we would include the replacements in the nearest shipment. |
What is the ambient temperature specified for safety test & evaluated by safety testing agencies including UL and TUV? It was 35℃. The data shows on our certifications. |
Our Services
1: Professional service 1) We reply any inquiry in 12 hours Website: www.intaia.com |
2. OEM/ODEM available: 1) Customized products available 2) We can put your ideas into concrete products |
| 3. High quality and reasonable & competitive price |
4. After-Sale Service : We offer 3 years warranty , replacements available |
5. Faster delivery : In term of an urgent order, we apply flexible production management to catch up your delivery date. |
Packaging & Shipping
Each piece in a white box, then 48pcs in an outer carton.
Carton gross weight: 15~22kg, carton size: 53x36.5x21cm
