  • China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line
China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line
China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line
China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line
China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line
China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line
China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line
China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line

China factory Pe Air conditioner pipe machine directly sell concert led foam light stick, EPE foaming pipe extrusion line

Share on (1600374014725):


Price:$21,000.00 - $23,000.00

Quantity:


Product Overview

Description



Product Overview


pe epe foam sheet extruder / pe plastic pipe extrusion line

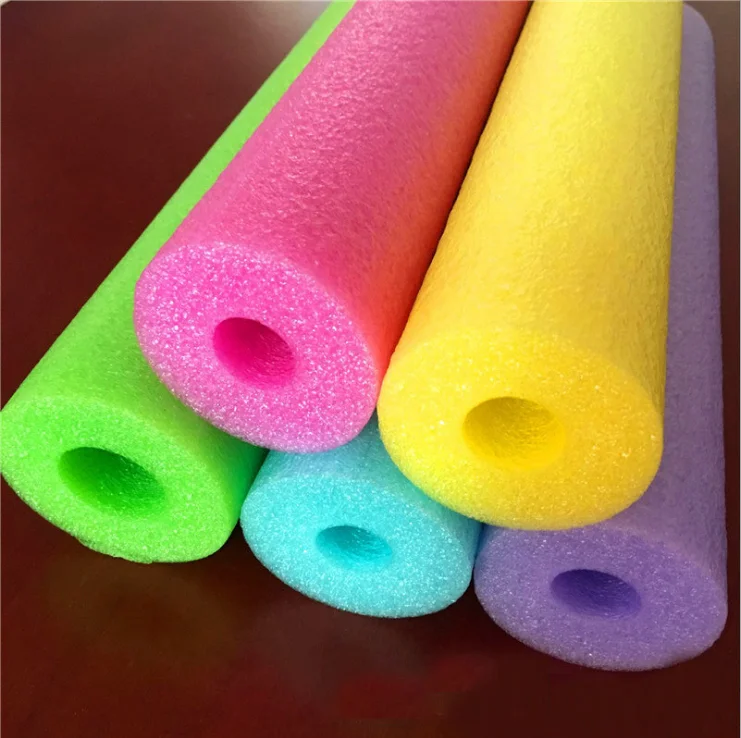

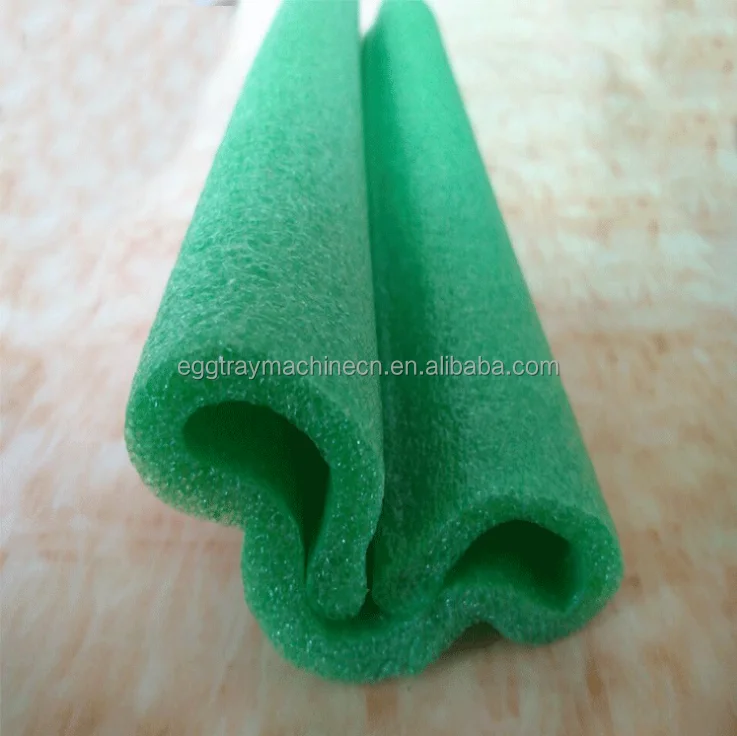

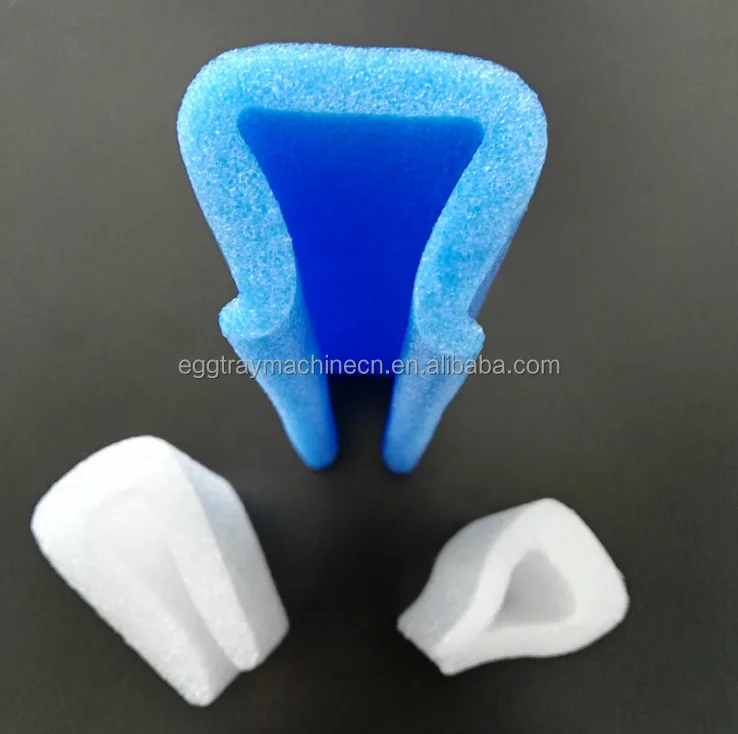

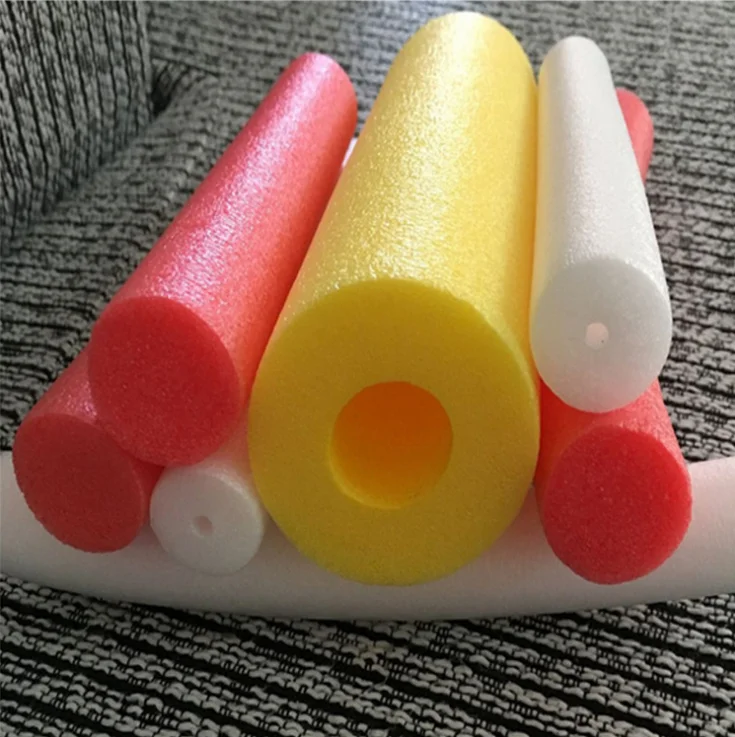

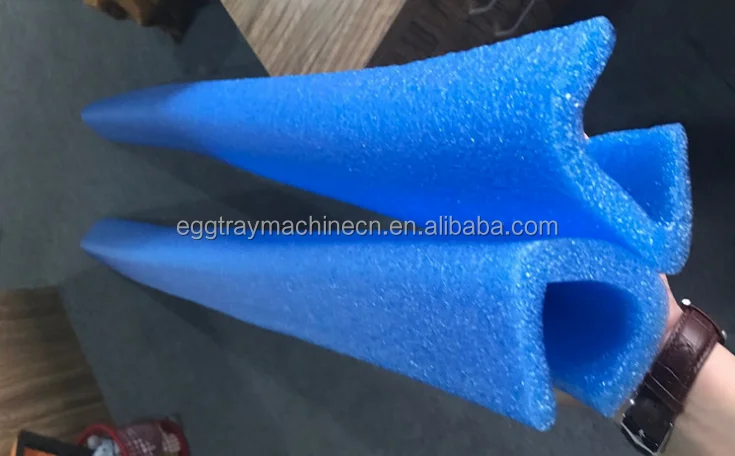

EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline, heat
insulation, toy guardrail, recreation places etc. Due to its high foaming ratio, good elasticity and insulation. As a kind of new type foam filling and stem and ornament material.
EPE foam stick is widely used in spring mattress, sofa stem and edge, automobile seat, sofa back rest and top-grade clothing. It is also widely used in the filling of contracting joint in building due to its good rebound elasticity.




PRODUCT SPECIFICATIONS

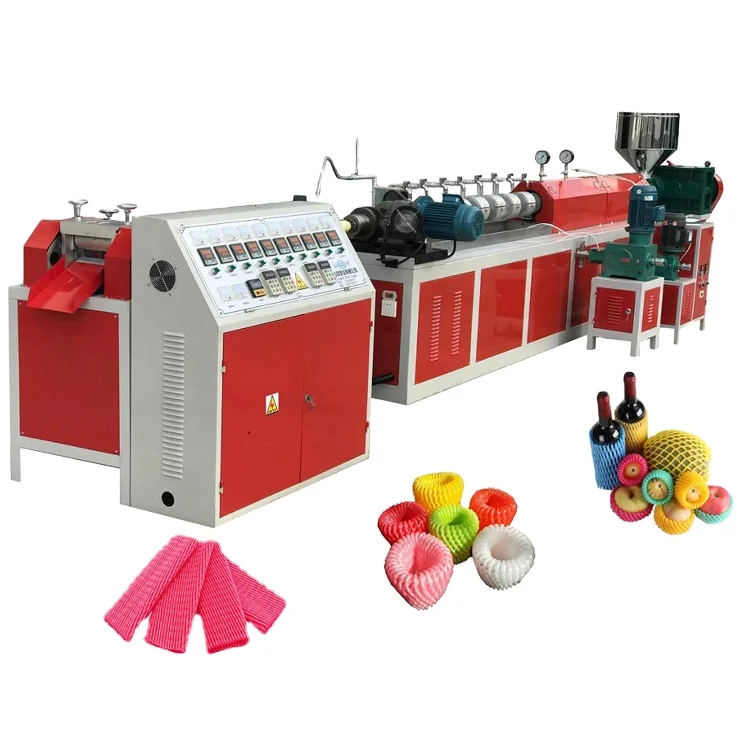

EPE Foam Pipe Extrusion Machine
Raw material: LDPE(Polyethylene)
Finished product: foam net/foam mattress Foam agent: Butane gas
Mesh number: 10-40
Density: 20-30kg/M3
Screw type: Single-screw (38CrMoALA)
Screw L/D: 55:1
Cooling method: wind cooling and water cooling

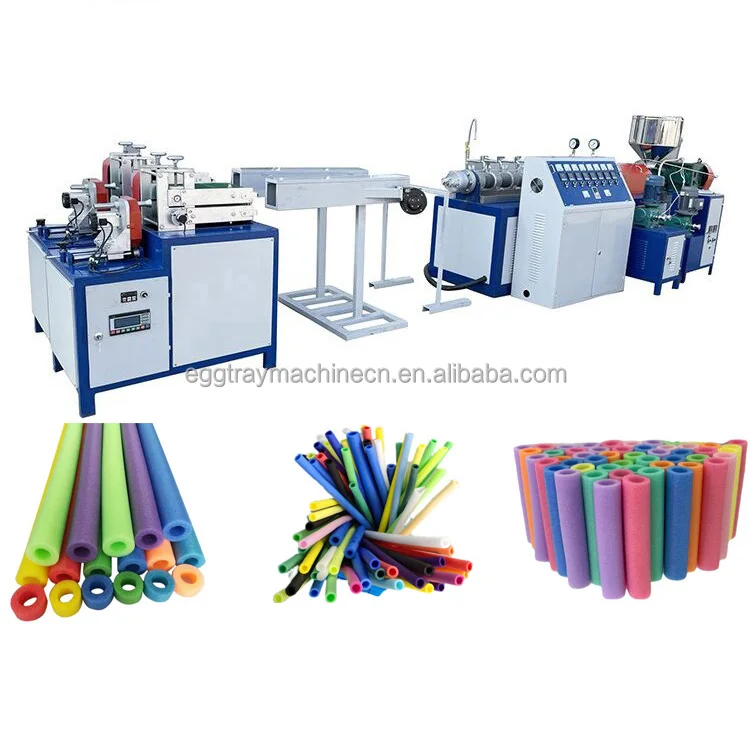

EPE foam profile / pipe / rod / stick extrusion line main technical parameters
Model
Unit
SH-75
SH-90
SH-105
L/D
                                                                                   55：1
Screw Speed
r/min
5-60
Foaming Ratio
10-40
10-40
10-40
Outer Diameter
mm
55
90
95-100
Inner Diameter
mm
10-20
20-40
20-50
Cooling Method
                            Water, Air Cooling
Capacity
KG/H
40-50
70-80
100-120
Installed Power
KW
28
32
36
Dimension
m
1.5 * 1.3 * 1.7
1.6 * 1.3 * 1.7
1.8 * 1.3 * 1.7
Total Weight
Ton
6
6.5
7


PRODUCT CONFIGURATION

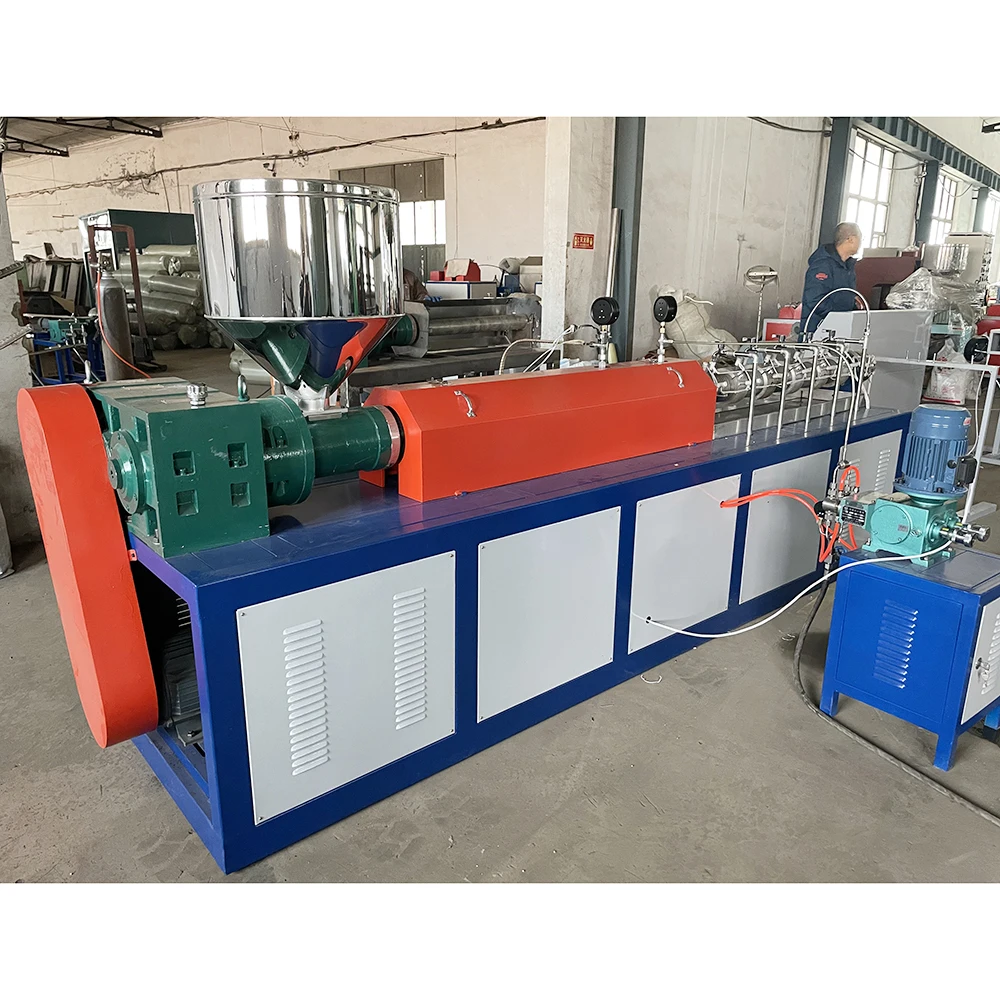

Extruder
Material of screw barrel：38CrMoALAThe high quality alloy steel was treated by multiple annealing and ion nitriding；
Driving form：Variable frequency speed regulation；
Driving Power：30KW（Around）；
Heating mode：Iron Sheet and cast aluminum heater；
Cooling mode：Circulating Water Cooling；



Screen changer and die head unit
Screen changer unit
Do not stop to change the network Heating power: 3 KW
Heating zone: 1 pc

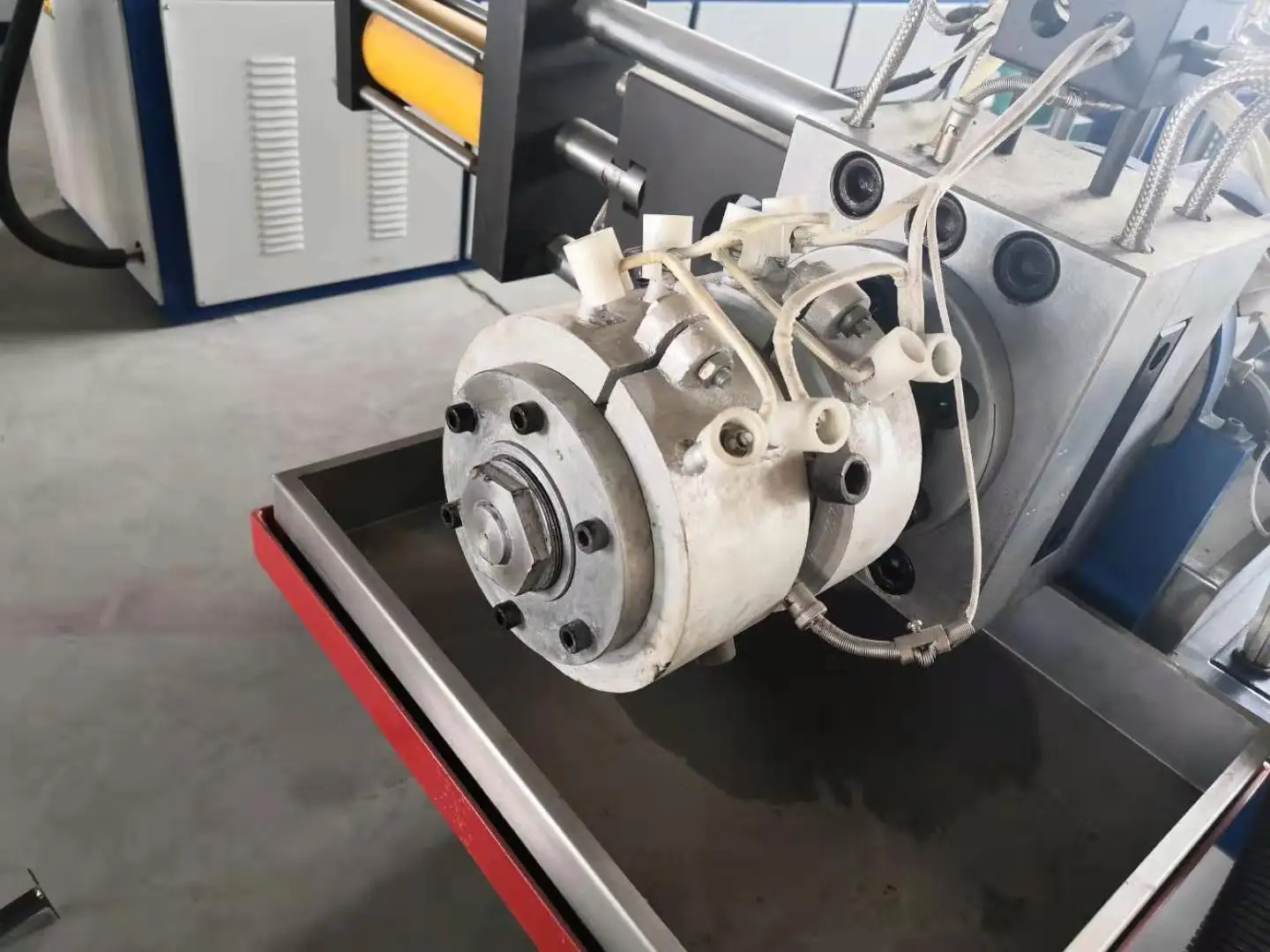

die head unit
Heating mode： CAST aluminum heating；Heating Zone：2 zone，Automatic constant temperature；
Cooling mode: Wind cooling ;
Net Change: Automatic non-stop hydraulic screen change

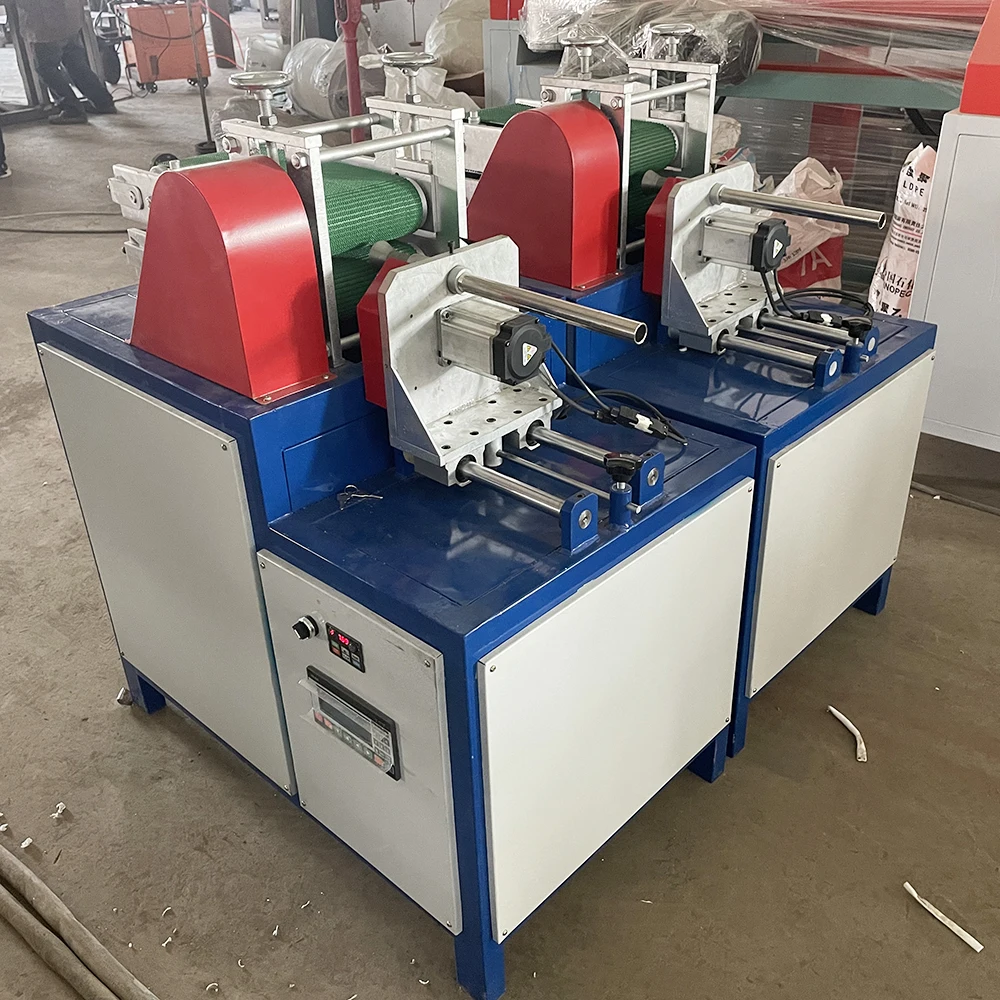

Haul-off and cutting unit
Length controlled: controlled by haul-off Material of the knife: carbon and alloy steel Driven type: motor drives gear box,
controlled by inverter.
Motor power: 0.75kw*2 (speed regulation) Count control: meter controller can be preset alarming

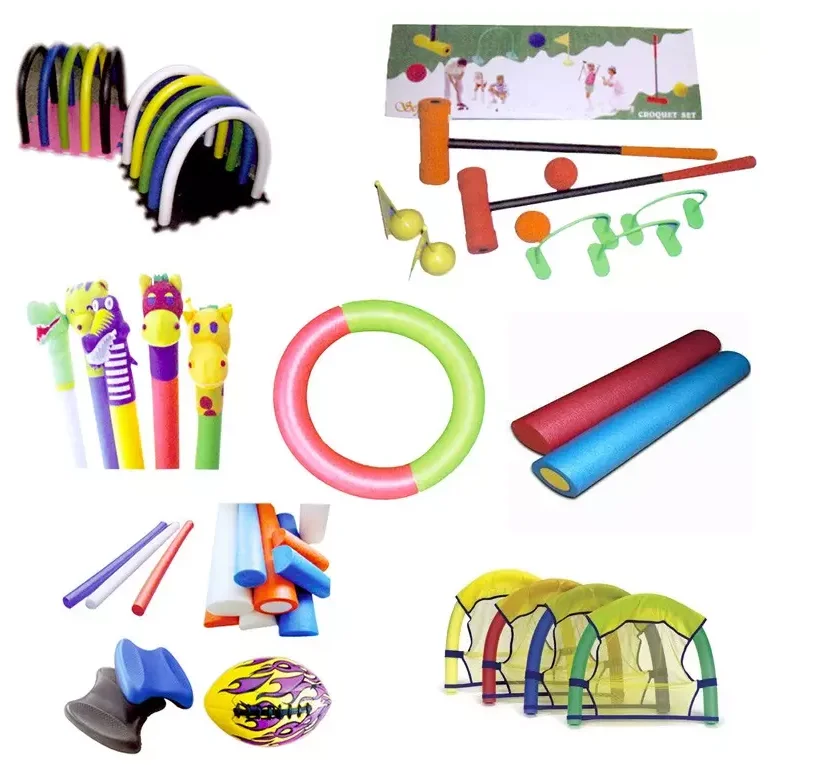

Application






Our customers




SIMILAR PRODUCTS




FAQ


Q:. Why I choose your company?
A: 1) We are one of the leading manufacturers of packing materials and related machinery .
2) Our company has made foam machine about 20 years with strong experience and advanced technique
3) Best Quality & Best Service with Competitive price. 1 year guarantee and lifetime maintenance
4) We have CE certificate and ISO 9001:2008
5) We have Professional technical team, and will supply 24 hours service
Q: What should we prepare for PE Foam Net Making Machine
A:You should prepare raw material(LDPE), workshop, water line, electric line, gas, compress air(if you need I can help you buy air compressor) We would supply workshop layout drawing for you
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Longkou city, Shandong province, you can fly to Yantai Penglai International Airport.When you confirm the flight No. and time, please tell me then we will pick you up at Airport.
