BeagleBone BB Black Rev.C Black TI AM335x Cortex A8 development
- Category: >>>
- Supplier: Changsha,Mili,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specification

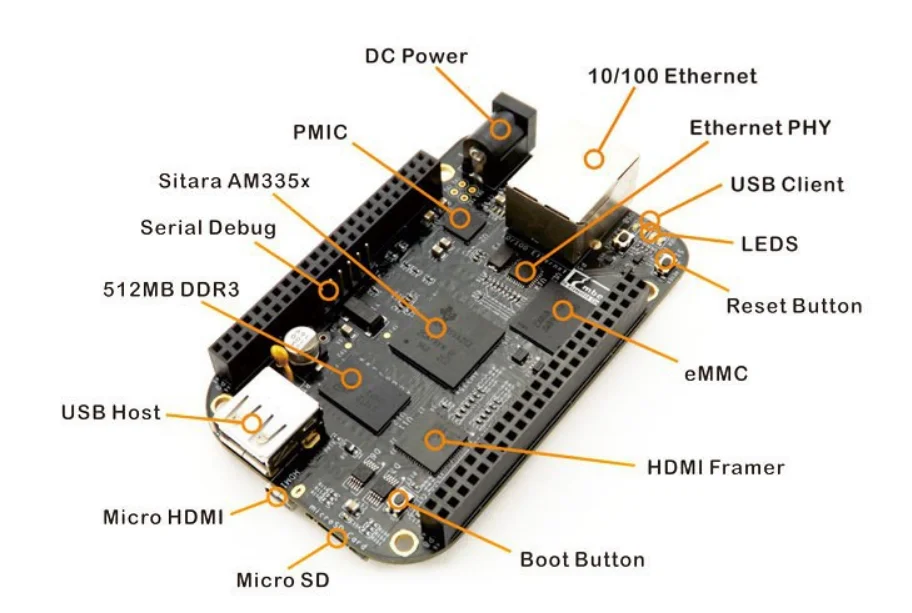

Processor:TI Sitara AM335x, 1GHz, 2000 MIPS
* 1 GHz ARM ® Cortex-A8
* SGX530 Graphics Engine
* Programmable Real-Time Unit Subsystem
Memory
* SDRAM: 512MB DDR3L 800MHZ
* eMMC Flash:
* Rev B: 2GB (discontinued)
* Rev C: 4GB (as of 2014.05.21)
SD / MMC Connector for microSD
Power management:TPS65217CPMIC is used along with a separate LDO to provide power to the system
Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
Power Source
* miniUSB USB or DC Jack
* 5VDC External Via Expansion Header
Connectivity
* High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
* High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS / FS / HS
* Serial Port:. UART0 access via 6 pin 3.3V TTL Header Header is populated
* 10/100M Ethernet (RJ45)

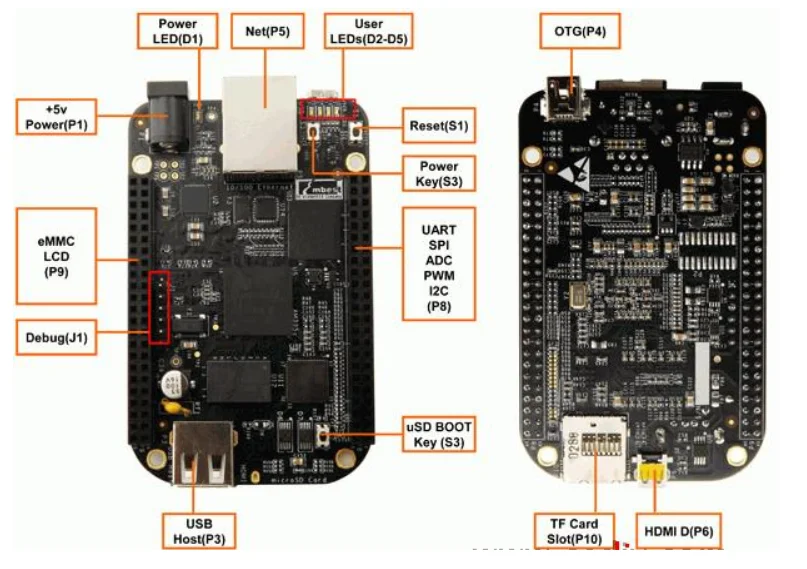

User Input / Output
* Reset Button
* Boot Button
* Power Button
* LED power indicator
* 4 user configurable LEDs
Video / Audio Interfaces
* HDMI D type interface
* LCD interface
* Stereo audio over HDMI interface
Expansion Interfaces
* LCD, UART, eMMC
* ADC, I2C, SPI, PWM
Operating Power:5V 0.35A

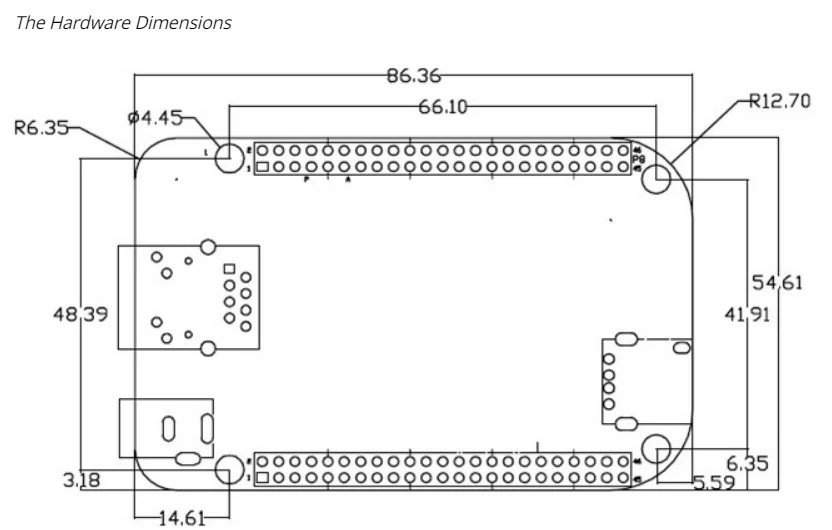

Board Size:3.4 x 2.1
* 1 GHz ARM ® Cortex-A8
* SGX530 Graphics Engine
* Programmable Real-Time Unit Subsystem
Memory
* SDRAM: 512MB DDR3L 800MHZ
* eMMC Flash:
* Rev B: 2GB (discontinued)
* Rev C: 4GB (as of 2014.05.21)
SD / MMC Connector for microSD
Power management:TPS65217CPMIC is used along with a separate LDO to provide power to the system
Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
Power Source
* miniUSB USB or DC Jack
* 5VDC External Via Expansion Header
Connectivity
* High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
* High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS / FS / HS
* Serial Port:. UART0 access via 6 pin 3.3V TTL Header Header is populated
* 10/100M Ethernet (RJ45)
User Input / Output
* Reset Button
* Boot Button
* Power Button
* LED power indicator
* 4 user configurable LEDs
Video / Audio Interfaces
* HDMI D type interface
* LCD interface
* Stereo audio over HDMI interface
Expansion Interfaces
* LCD, UART, eMMC
* ADC, I2C, SPI, PWM
Operating Power:5V 0.35A
Board Size:3.4 x 2.1
