Toowei 10a15a 12mm Auto Car Boat Truck spring return toggle switch 3 position way momentary with Cover Guard

Share on:

Price:$0.60 - $0.70
Price in USD:Details


Product Overview


Products Description

The T700 series toggle switch is rated at 10A 250V, suitable for AC 50Hz / 60Hz.
This switch is used as a switching method and a reset method in the circuit.
The terminal has screws, quick connect terminals and welding terminals.

Part No.
Rating Value
10A 250V/15A 125V
Pole code
Single Pole
Terminal form
Screw terminal/Quick connect terminal/Soldering terminal
Brown, Black

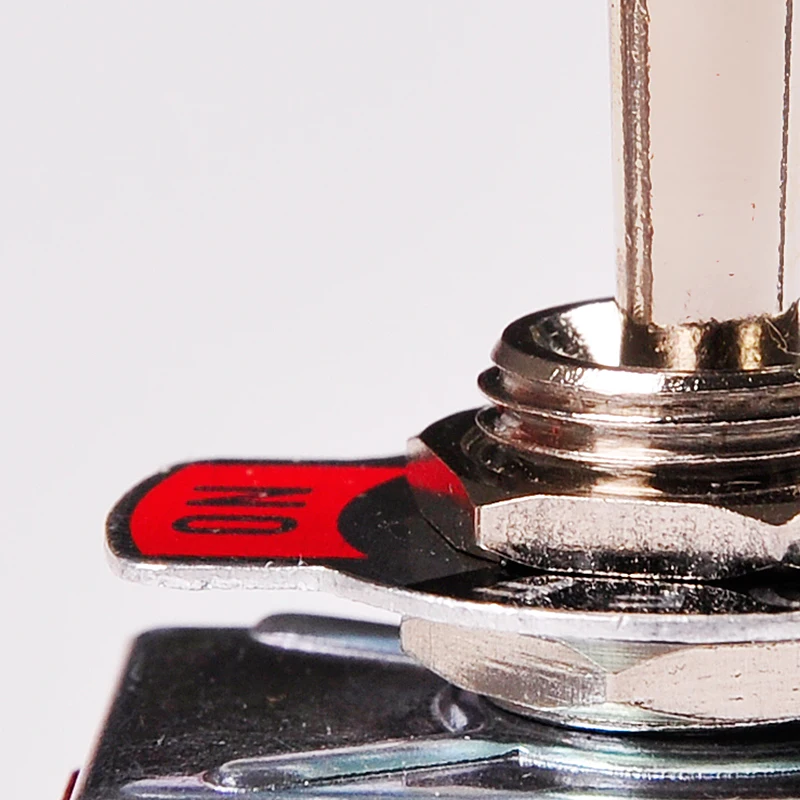

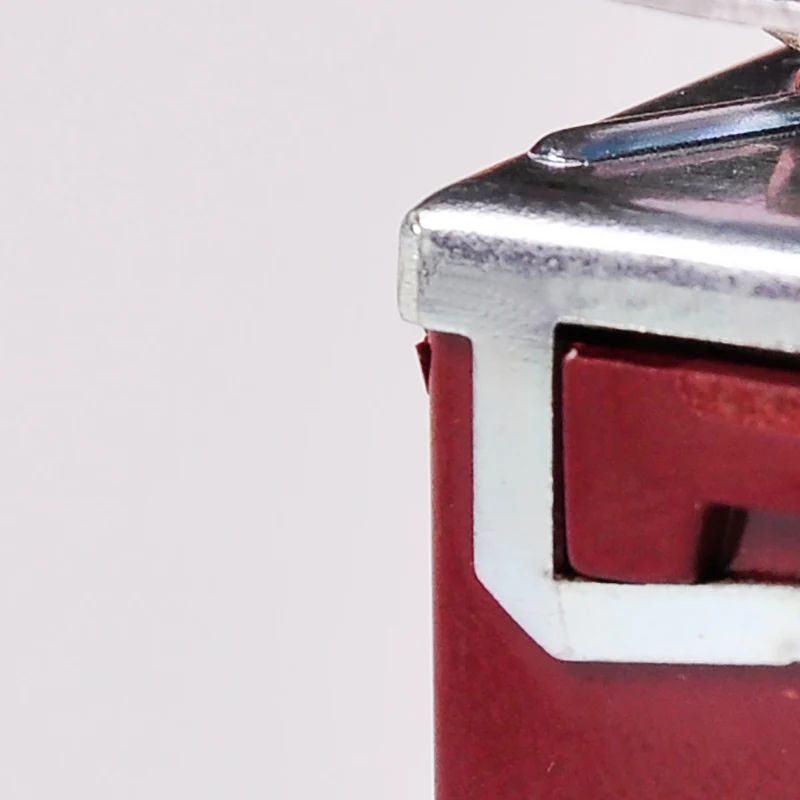

Details Images

Product Paramenters

Technical Parameters
1. Rating Value: 10A 250VAC/15A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage: 1500VAC 50/60hz
Leakage current:5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form : Quick connect terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron:345±5° 3~5S
