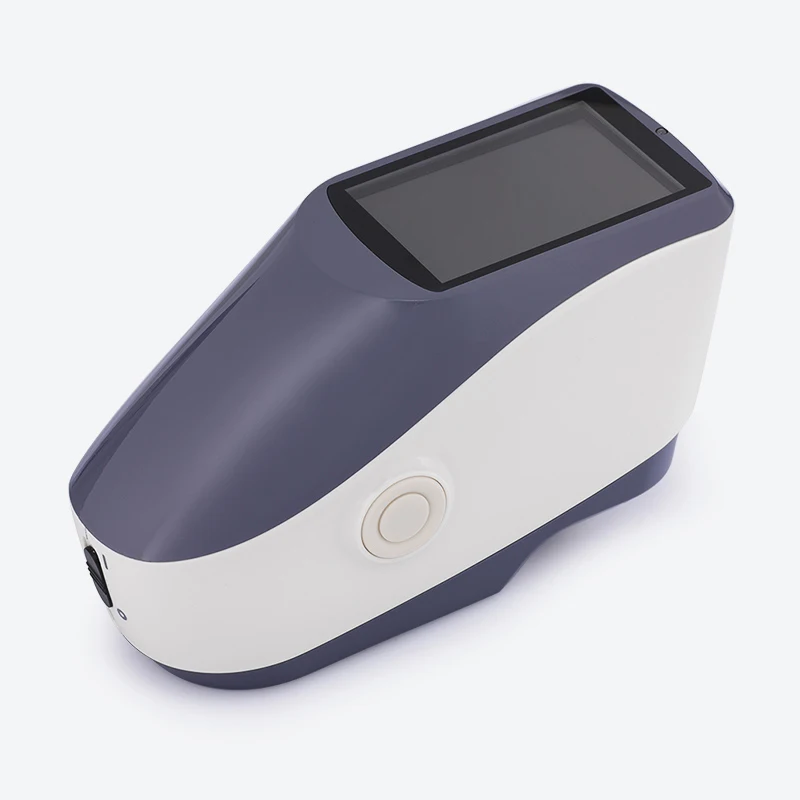

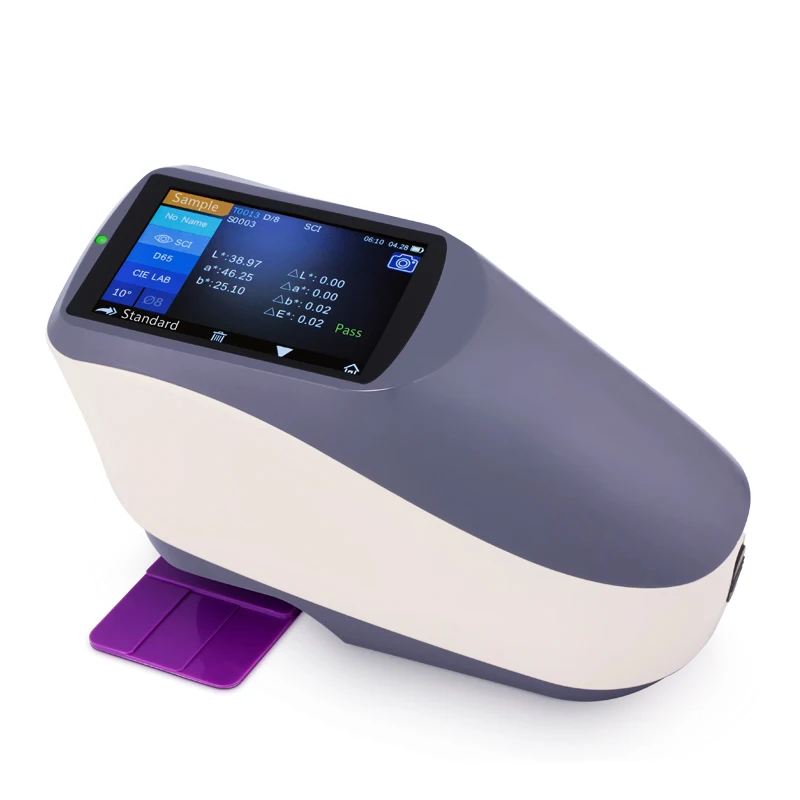

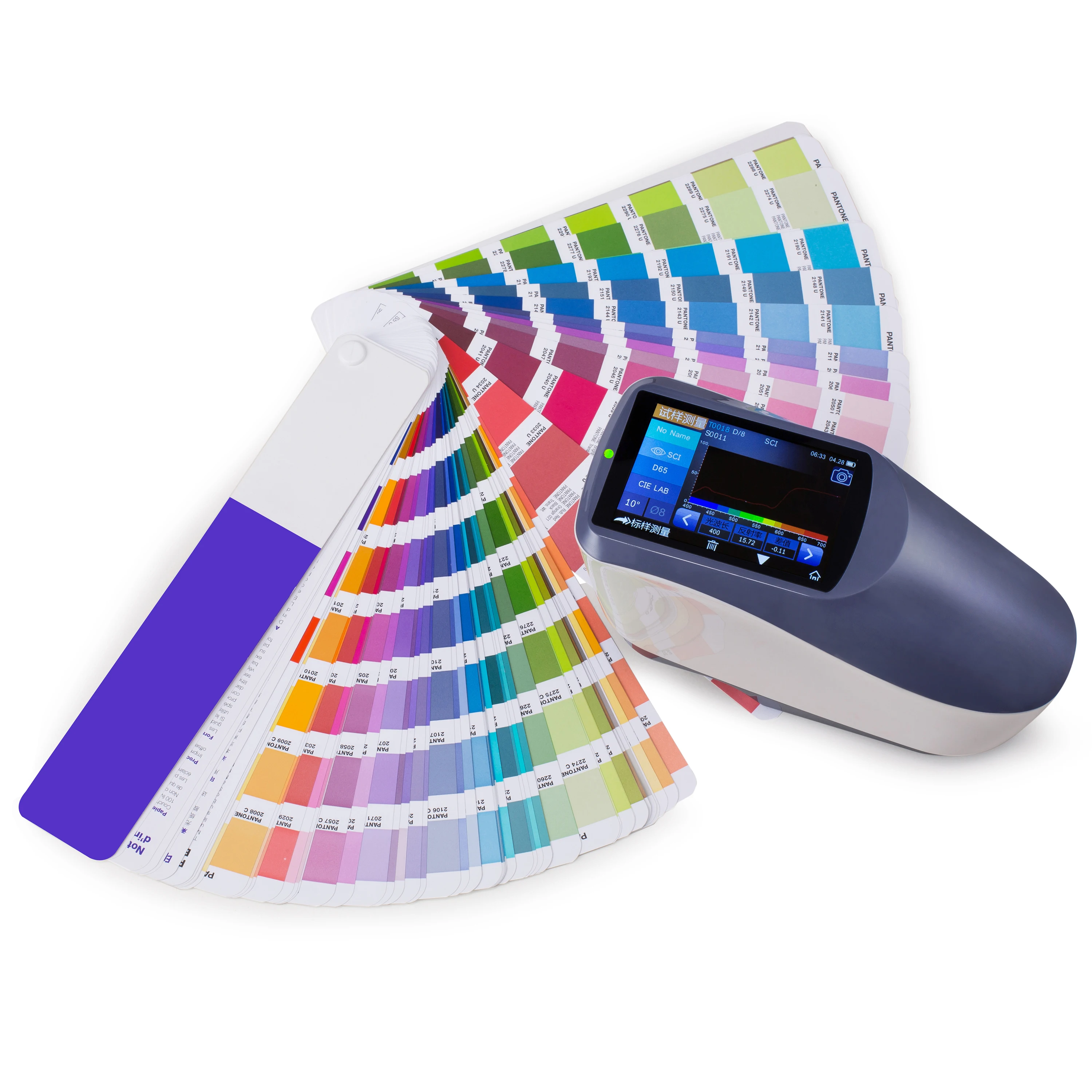

YS4510 Handheld Color Measuring Device CIE LAB Delta E Portable Spectrophotometer 45/0
- Category: >>>
- Supplier: LIAONING HUIQI OPTICS TECHNOLOGY CO. LTD.
Share on (1600374289396):
Product Overview
Description
Product Description

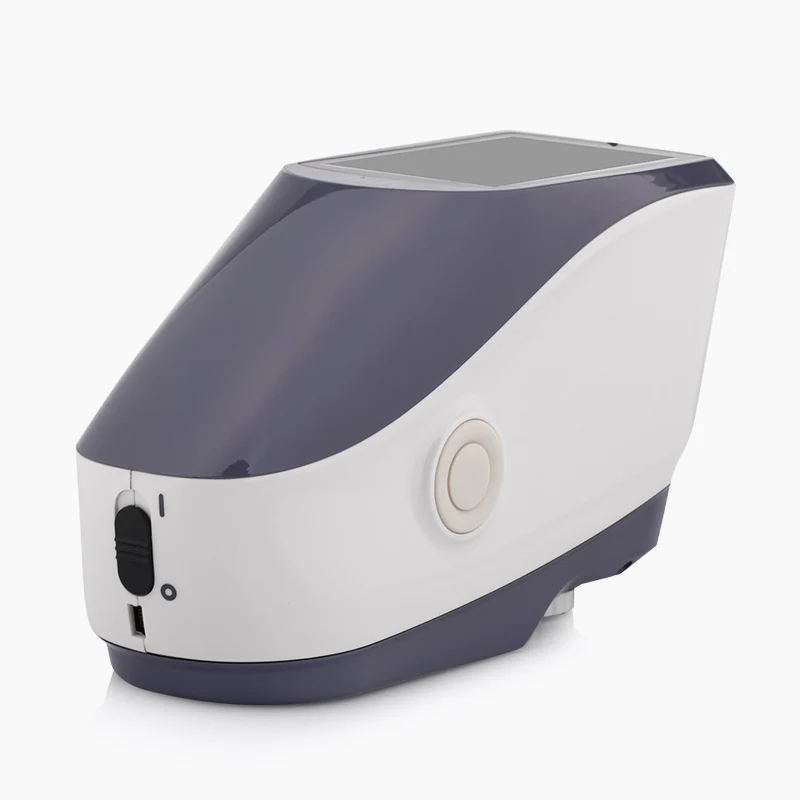

Handheld Color Measuring Device CIE LAB Delta E Portable Spectrophotometer 45/0 YS4510
YS4510 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS4510 is perfectly suitable to measure the colors of plastics, rubber, metals, wood,cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Product Paramenters
Product Application
Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system.
It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive,
medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive,
medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
45/0 Grating Spectrophotometer | ||
Model | YS4510 Customized One Aperture 45/0 Spectrophotometer | |
Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833 | |
Features | Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
Integrating Sphere Size | Φ48mm | |
Light Source | Combined LED Light | |
Spectral separation device | Concave Grating | |
Detector | 256 Image Element Double Array CMOS Image Sensor | |
Wavelength Range | 400~700nm | |
Wavelength Pitch | 10nm | |
Half Bandwidth | 10nm | |
Reflectance Range | 0~200% | |
Measuring Aperture | Customized One Aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm;SAV:Φ2mm/Φ3mm; | |
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy | |
Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) | |
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313), TI(ASTM E313,CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, | |
Observer Angle | 2°/10° | |
Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) | |
Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset | |
Measurement Time | About 1.5s | |
Repeatability | Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) Chromaticity value:MAV,within ΔE*ab 0.05( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) | |
Measurement mode | Single Measurement, Average Measurement(2-99) | |
Size(L*W*H) | 184*77*105mm | |
Weight | About 600g | |
Power source | Li-ion battery. 5000 measurements within 8 hours | |
Illuminant Life Span | 5 years, more than 3 million times measurements | |
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | |
Interface | USB | |
Data memory | Standard 500 Pcs, Sample 20000 Pcs | |
Language | Chinese,English | |
Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m | |
Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) | |
Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. | |
Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate | |
Notes: The specifications are subject to change without notice. | ||
Details Images
Certifications
Company Profile
Shenyang Huiqi Optics Technology Co.,Ltd. is a professional manufacturer of industrial optical instrument, located in Shenyang,China. Huiqi Optics focused on the development and production of various types of optical equipment and optical elements. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
