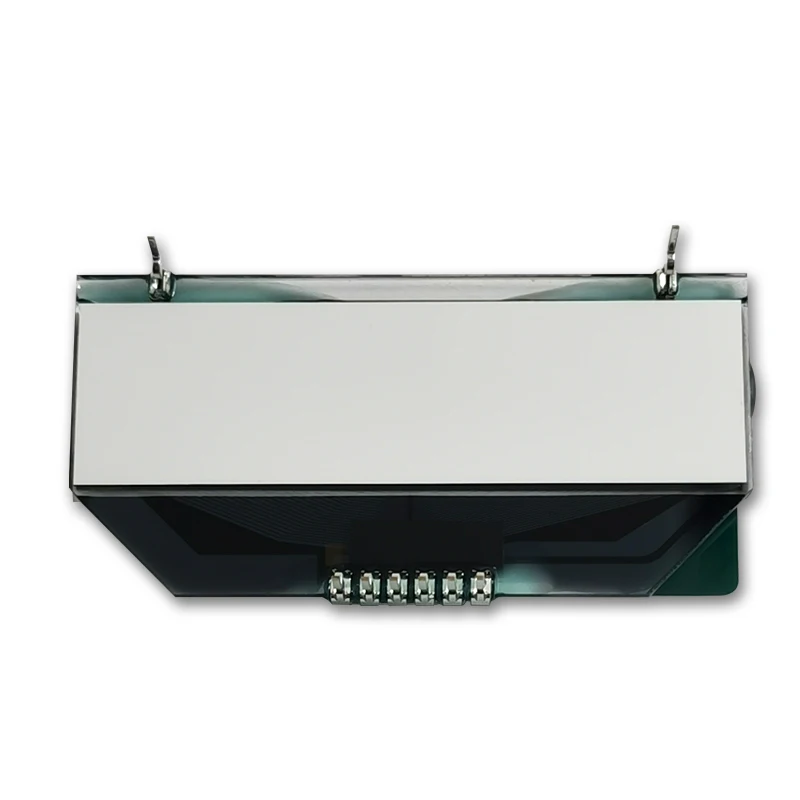

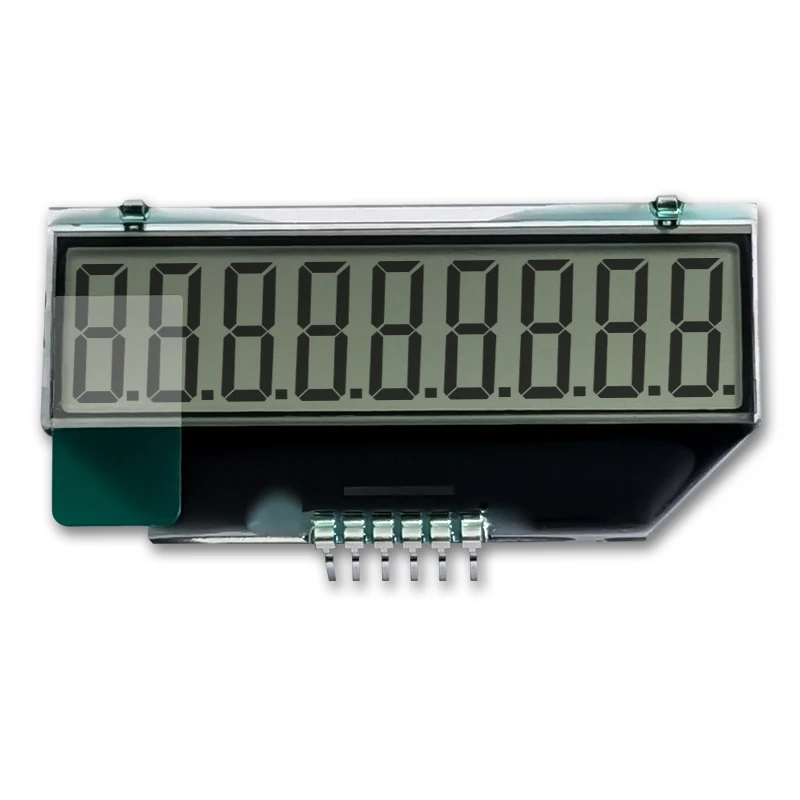

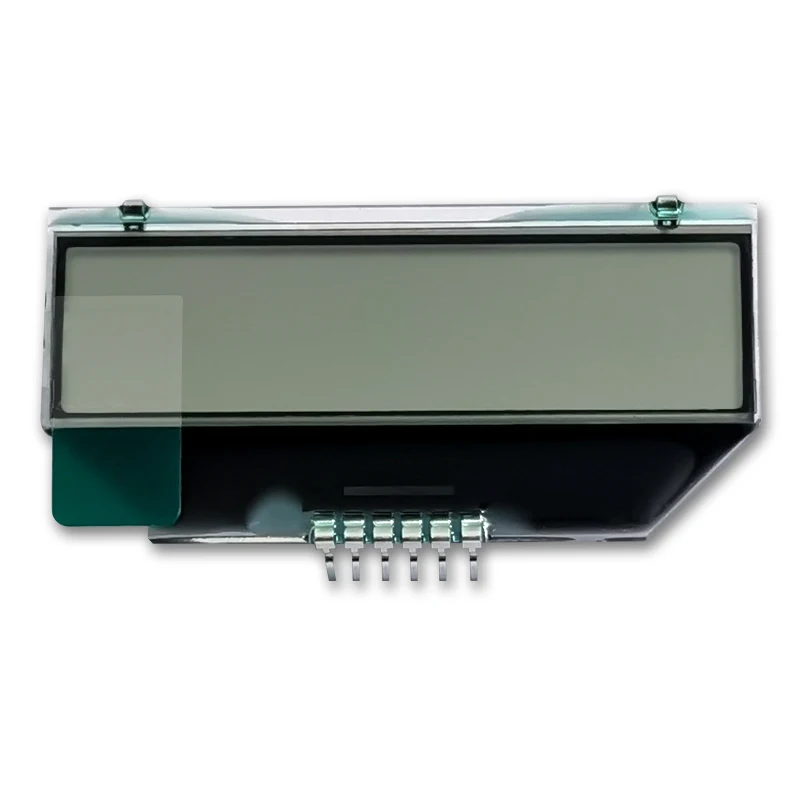

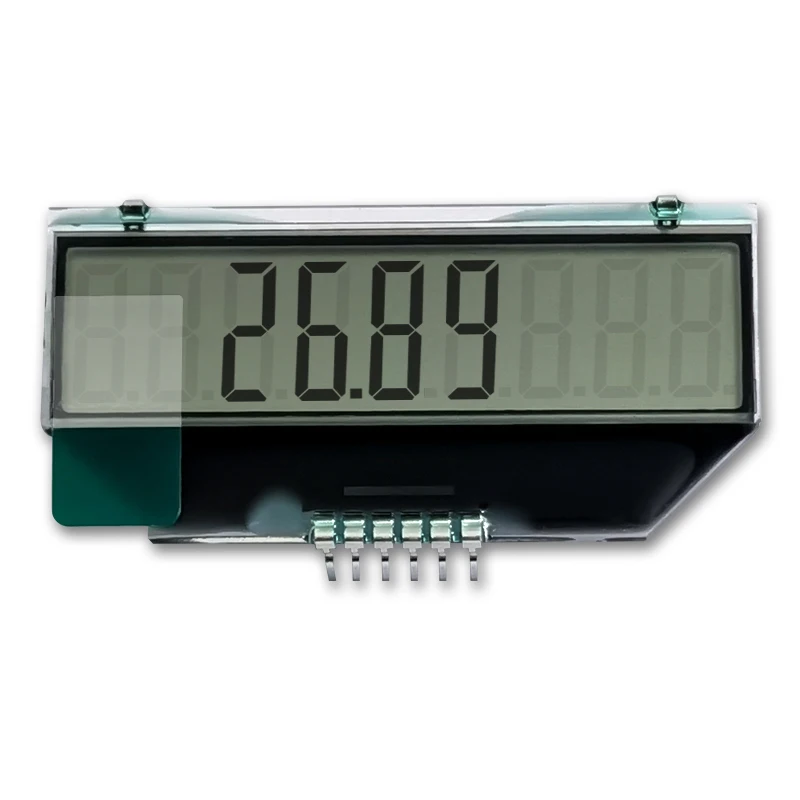

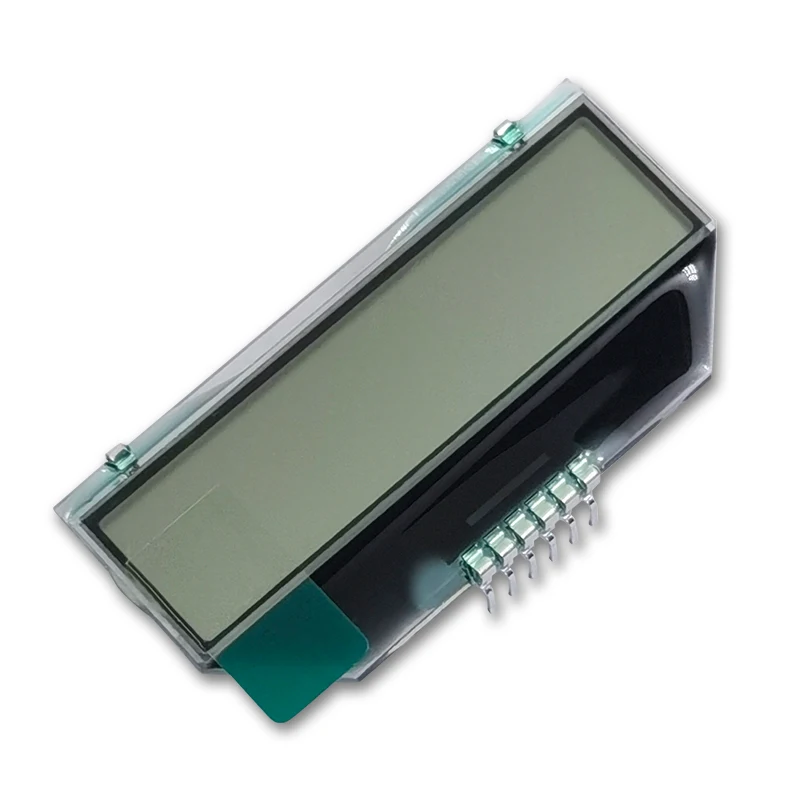

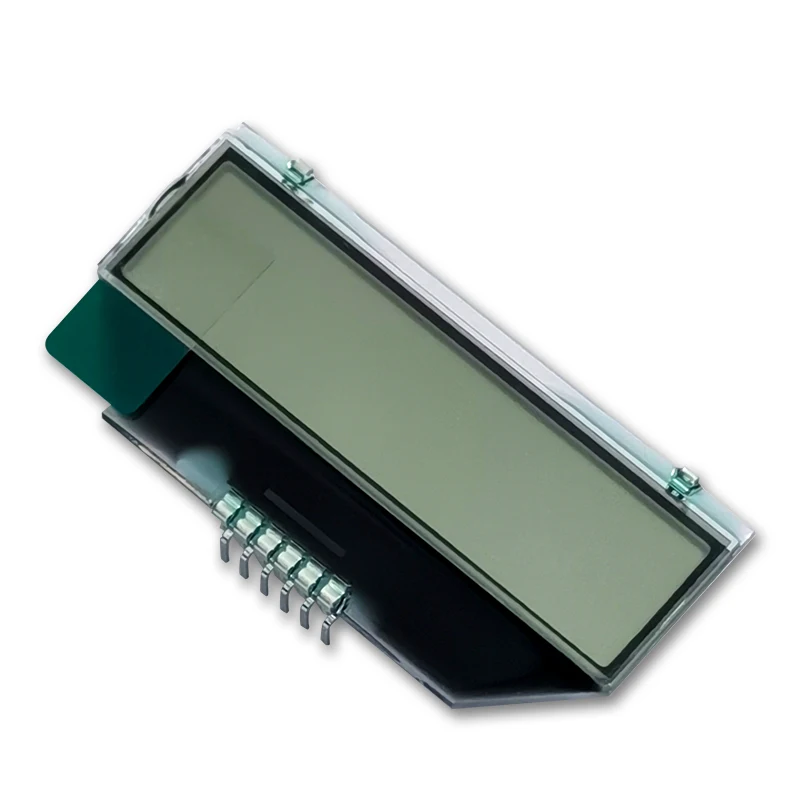

Customized TN LCD 7 Segment LCD Display Module for Water Meter and Petrol Gas Pump
- Category: >>>
- Supplier: Shenzhen Team Source Display Technology Co. Ltd.
Share on (1600374890746):
Product Overview
Description
Product Description

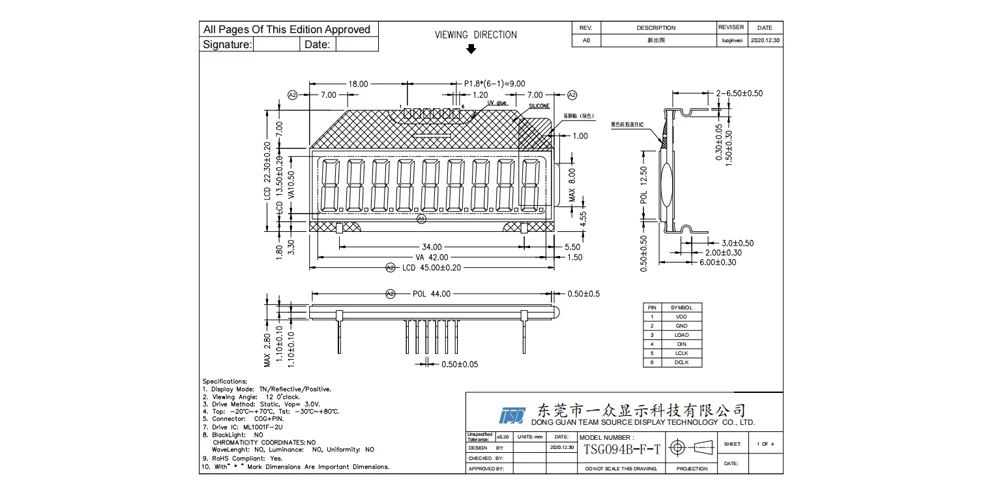

Model Number | TSG094B-F-T |
Display Type | TN, Positive |
Outline Dimension | 45*22.3*2.80(mm) |
42*10.5View Area | 42*10.5(mm) |
View Direction | 12 O'clock |
Voltage | 3V |
Dot Resolution | Segment |
IC | ML1001F-2U |
Drive Method | Static |
Operating Temperature(℃) | -20--70/-30--85 |
Storage Temperature(℃) | -30--80 |
Brand Name | TSD |
Place of Origin | China |
Notice:

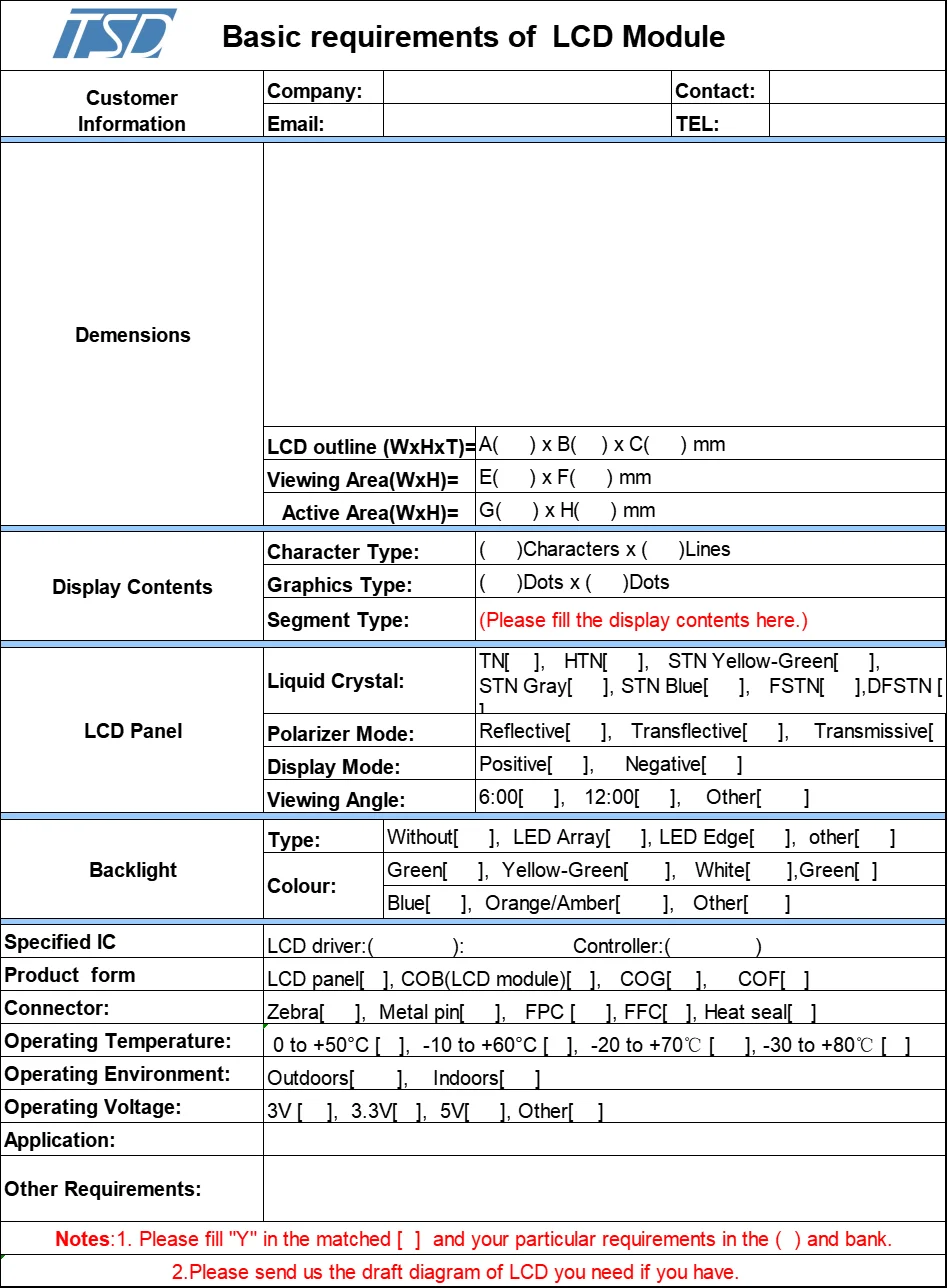

We have our own factory, and we support customized products. If our display model does not meet your requirements, you can contact us to tell us your requirements, and we will customize the products you want for you.
