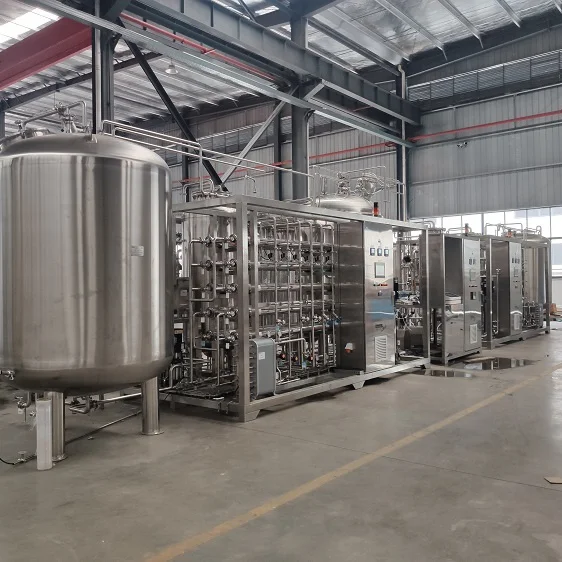

Pharmaceutical Osmosis Treatment /WFI System /PS Generator for Injection Water Production
- Category: >>>
- Supplier: Molewater System Co. Ltd.
Share on (1600375006903):
Product Overview
Description

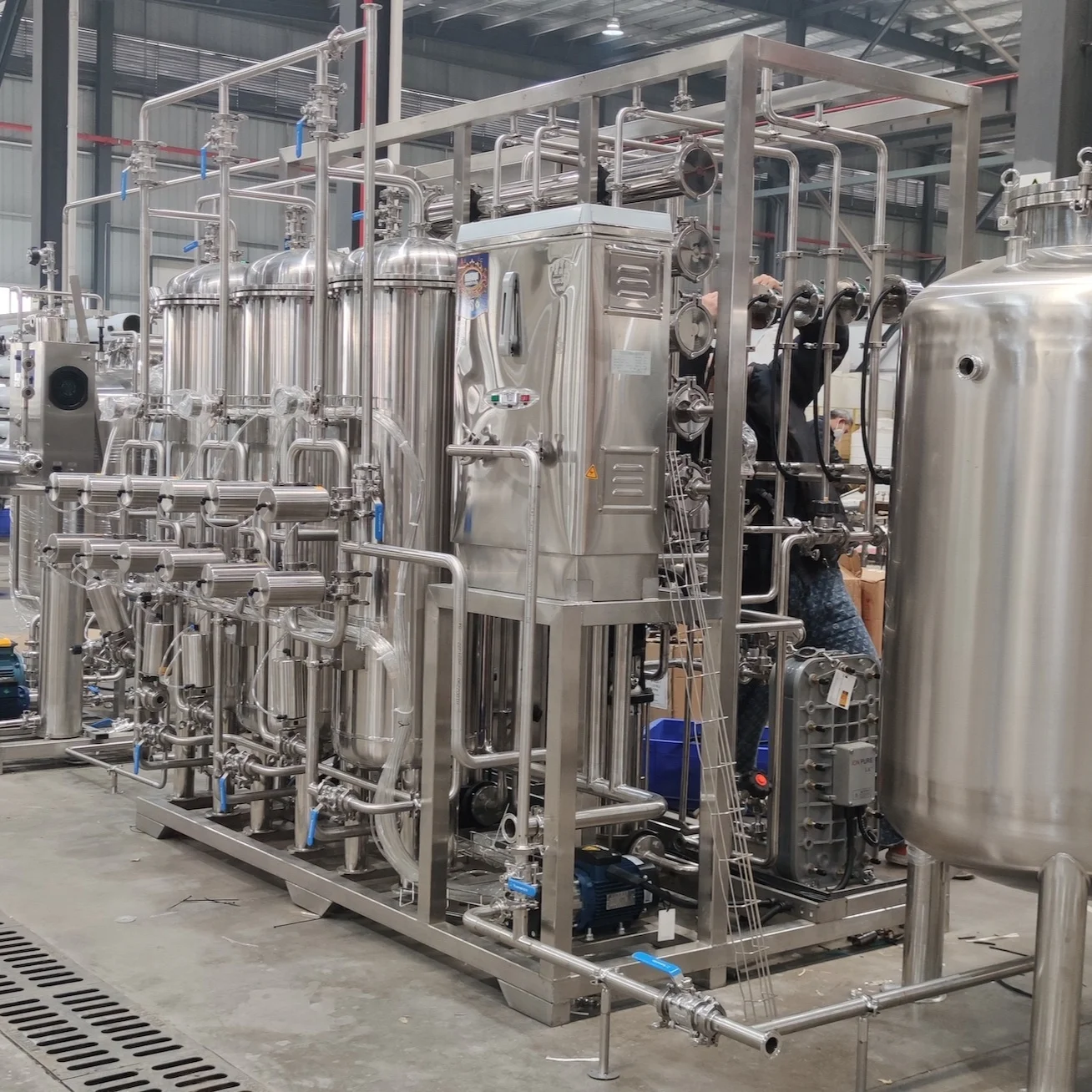

Pharmaceutical Osmosis Treatment /WFI System /PS Generator for Injection Water Production
1.Product Specifications:

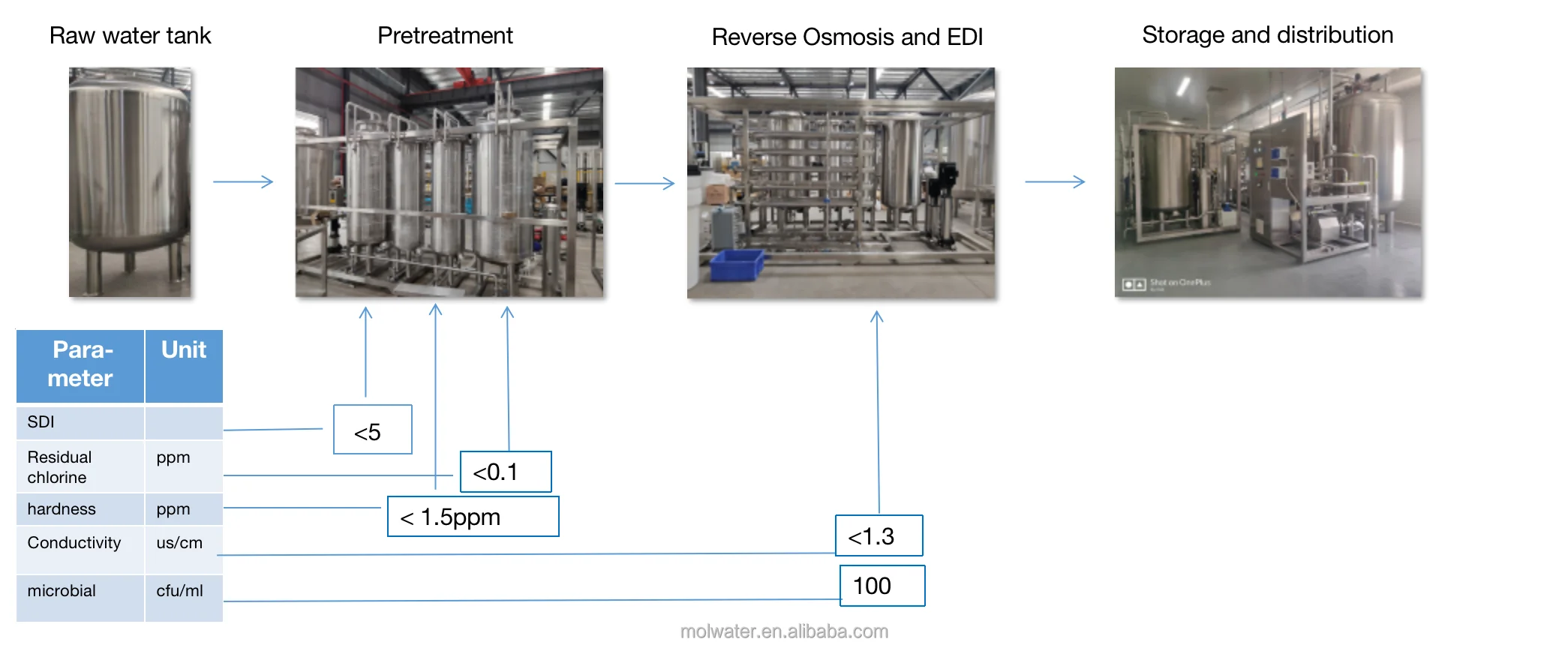

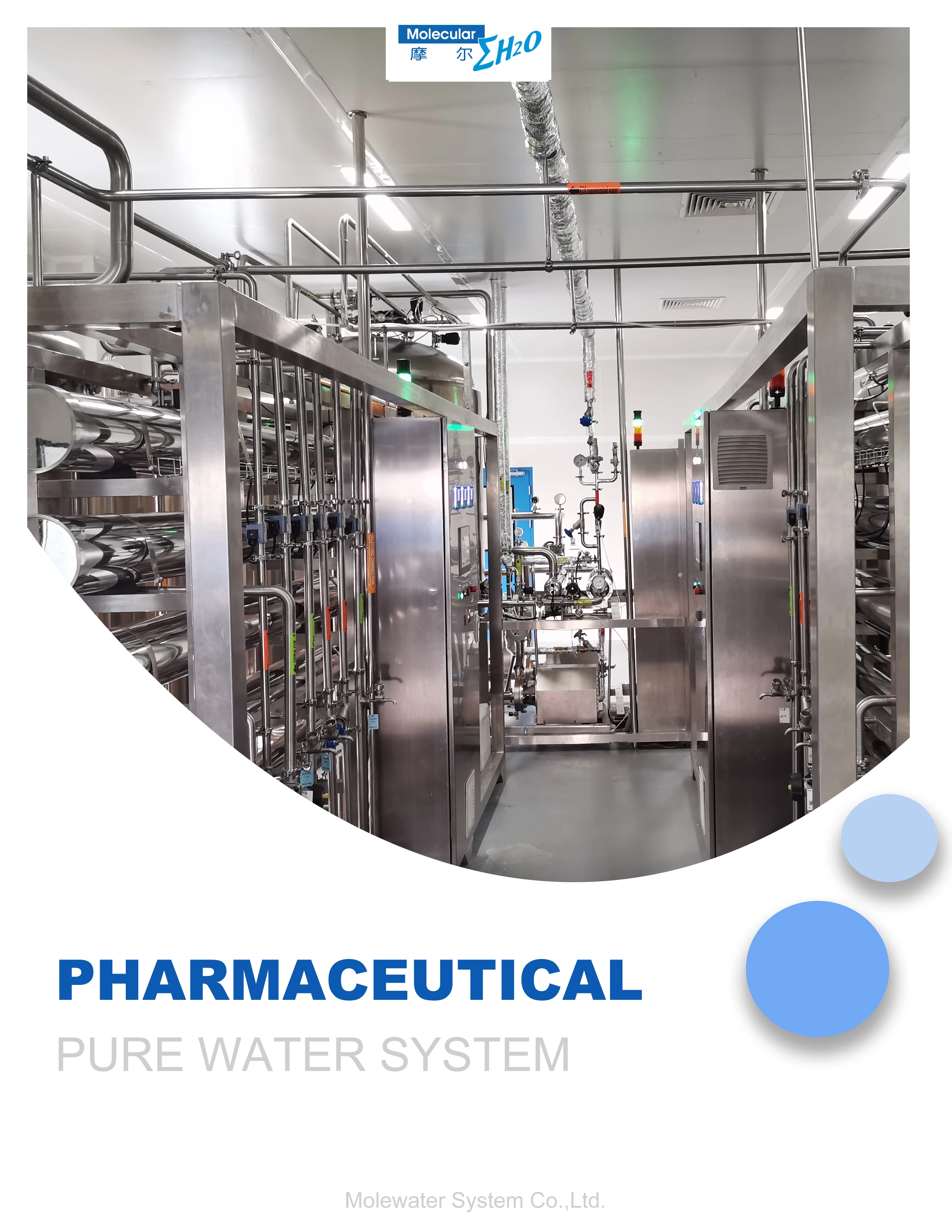

1.1.PW system specifications:
Feeding water quality | Tap water quality |
| Water capacity | 250 to 10,000LPH |
| Pretreatment | Multimedia ,active carbon ,softener filter |
| Sterilization | Chemical , heat ,UV lamp ,Ozone sterilizer |
| RO membrane | DOW USA |
| EDI brand | Ionpure brand |
| Water pump | Groudfos or CNP |
| Online monitoring | Conductivity,temperature,pressure,TOC,flow rate etc. |
| Meter brands | Chinese & burket ,Jumo &others |

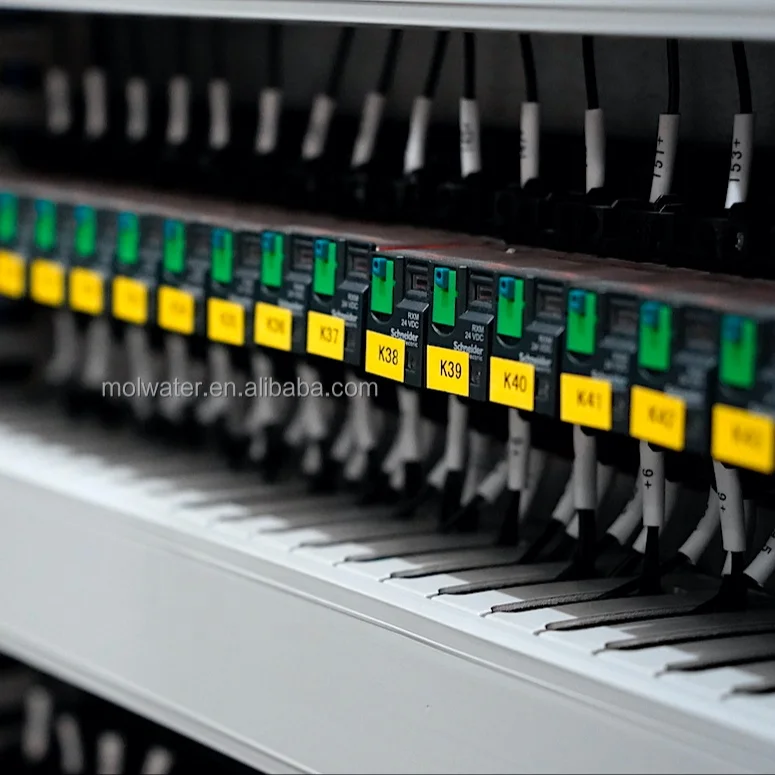

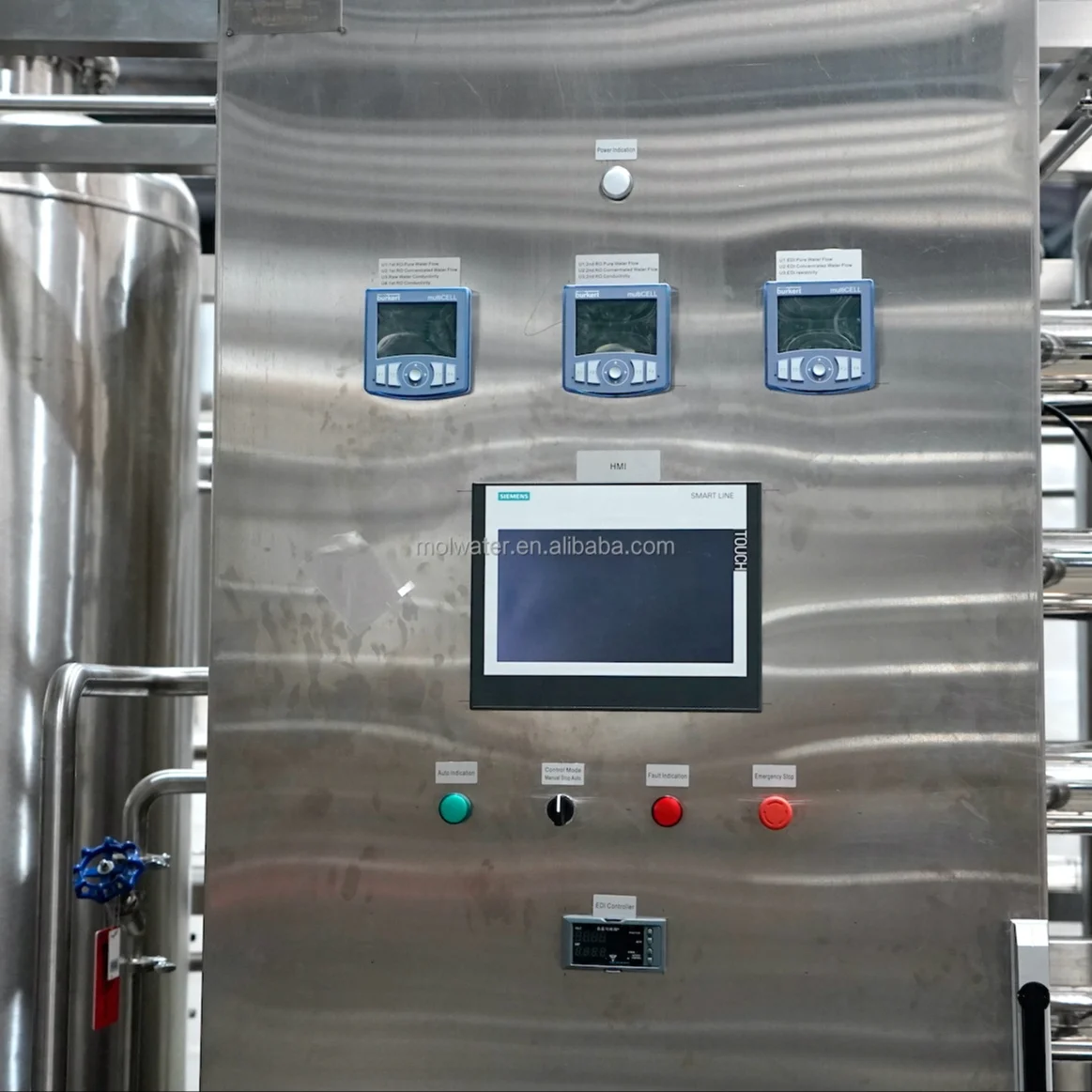

| Control | Automatic with PLC |
| Welding | Automatic |
| Standards | GMP |
| Other attached products | Distribution system with Loop |
| Other service | Oversea installation |
| Application | capsules, tablets, syrups, suspensions, injectables, soft gelatin capsules, suppositories, creams, and ointments ,healthcare medicine,animal medicine production and so on. |

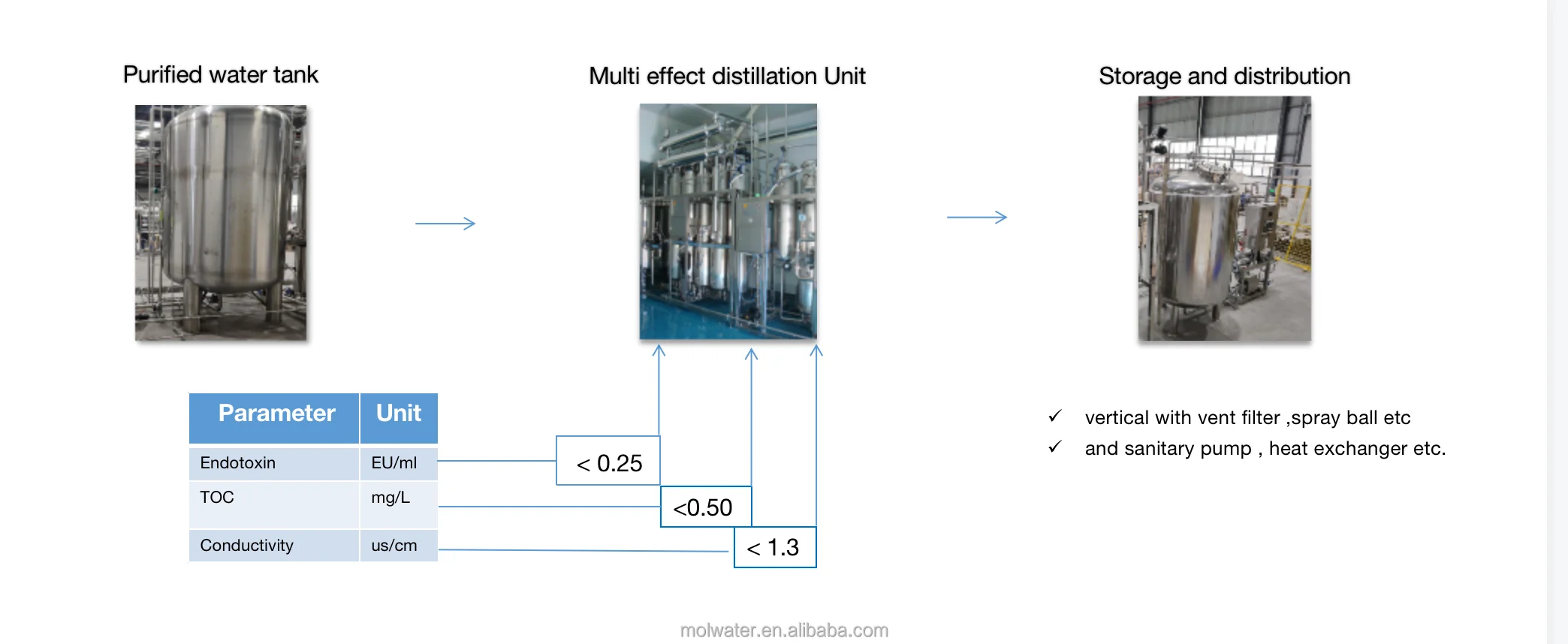

1.2.WFI System Specifications
Product Name | Multi effect distillation System |
Feeding water quality | Purified Water |
| Water capacity | 250 to 10,000LPH |
| Output water quality | Endotoxin is less than 0.25EU/ml |
| Technology | Evaporation unit, separation unit, condensing unit |
| Online Meters | Chinese brand or Europe brand |
| Endotoxin reducing rate | > 99.99% |
| Water pump | Groudfos or CNP |
| Online monitoring | Conductivity,temperature,pressure,TOC,flow rate etc. |
| Control | Automatic with PLC |
| Welding | Automatic |
| Standards | cGMP |
| Other attached products | Distribution system with Loop |
| Other service | Oversea installation |
| Application | Injection (IV) water production & cleaning system & Water for sterile pharmaceutical production |
2.1 Features of PW System
- Backwashing for the pretreatment filter
- Heat water disinfection for the active carbon filter
- 1st ,2nd RO Water Conductivity & water flow rate Online monitoring
- EDI water resistance online monitoring
- TOC online monitoring is optional
- Separated CIP device for the RO membrane
- Whole stainless steel comply with GMP standards
- Recycling system for pure water with conductivity and flow rate online monitoring
- 2nd RO & EDI concentrated water back to the raw water tank
- Heat water or Ozone sterilizer disinfection for pure water and loop system
- Separated Distribution System including UV lamp, sanitary pump ,electrical control cabinet
- Regularly disinfection for the loop system
- Recycling water quality online monitoring
2.2 Features of WFI System
- Online monitoring
- Seperated distribution system
- more than 99.99% endotoxin reducing rate
- Advanced technology and process ; High performance
- Easy to operate;Use reliable;Low noise;Energy saving
- The maximum capacity of multi-effect distillation machine is about 10000L/H.
I.ABOUT PRODUCTS
l Drinking-water Pretreatment
l RO Treatment ,EDI Treatment
l Water Distribution
l Water Loop System
l Multi-effect Distillation Systems
l Pure Steam Generation Machine
l Spare Items Available
II.ABOUT SERVICES
l Support FAT

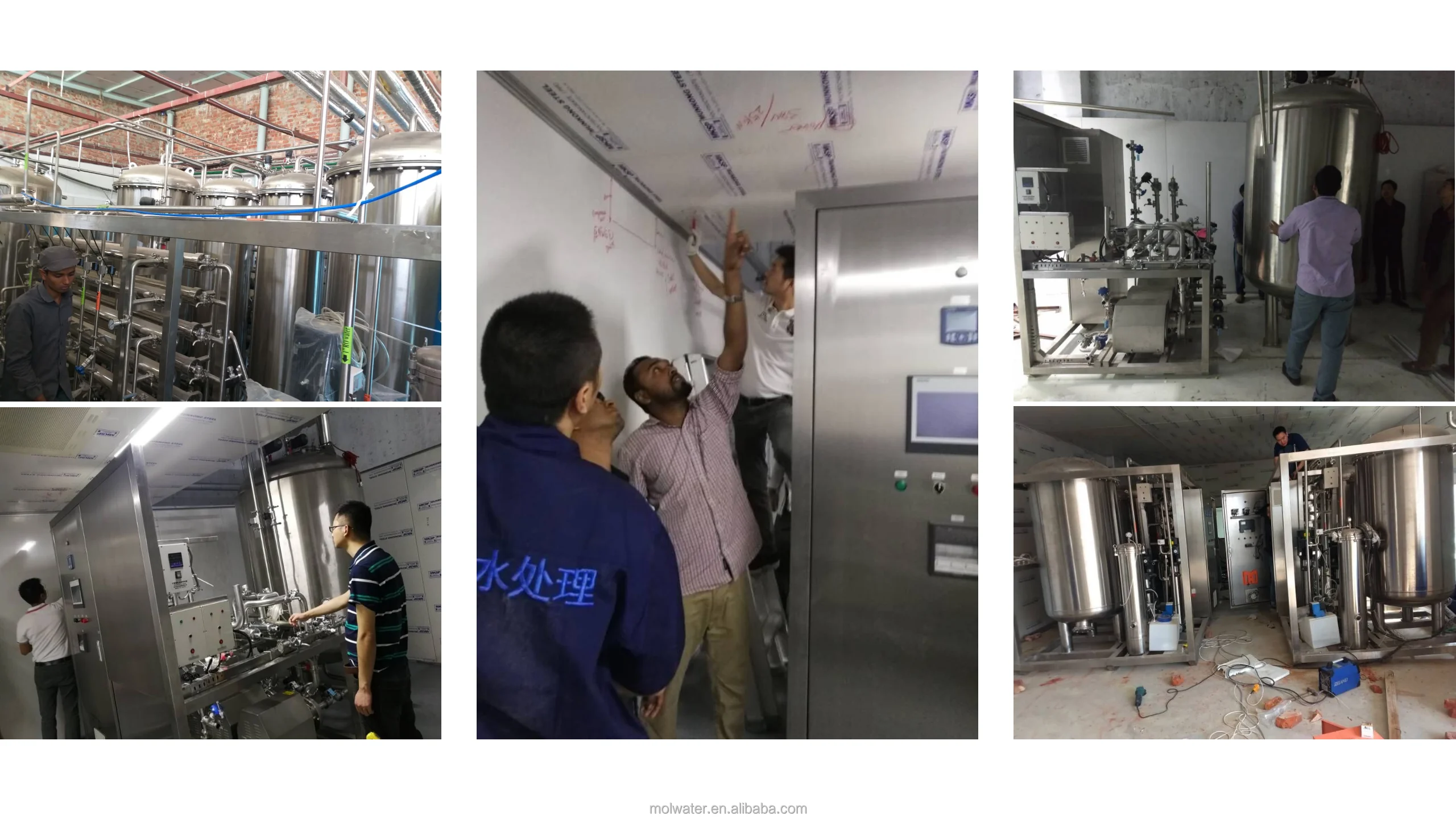

l Support Oversea Installation
l Support Training
l After Selling Service All The Time
Molewater System Co., Ltd
Established Year : 2003
Registered Capacity: 5Million US Dollar
Factory Area: 50,000m2 new and clean factory
Export Country Quantity: Exported to more than 40 countries
Number of Employee: 120 people + 20 engineers with more than 10 years experience
Sample Clients: such as Apple, Vivo, Roche, Foxconn, Quanta Taiwan, SGS, Dupont, Sabic, Bayer, BASF, SK, Pepsi-Cola, Hitachi, Shell, SINOPEC, Ford etc famous companies
Main Products : Ro purification treatment system for pharmaceutical industry and drinking ,lab,hospital .
Address:No.29 Baihai Road,Baishiyi,High-tech Zone,Chongqing,China
Jiangbei Airport to company : About one hour by car
Contact : Ms.Serena
Email:serena(at)molewater.com
Tel: +86 1388 3975 943 / Whatsapp:+86 183 2368 2968
Project Samples:Bangladesh , Ecuador ,Guatemala , Libya,Russia etc.
Office working time : From Monday to Saturday ( 8:30am-17;30pm)
You can contact me at any time ,when I receive your inquiry I will reply you soon.
What I can do for you :
- Establish effective communication way between clients and engineers
- Help clients solve previous technical questions
- Follow projects progress during production closely and give feedback to clients
- Collect qualified documents and drawings as client required
- Arrange safe export packing and shippment
- Arrange oversea installation service ,including engineer visa & air tickets.
