Supply Fast Speed Water Well 400m Water Well Drilling Rig
US $19000-$30000
Maquina perforadora Para Pozos De Agua 280 м глубокий Hydraulique Hidrolik продается горы портативная гидравлическая буровая установка для бурения скважин на буровая установка
- Category: Mine Drilling Rig >>>
- Supplier: Chengdu ShiDaShi Mechanical Equipment Co. Ltd.
Share on (1600375099666):
Product Overview
Description
Product Categories

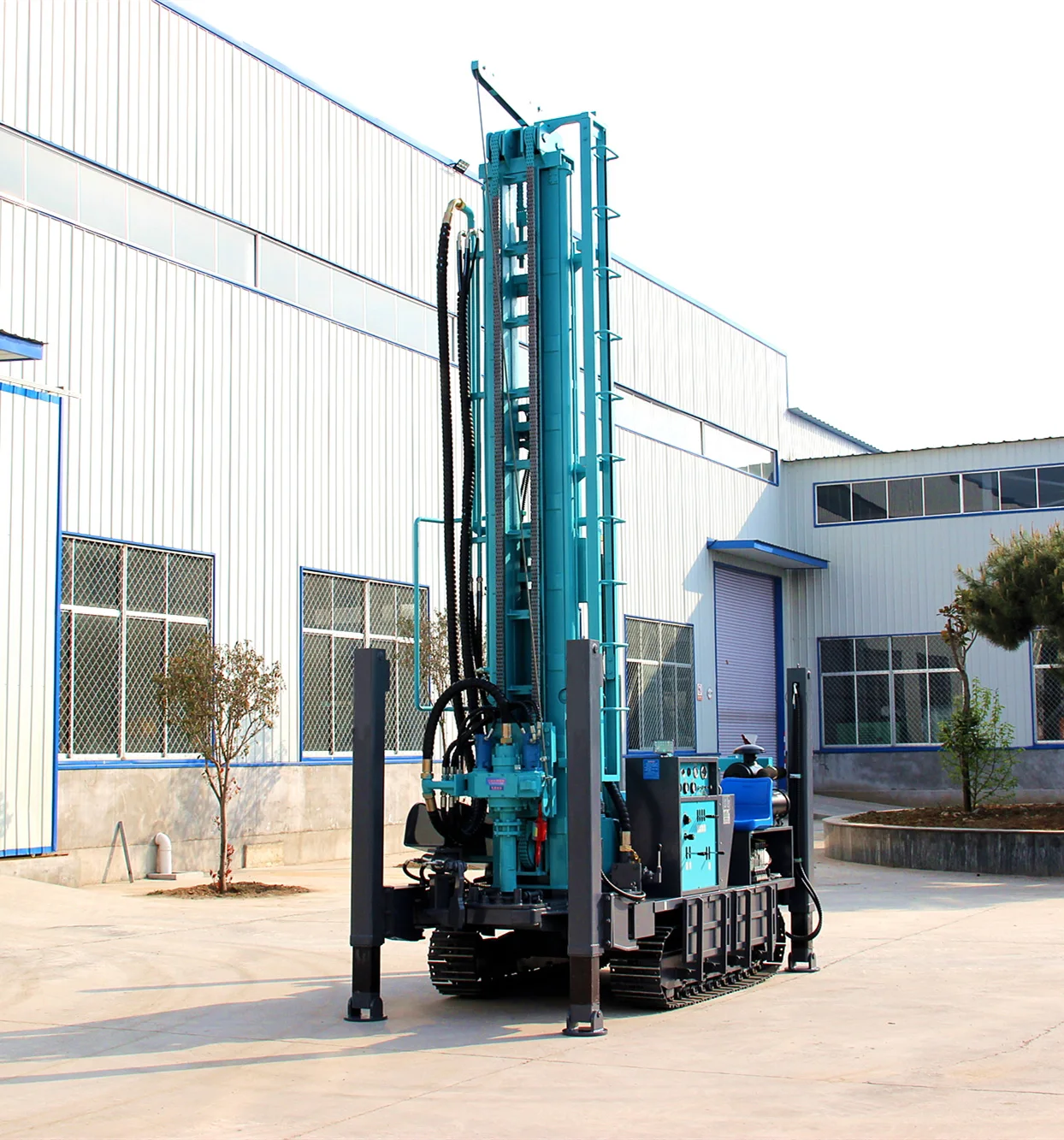

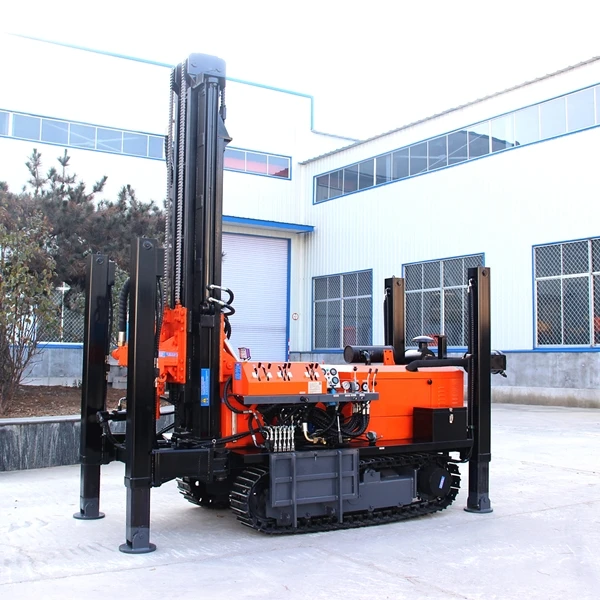

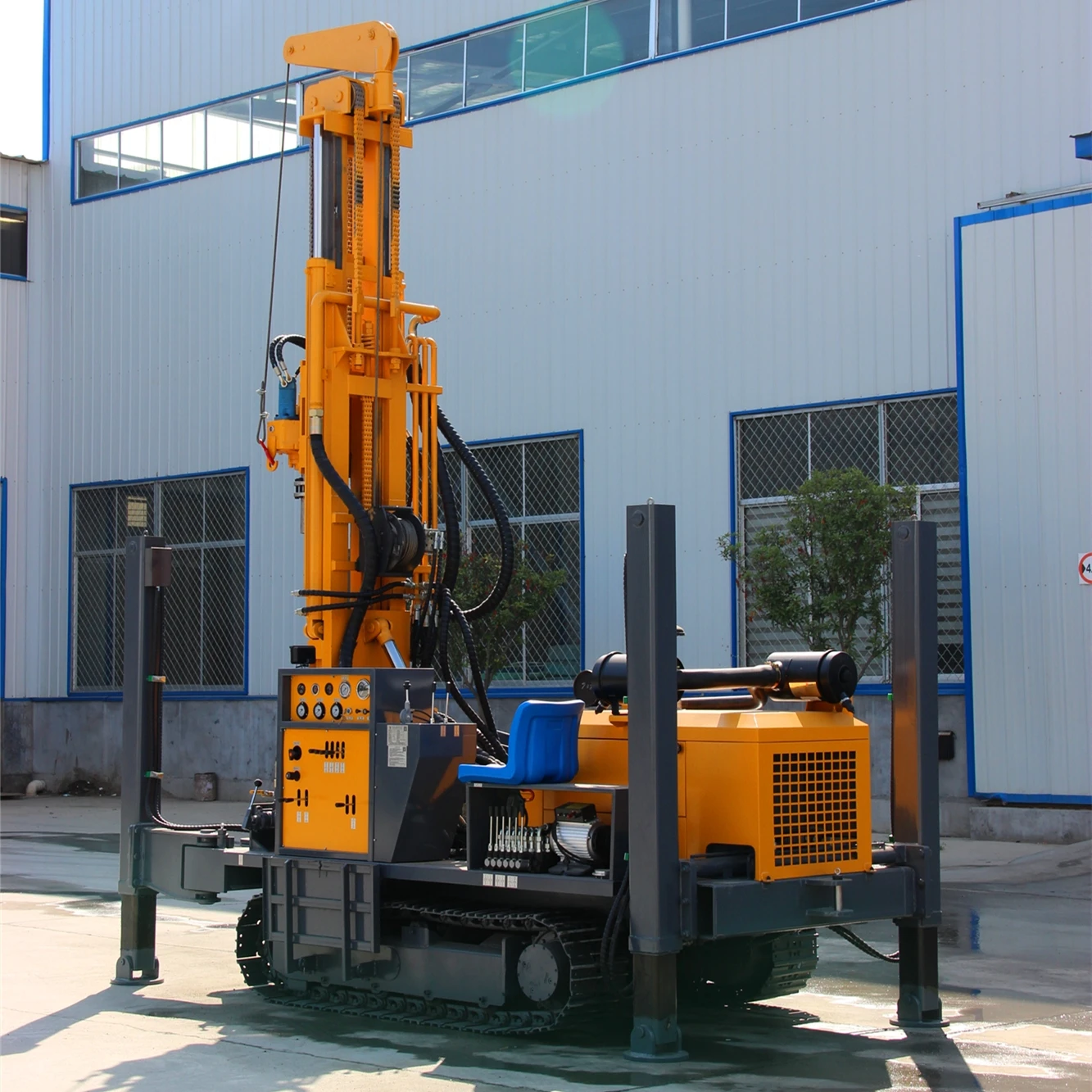

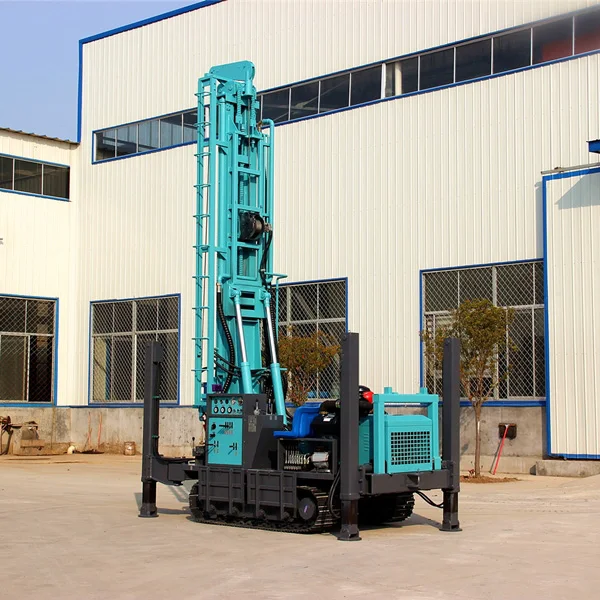

280m depth diesel engine crawler type Hydraulic water well drilling rig
Eighteen years of water well drilling rig manufacturing history
Meet your customized needs
Best service at the lowest price
Product Paramenters
Model | KS - 280 |
Drilling depth(m) | 280 |
The hole dia.(mm) | 140-254 |
One-time advance length (m) | 6.6 |
Walking speed (Km/h) | 2.5 |
Climbing angle(Max) | 30 |
Equipped capacitor (KW) | 70 |
Using air pressure (MPA ) | 1.7-3.0 |
Air consumption （m3 / min ) | 17-30 |
Drill pipe diameter (mm) | Φ76 / Φ89 |
Drill pipe length (m) | 1.5m 2.0m 3.0m 6.0m |
Rig lifting force | 17 |
Swing speed (rpm) | 45-70 |
Swing torque (N.m) | 4300-5500 |
Dimension（mm） | 5900*1800*2450 |
Details Images

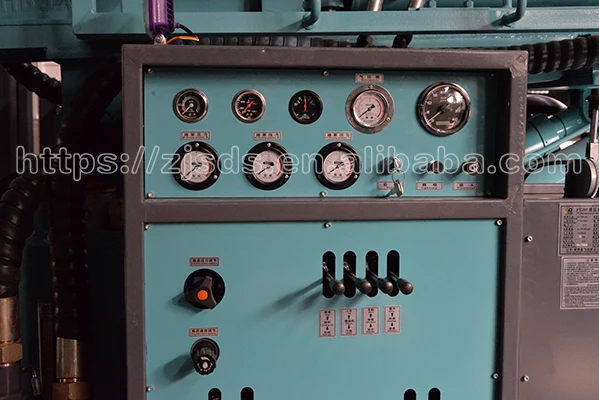

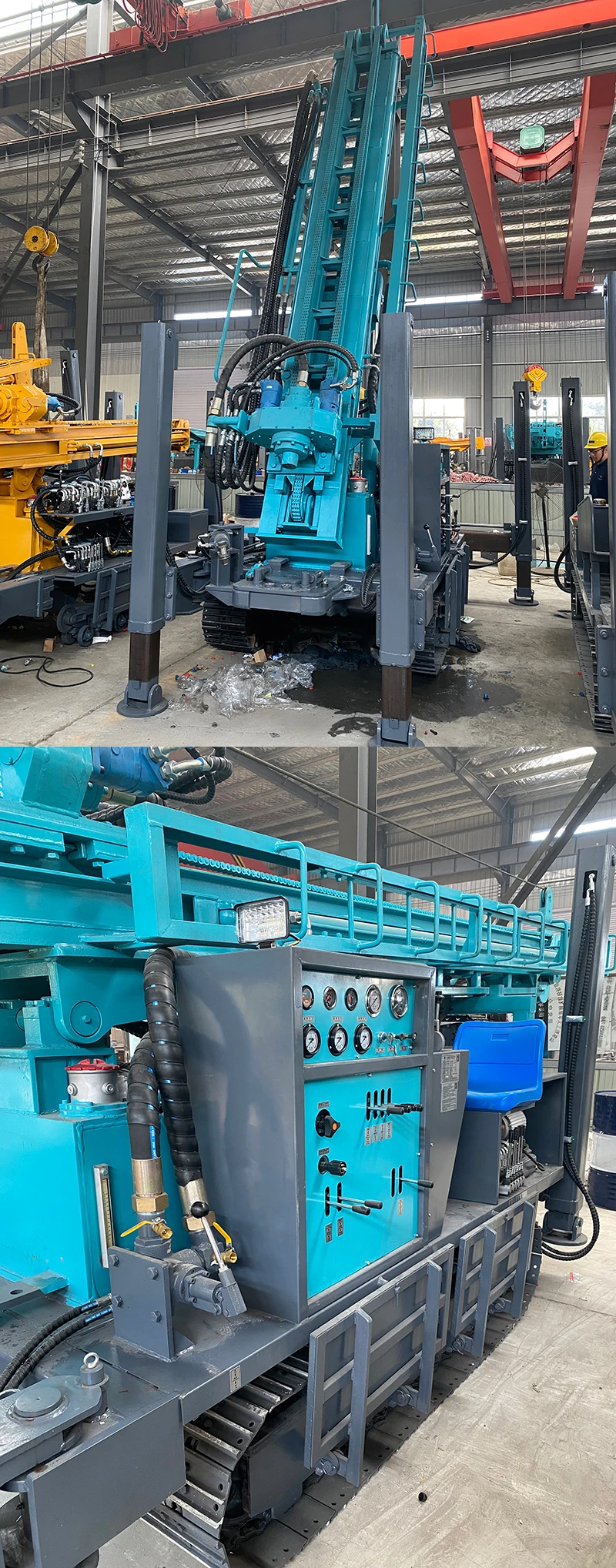

Console
The console is composed of a console frame, manual reversing valve, pressure reducing valve, speed regulating valve, oil pressure
gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are
concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with
sufficient area to operate.
gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are
concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with
sufficient area to operate.

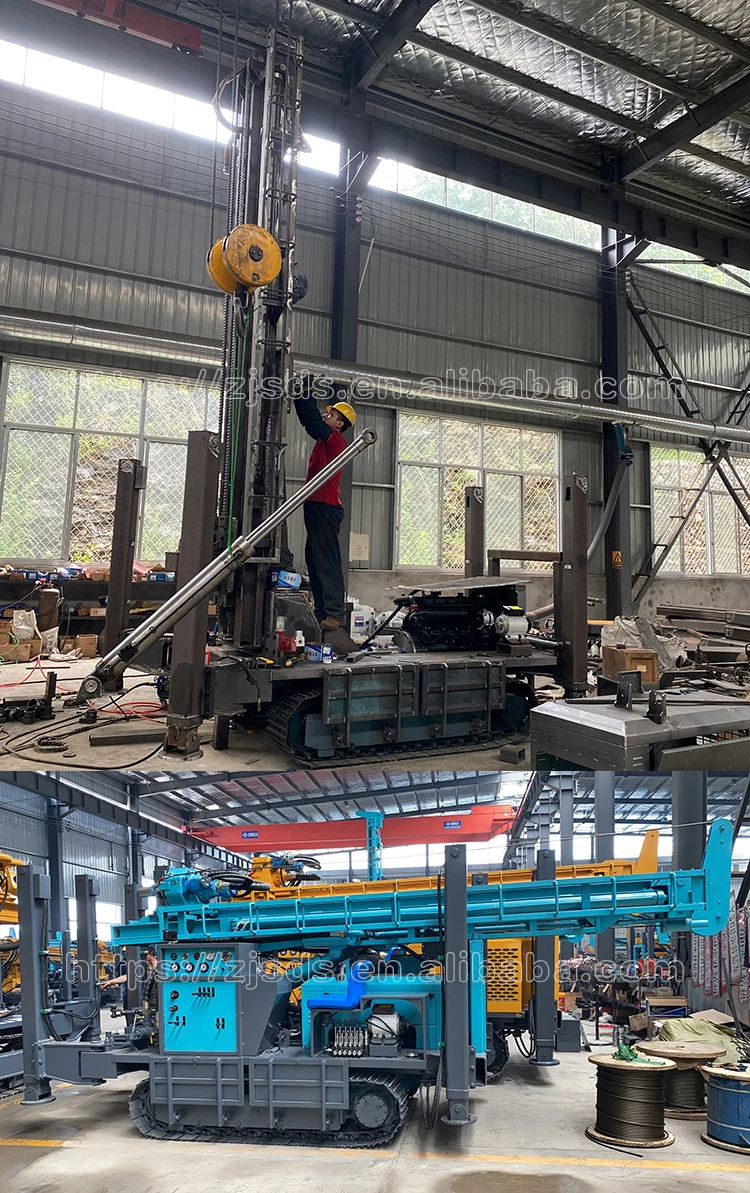

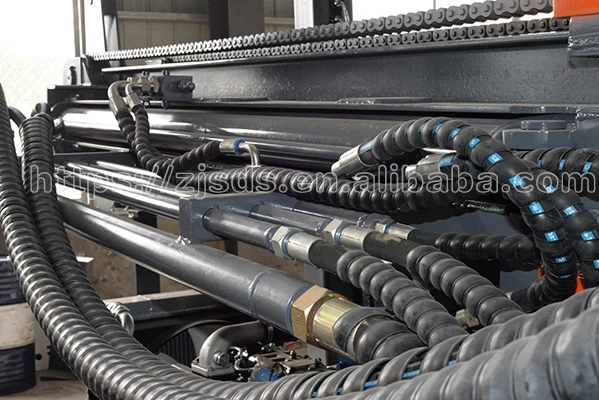

Promotion part
The propulsion part is composed of propulsion cylinder, chain, slide plate and so on. When the piston rod of the propulsion
cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the
chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial
pressure can be adjusted during deep hole drilling.
cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the
chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial
pressure can be adjusted during deep hole drilling.

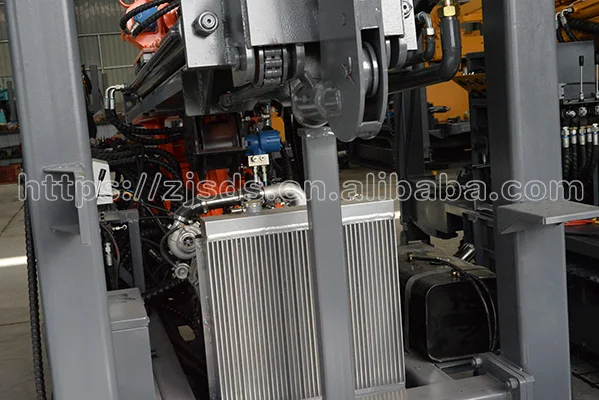

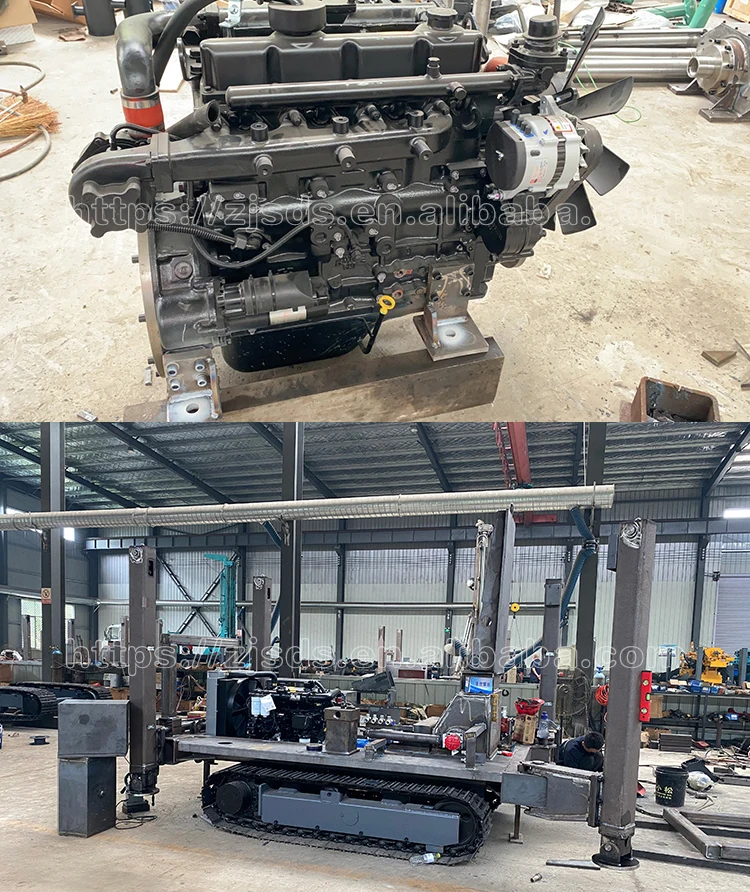

Power system
It is composed of engine, coupling, oil pump connecting plate, and air filter. The air filter is composed of three-stage air
pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.
Recommend Products
KS-180
Product advantages:
180 meters deep
economical and cheap
rubber track
lowest price
economical and cheap
rubber track
lowest price
KS-260
Product advantages:
260 meters deep
equipped with hoist & electric welding machine
steel track
steel track
KS-350
Product advantages:
350m deep92KW
6.6m sliding frame
large machine heavy weight
imported walking motor
6.6m sliding frame
large machine heavy weight
imported walking motor

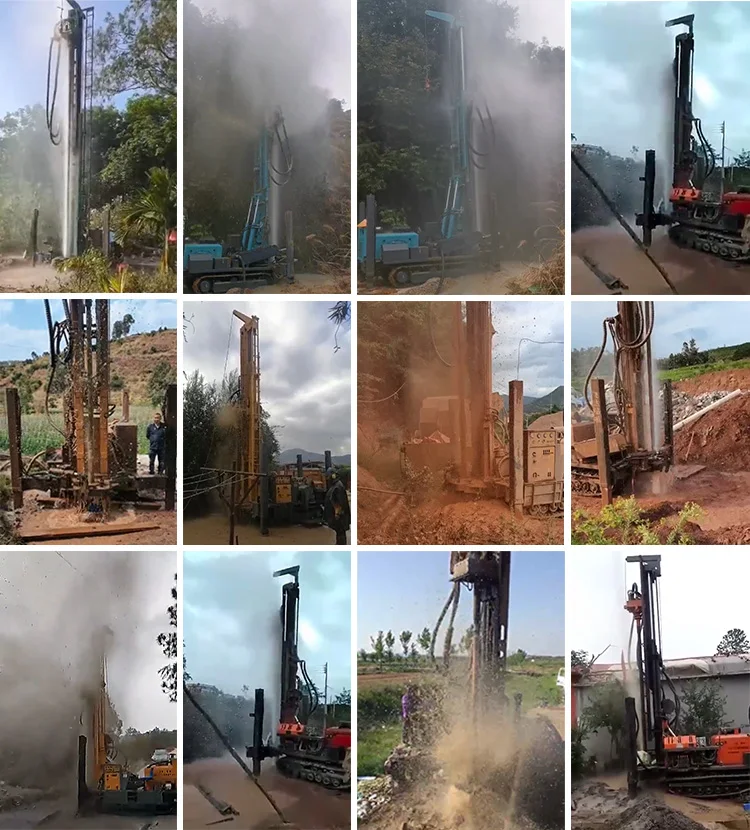

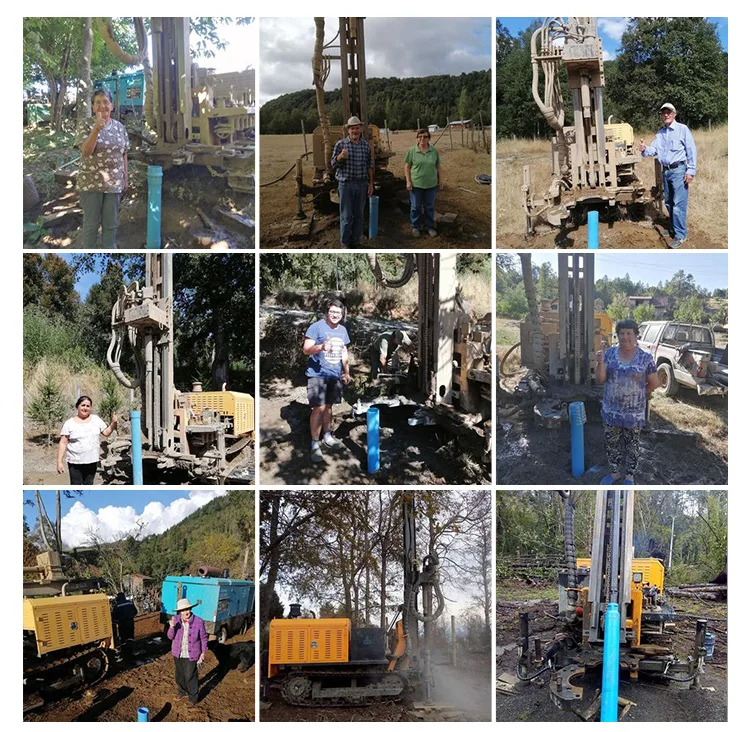

Application

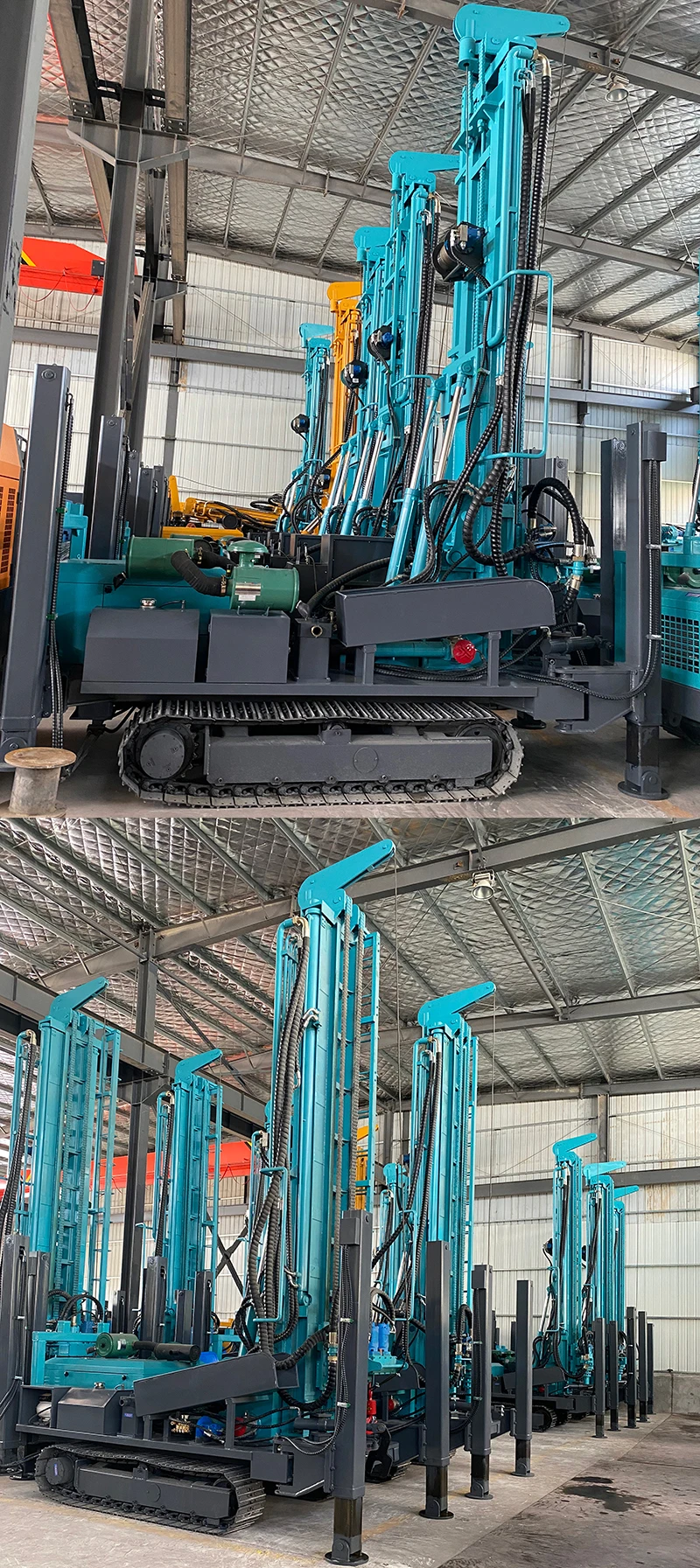

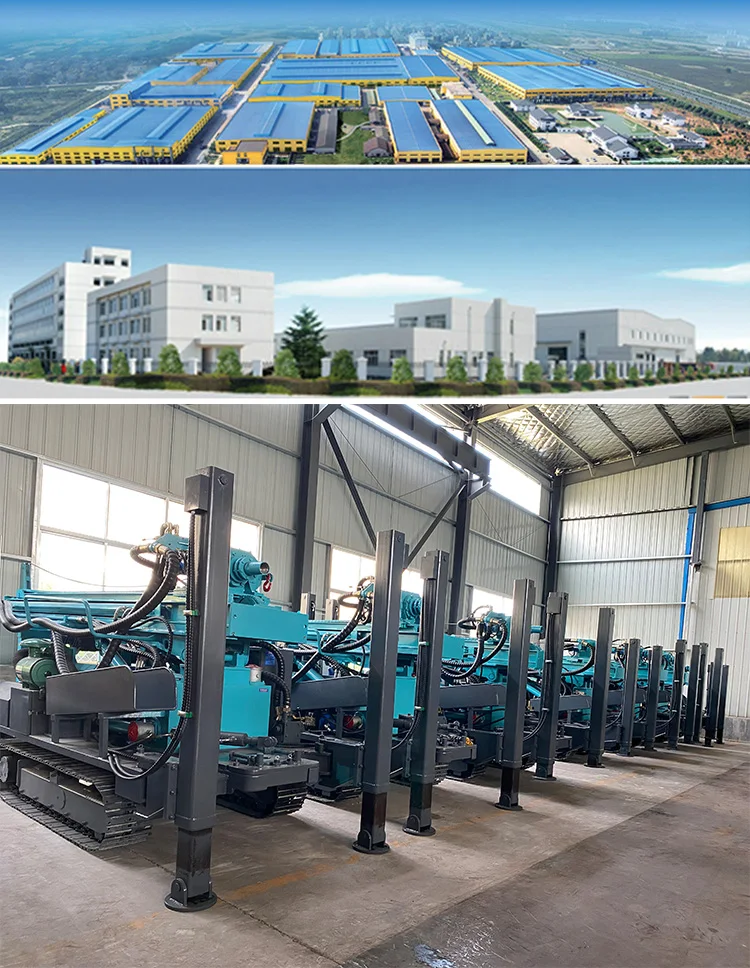

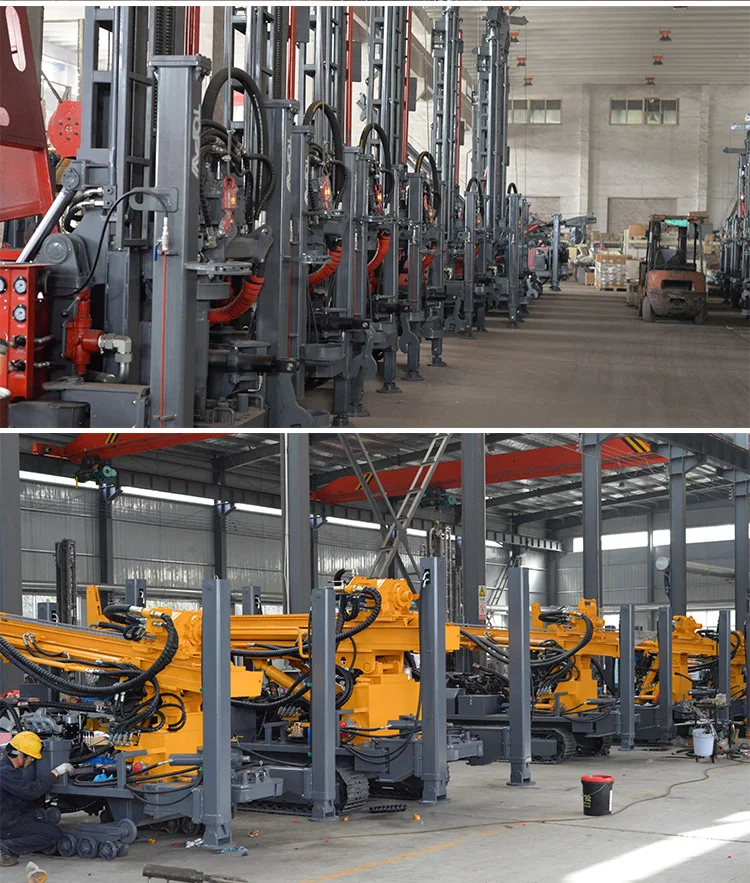

Our Company

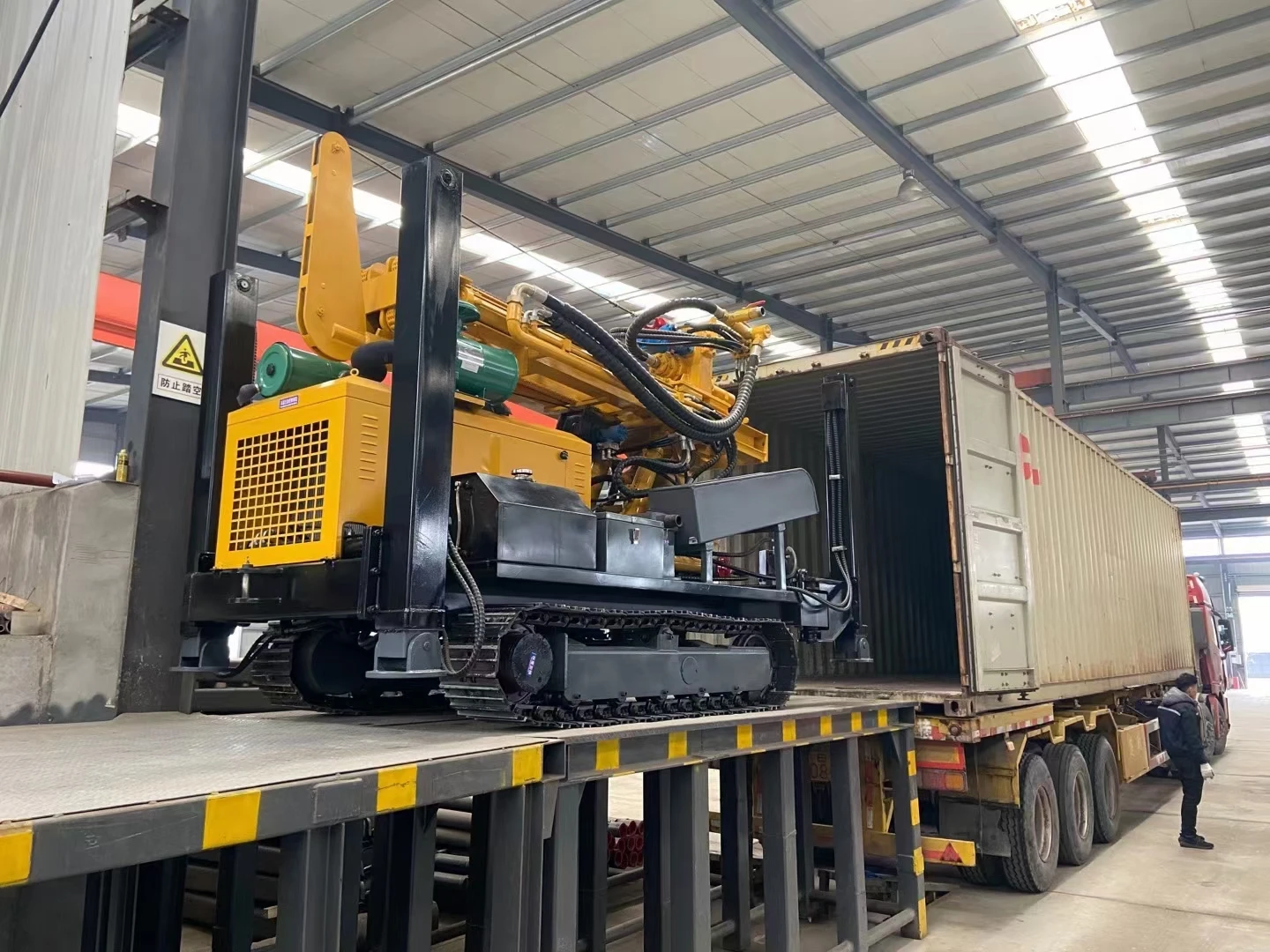

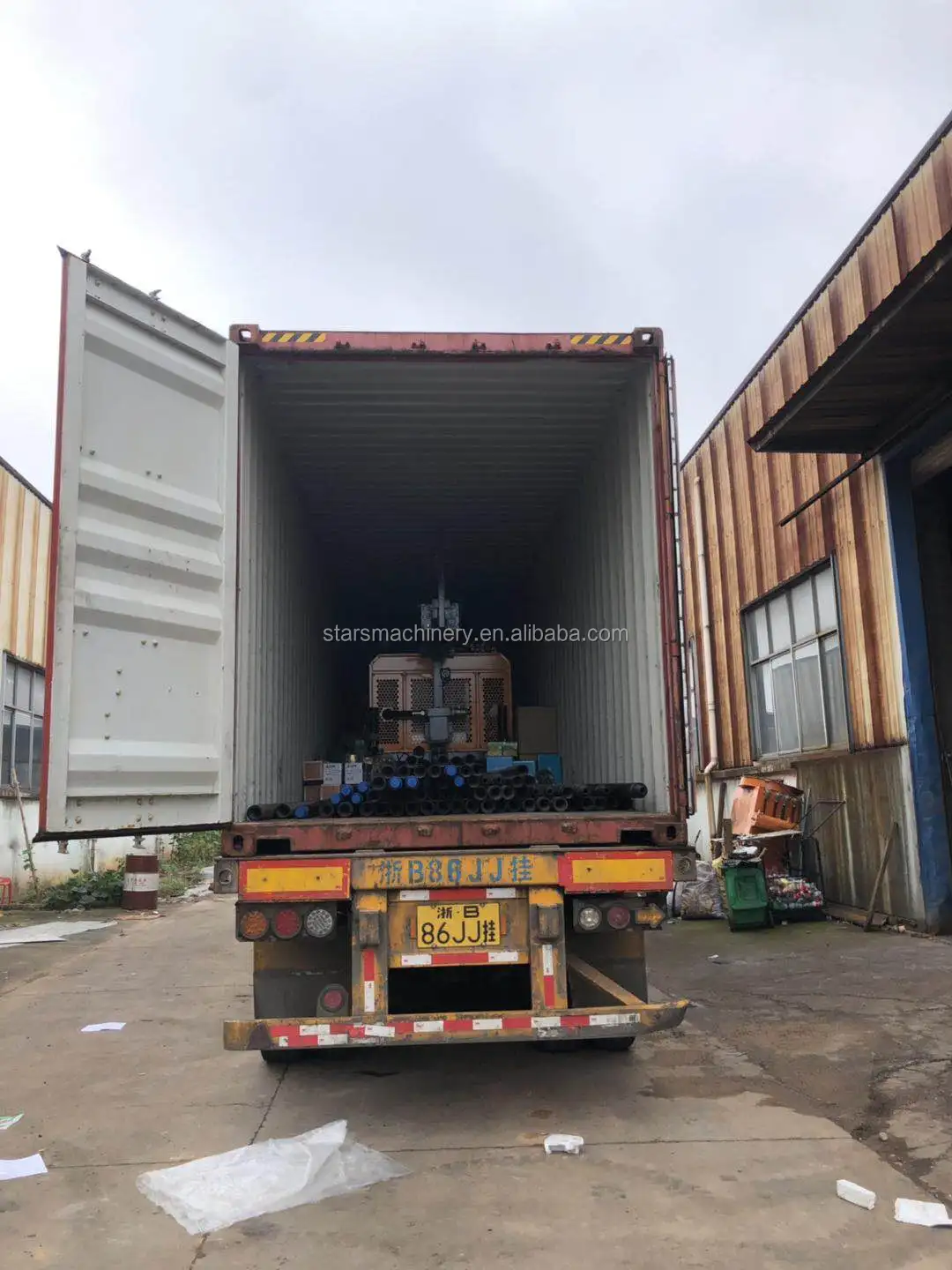

Packaging & Shipping
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
