textile weaving 800 RPM double nozzle Niupai cam dobby water jet loom

Share on (1600375103500):


Price:$8,900.00

Quantity:


Product Overview

Description



Our Services







What we can do for customer?


1. full communication before making contract


1) Fully understand what customer want to make,and make project offer


2) Invite customer to China,to view whole production line process,then make contract


3) Visit customers factory,to Check layout design and Construction details





2. Comminicate on time after making contract?


1) Produce and deliver goods according to the time agreed in the contract,We will inform the customer of the production progress, and timely inform the customer in case of any accident, so as to make a response plan in advance

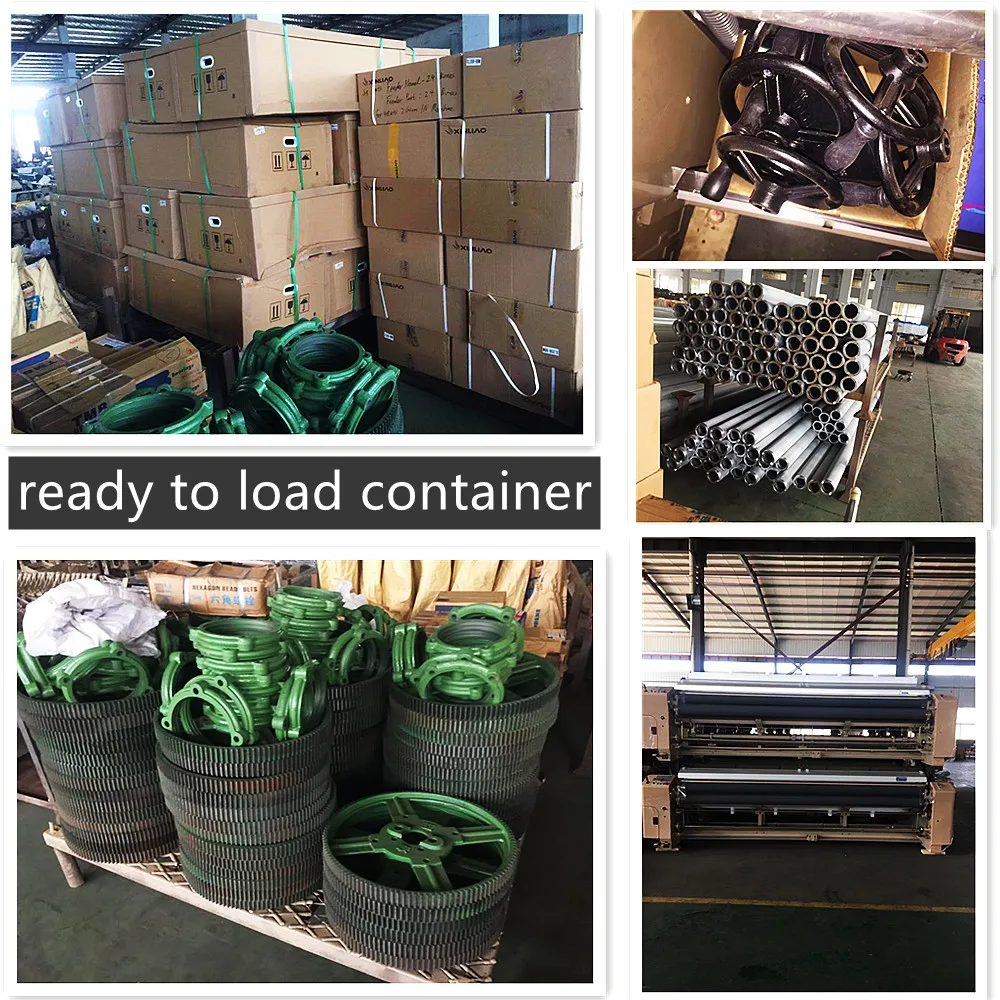

2) Packing and loading container in professional way,to make sure goods can be arrived safely.


3) Supply full correct documents,support customer to get custom clearance smoothly


4) Guide customer to unload machine,and check the goods by packing list.





3. Arrange visa and air ticket in advance when the goods arrive at customers factory.


Send good engineer to guide customer to install the equipment and trial the machine.


10 days more Training guidance is available after installation trial.





4. Customer can send 2-3 engineer to China,we will arrange them to get trainning in good factory,to learn management,working skill,and operation training.





5. Online service is available


6. Spare parts for reservition:we will advise customer to buy,also will give some for free.









Product Description

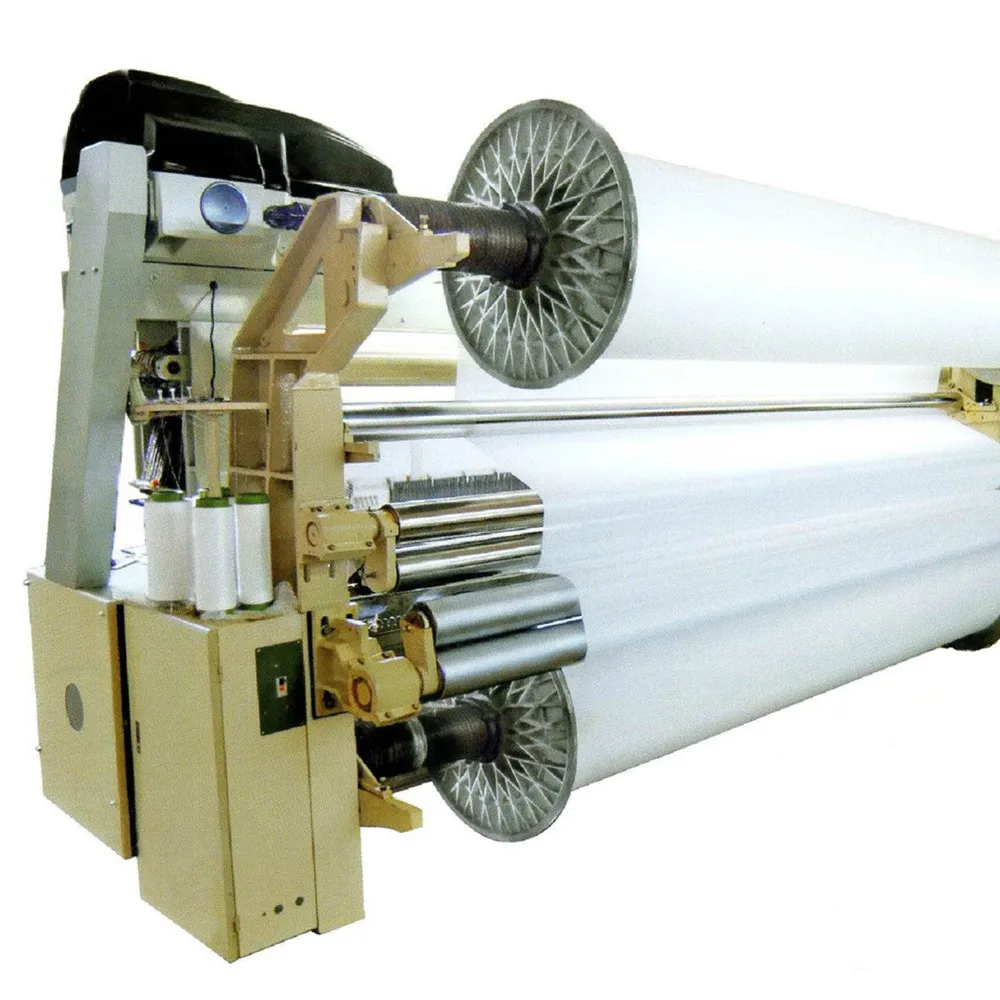

introduction of water jet loom for chemical fiber


We produce high quality water jet loom,high speed,no rust,suitable for heavy fabric.


main specification










































reed width  (cm)



190cm,210cm,230cm,260cm,280cm,300cm,340cm,360cm



Shedding motion



Tapped shedding-max 6pcs heald frame


Cam shedding-max 12pcs heald frame


Dobby shedding-max 16pcs heald frame


Jacquard-no have heald frame


(Hook number 1344,2688,5120,6144)



Heald frame



Niupai or other brand



Weft feeder



Sanhe or Xinliao or other brand



Nozzle



MDH,Japan



Bearing



NSK or FAG



Warp beam



Dia.800mm/1000mm



Cloth roller



Wind on loom/Wind on batching motion



Speed R.P.M



190 cam 850RPM(Actural speed)  280 cam 700 R.P.M


Design speed 1000 RPM
