Product Overview
Description
Products Description

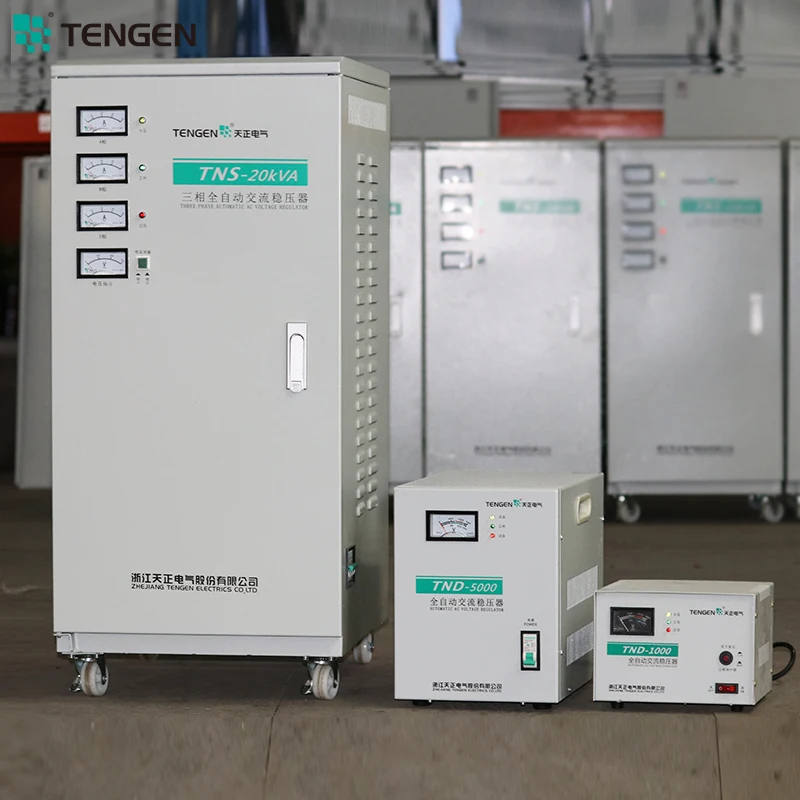

TENGEN TNS TND single phase three phase 0.5Kva to 10kva 15kva 20kva 30kva 40kva 50kva 60kva 75KVA automatic voltage Regulator stabilizer
Series | TND | TNS | |
Phase Number | Single Phase | Three Phase | |
specification | 0.5K,1K,1.5K,2K,3K,5K,7.5K,10K,15K,20K,30K | 1.5K,3K,4.5K,6K,9K,15K,20K,30K,40K,50K,60K,75K | |
Input Voltage | 160V~250V | 280V~430V | |
Output Voltage | 220V±3% (3KVA and below have 110V±3% to choice) | 380V ±3% | |
Output Overvoltage Protection | 246±4V(1.5KVA and below and 110V output without overvoltage protection) | 430±7V(TNS-4.5KVA and below output without overvoltage protection) | |
Regulating Speed | more than 10V/S | ||
Rated Operating Frequency | 50Hz | ||
Efficiency | more than 90% | ||
Ambient Temperature | -5℃ ~ 40℃ (suitable for indoor type) | ||
Relative Humidity | not more than 90%(at +25℃) | ||
Installation Site | height is not more than 1000 meters above sea level | ||
Working Environment | should be installed in the ventilation,dry,no direct sunlight,no corrosive media and flammable,explosive gas indoor use | ||
Size Of All Models
Phase Number | Capacity(kVA) | Product Dimensions Length x width x height (mm) | Net Weight( kg ) | Packing Quantity(pcs) |
Single Phase | TND-0.5 | 190×170×125 | 3.6 | 4 |
Single Phase | TND-1 | 210×190×155 | 5 | 4 |
Single Phase | TND-1.5 | 210×190×155 | 6 | 4 |
Single Phase | TND-2 | 290×240×195 | 9.2 | 1 |
Single Phase | TND-3 | 305×230×230 | 11.7 | 1 |
Single Phase | TND-5 desktop | 355×220×295 | 17 | 1 |
Single Phase | TND-7.5 desktop | 420×240×370 | 28 | 1 |
Single Phase | TND-10 desktop | 420×240×370 | 30 | 1 |

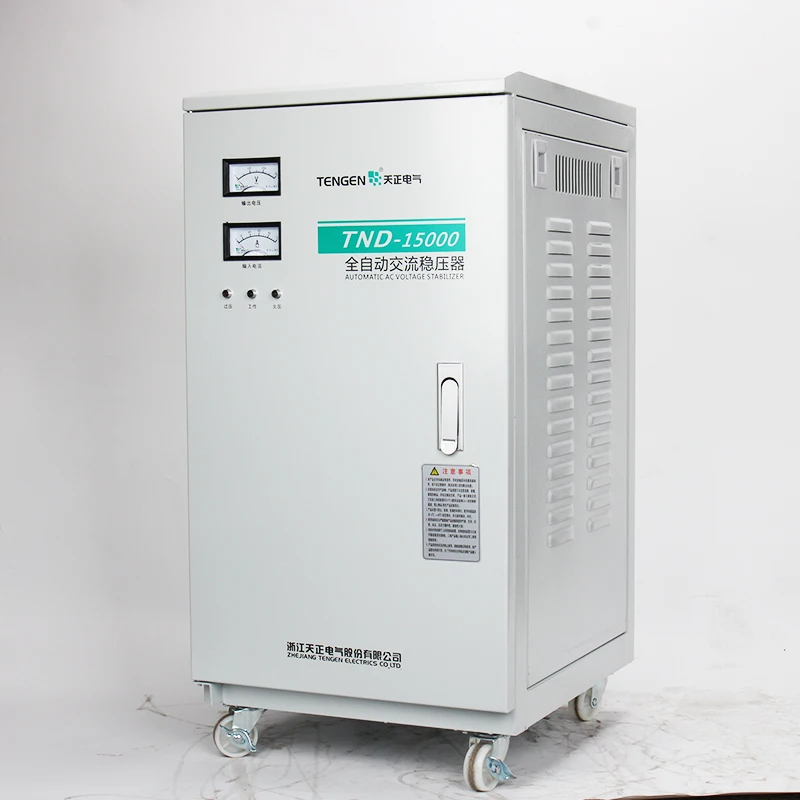

Single Phase | TND-15 | 420×380×740 | 63 | 1 |
Single Phase | TND-20 | 420×380×740 | 66 | 1 |
Single Phase | TND-30 | 420×380×740 | 83 | 1 |
Three Phase | TNS-1.5 | 490×320×170 | 13 | 1 |
Three Phase | TNS-3 | 490×320×170 | 17 | 1 |
Three Phase | TNS-4.5 | 490×320×170 | 18 | 1 |

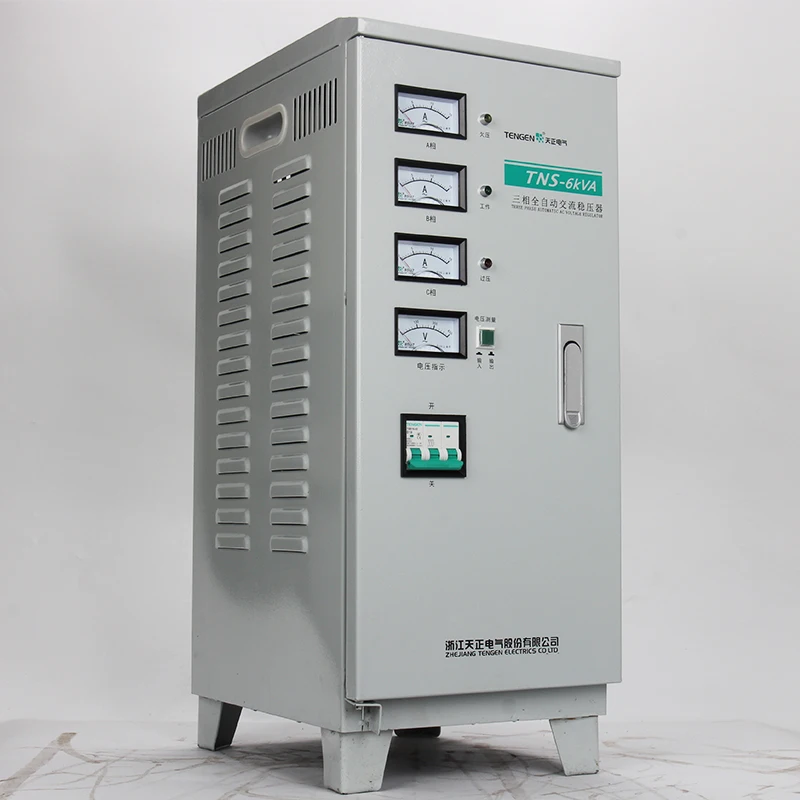

Three Phase | TNS-6 | 360×270×640 | 31 | 1 |
Three Phase | TNS-9 | 390×310×760 | 40 | 1 |
Three Phase | TNS-15 | 390×350×780 | 60 | 1 |
Three Phase | TNS-20 | 520×400×860 | 75 | 1 |
Three Phase | TNS-30 | 520×400×860 | 86 | 1 |
Three Phase | TNS-40 | 650×530×1080 | 175 | 1 |
Three Phase | TNS-50 | 650×530×1080 | 180 | 1 |
Three Phase | TNS-60 | 650×530×1080 | 185 | 1 |
Three Phase | TNS-75 | 670×570×1310 | 231 | 1 |
