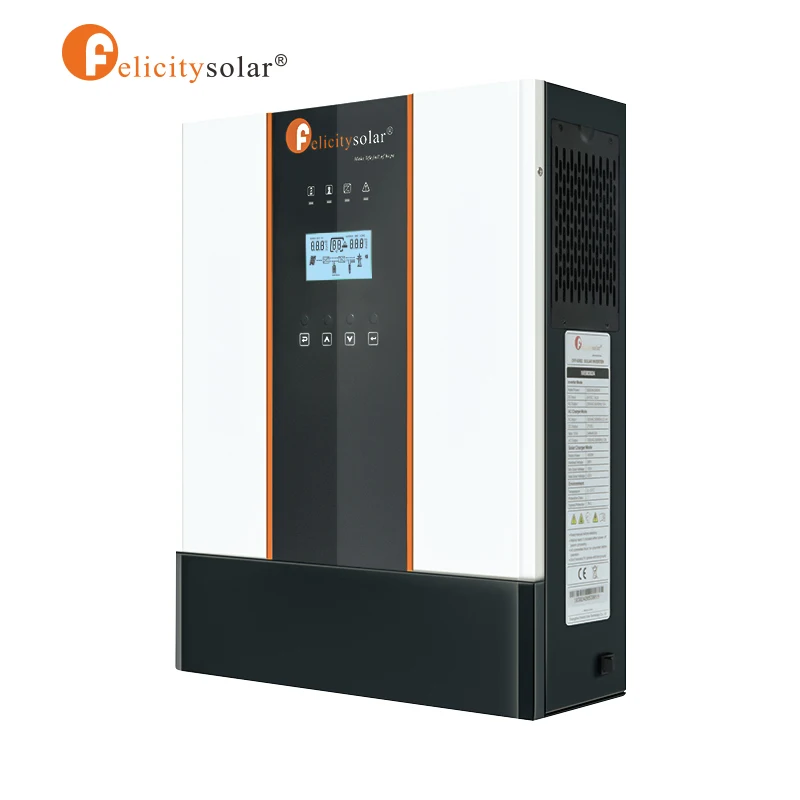

Hybrid Inverter 15KW 30KW 45KW 60KW 3 Phase 380V with UPS function support utility and Generator power link
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.Guangzhou Ltd.
Share on (1600375233697):
Product Overview
Description
Products Description
Features
Pure sine wave
Built-in MPPT solar charge controlller
Configurable solar input voltage up to 450V Maximum
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC or Solar is recovering
Capable working without battery connection
Capable suppling power to AC output with solar and utility at same time
Capable suppling AC output with solar input only
Overload/ Over temperature/ short circuit protection
Cold start function
Parallel operation with up to 9 units only available for 5KVA model
Model | IVEM5048 | IVEM3024 | ||
DC Input Voltage | 48V | 24V | ||
Rated output power(VA) | 5000VA | 3000VA | ||
Rated output power(W) | 4000W | 3000W | ||
Input voltage waveform | Sine(public facility or generator) | 170Vac±7(UPS); 90Vac±7Vac(Appliances) | ||
Rated input voltage | 230vac | 230vac | ||
Grid low voltage | 90Vac±7Vac | 90Vac±7Vac | ||
Grid low voltagerecovery voltage | 100Vac±7Vac | 100Vac±7Vac | ||
Grid high voltage | 280Vac±7Vac | 280Vac±7Vac | ||
Grid high voltage recovery voltage | 270Vac±7Vac | 270Vac±7Vac | ||
Max input voltage | 280Vrms | 280Vrms | ||
Rated input frequency | 50Hz/60Hz(Auto detection) | 50Hz/60Hz | ||
Grid underfrequency | 40±1Hz | 40±1Hz | ||
Grid underfrequency recovery | 42±1Hz | 42±1Hz | ||
Grid overfrequency | 65±1Hz | 65±1Hz | ||
Grid overfrequency recovery | 43±1Hz | 63±1Hz | ||
Nominal input frequency | Sinusoidal(Utility or generator) | Sinusoidal(Utility or generator) | ||
Output waveform | Synchronize with input voltage | |||
Overload protection | Air switch protection | |||
Output short circuit protection | Air switch protection | |||
Efficiency(grid) | ≥95% | |||
Switching time(AC TO DC) | 15ms Typical value | |||
Switching time(DC TO AC) | 15ms Typical value/30ms special value | |||
Through battery free | NO | |||
Max Bypass Overload Current | 40A | 30A | ||
Breaker size | Dependent on battery type or self-defined | |||
Overcharge protection | Yes | |||
MPPT Charging&Grid Charging(MPPT built-in controller is option) | ||||
Max PV open circuit voltage | 450V | 450V | ||
PV voltage working range | 120V~450V | 120V~450V | ||
Max input power | 6000W | 4000W | ||
Max mains charging current | 100A | 100A | ||
Max charging current(mains+solar energy) | 100A | 100A | ||
Mono Panel Configeration
Mono Suitable for mono panel, from household, to farm, commercial use or project can also use
Parallel operation
Parallel operation with up to 9 units only available for 5KVA model
Built-in Anti dust filter
Activated carbon material prevents dust from entering the box and prolongs the service life of the machine
100A MPPT built in
Can pass medium and large currents, without external MPPT, no worries about safe use
Precision Structure
Ultra-small Precision size, compressed version of the body, not occupying space and saving place

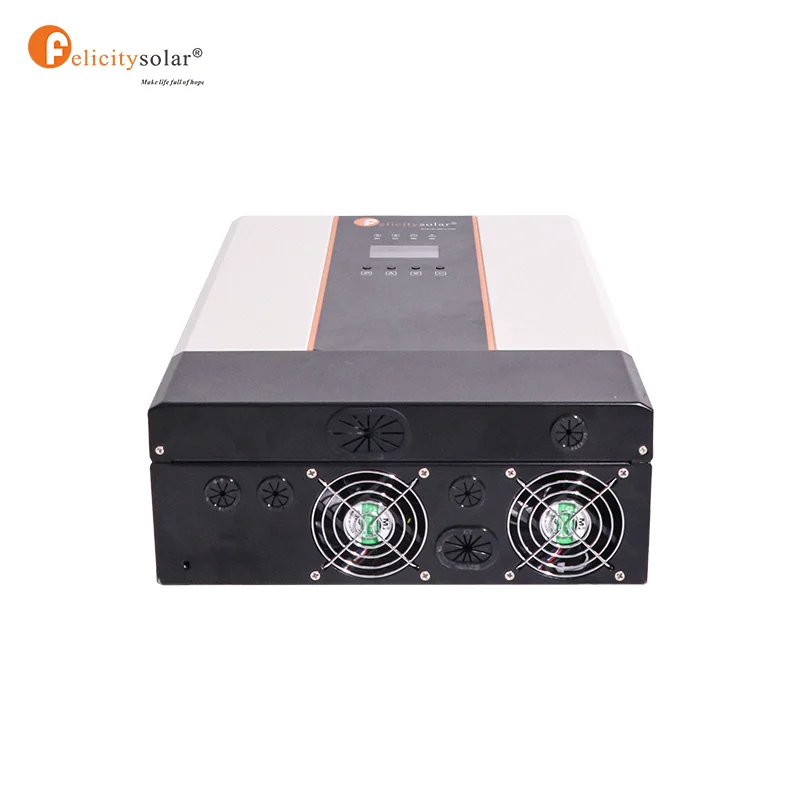

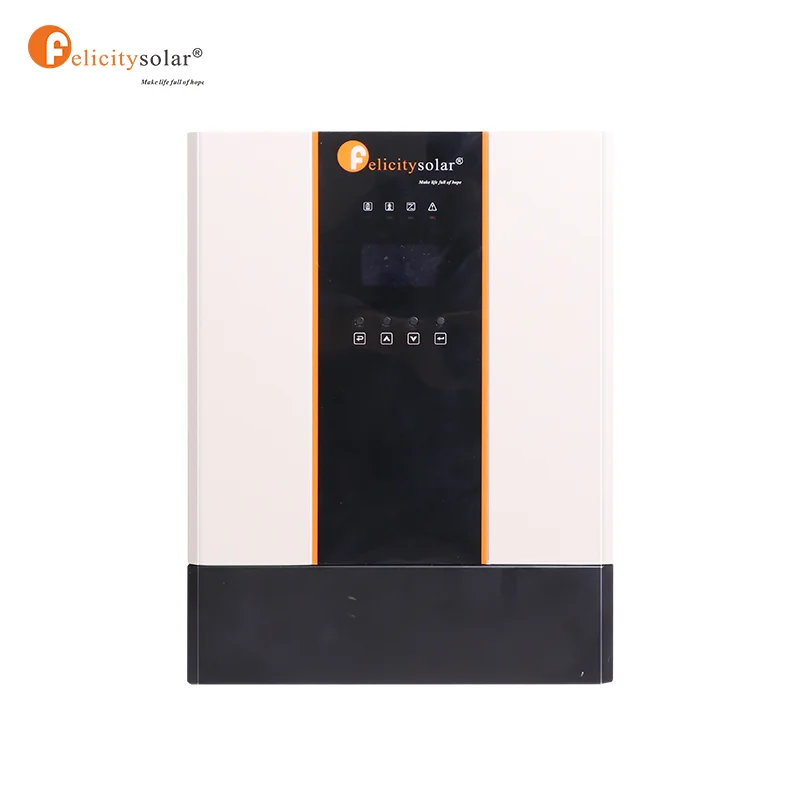

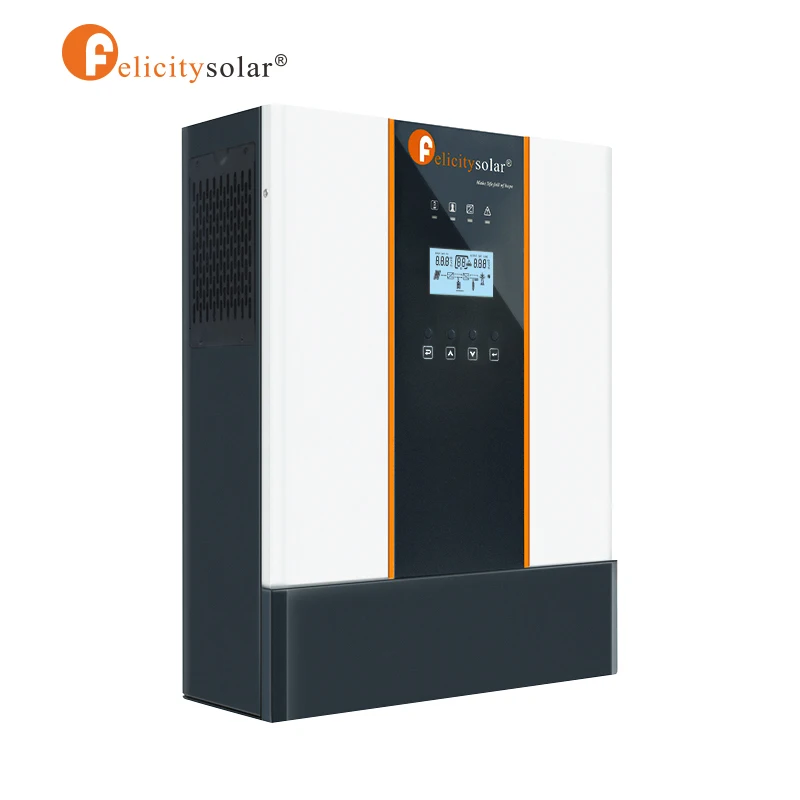

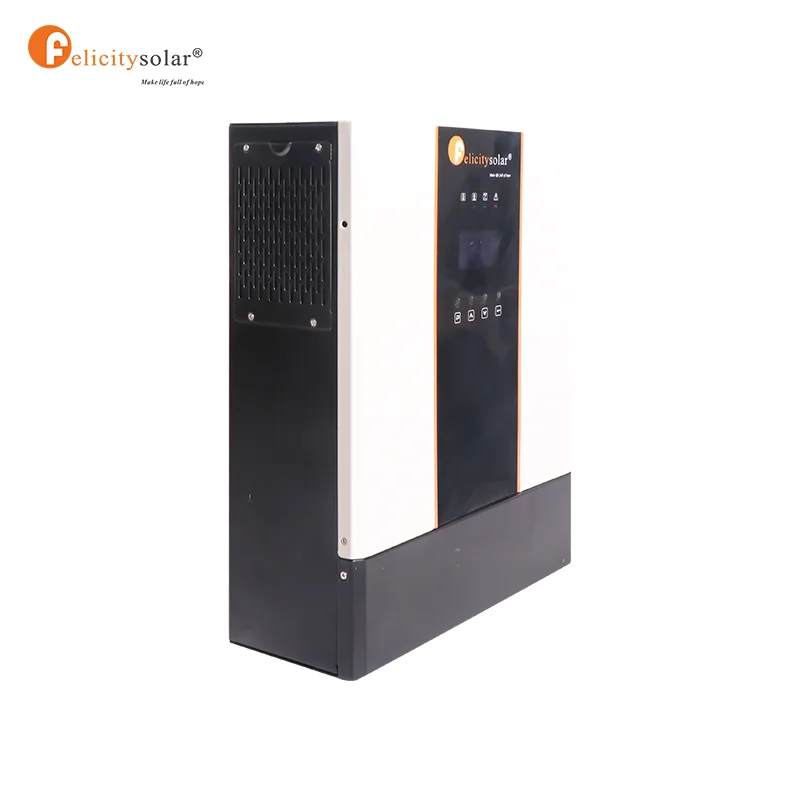

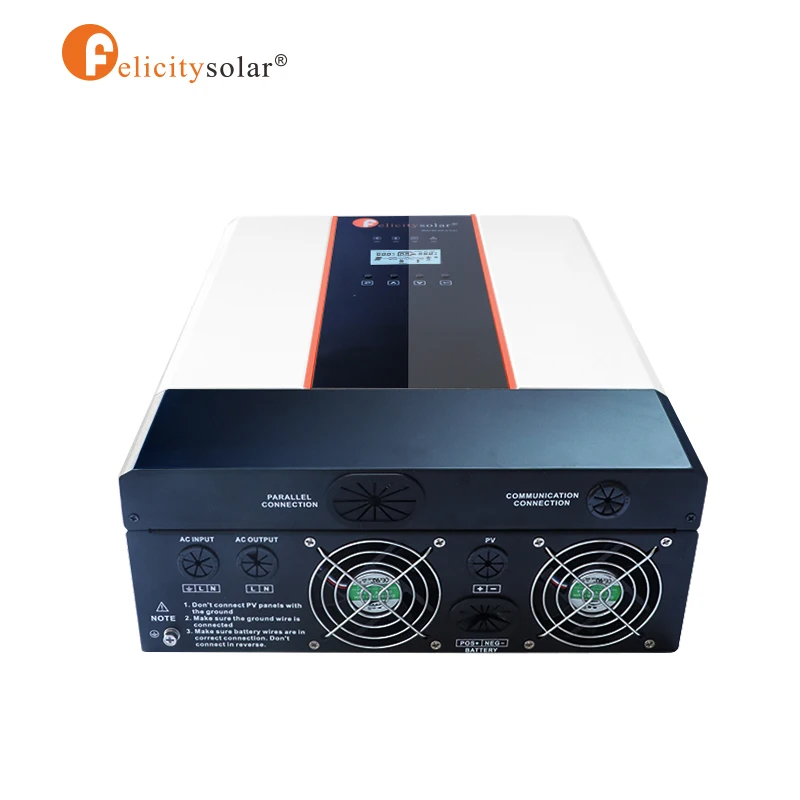

Details Images

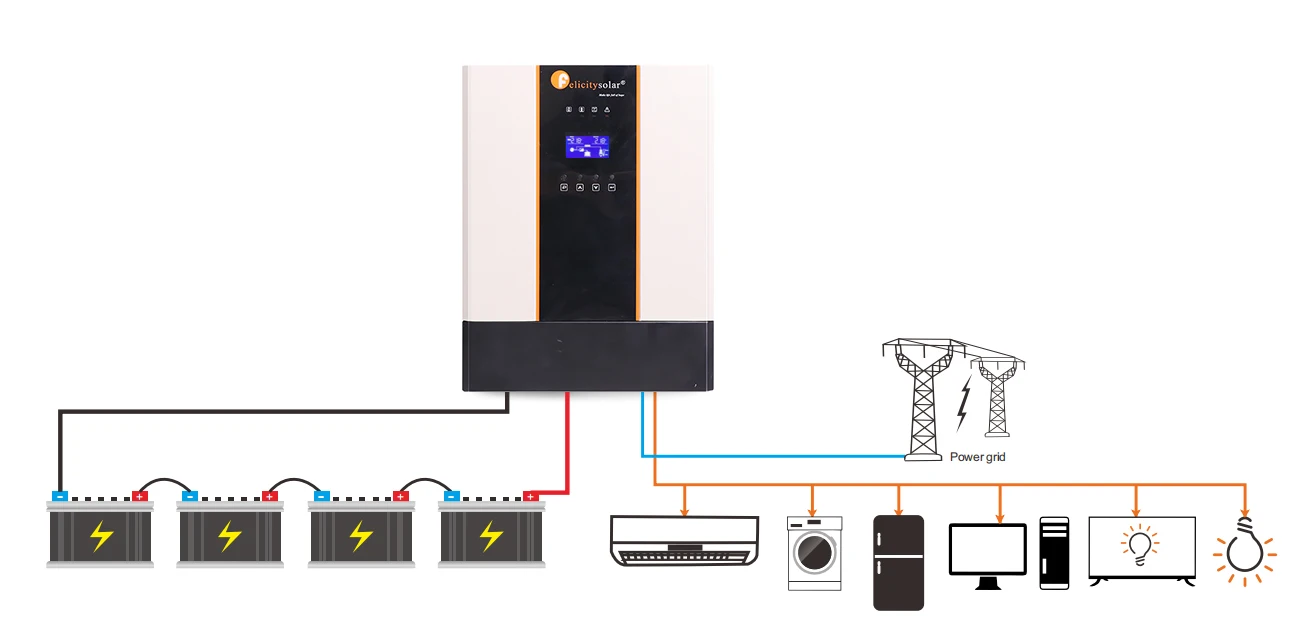

Application in Solar Power Syetem
Product Applications
Company Introduction
Felicity Solar Limited was founded in 2007, located in Guangzhou, China. We have specialized in the solar field for 7 years and made great achievements in overseas markets, For the past 7 years, we have developing rapidly and become a leading enterprise in this field.
Our major products are solar power system, solar street light and other applicable products such as solar rechargeable lamp, solar kit and so on. We enjoy our company with high technology, experienced engineer, skilled staff and high efficient production line. Taking Customers as Our Orientation, we have been providing perfect technical guidance and after- sales service.
To strengthen our competency, we improve the quality of our products by optimizing our production process. Thus, we have been approved by ISO9001, CE, ROHS, SONCAP and other authoritative international certification. Currently we have cooperated with partners from more than 40 countries and regional markets from Australia, Turkey, UAE, Singapore, Nigeria and so on and set up more than 10 branch offices in domestic and oversea markets. We are devoted to a low-carbon, energy-saving, environment-friendly life and hope that you can join us and contribute a better life for people in the world.
