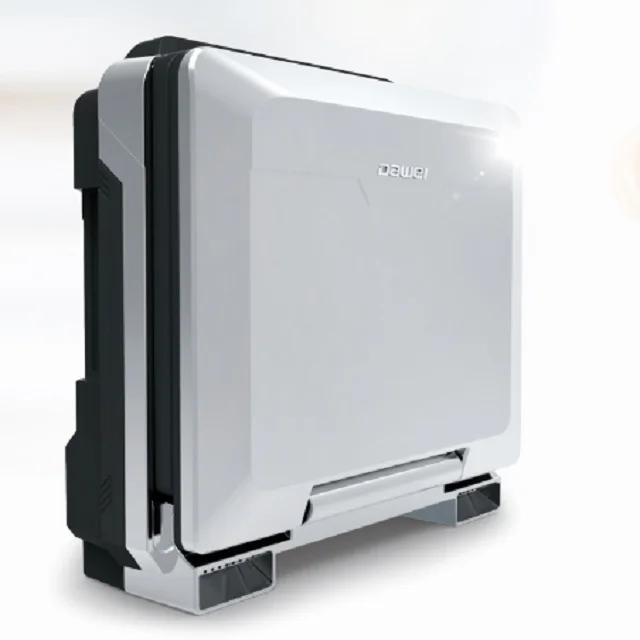

DW P5pro Portable Medical Machine Ultrasound Scanner High end 4D Color Doppler Ultrasound Machine
- Category: >>>
- Supplier: Hangzhou Gravitation Medical Equipment Co. Ltd.
Share on (1600375243290):
Product Overview
Description
DW-PF580 Portable Medical Machine Ultrasound Scanner High-end 4D Color Doppler Ultrasound Machine
Specification
Product name | Doppler Ultrasound Machine |
Color gain | adjustable |
Color frequency | ≥3 kinds, visible and adjustable |
Sampling frame | size and position adjustable |
Color blood flow steer | ≥3 angles adjustable |
Color map | 1—9 level |
Color persist | 0—6 level |
B/C split display | available |
Product Description
Main Specification:

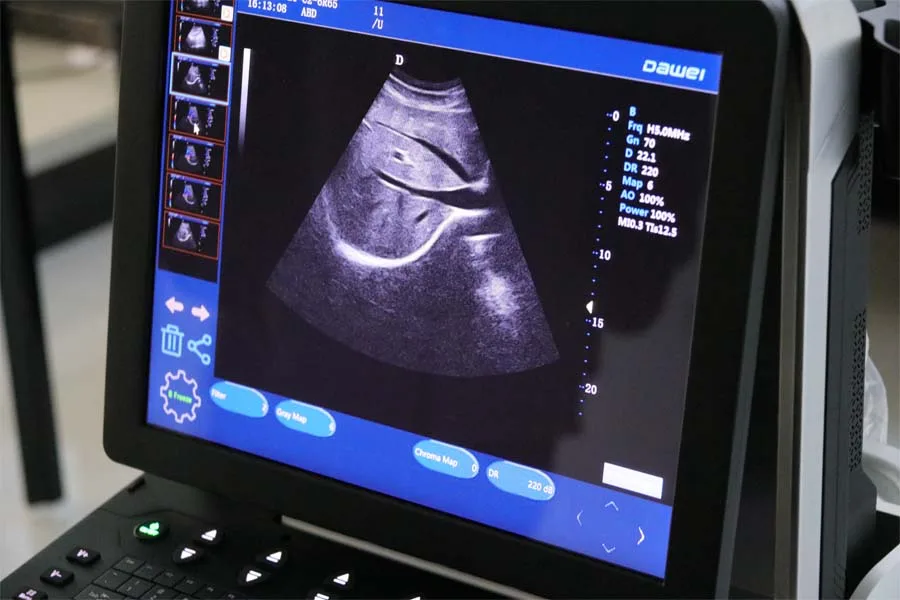

1)Full-Digital 2D gray scale imaging
2)Full-Digital Tissue Harmonic Imaging (THI)
3)Color Doppler blood flow imaging
4)Directional color energy Doppler imaging
5)Pulse Wave Doppler imaging (PW)
6)Continuous Wave Doppler imaging (CW)
7)Space compound imaging
8)Trapezoidal imaging
9)2D, color, Doppler mode automatic optimization adjustment technology
10)Real-time triple synchronizing
11)Adaptive speckle suppression technology

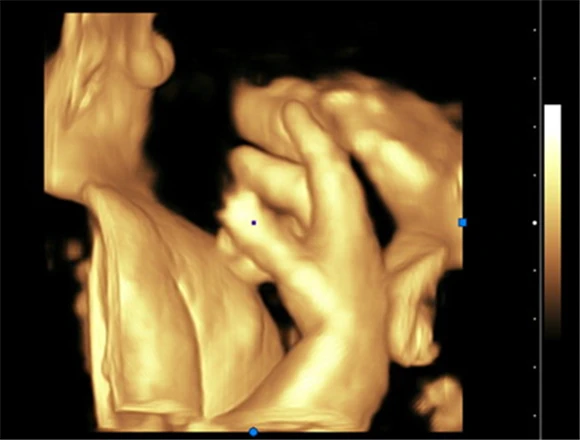

12)Real-time 3D imaging
13)Intelligent picture - in - picture imaging mode (PIP)

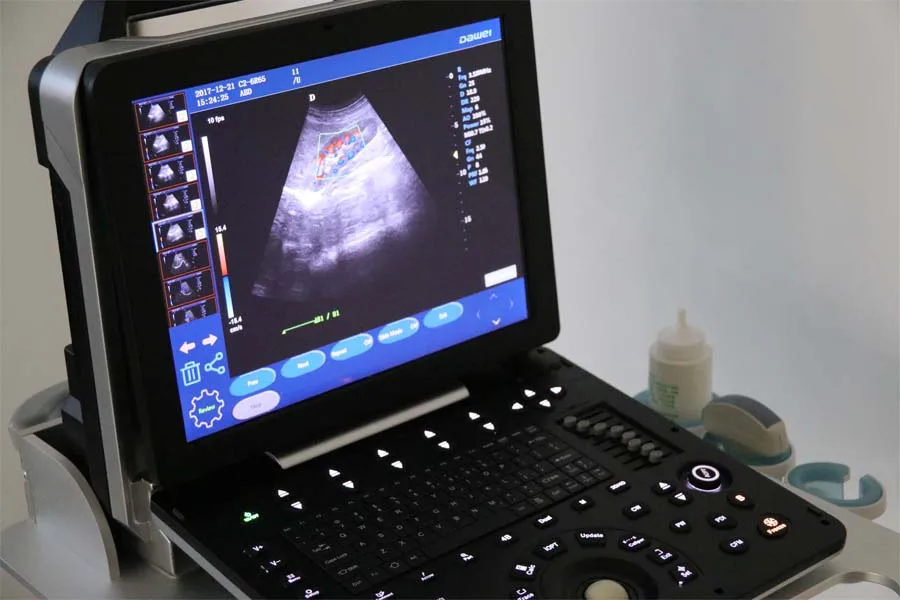

14)Monitor: 15 inch high resolution medical LCD monitor, adjustable angle
15)Probe connectors: ≥2 active
1 Multiple probe configuration:
1.1 Convex probe frequency: 2.0-5.0MHZ(multi-frequency, Harmonic frequency≥5 ), probe scanning angle 20°~85°, visible and
adjustable.
1.2 Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic frequency ≥4 ), probe scanning with trapezoidal imaging
technology and 2D beam deflection technology
1.3 Trans-vaginal probe frequency: 5.0-9.0MHZ(multi-frequency, harmonic frequency ≥2 ), probe scanning angle 20°~160°, visible and
adjustable.
1.4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.
1.5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.
2 2D imaging mode
2.1 Gray scale: 256
2.2 Gray Map: ≥16 level, visible and adjustable
2.3 Dynamic range: 20-280db(visible and adjustable)
2.4 Resolution: Horizontal≤1mm; Vertical≤0.5mm
2.5 Under B mode, focus number: 1-6, focus position continuously adjustable
2.6 STC gain control ≥8 segments
2.7 THI: harmonic frequency ≥2 segments
2.8 Line density: ≥256, visible and adjustable
2.9 Preset: ≥40 kinds, users can customize the inspection conditions for the optimized images of different organs
2.10 Max scanning depth: ≥31cm, visible and adjustable
2.11 Scanning angle: 50°-100°, visible and adjustable
2.12 Cine loop ≥4800 frames
2.13 Adaptive speckle suppressio: 0-100 adjustable
2.14 Amplification: overall amplification, local amplification, M-type amplification(do M-type sampling amplification under both
scanning or freeze state)
1)Full-Digital 2D gray scale imaging
2)Full-Digital Tissue Harmonic Imaging (THI)
3)Color Doppler blood flow imaging
4)Directional color energy Doppler imaging
5)Pulse Wave Doppler imaging (PW)
6)Continuous Wave Doppler imaging (CW)
7)Space compound imaging
8)Trapezoidal imaging
9)2D, color, Doppler mode automatic optimization adjustment technology
10)Real-time triple synchronizing
11)Adaptive speckle suppression technology
12)Real-time 3D imaging
13)Intelligent picture - in - picture imaging mode (PIP)
14)Monitor: 15 inch high resolution medical LCD monitor, adjustable angle
15)Probe connectors: ≥2 active
1 Multiple probe configuration:
1.1 Convex probe frequency: 2.0-5.0MHZ(multi-frequency, Harmonic frequency≥5 ), probe scanning angle 20°~85°, visible and
adjustable.
1.2 Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic frequency ≥4 ), probe scanning with trapezoidal imaging
technology and 2D beam deflection technology
1.3 Trans-vaginal probe frequency: 5.0-9.0MHZ(multi-frequency, harmonic frequency ≥2 ), probe scanning angle 20°~160°, visible and
adjustable.
1.4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.
1.5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.
2 2D imaging mode
2.1 Gray scale: 256
2.2 Gray Map: ≥16 level, visible and adjustable
2.3 Dynamic range: 20-280db(visible and adjustable)
2.4 Resolution: Horizontal≤1mm; Vertical≤0.5mm
2.5 Under B mode, focus number: 1-6, focus position continuously adjustable
2.6 STC gain control ≥8 segments
2.7 THI: harmonic frequency ≥2 segments
2.8 Line density: ≥256, visible and adjustable
2.9 Preset: ≥40 kinds, users can customize the inspection conditions for the optimized images of different organs
2.10 Max scanning depth: ≥31cm, visible and adjustable
2.11 Scanning angle: 50°-100°, visible and adjustable
2.12 Cine loop ≥4800 frames
2.13 Adaptive speckle suppressio: 0-100 adjustable
2.14 Amplification: overall amplification, local amplification, M-type amplification(do M-type sampling amplification under both
scanning or freeze state)
Applications: abdominal, urology, OB&GYN, paediatrics / neonatal, superficial / small organ, musculoskeletal, cardiology etc.
Convex probe- Adult abdomen application
Frequency: 2.5, 3, 3.5, 4, H4, H5MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:3-27.3cm
Body mark:17
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point:6
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
Linear probe-Carotid application
Frequency: 6, 7.5, 8.5, 10, H10 MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:2-11cm
Body mark:13
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point:5
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Steering: left/right
Trapezoid Imaging: on/off
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
Cardiac probe- Adult cardiac application
Frequency: 2.5, 3, 3.5, 4, H3, H4 MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:3-27.3cm
Body mark:7
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point: 5
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
4D probe - Obstetrics applications
Frequency: 2, 3, 4.5, 6, H5 MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:3-27.3cm
Body mark:7
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point: 6
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
Frequency: 2.5, 3, 3.5, 4, H4, H5MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:3-27.3cm
Body mark:17
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point:6
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
Linear probe-Carotid application
Frequency: 6, 7.5, 8.5, 10, H10 MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:2-11cm
Body mark:13
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point:5
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Steering: left/right
Trapezoid Imaging: on/off
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
Cardiac probe- Adult cardiac application
Frequency: 2.5, 3, 3.5, 4, H3, H4 MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:3-27.3cm
Body mark:7
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point: 5
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
4D probe - Obstetrics applications
Frequency: 2, 3, 4.5, 6, H5 MHz
Power:5-100% (arithmetic progression of 5: 5,10,15...100)
Gain:0-100
Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)
Gray map:0-7
Frame correlation:0-4
Filtering:0-4
Image denoising:0-14
Scanning depth:3-27.3cm
Body mark:7
Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)
Focus point: 6
Pseudo color map :0-11
Linear density:64,128,256
TSI: normal, fat, fluid, muscle
Reversal:up/down, left/right
Compound frequency: on/off
Automatic optimization: on/off
Space compound: on/off
Company Profile
Certifications
Our Partners

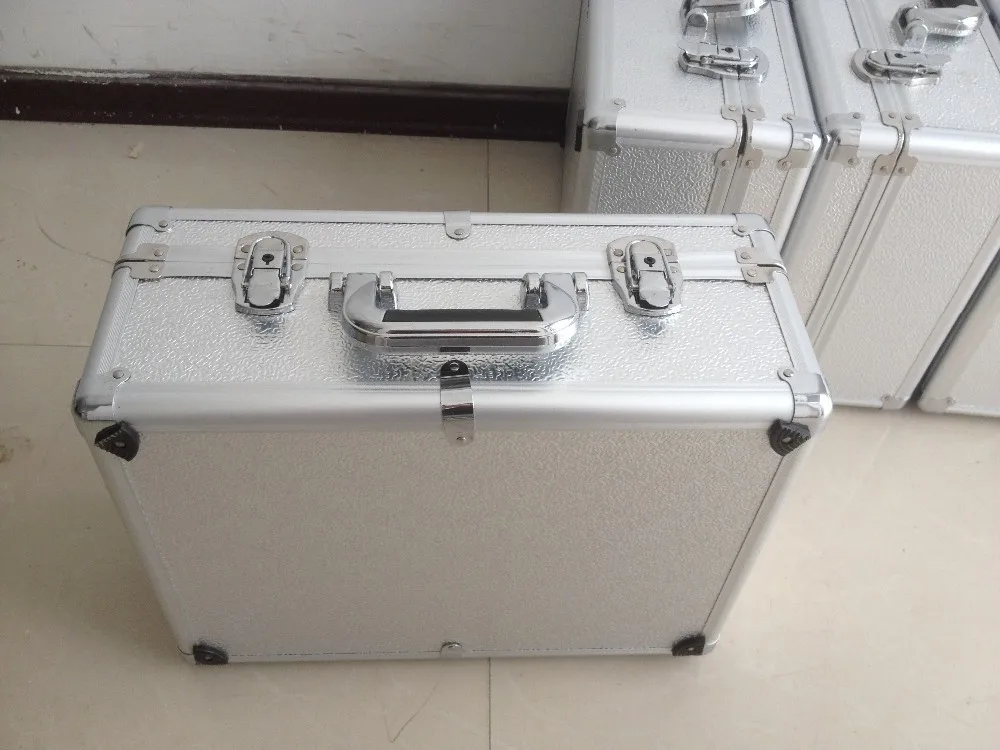

Product packaging
