High speed Automatic bottle labelling machines for flat square bottle
- Category: >>>
- Supplier: Guangzhou Aerospace Automation & Technology Machinery Co. Ltd.
Share on (1600375288369):
Product Overview
Description
Description

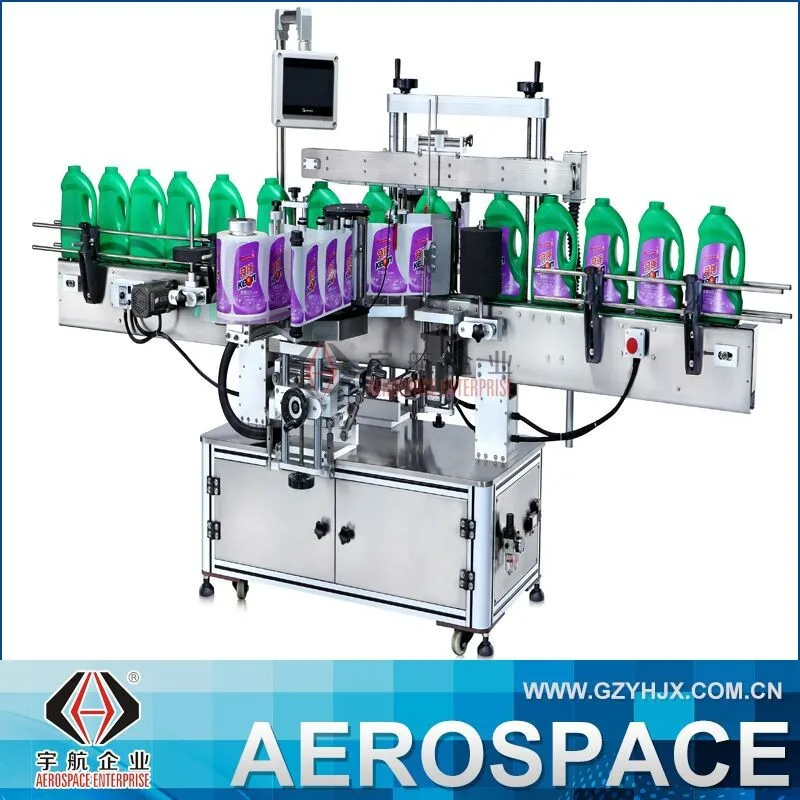

Automatic Flat Bottle Labeling Machine
Can be used for irregular products or regular products corresponding to two labels on the side or controlled to a single side label. For example: chemical, petroleum, motor oil, detergent, shampoo, shower gel, beverage cans. Two-sided labeling and round bottle labeling, can adjust the double-sided labeling angle arbitrarily, and can adapt to different labeling side surfaces.
Technical Specification :
1.Labeling speed: 0~25m/min, can be adjusted freely.
2.Labeling accuracy: ±1mm (excluding product and label errors)
3.Inner diameter of paper roll:φ76mm. Maximum paper roll outer diameter:φ300mm.
4.Applicable voltage 220V, 50/60HZ.
5.The minimum size of the bottle to be attached is 30mm (W)*50mm (H), and the maximum is 120mm (W)*400MM (H)
6.The standard label height is 10mm-200mm. Standard label width is 16mm-400mm.
7.Maximum label height:200mm.
8.Mechanical dimensions (L*W*H): 3000*1450*1400mm
9.Weight:400kg
2.Labeling accuracy: ±1mm (excluding product and label errors)
3.Inner diameter of paper roll:φ76mm. Maximum paper roll outer diameter:φ300mm.
4.Applicable voltage 220V, 50/60HZ.
5.The minimum size of the bottle to be attached is 30mm (W)*50mm (H), and the maximum is 120mm (W)*400MM (H)
6.The standard label height is 10mm-200mm. Standard label width is 16mm-400mm.
7.Maximum label height:200mm.
8.Mechanical dimensions (L*W*H): 3000*1450*1400mm
9.Weight:400kg
Features
The machine body adopts 304 stainless steel, Aluminum alloy is manufactured with smooth chamfering and anodizing, engineering plastic (chain plate), etc., which meets the requirements of GMP.
* The machine can be controlled by the computer for single-sided or double-sided labeling. It can be used as a side sticker for single-head round bottles and flat bottles. The labeling head can be adjusted in 8 dimensions(As picture structure X-Y-Z+ tilt adjustable). The labeling angle can be adjusted arbitrarily, can adapt to different labeling surfaces. PLC cooperates with large-scale man-machine interface control, with automatic label length learning, can adapt to different labels, easy to operate and adjust.
* Multiple sets of labeling parameter memory, can be quickly replaced for production.
* The conveyor and the pressing mechanism all use the same power source. Adopt high-quality AC motor drive, touch screen to control frequency conversion speed regulation, the power of bottle splitting mechanism and correction mechanism is driven by stepless speed regulation motor, and the speed can be adjusted independently to ensure the stability of labeling.
* The machine is equipped with a sponge spring steel plate combination scraping mechanism, a brush and the pressing mechanism adopts combined non-powered sponge roller to ensure that no air bubbles are generated during labeling, and can be quickly disassembled to adapt to different size labels.
* The mechanical structure of the whole machine adopts strengthened rigid design, which is concise and stable.
* The machine can be controlled by the computer for single-sided or double-sided labeling. It can be used as a side sticker for single-head round bottles and flat bottles. The labeling head can be adjusted in 8 dimensions(As picture structure X-Y-Z+ tilt adjustable). The labeling angle can be adjusted arbitrarily, can adapt to different labeling surfaces. PLC cooperates with large-scale man-machine interface control, with automatic label length learning, can adapt to different labels, easy to operate and adjust.
* Multiple sets of labeling parameter memory, can be quickly replaced for production.
* The conveyor and the pressing mechanism all use the same power source. Adopt high-quality AC motor drive, touch screen to control frequency conversion speed regulation, the power of bottle splitting mechanism and correction mechanism is driven by stepless speed regulation motor, and the speed can be adjusted independently to ensure the stability of labeling.
* The machine is equipped with a sponge spring steel plate combination scraping mechanism, a brush and the pressing mechanism adopts combined non-powered sponge roller to ensure that no air bubbles are generated during labeling, and can be quickly disassembled to adapt to different size labels.
* The mechanical structure of the whole machine adopts strengthened rigid design, which is concise and stable.
configuration
No. | Name | Quantity and unit | Origin | Brand |
1 | touch screen | 1 set | Taiwan | WEINVIEW |
2 | servo motor | 2 sets | France | Schneider |
3 | server driver | 2 sets | France | Schneider |
4 | Frequency converter 370W | 1 set | Japan | MITSUBISHI |
5 | Frequency converter 750W | 1 set | Japan | MITSUBISHI |
6 | PLC | 1 set | Japan | MITSUBISHI |
7 | Label electric eye | 2 pcs | Germany | LEUZE |
8 | Measuring electric eye | 1 pc | Japan | OPTEX |
9 | Main motor | 1 set | joint venture | WANSHSIN |
10 | Frequency control motor | 1 set | joint venture | VTV |
11 | Speed regulating motor (split bottle) | 1 set | joint venture | VTV |
12 | Gearbox | 2 sets | joint venture | VTV |
13 | Thyristor governor | 1 set | joint venture | VTV |
14 | Switching power supply | 1 set | Japan | OMRON |
