Price:$15.30 - $16.80

Quantity:


Product Overview

Description





Excellent screen code reading ability
Designed for barcode payment, it can quickly read payment codes, electronic coupons on the screen of mobile devices, which can be used in a high-traffic cash register environment.




Scenario
Applicable in AFC, access control, express delivery cabinet, Ticket Verification Device, Display Kiosk and self-service terminal







Multiple Interfaces
To provide USB or TTL-232 interface, to meet different interface requests.

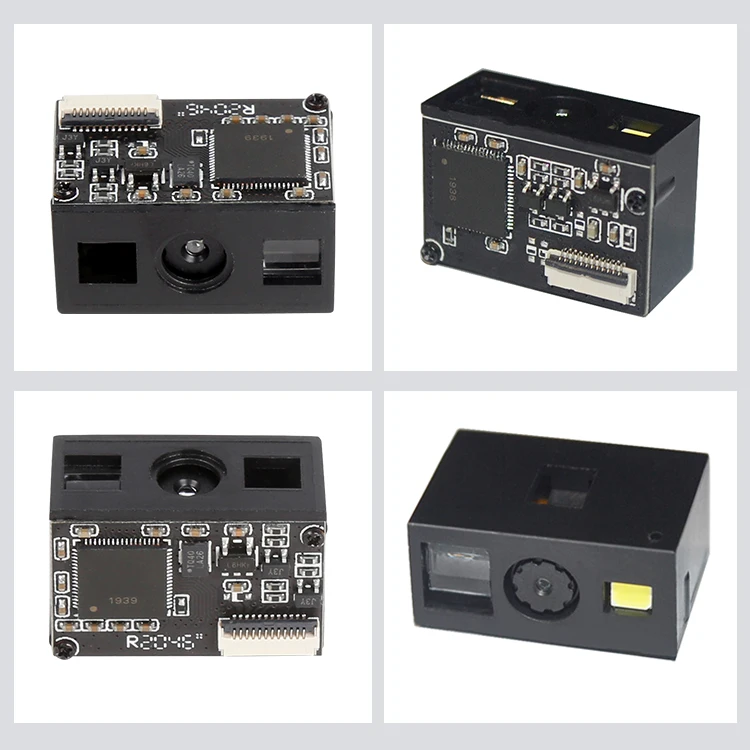

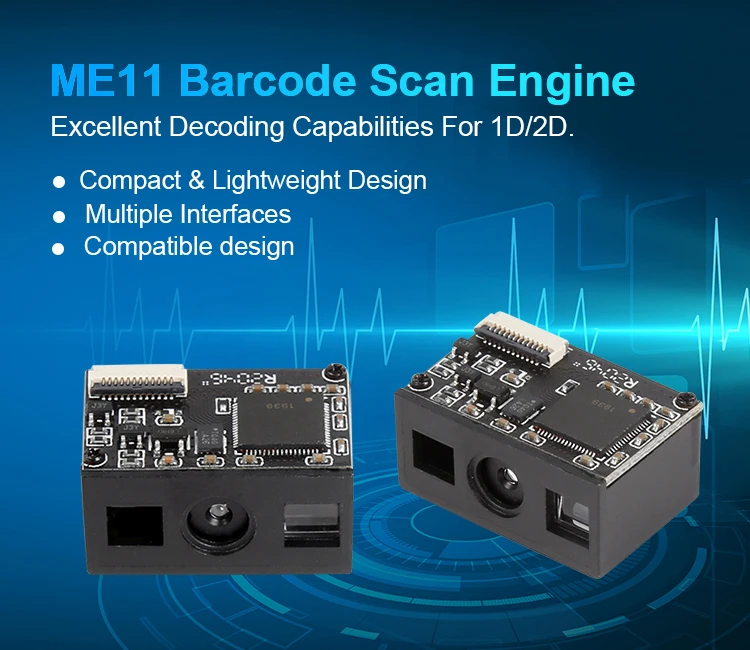

ME11-00 Barcode Scan Engine


Performance
Image Sensor
640×480 CMOS
Illumination
Aiming
White LED
Red LED
Symbologies
2D
PDF417, Data Matrix, QR Code
1D
Code 128、Ean-13 、Ean-8、UPC-E、UPC-A、ITF-25（Interleaved 2 0f 5）、Code39、Code93、Codabar
Precision*
≥5mil
Depth of Field*
EAN-13
45mm-269mm (13mil 13 byte) Typical
Code39
35mm-119mm（5mil 7 byte）
Code128
43mm-310mm (13mil 10 byte)
QR Code
19mm-185mm (15mil 30 byte)
Data Matrix
45mm-116mm（10mil 30 byte）
Symbol Contrast*
≥20%
Sensitivity*
Tilt±55°，Skew±55°，Roll 360°
Field Angle
Horizontal 36°，Vertical 27°
Mechanical/
Electric
Communication Interface
TTL-232，USB（HID-KBW，Virtual Series Interface）

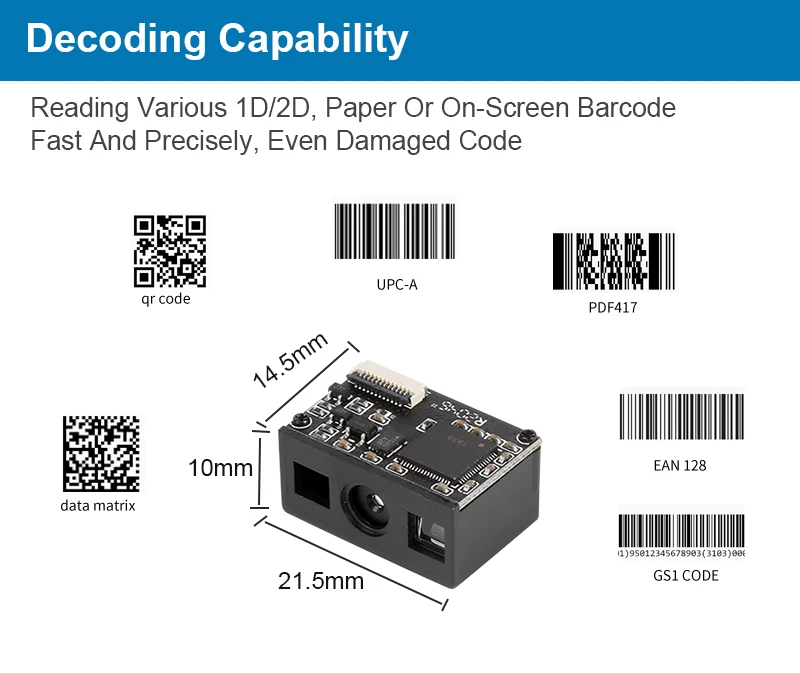

Physical Size(mm)
21.5(D)×14.5(W)×10.0(H)（Max Value）
Weight
9 g
Voltage
DC 3.3V(Operation)/150mA(Normal)/750mW(Consumption)
Standby Current
70mA
Environmental
Operation Temperature
-20℃~+60℃
Storage Temperature
-40℃~+80℃
Operation Humidity
5%~95%（Non-condensing）
Illumination
0~100000 lux（Natural daylight）
Certification
FCC Part15 Class B, CE EMC Class B
Accessories
Development Board
Development board with trigger key and beeper, RS232 and USB interface
Data Cable

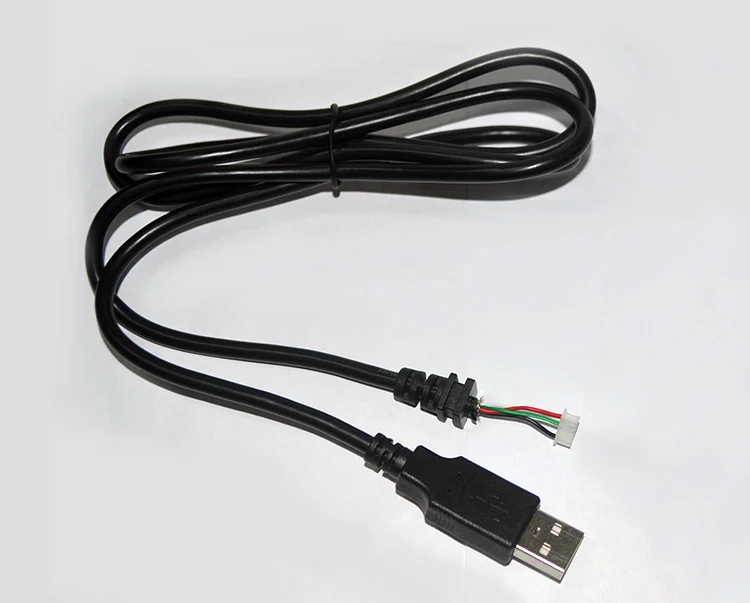

USB
USB cable, connecting with development board and information receiving host
RS-232
RS-232 cable, connecting with development board and information receiving host
Power Adaptor
5V power supply adaptor, assist to power on the development board with RS-232 cable






Company Profile


SHENZHEN EDOO-IOT TECHNOLOGY CO., LTD





1D/2D QR Barcode Scanners and PDA Export
OEM and ODM orders accepted | Experienced export specialist and logistics experts
A Professional and Experienced Barcode Scanner and PDA Provider
Edoo-IoT Technology is an IoT exporter and manufacturer located in Shenzhen. We can provide 1D & 2D laser/image barcode scanners, handheld barcode scanners, wireless barcode scanners, barcode scanning engines/modules, fixed/embedded scanners, desktop scanners, PDA smartphones or computers, barcode scanning platforms, and other scanning devices and technical services.
Barcode scanning solution terminator for 6 years, amount of stock, ready to ship,QR code scanner, OCR/MRZ scanner


Office Area 1
Office Area 2


Our Advantages




Production Workshop


Production Equipment
Clean Room of Workshop


Workshop
Warehouse




Packing & Delivery




FAQ


Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?
A2. Our products are high quality and low price.

Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
