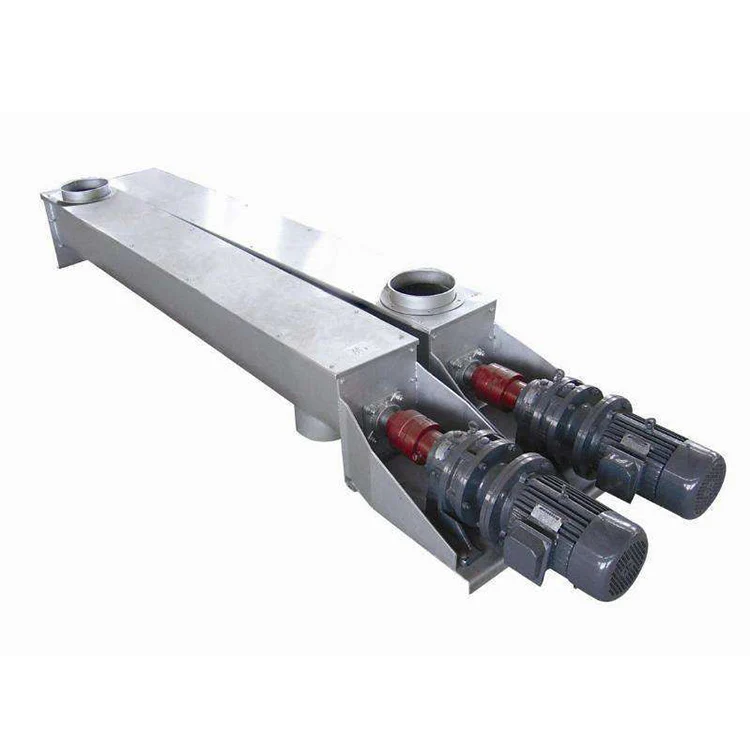

U shaped Trough Shaftless Screw Conveyors with Rotating Shaftless Screw

Share on (1600375322264):


Price:$2,000.00

Quantity:


Product Overview

Description



Products Description




WMSC Shaftless Screw Conveyor Shaftless screw conveyor is the ideal solution for hard-to-transport materials ranging from irregularly shaped dry solids such as scrap wood and metals, to semiliquid and sticky materials including pulp,
compost,food-processing waste, hospital waste, and wastewater products.

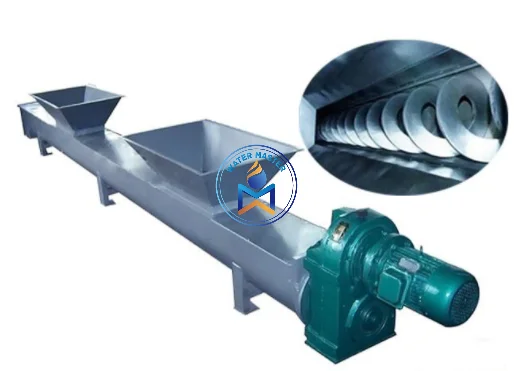

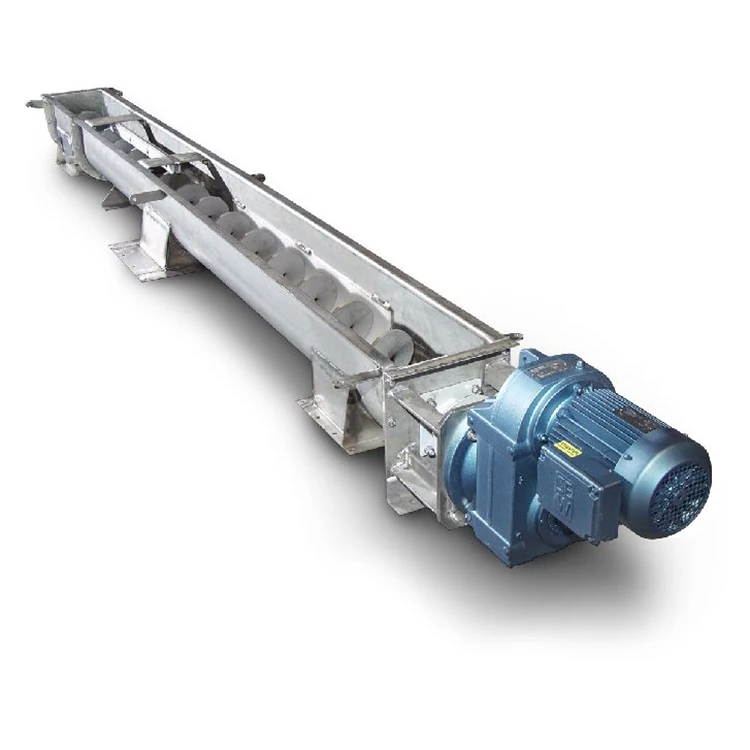

WMSC Shaftless Screw Conveyor consists of rotating shaftless screw inside U-shaped trough having an inlet hopper and outlet spout,
being the rest of conveyor completely closed. The feed is pushed into the feed inlet and then moves to the outletspout under thepushing of the screw.


Features


♦ Ease of installation, stable operation
♦ Automatic controlled, low noise, lowleakage
♦ Internal bearings are eliminated, lowmaintenance
♦ Long service life, low total cost of ownership
♦ Improved conveying efficiency whencompared to other types of conveyors
♦ Allows greater flexibility for plant layout due to configurations available


Product Paramenters


Model
WMSC200
WMSC260
WMSC320
WMSC355
WMSC420
WMSC500
Conveying Capacity
(m3/h)
2
3.5
9
11.5
15
25
15°
1.4
2.5
6.5
7.8
11
20
30°
0.9
1.5
4.1
5.5
7.5
15
Max Conveying Length(m)
10
15
20
20
20
25
Body Material
SUS304


Application


Shaftless Screw Conveyors are the ideal solution for hard-to-transport materials ranging from irregularly shaped dry solids such as scrap wood and metals, to semiliquid and sticky materials including pulp, compost, food-processing waste, hospital waste, and wastewater products.
