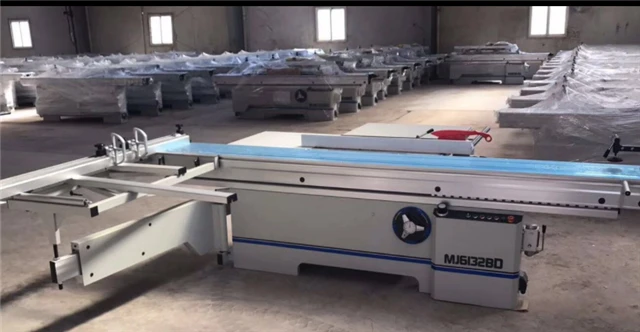

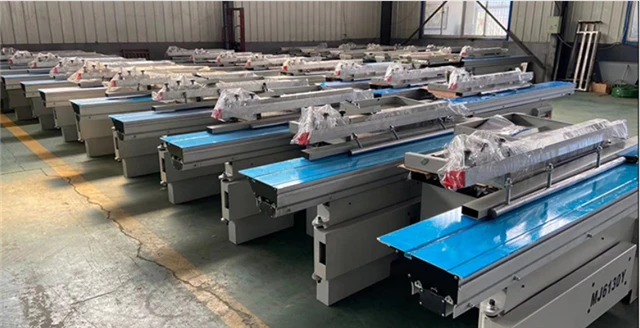

Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines
Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines
Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines
Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines
Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines
Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines
Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines

Woodworking Automatic Sliding Table Panel Saw wooden Saw Machines

Share on (1600375333394):


Price:$3,300.00 - $3,500.00

Quantity:


Product Overview

Description



Product Description




Woodworking Saw Machine Wood Cutting Sliding Table Saw
Applicable products: MDF board, particleboard, wood-based panels, ABS panels, PVC panels, solid wood, etc.
Working principle: Move the workbench to achieve the sawing process. Scribe saw is in the front, the main saw blade can be used to carry out variable speed sawing work.
Achieved effect: East to operate, labor-saving and with high precision.
Structure advantages: The workbench guide rail comes with high strength extruded aluminum alloy, high strength, non-deformation, with high positioning accuracy.Table surface is with oxidation treatment,beautiful wear-resistant.


Dimension Sliding Table
3200*380mm
Maximum Sawing Length
3200mm
Maximum Sawing Width
1250mm
Saw Blade Diameter
300mm(250-350)
Maximum Sawing Thickness
70mm
Maximum Sawing Thickness
55mm
Spindle Speed
4000/6000rpm
Spindle Diameter
30mm
Tiling Saw Blade
0-45
Main Motor Power
5.5kw
Scribing Blade Specifications
120mm
Scribing Blade Speed
8500r/min
Shaft Diameter
20mm
Scoring Power
1.1kw
Weight
860kg
Wooden Boxed Weight
900kg
Dimensions
3250*3450*900mm

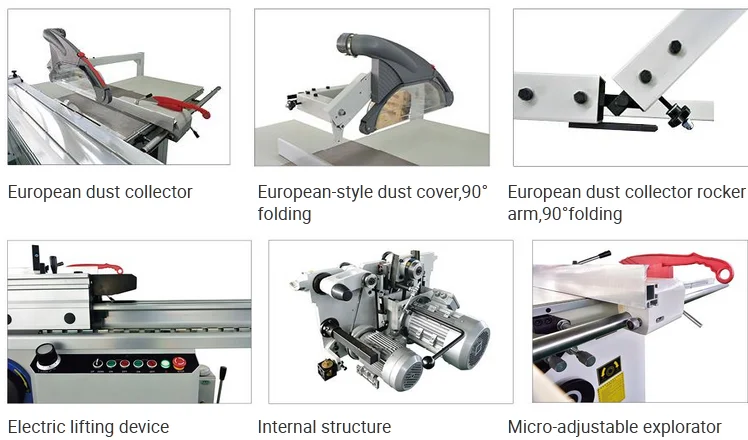

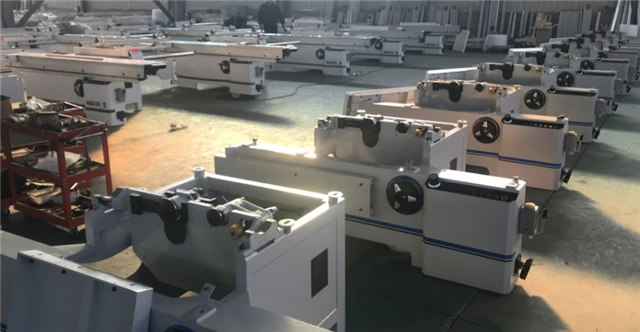

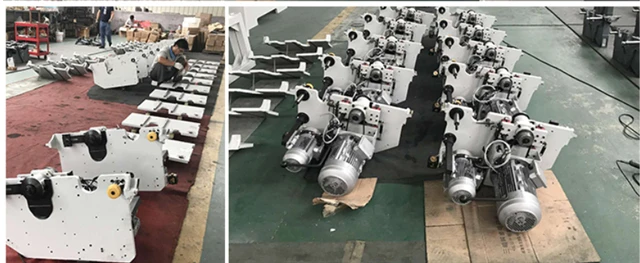

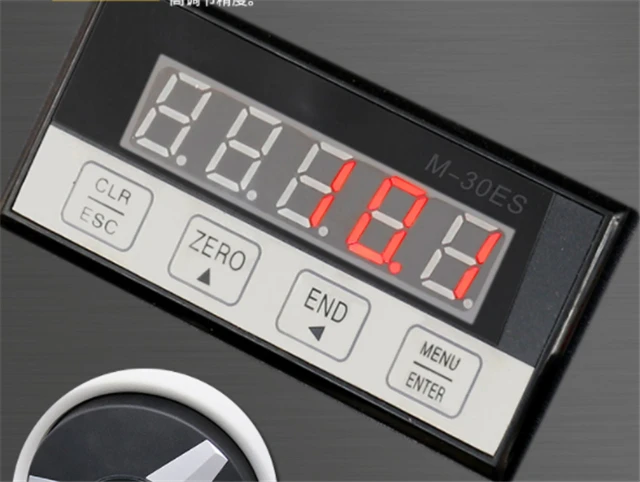

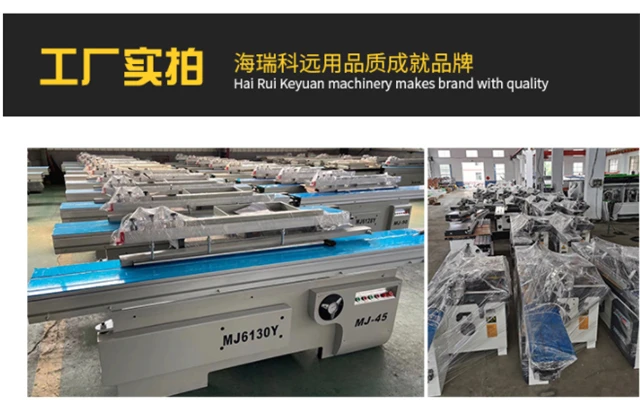

Details Images

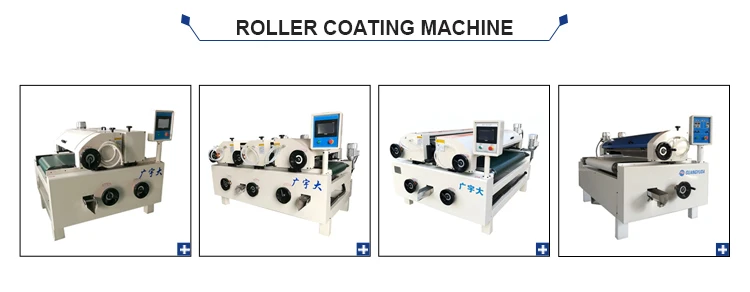

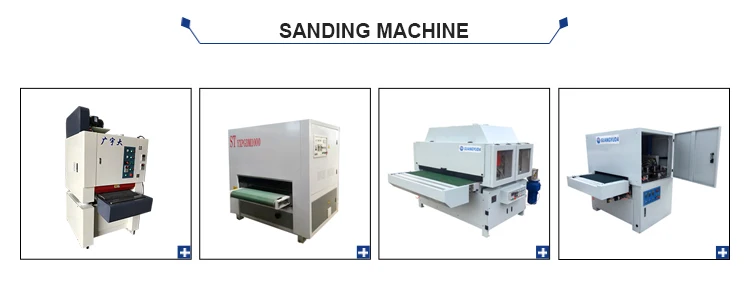

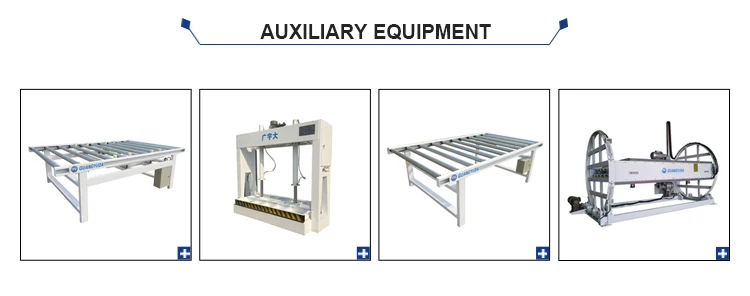

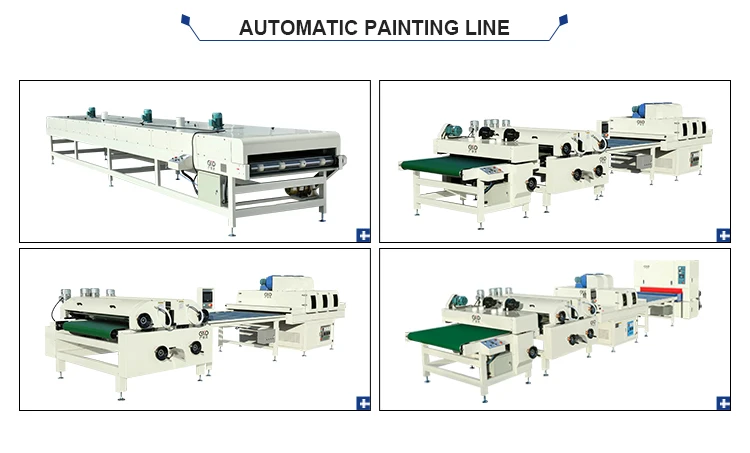

More Products














Our Advantage

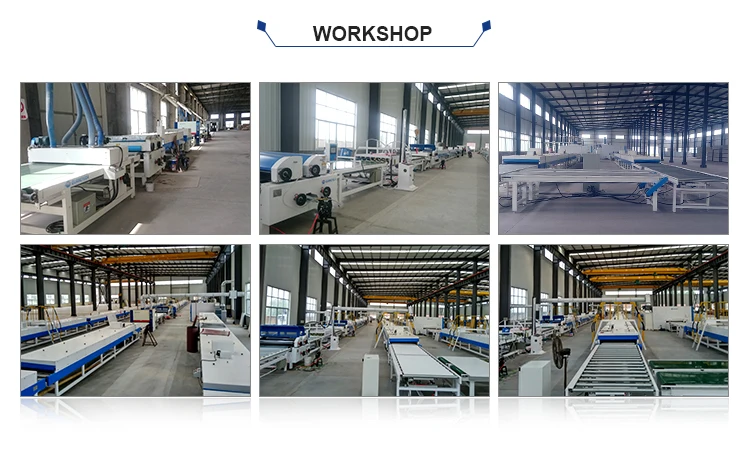

Company Profile

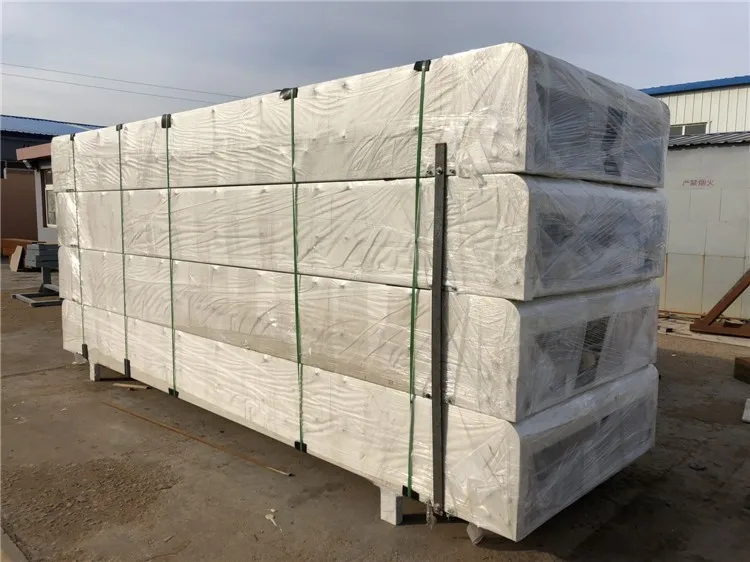

Packing & Delivery










FAQ


1. Is your company a factory or a trading company?
A: We are a factory.
2. What's your warranty?
A: 12 months.
3. What's your lead time?
A:Normal orders within 30 business days. Customized orders, 40-60 business days.
4. What's your payment term?
A: 30% T/T deposit, the balance should be paid before delivery after inspection.
5.Do you inspect machines before sending?
A: Yes, all our machine should pass the strict inspection by our QC department before shipping.Customers can also come to our
factory directly to test machines before shipping.
6.WHAT IS YOUR QUALITY WARRANTY?
A: One year warranty; Lifelong Maintenance and Technical Support.
7.Why choose GYD?
A: (1) We have more than 10 years’ experience in manufacturing automatic coating line.
(2) Excellent after-sales service
(3) Fast delivery time.
