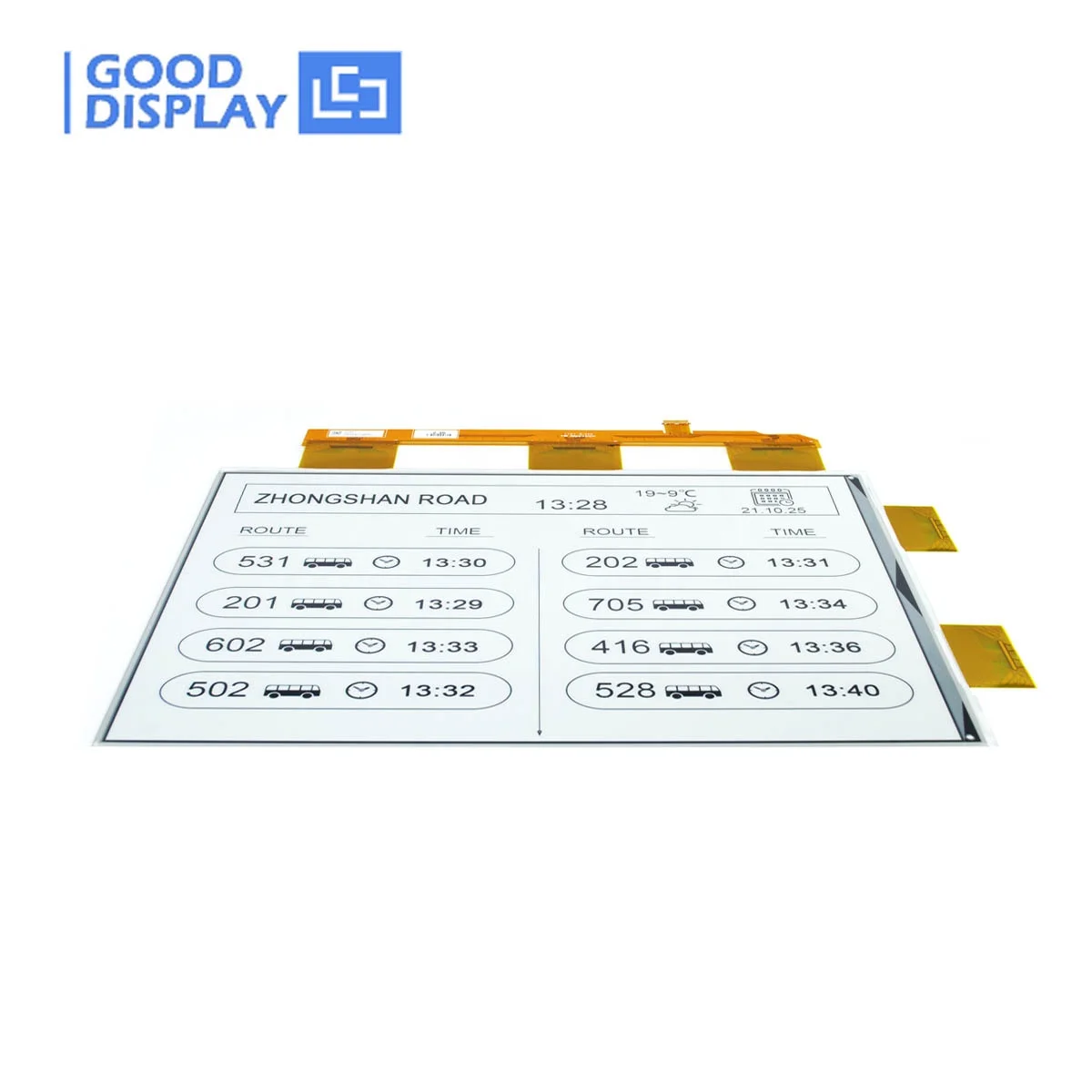

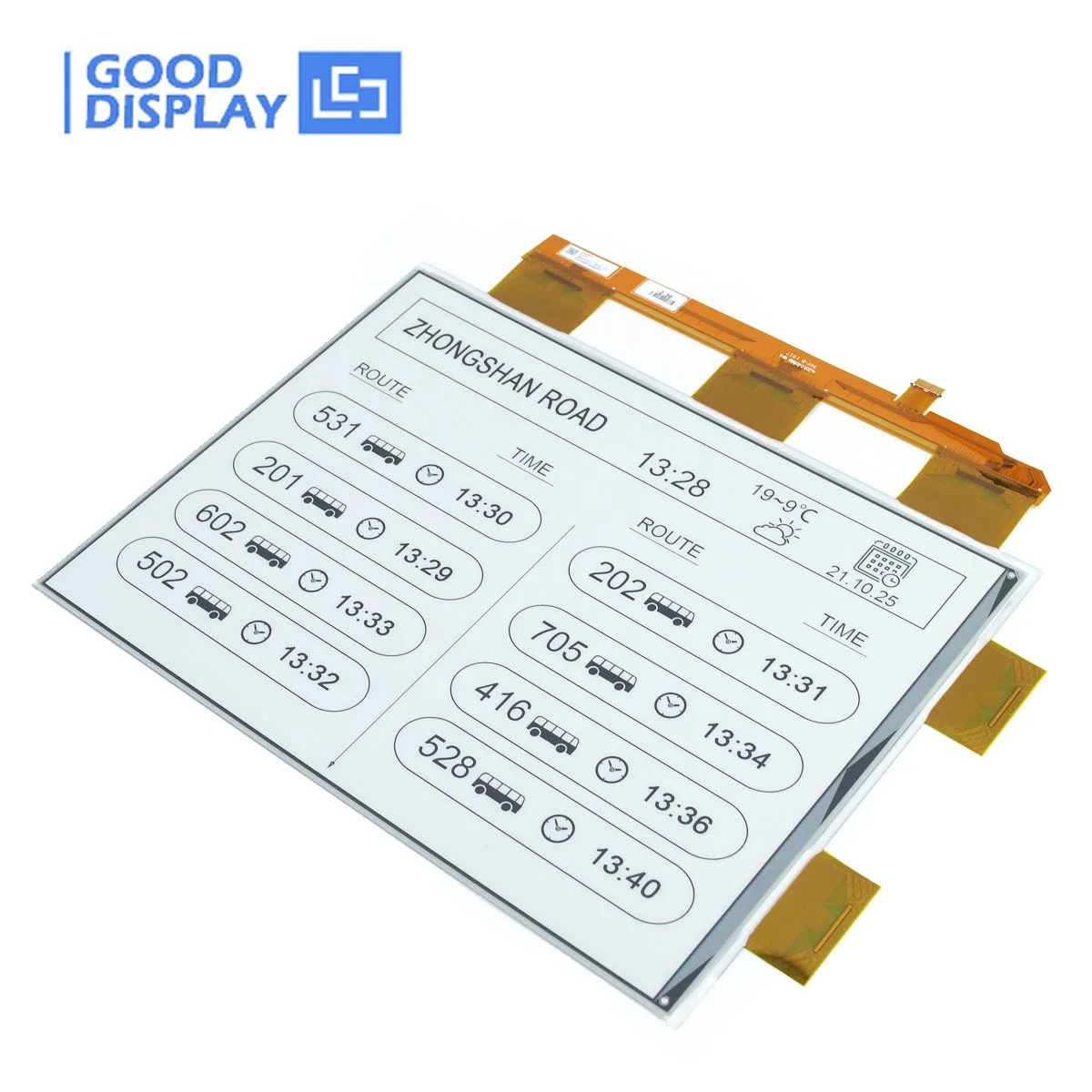

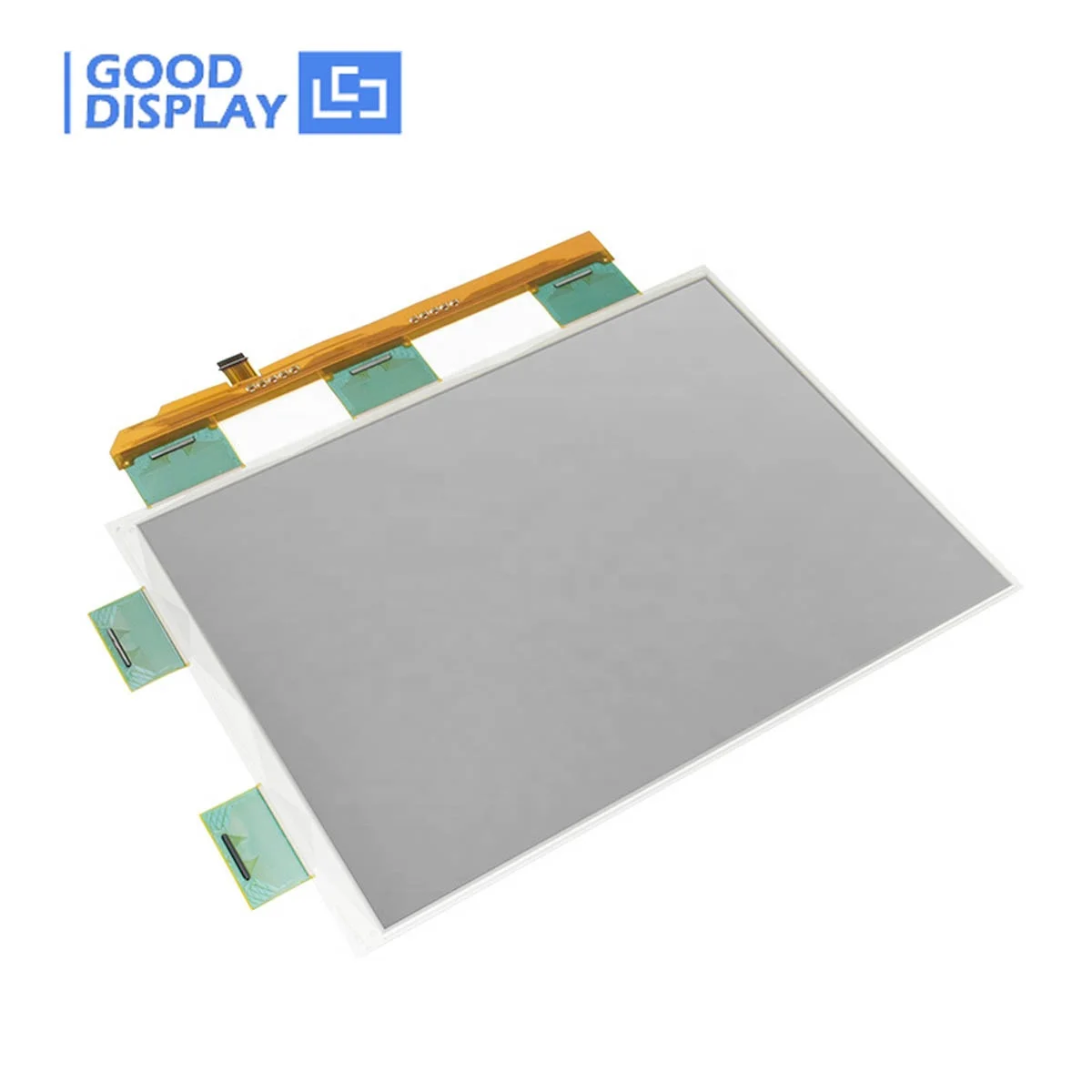

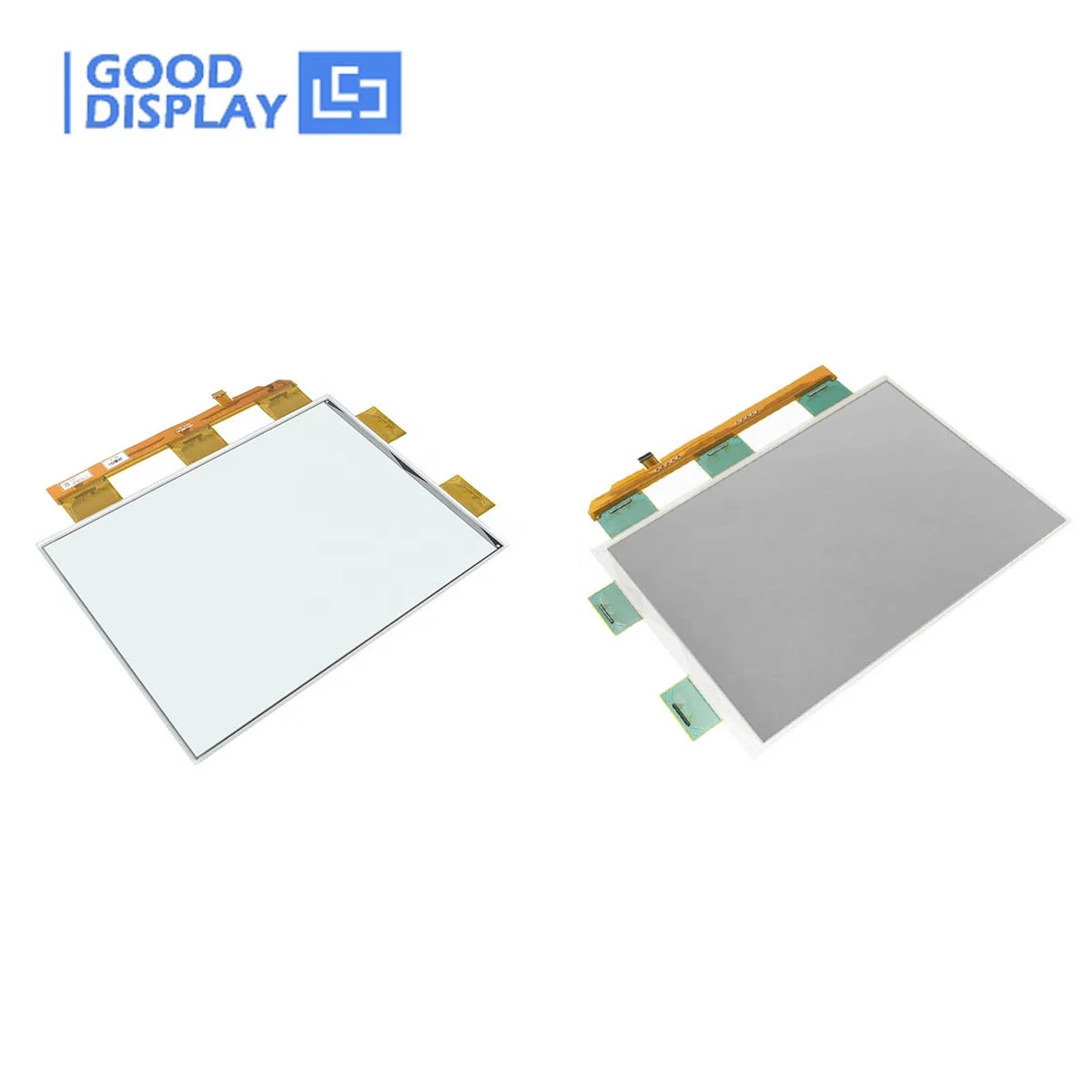

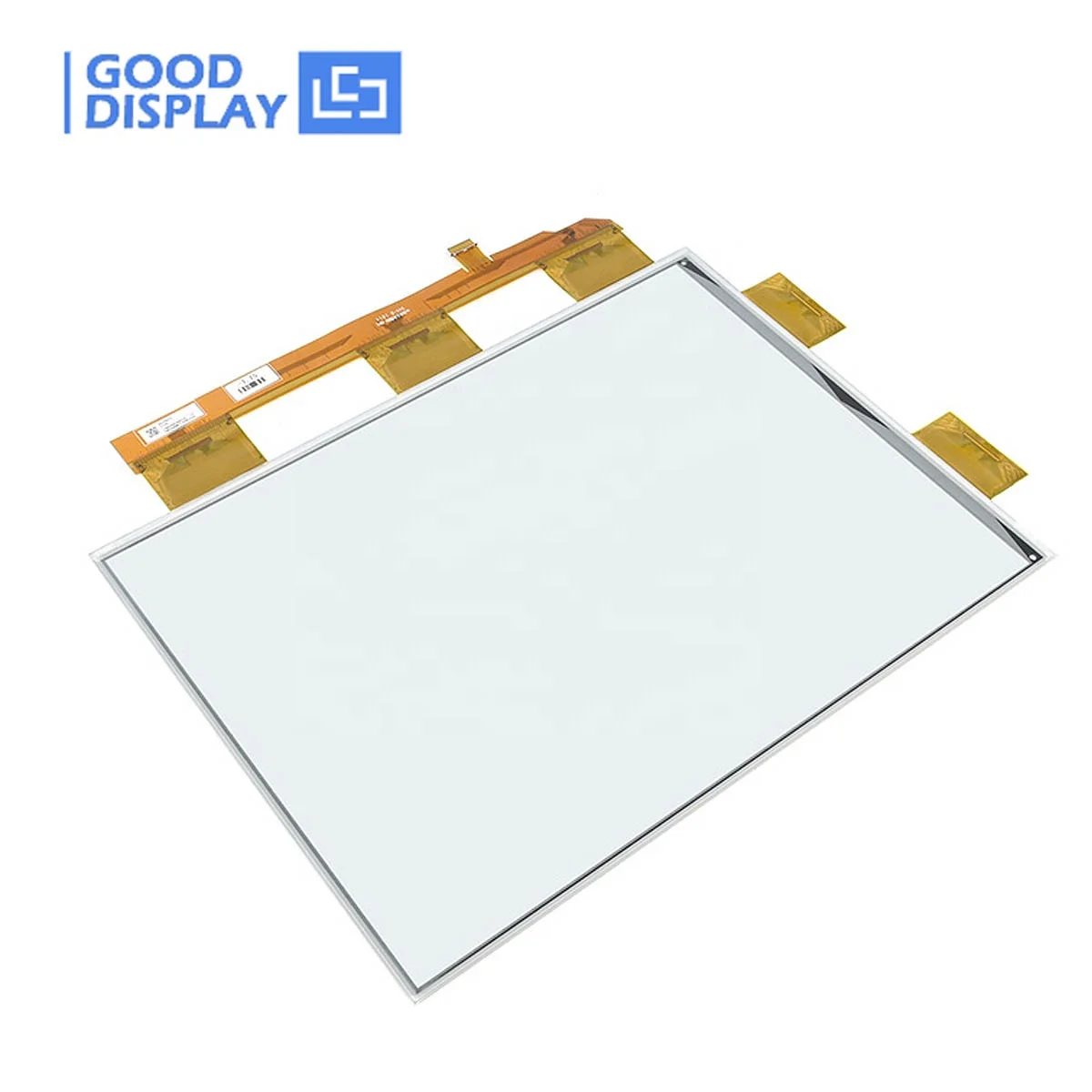

13.3 E Ink Large HD 1600x1200 Resolution E paper Screen

Share on (1600375355180):


Price:$295.00 - $299.00

Quantity:


Product Overview

Description



13.3 E Ink Large HD 1600x1200 Resolution E-paper Screen


\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t


This is a 13.3 inch e ink large e-paper screen, with 1600x1200 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 13.3 inch e-paper display GDEP133UT3 is an ideal choice for applications such as industrial instrument, ebook reader, electronic menu and so on.

We could provide Front light, Touch screen and other accessories for you.

Use our free e-paper software to prepare your bitmap image for this display.


Part Number
GDEP133UT3
Type
Dot Matrix
Resolution
1600x1200
Outline Size(mm)
285.80x213.65x0.78
Active Size(mm)
270.4x202.8
Pixel Pitch(mm)
0.169x0.169
Operating Temp.
-15℃~65℃
Storage Temp.
-25℃~70℃
Interface
Parallel
Max Grayscale
16
Color
Black,White
Full Screen Update(s)
1
Partial Screen Update(s)
1
Power Consumption(mW)
265
Standby Power Consumption(mW)
0.4




How does E-paper Display Work?




\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t


● Support Partial Refresh.

● Versatile. Use in portrait or landscape format

● Bistable. (Will continue to display with no power source)

● Wide temperature operating range from -15℃ to 65℃ with 1-bit WF

● Low power consumption, basically power is only required for refreshing




\t\t\t\t\t\t\t\t\tOther Products \t\t\t\t\t\t\t




E-Paper Display Q&A


Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.

Q: Storage humidity for electronic paper.
A: 40% to 70%.

Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.

Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.

Q: Any solution to achieve lower power consumption of E-paper display?
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
