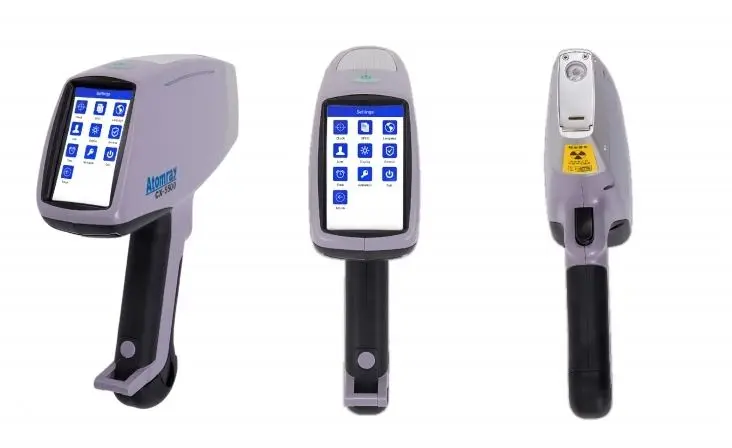

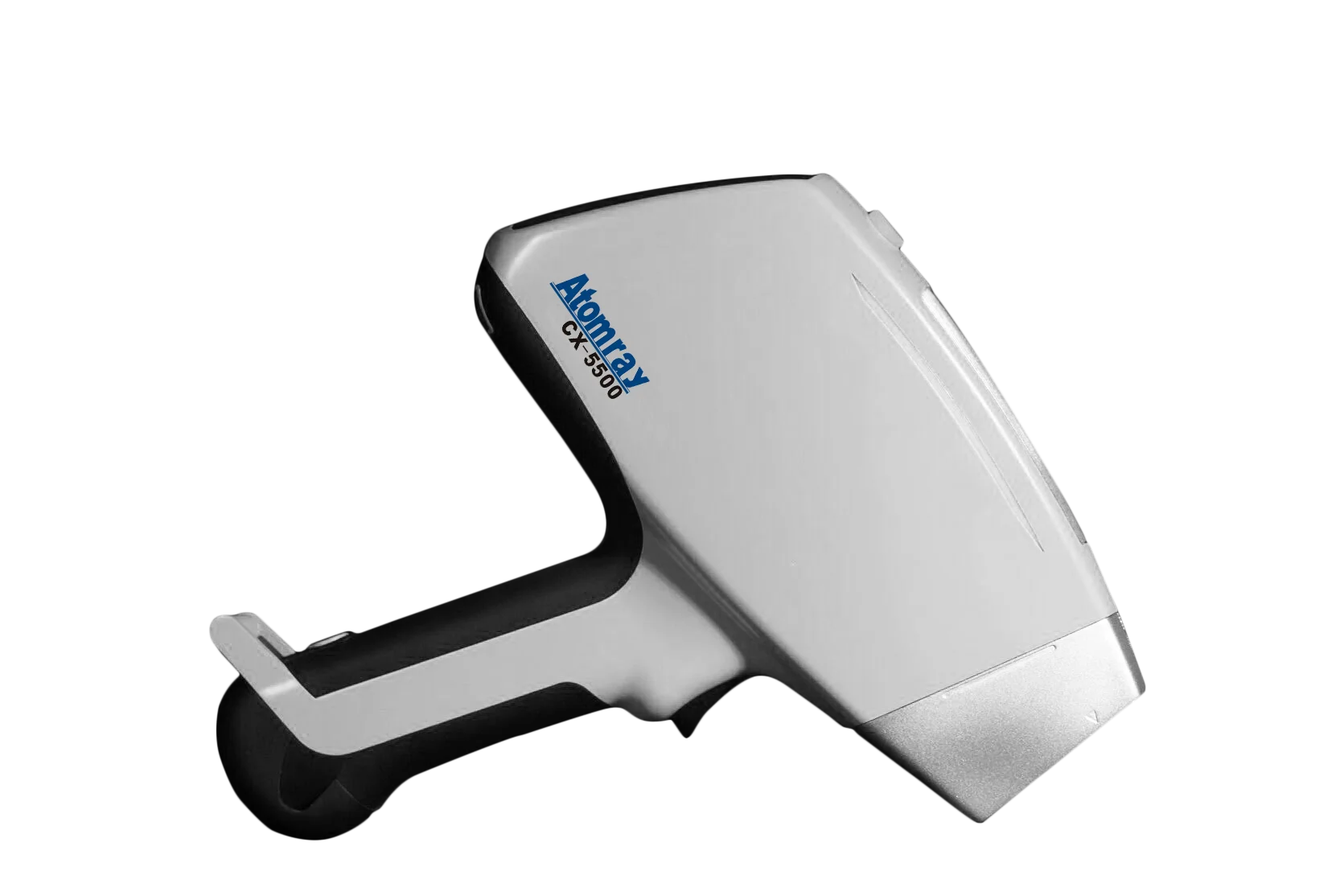

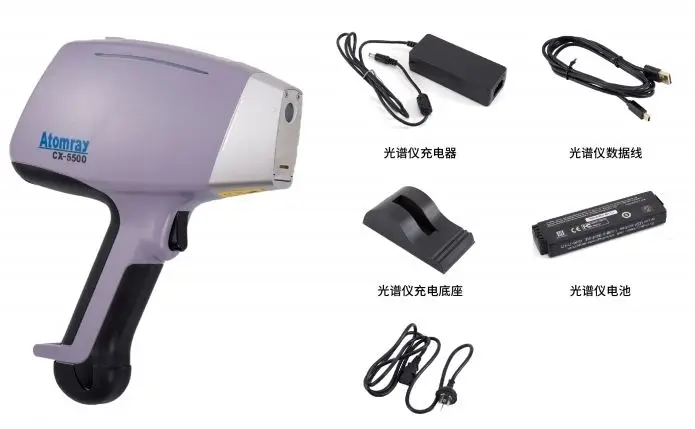

CX 5500 Special Design Widely Used alloy analyzer metals alloy analyzer handheld metal alloy analyzer

Weight

1.6Kg（with battery）.

Dimensions

254 x 79 x 280 mm（L x W x H）.

Excitation source

50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional).

Detector

BOOST Si-PIN detector

Range of detection

All elements between Mg and U.

Display system

Industrial resistive touch screen with screen size of 4.3".
Proprietary operating system software and sound waves.
Multiple languages including English and Chinese.
And it automatically adjusts display brightness according to the environment brightness.

Data processing

32GB memory
USB, bluetooth, WIFI, or liked to the Internet; instrument can be
configured and repaired remotely.
Data can be exported via EXCEL or PDF. Users can customize the
reports by adding their company logos, addresses, test results,
spectrum and others (such as product description, origin and batch
number).

Heat dissipation

Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again.

Safety

Built-in double beam technology can automatically sense whether
there is a sample at the measurement window. This is also a safety and protection feature.
Waterproof, dust-proof and shockproof suitcase
CREATE Safety Band；

Power supply system

Intelligent battery management through MSBUS bus, real-time
monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of
dangerous goods.
A single battery can last 8 hours.

CX-5500 elements analyzed

Scope of elements in standard test mode can be extended if there is such a need.

CX-5500

can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi,totaling 25
elements.

Reading

Mode

Cr%

Mn%

Mo%

Ni%

No1

ALLOYS

16.56

1.22

2.03

10.18

No2

ALLOYS

16.66

1.29

2.01

10.15

No3

ALLOYS

16.61

1.20

2.05

10.05

No4

ALLOYS

16.62

1.19

2.00

10.03

No5

ALLOYS

16.68

1.18

2.05

10.15

No6

ALLOYS

16.67

1.22

1.99

10.10

No7

ALLOYS

16.62

1.25

2.04

10.16

No8

ALLOYS

16.5

1.16

2.03

10.20

No9

ALLOYS

16.7

1.19

2.01

10.17

No1

ALLOYS

16.63

1.20

2.03

10.08

Standard value

16.68

1.22

2.03

10.11
