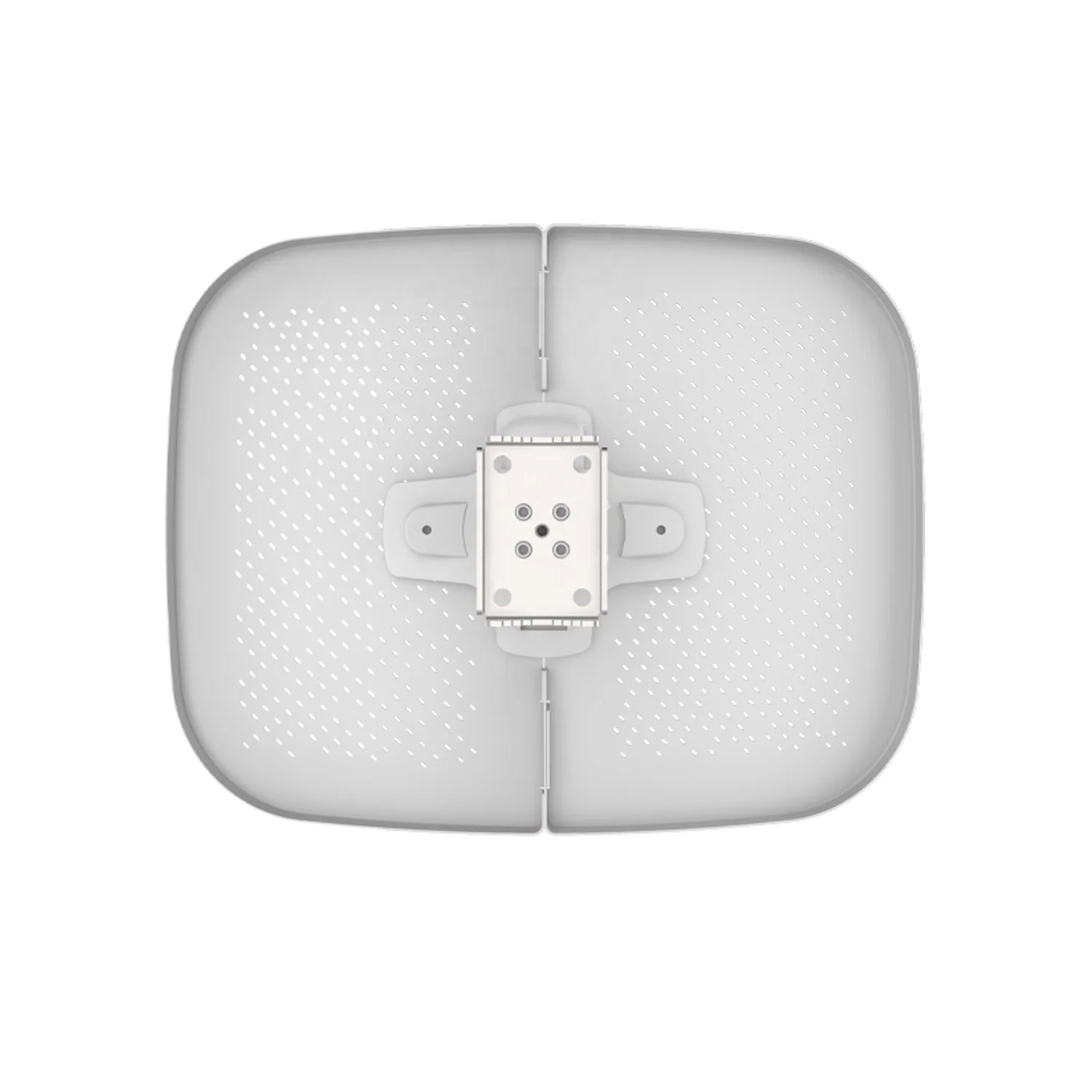

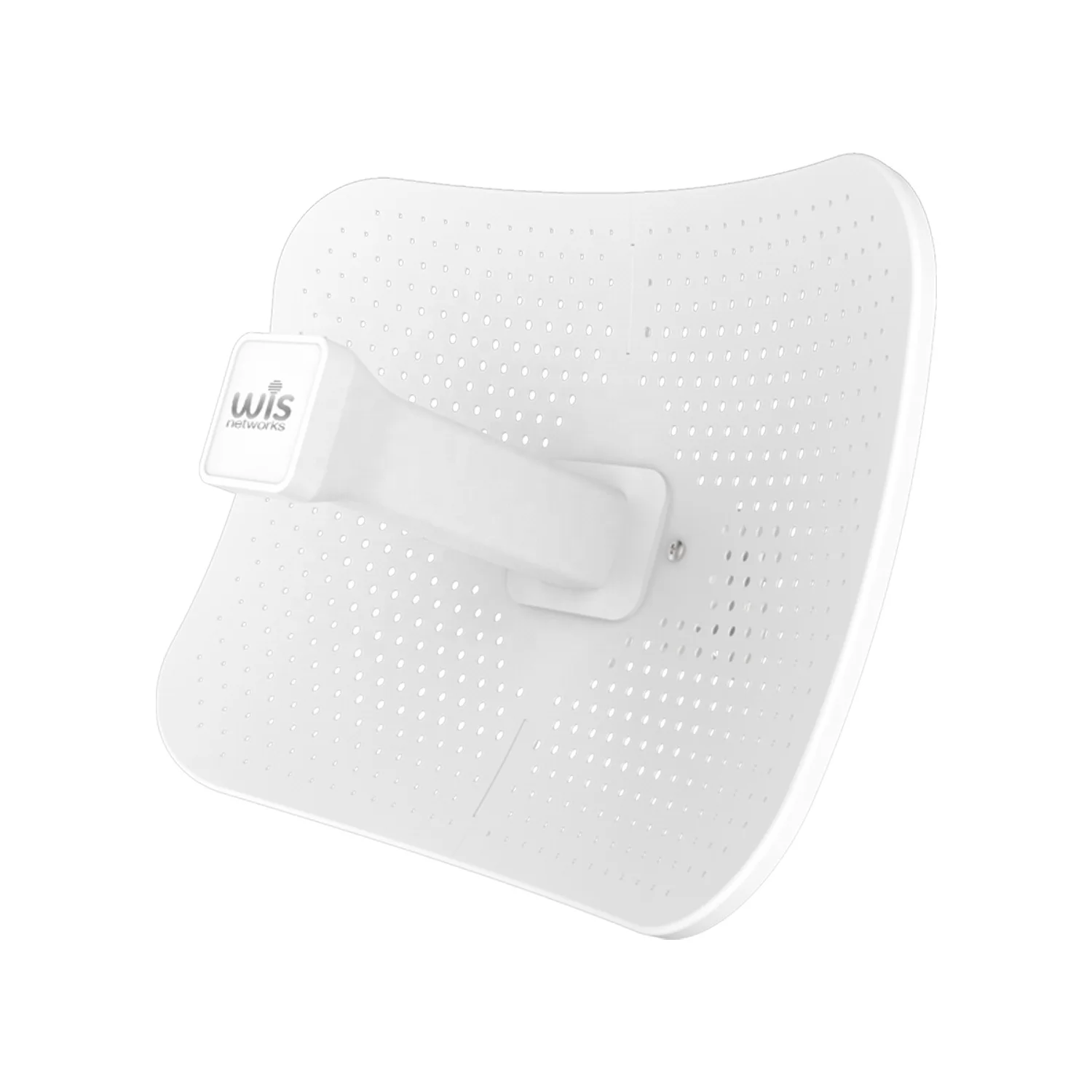

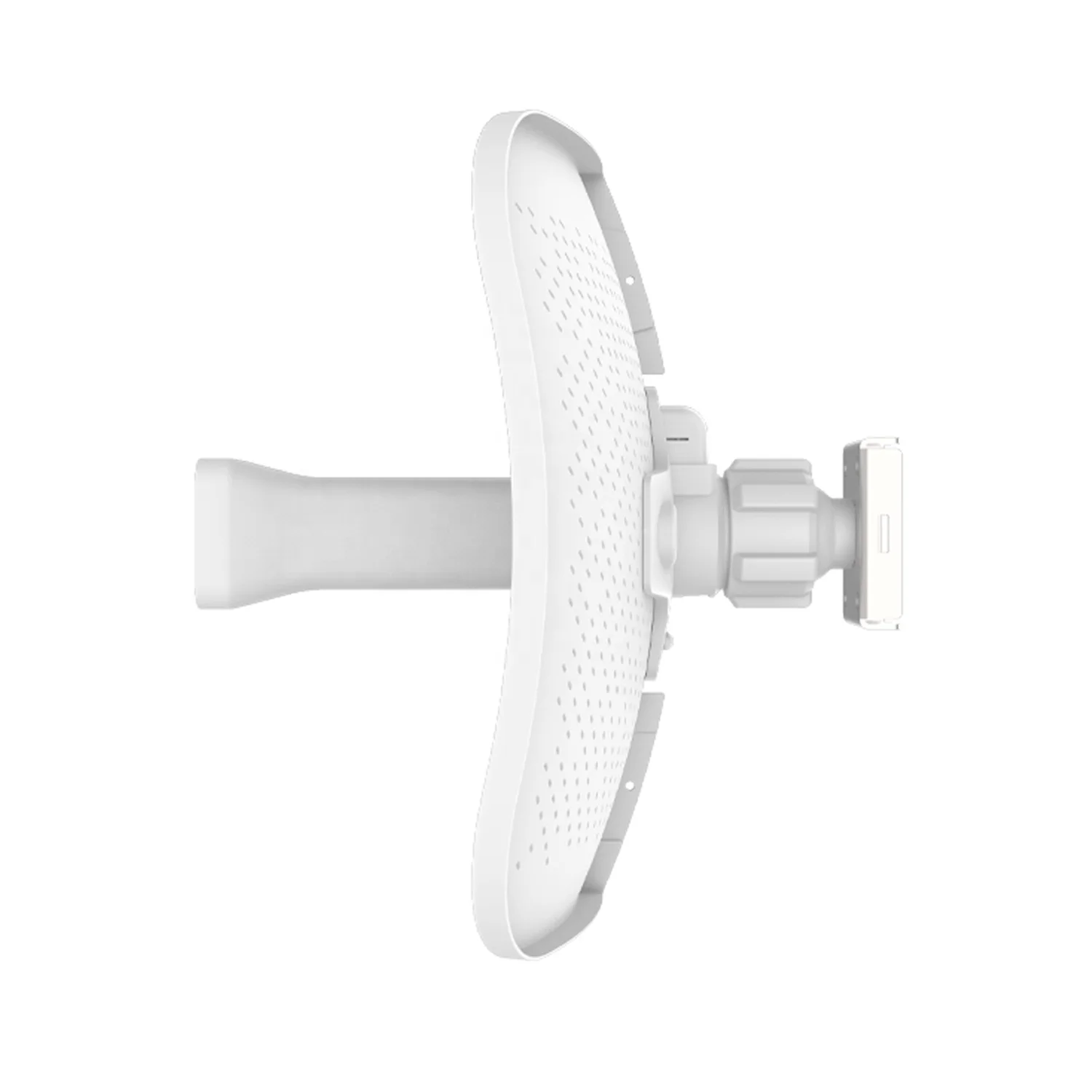

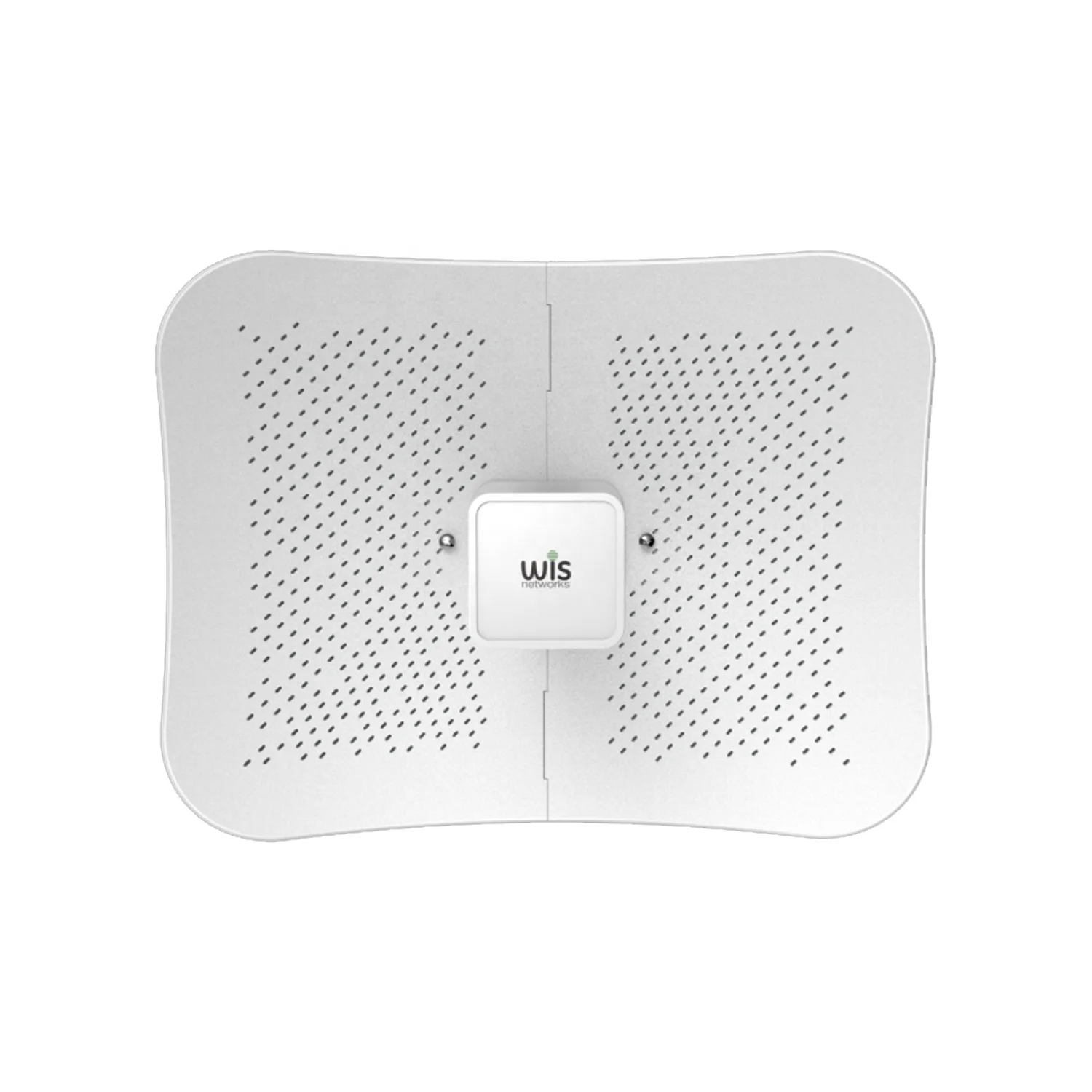

WIS D523AC 5GHz 23dBi Wireless CPE high power Outdoor long range bridge for Ubiquiti LBE M5 23 PowerBeam, LiteBeam
- Category: >>>
- Supplier: Lanbowan Communication Ltd.
Share on (1600375408310):
Product Overview
Description
Product Description
WIS-D523AC is a 867Mbps 2*2 MIMO outdoor wireless dish bridge for long range point-to-point
and point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISP CPE,
which provides incredible long range much better than any other vendors solution.
and point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISP CPE,
which provides incredible long range much better than any other vendors solution.
Features
Incredible Long Range
● Up to 25dBm Tx Power
● Up to 25dBm Tx Power
● Dish Antenna Gain 23dBi
● Radio-in-Feed design reduces cable loss
● Narrower Beamwidth for noise immunity
Revolutionary Design

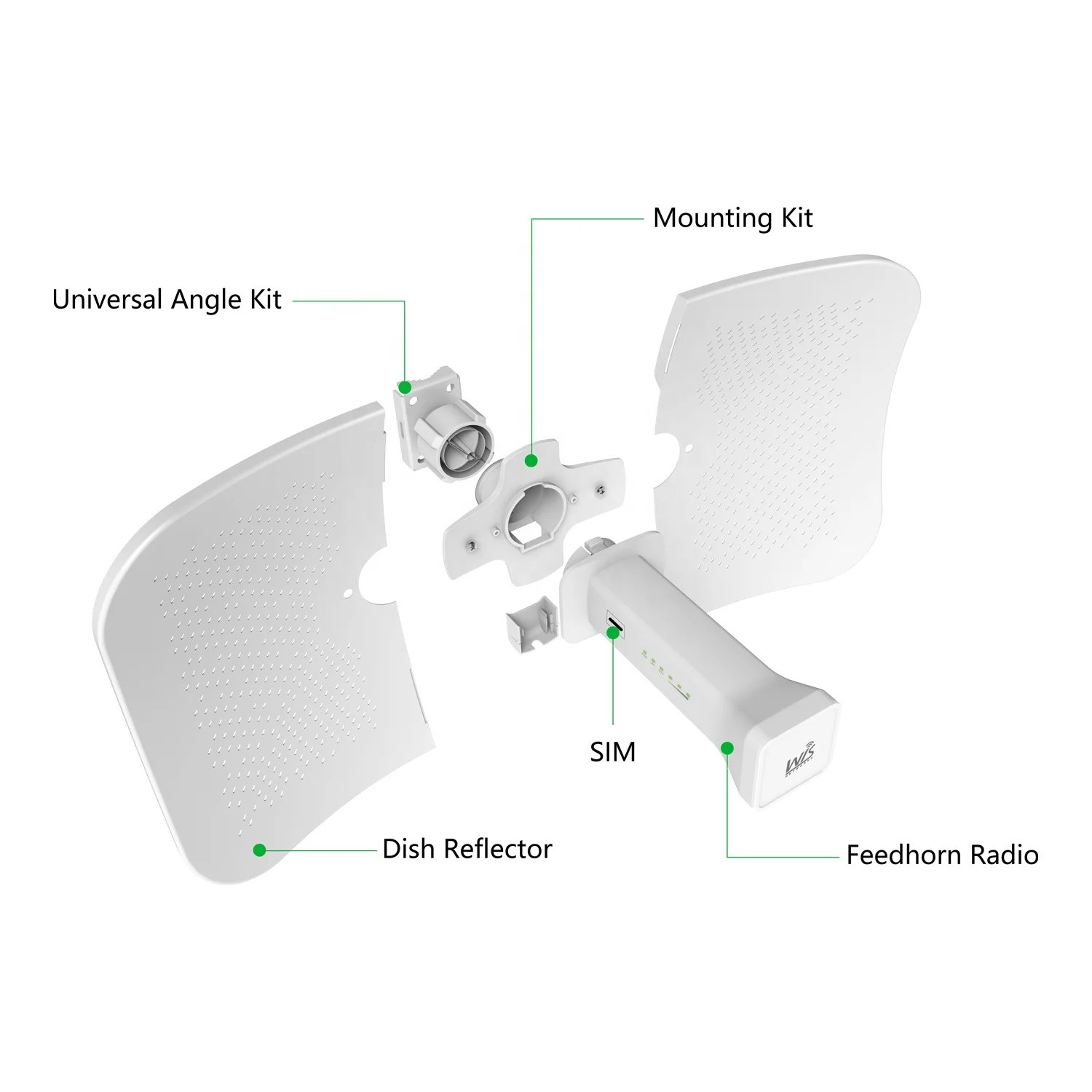

● Disassembled Dish Design
● 360 Universal Antenna Alignment
● IP66 Waterproof
● 360 Universal Antenna Alignment
● IP66 Waterproof
Full Feature & Performance

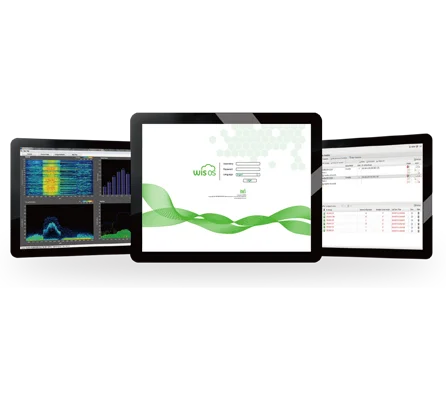

● Full WisOS Support
● Auto-Distance Adjust
● 20km+ Availability
● Fully Managed by WiController
● Auto-Distance Adjust
● 20km+ Availability
● Fully Managed by WiController
Features and Benefifits
- Compliant with 802.11 ac/n/a, speed up to 867Mbps
- 23dBi dual-polarized dish antenna to build robust long range wireless PtP link
- High output transmission power and receive sensitivity optimized
- 80/40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Managed with web interface or by NMS WiController
- Passive POE(24VDC) for flexible deployment
- Weather-proof design for outdoor environment
- Up to16kV ESD protection
- 23dBi dual-polarized dish antenna to build robust long range wireless PtP link
- High output transmission power and receive sensitivity optimized
- 80/40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Managed with web interface or by NMS WiController
- Passive POE(24VDC) for flexible deployment
- Weather-proof design for outdoor environment
- Up to16kV ESD protection

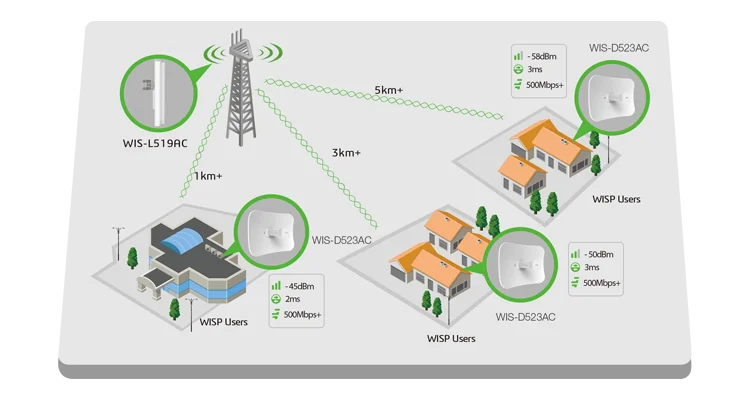

Network Diagram
Product Paramenters
Radio | - 802.11ac/n/a radio (Atheros 775MHz) - Speed up to 867 Mbps - Frequency Range: 5.150-5.250GHz 5.250-5.350GHz 5.470-5.725GHz 5.725-5.825GHz - Tx Power 27dBm±2 - Rx Sensitivity 867Mbps: -67dBm@10% PER 300M: -74dBm@10% PER 54M: -78dBm@10% PER 1M: -98dBm@10% PER |
Antenna | - 23dBi dual-polarized dish antenna - Beamwidth(HPBW) Horizontal: 10°, Vertical: 10° - Open space up to 1~20km (dependent) |
Physical Parameters | - Dimension: 350*270*255mm - Wight: 3kg - Feedhorn enclosure: ASA Weatherproof - ESD Protection: 16kV - Working Temp: -40 ~70°C - Storage Temp: -40 ~85°C - Working Humidity: 10%~95% non-condensing |
Power | - 24VDC, 0.75A - Power Consuption: 6W |
Security | - Integrated Firewall - WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP; |
Interfaces | - 1x 10/100/1000 Base-T Ethernet (24VDC Passive PoE) |
LED | - Power:On/Off - LAN:On/Off/Flashing - WLAN:On/Off/Flashing - RSSI Signal: 1,2,3 |
Warranty | - 2 Year |
Certification | - CE, RoHS |
Package content | - WIS-D523AC Feedhorn Radio - Feed Receiver - Quick Setup Guide - Power Adapter with Passive PoE - Mounting bracket & kits |
Antenna Information
VSWR
Vertical Azimuth
Vertical Elevation
