FM 204 Digital Dynamometer Measuring Instruments Thrust Analog Push Pull Force Gauge used Electronics, Building Hardware

Product Overview

Description

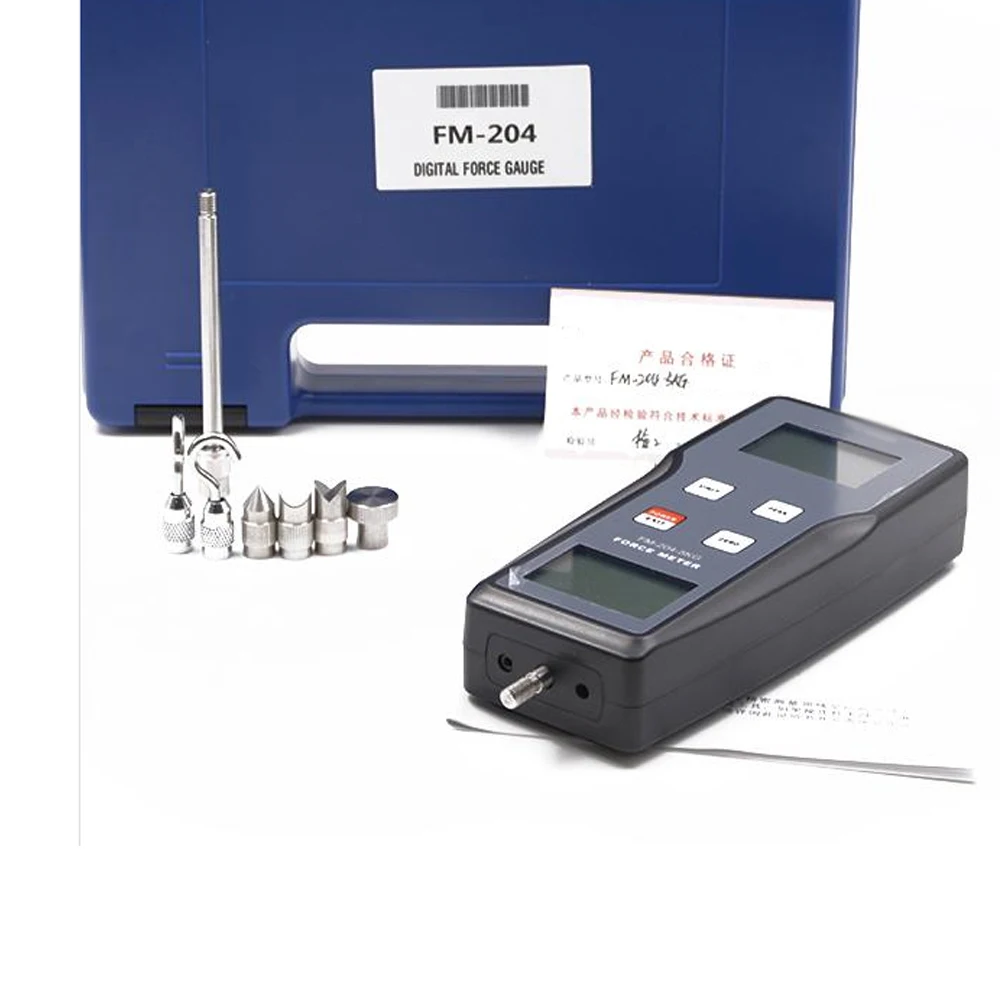

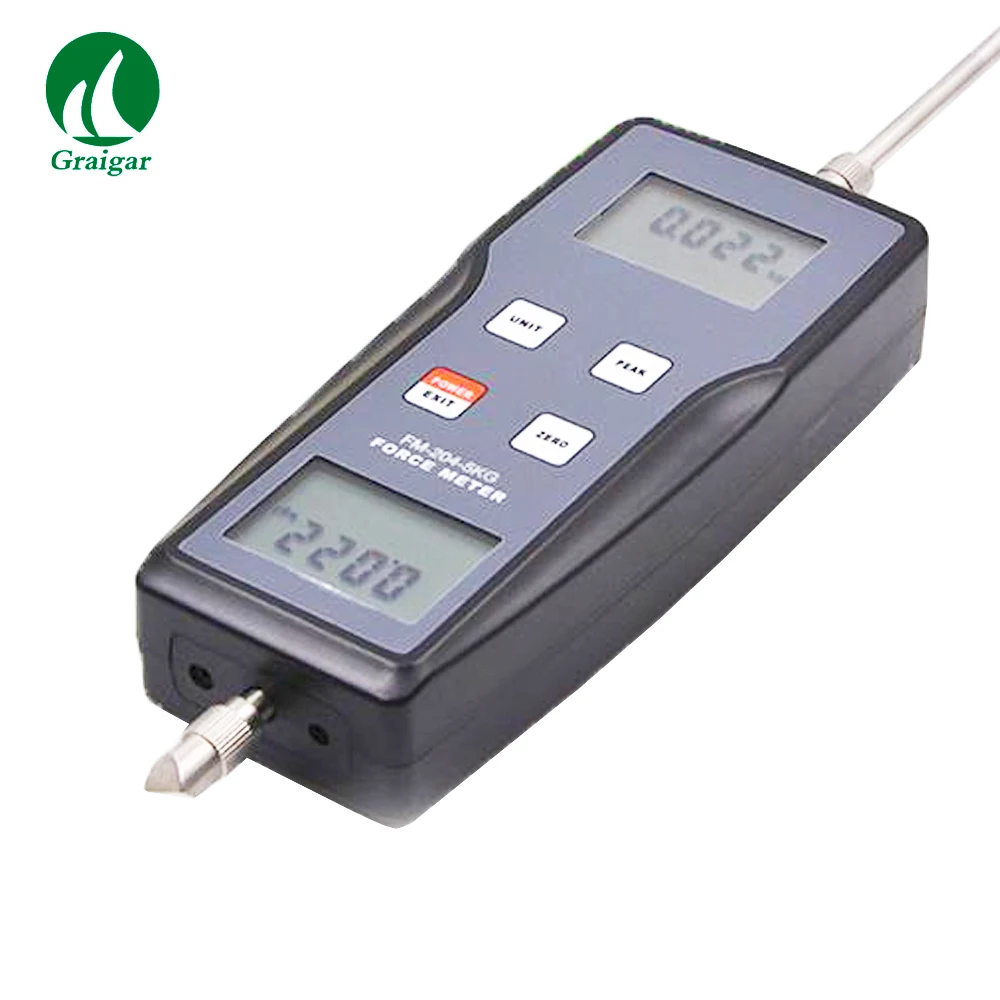

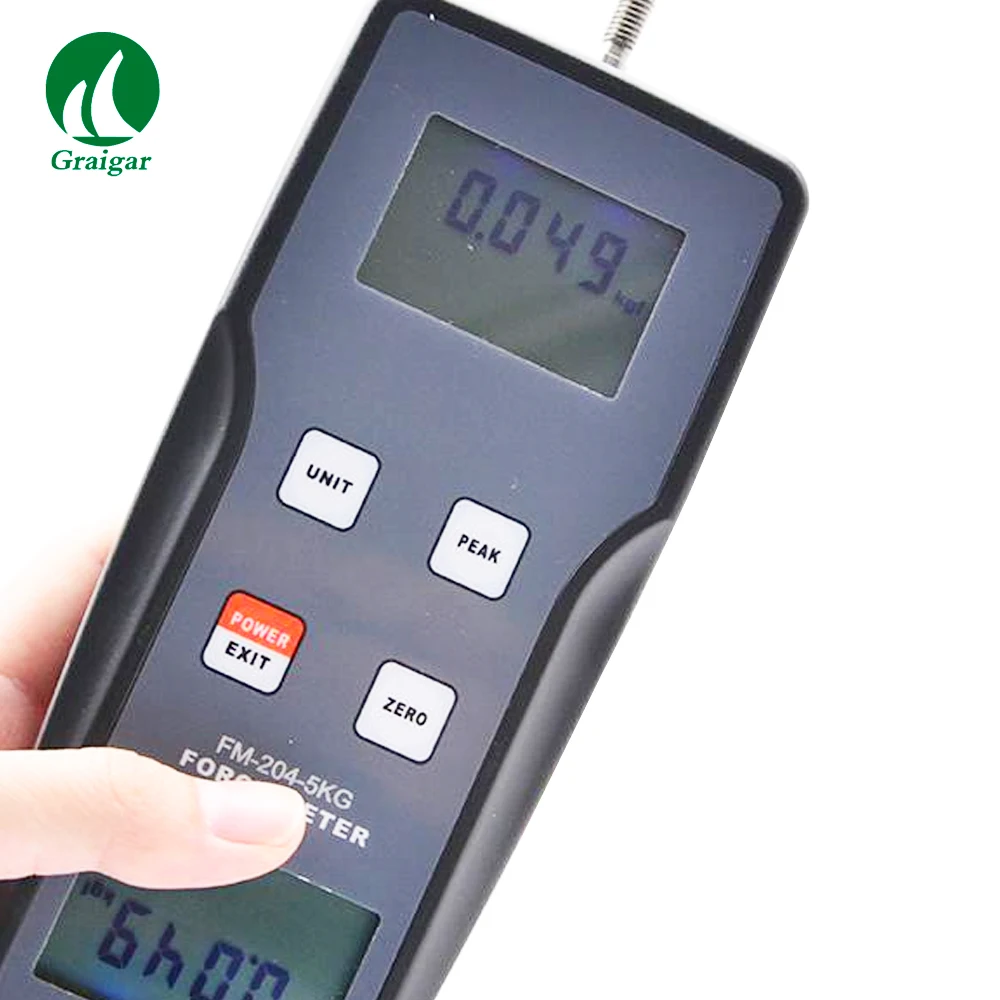

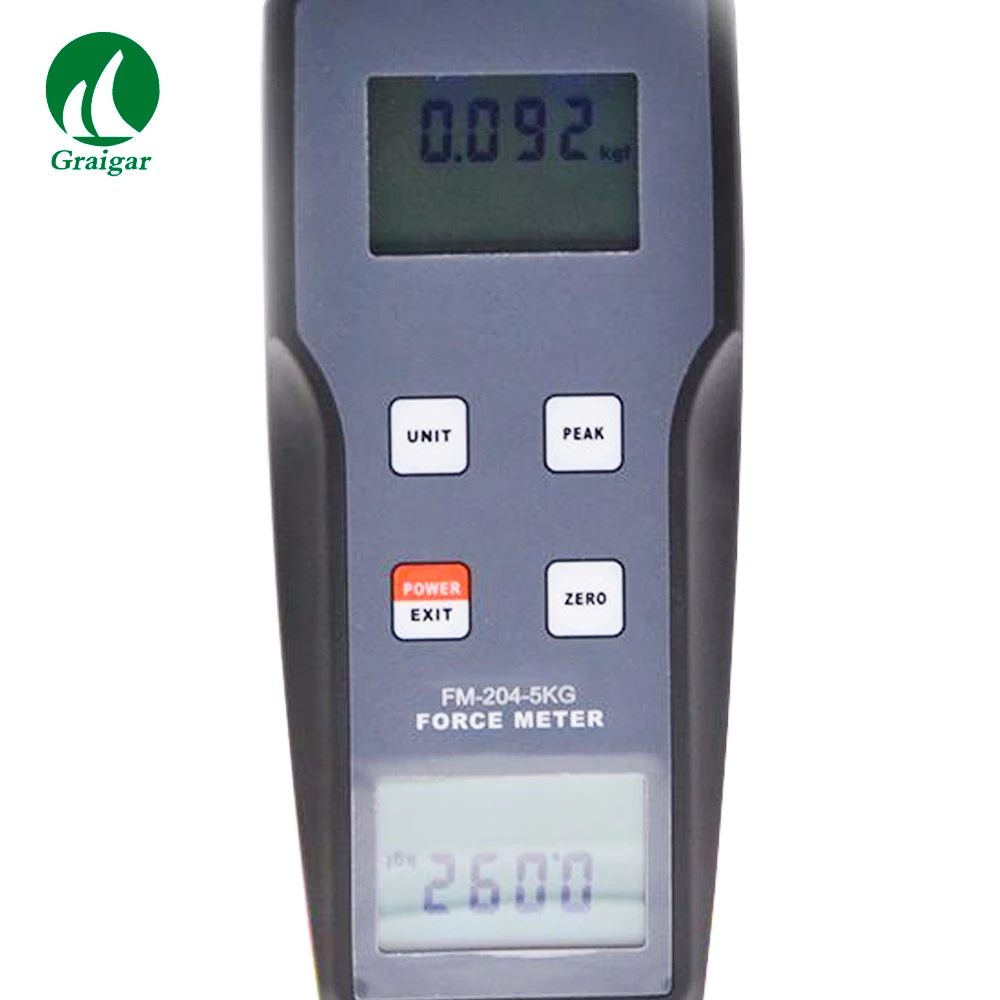

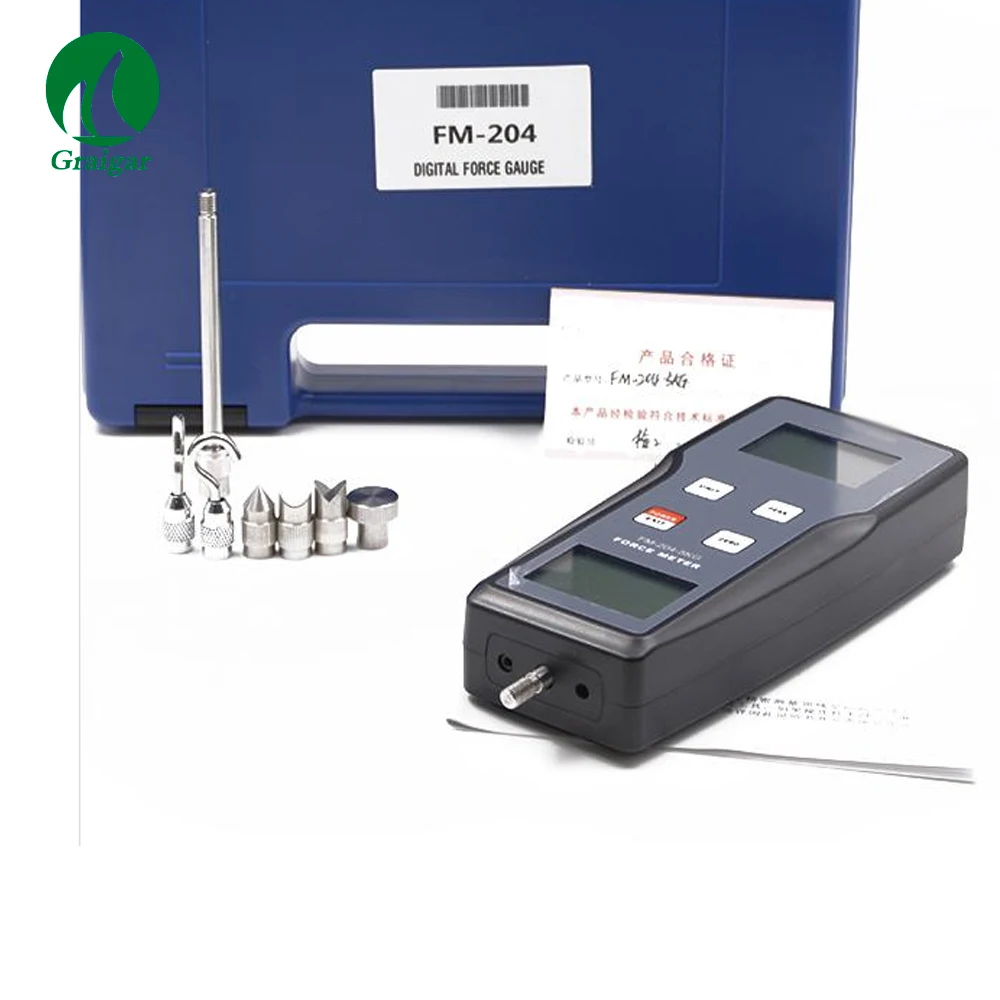

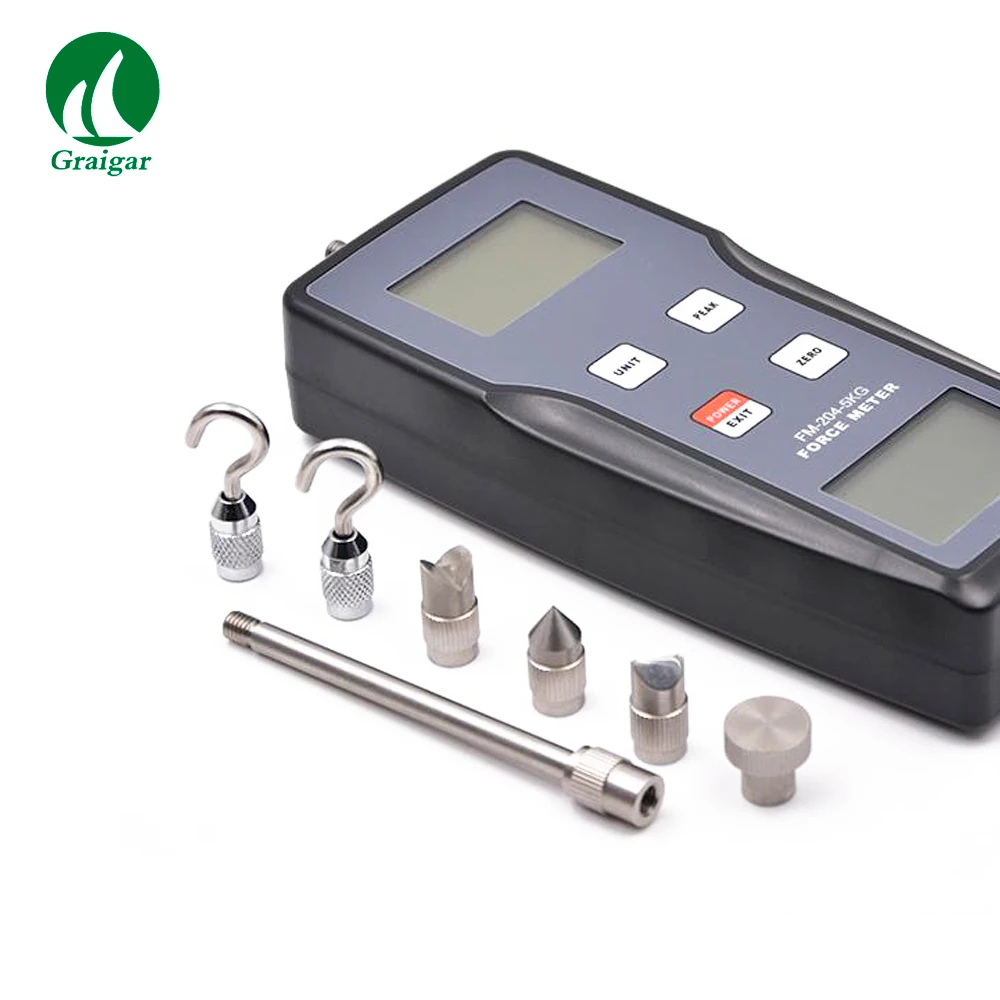

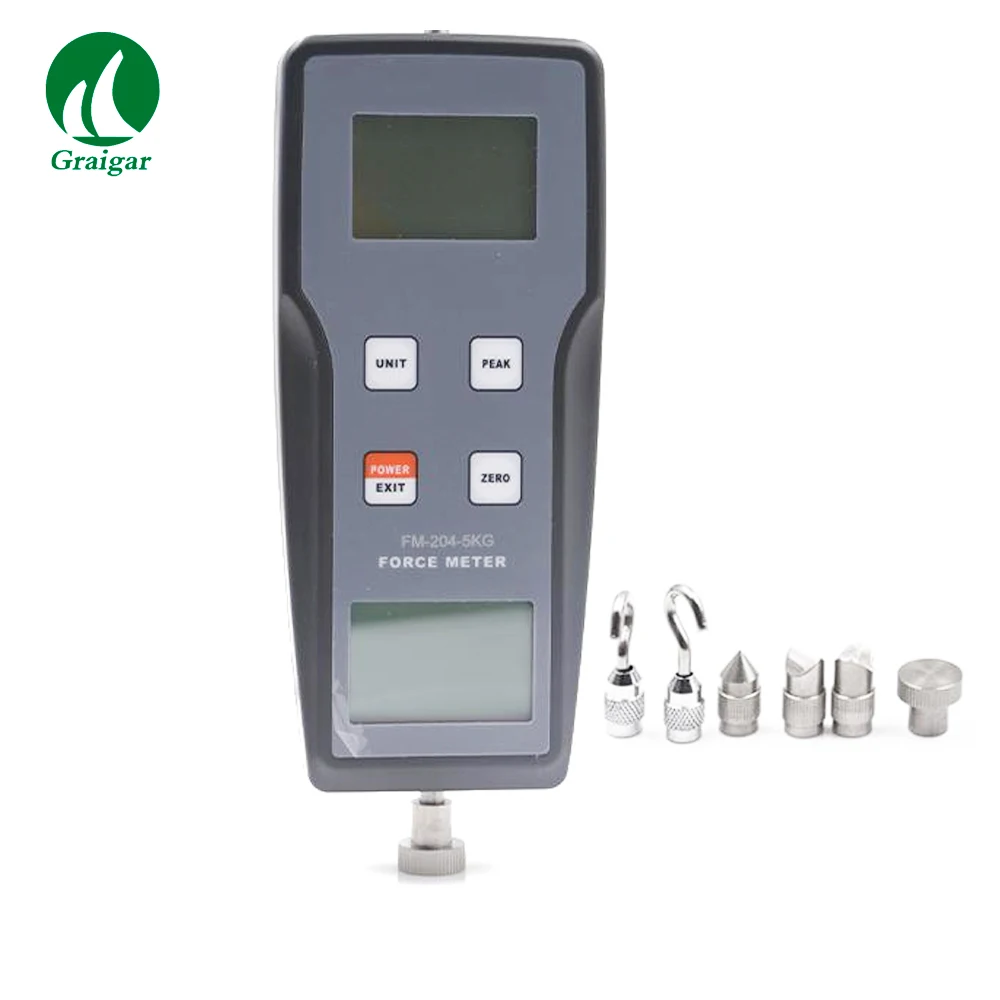

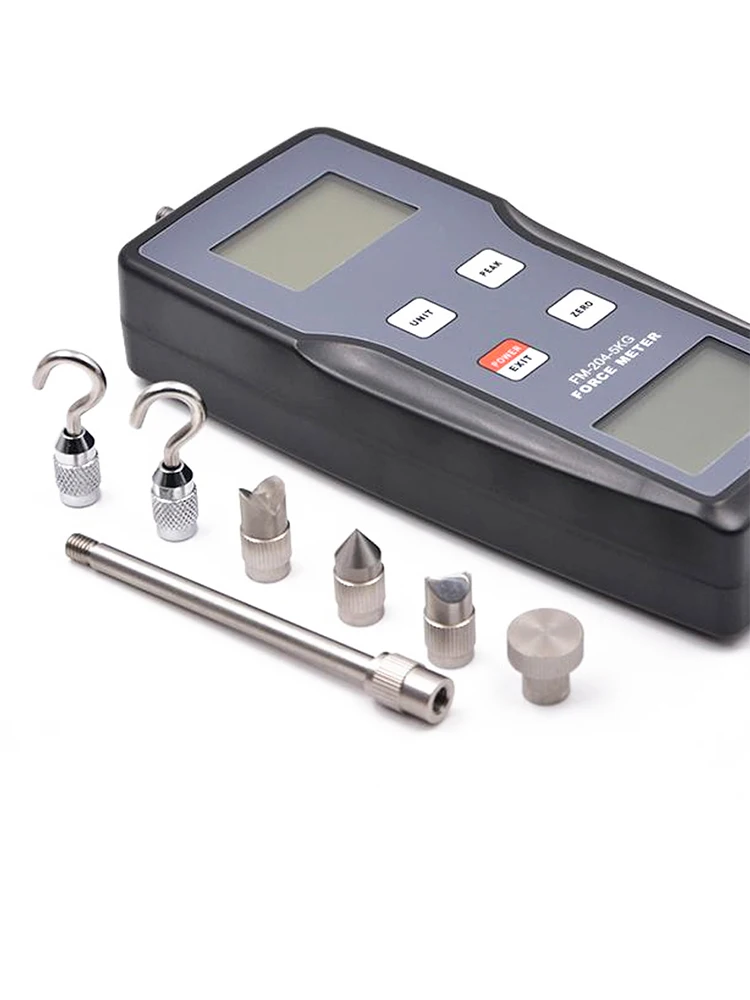

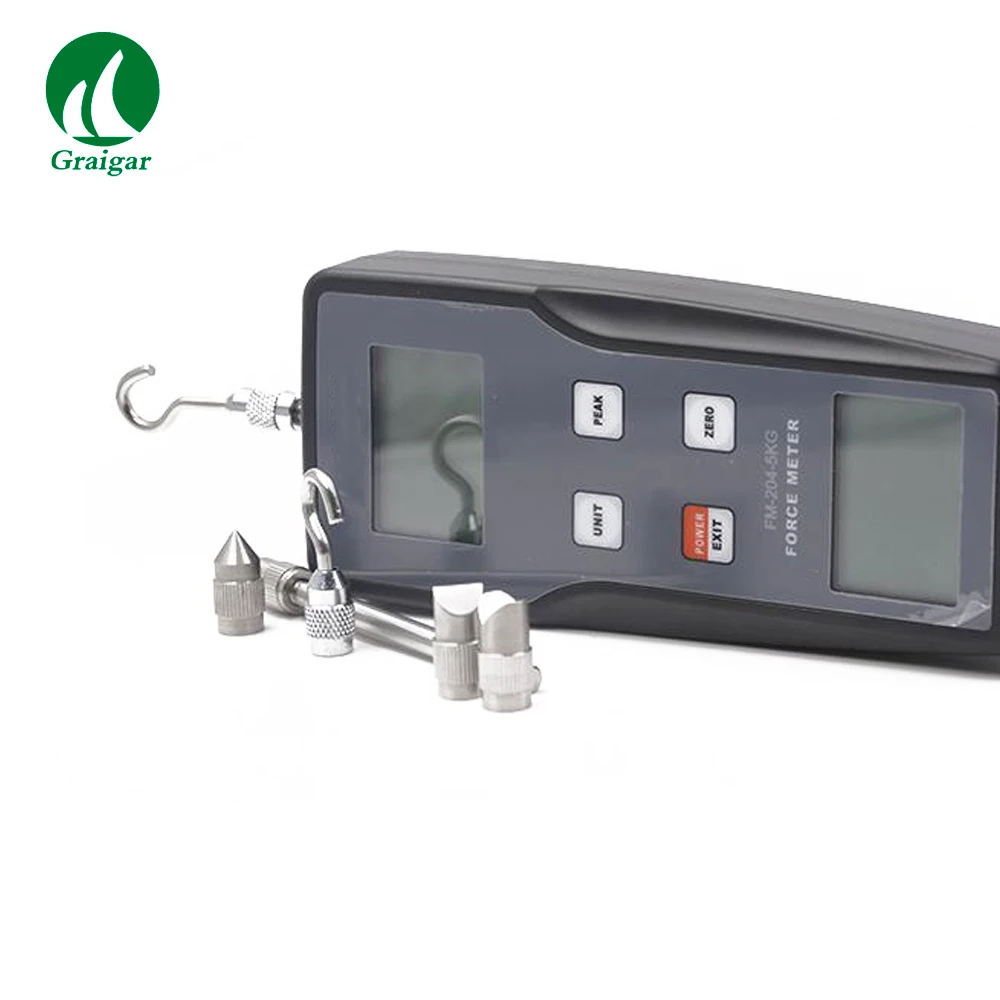

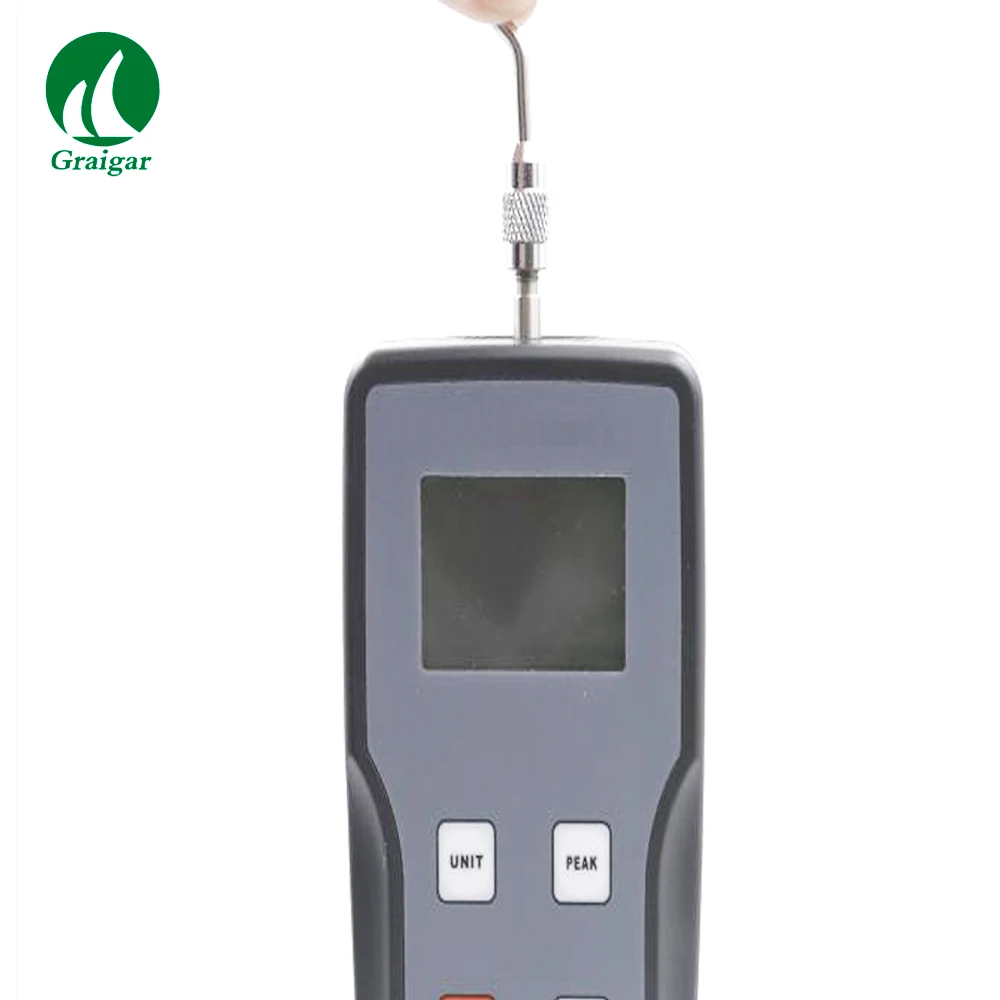

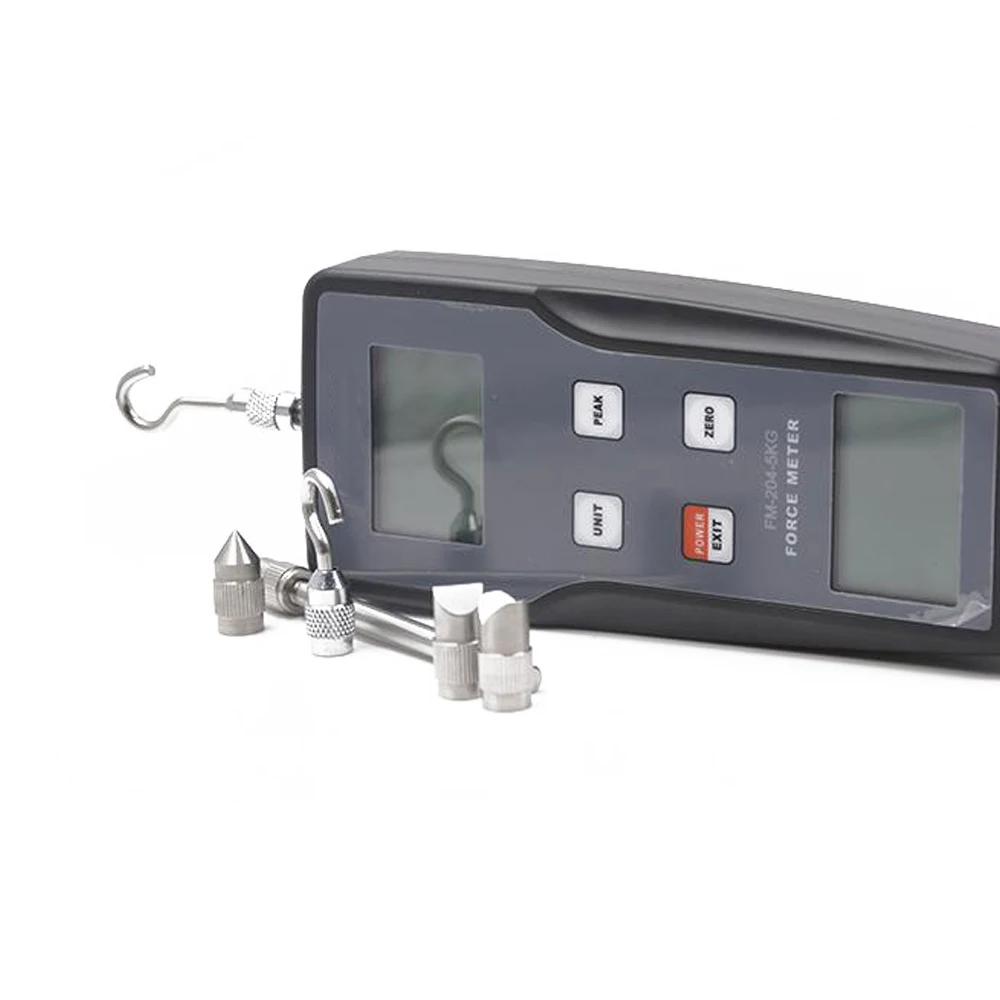

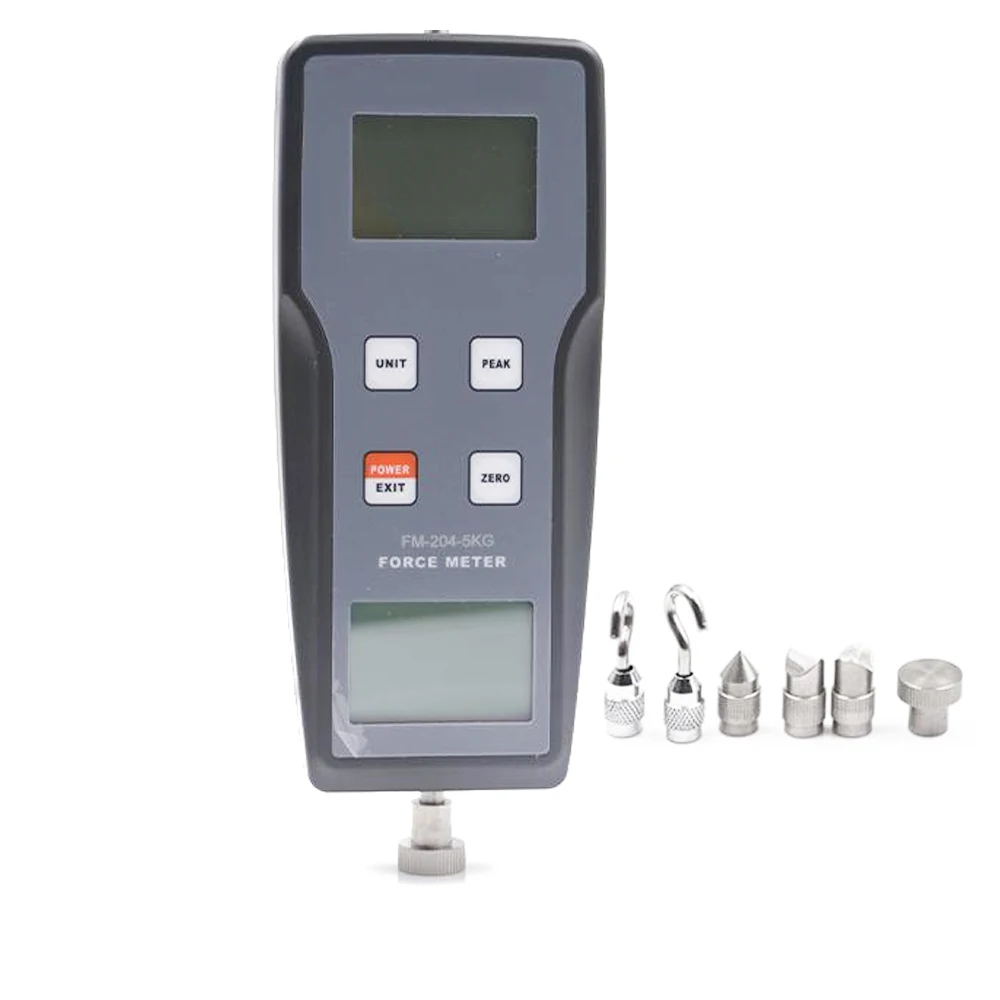

FM-204 Digital Dynamometer Measuring Instruments Thrust Analog Push Pull Force Gauge used



The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, etc.



Features:

High accuracy and high resolution.

* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.



Specifications:

Accuracy	±0.5%FS±1Digit
Unit	kgf,gf,N,Lbf
Measurement State	Peak Value Measurement,Real Time Measurement

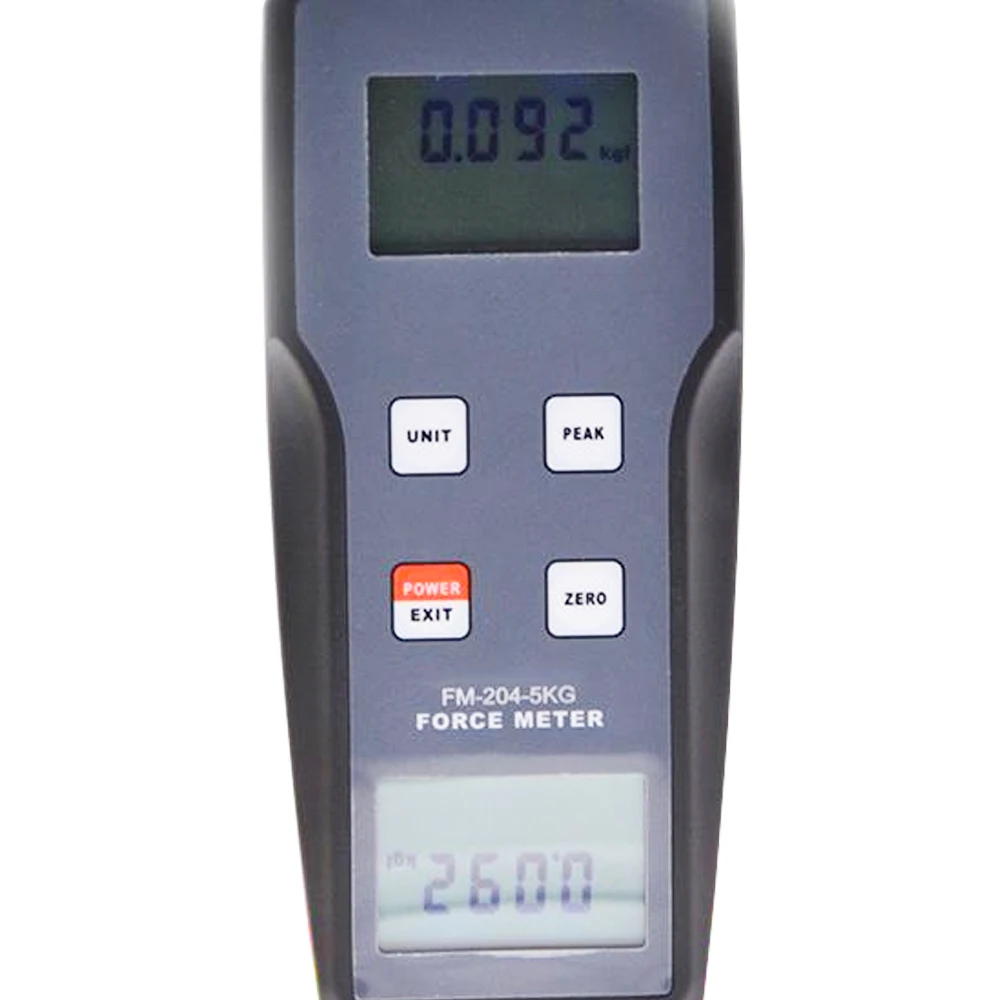

Display	2 Reversed 4Digit LCD
Power Off	10 Minutes Auto Power Off, Manual Power Off
Backlight	Blue Backlight
Safe Load	150%FS(Buzzer Alarm Over 110%FS)
Power Supply	2X1.5 AA(UM-3)Battery or 6VDC Power Supply
Operating	Temperature:0~40ºC
Conditions	Humidity:<80%
Surrounding	No Vibration Source or Corrosive Medium Around
Weight	390g
Size	211x80x36mm
