Argentina Projects Installed Commercial Hydroponic Plastic Film Green House Multi span Agricultural Greenhouses

Share on (1600375412868):


Price:

Quantity:


Product Overview

Description



Product parameters

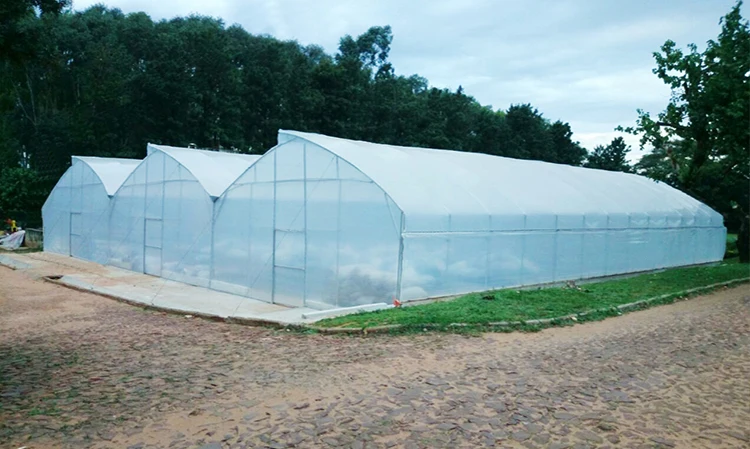

Multi-span Greenhouse
Accept ODM and OEM, welcome to requst for qoute with customized size
Model NO.
CMB4020
Feature
Fixed roof vent. Gutter connected greenhouse
Length
30m-100m
Width
8m-10m
Wall Height
3m
Roof Height
5m
Arch Space
2m
Covering
150micron/200microm PEP Polyfilm




Length

4.0m*n


Span Width

8.0m*n,9.0m*n
Wall Height
2.5m-4.5m
Apex Height
4.5m-6.0m
Gutter Length
4.0m
ArchSpace
1.0m/2.0m
Column Size
Φ40mm,Φ48mm,Φ60mm


DESCRIPTION
1.High quality steel structure and it can be in service for more than 10 years: main steel material is all hot dip galvanized withexcellent anti-corrosion effectiveness.
2.Prefabricated structure.All the parts can be easily assembled on the spot with joining parts and bolts and nuts, without anywelding points to damage the zinc coating on the material, which guarantee the optimal performance of anti-corrosion.
3. Extruding film has the function of dustproof ,anti-fog, anti-dripping,and UV resistance.
4. Side ventilation (optional): Natural Ventilation on two sides, manually Controlled. Insect net is available.
5.More than 20 years serve life.












-HANGZHOU CHINA AGROTIME AGRI-TECH CO.,LTD-
www.agrotime.cn


Products Description


-HANGZHOU CHINA AGROTIME AGRI-TECH CO.,LTD-
www.agrotime.cn

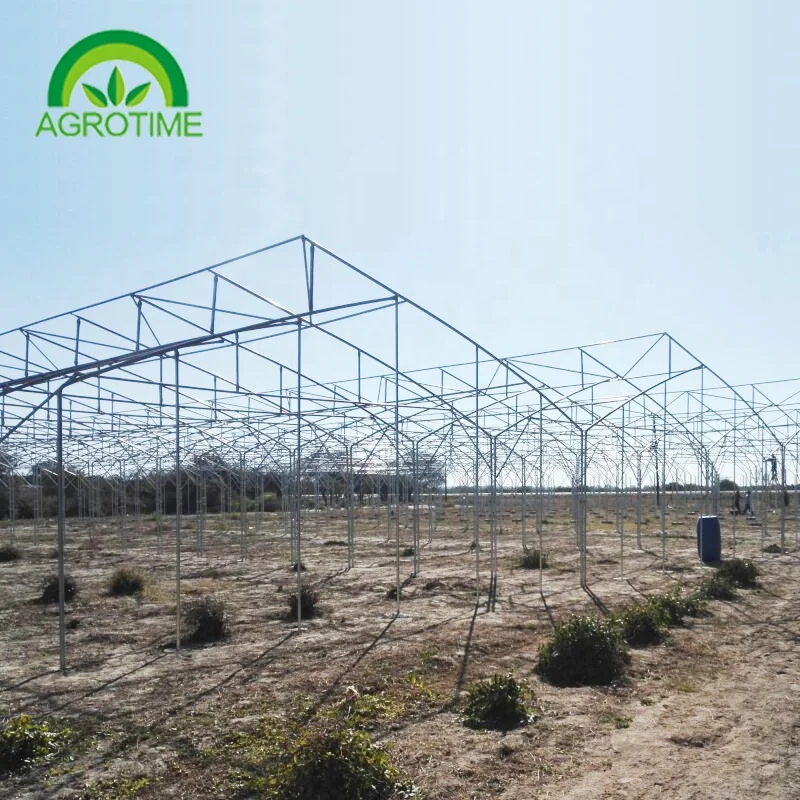

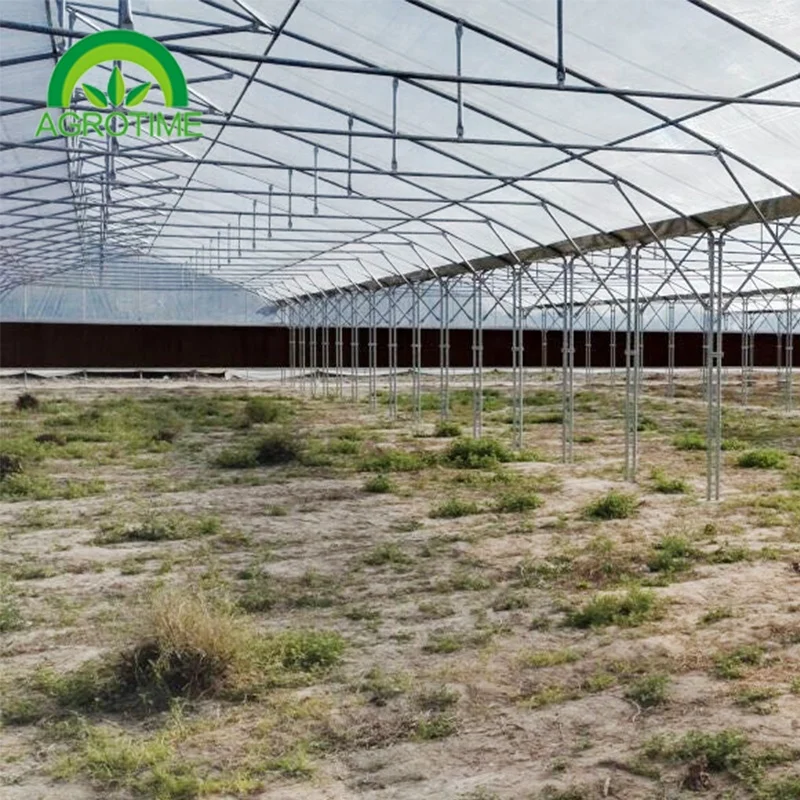

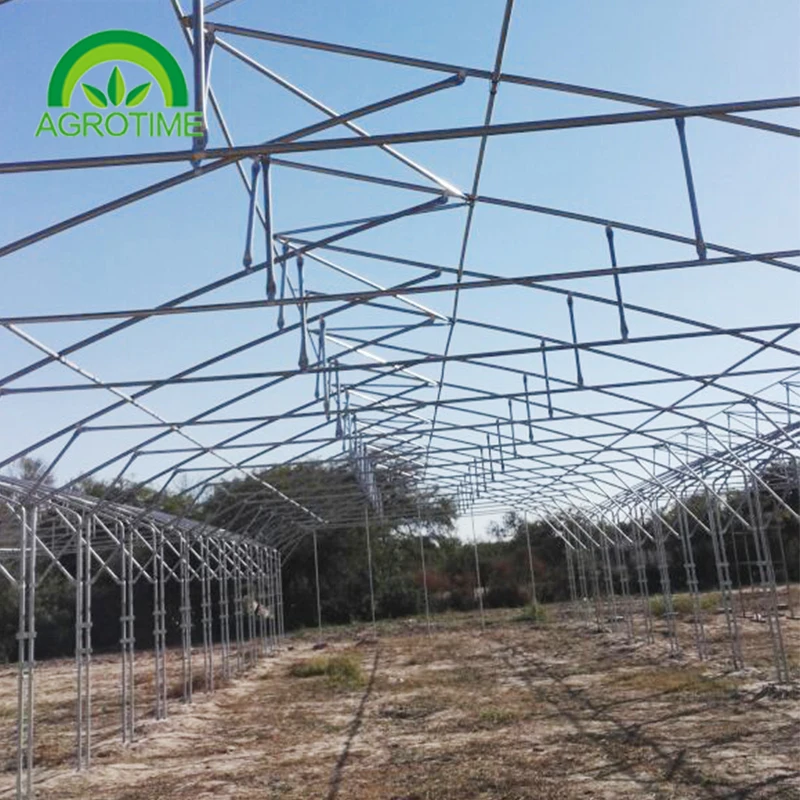

Frame for Multi-span Greenhouse
*Material: Hot Galvanized steel Pipe.

*Shape:
Round pipe/ Rectangle pipe optional.

*Diameter (mm):
50x30, 50x50, 60x60, 80x60 for rectangle pipe.
32, 40, 48, 60, 80 for round pipe.

*Thickness (mm):
1.2, 1.5, 2.0, 2.5 optional.

*Warranty: 8-10 Years.

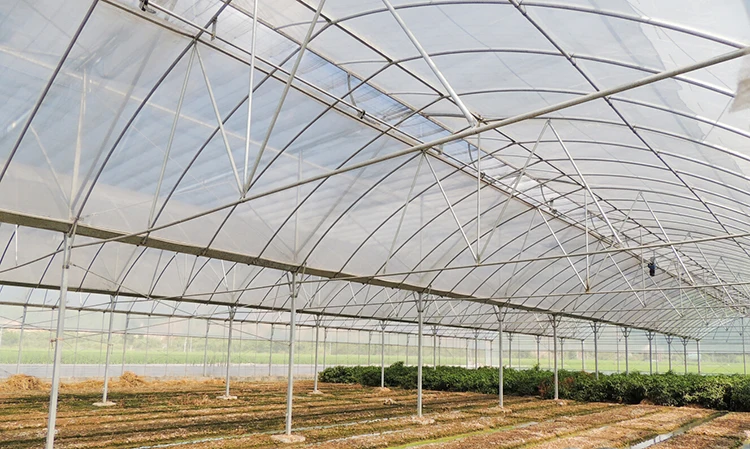

Covering for Multi-span Greenhouse

*Thickness:150 / 200micrometer.

* Global light transmission≥90%.

* Diffusion≤20%.

* UV transmission 300%-390%.

* Warranty:
3-5 years.


Gutter for Multi-span Greenhouse

*Length: 4m/pc.

*Thickness: 1.5mm.

*This is rain drainage gutter, especially applied in the multi-span greenhouse.

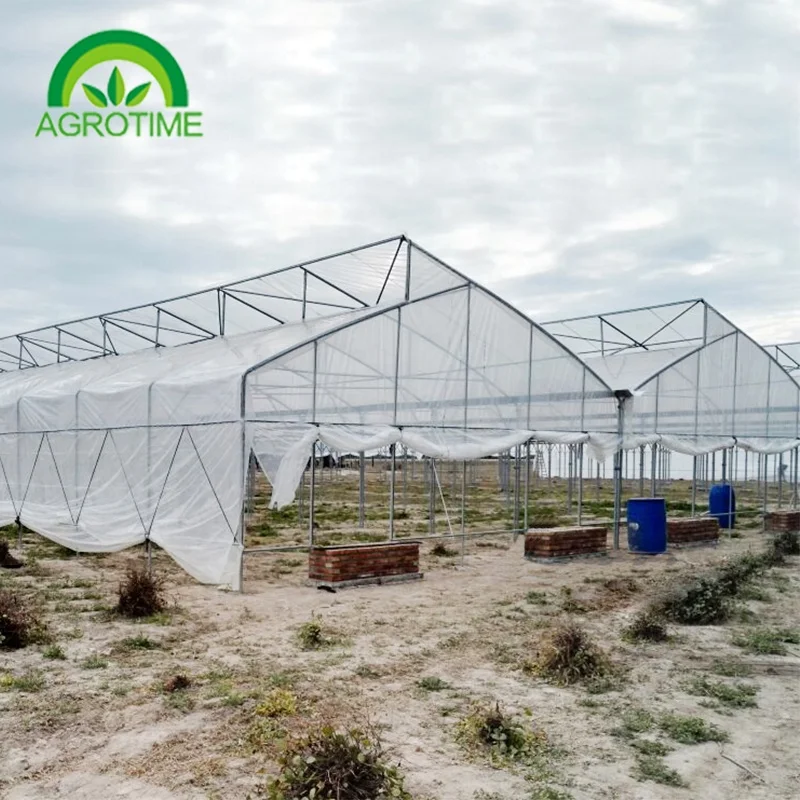

Side Ventilation for Multi-span Greenhouse

* This is the Manual greenhouse vent included in our quote.
We also have Electric vent control system for you to choose.

* Natural way to make air circulate in your multi-span greenhouse.

* This is the Side ventilation for your multi-span greenhouse.
We also have roof ventilation system for you to choose.


Door for Multi-span Greenhouse
*Double Sliding Door/ Bisect Door optional.

*Size: 2mx2m (standard). customized according to your requirements.


Insect Net for Multi-span Greenhouse
*Material: HDPE.

*Mesh: 32/40/50 meshes optional.

*Fixed under the ventilation area to prevent insects flying into your multi-span greenhouse.



Locking System for Multi-span Greenhouse
*Locking profile:
thickness 7mm.
length 4m/pc.

*Wire of locking profile:
length 2m/pc.
diameter 2mm.


-HANGZHOU CHINA AGROTIME AGRI-TECH CO.,LTD-
www.agrotime.cn


Company Profile




Loading




Certifications




FAQ


-Are you factory or trading company?
We are factory, we locates in Hangzhou city.

-How can I get quotation for greenhouse?
Please let us know what size of greenhouse is needed.

-How to assemble greenhouse when we bought?
We can let our engineer to your country to supervise to install greenhouse, but all the cost will be into your account.

-Do you have warranty of your products?
Yes. Greenhouse structure is 8-10years, cladding material is 3-5years, ect.

-Do you make small backyard or hobby greenhouses?
Yes. We also make Gardern Care products and Garden Greenhouse
