Automatic full servo 2000ml 4 cavity pet bottle blowing moulding machine price
- Category: >>>
- Supplier: Shanghai Hongqi Machinery Manufacture Co. Ltd.
Share on (1600375490763):
Product Overview
Description
Product Description

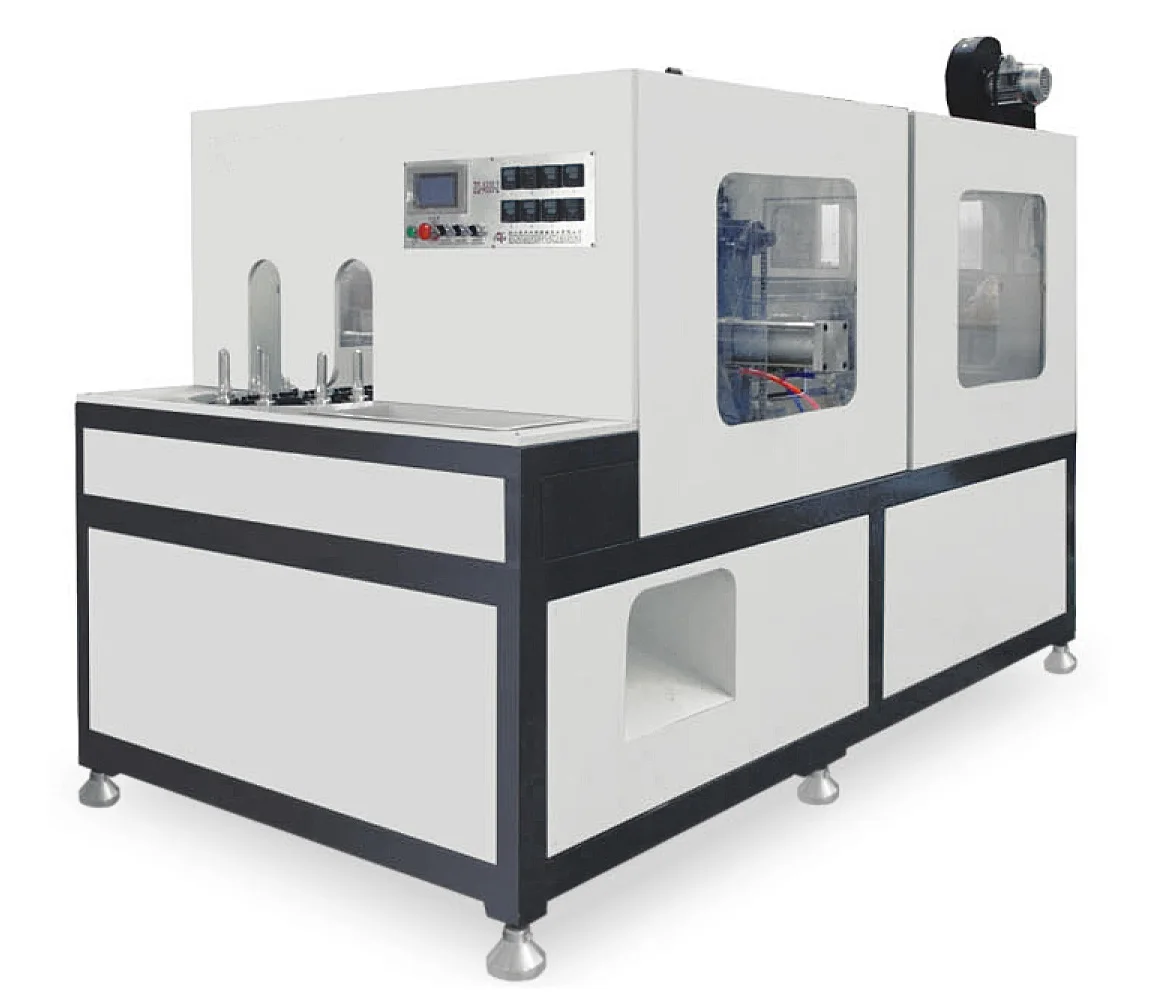

Fully Automatic Bottle Blowing Machine
2. Easy To Change Mold: when changing different mould and perform, can readjust the statistics from computer,easy operation.
3. Adopts Germany, Japan, Taiwan pneumatic components, ensure the machine with low problem .
4. The whole machine adopts standard Anti vibration structure, can reduce the vibration to the lowest when high speed
operation,enrich the life of spare parts
MAIN TECHNICAL PARAMETER
Mold | HQ2-0.6L-2000 | HQ2-2L-2000 | HQ2-5L-1500 | HQ4-0.6L-4000 | HQ4-2L-4000 | ||
Type | Full servo | Full servo | Full servo | Full servo | Full servo | ||
Cavity | 2 | 2 | 2 | 4 | 4 | ||
Capacity | 2000-3000 PCS/H | 2000-2500 PCS/H | 1300-1500 PCS/H | 4000-5000 PCS/H | 7000-7500 PCS/H | ||
Max Bottle Volume | 600ml | 2000ml | 5000ml | 600ml | 2000ml | ||
Max.neck diameter | 15-38 mm | 15-38 mm | 15-45 mm | 15-38 mm | 15-38 mm | ||
Max.bottle diameter | 68mm | 106mm | 180mm | 68 mm | 106mm | ||
Max.bottle height | 260mm | 330mm | 350mm | 260mm | 330mm | ||
Power Consumption | 15kW | 15kW | 30kW | 25kW | 25kW | ||
Machine dimension | 2800*1700*2100 mm | 2800*1700*2100 mm | 4500*2000*2500 mm | 3900*1700*2100 mm | 4800*1900*2100 mm | ||
Machine weight | 1800kgs | 1800kgs | 3500kgs | 2200kgs | 2800kgs | ||
Mold | HQ6-0.6L-6000 | HQ6-2L-6000 | |||||
Type | Full servo | Full servo | Pneumatic type | Slide type | Single servo type | ||
Cavity | 6 | 6 | |||||
Capacity | 7000-7500 PCS/H | 5000-6000 PCS/H | Ask us | ||||
Max Bottle Volume | 600 ml | 2000 ml | |||||
Max. neck diameter | 15-38 mm | 15-38 mm | |||||
Max bottle diameter | 68 mm | 106 mm | |||||
Max bottle height | 260 mm | 330 mm | |||||
Power Consumption | 35 kW | 35 kW | |||||
Machine dimension | 4800*1900*2100 mm | 4800*1900*2100 mm | |||||
Machine weight | 3200kgs | 3200kgs | |||||
