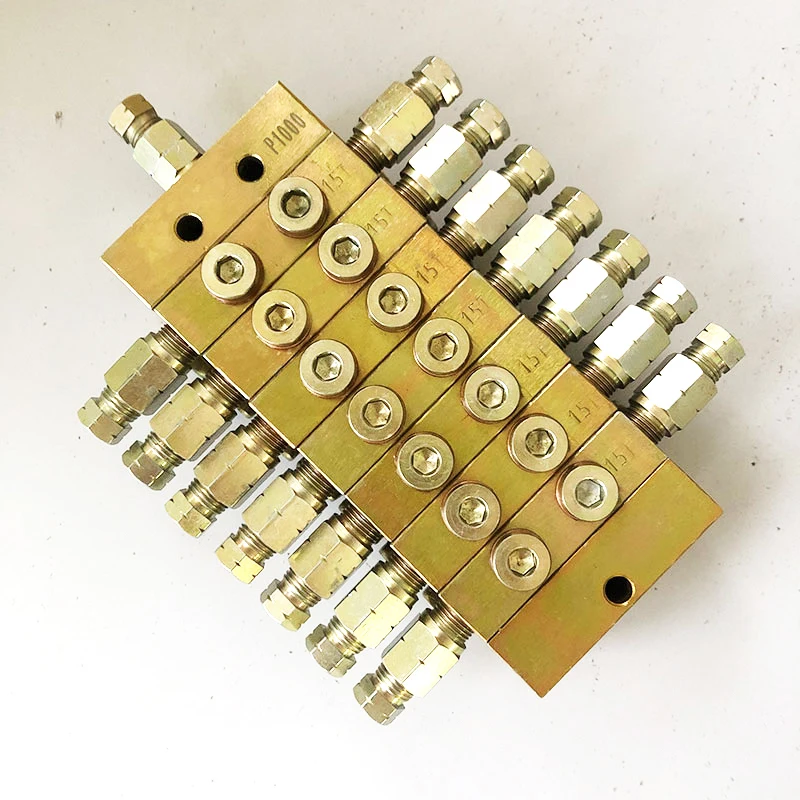

P1000 15T With PIN 14Way Customized Metering Devices Grease Distributor of Dispenser For Grease Lubrication System
- Category: >>>
- Supplier: Jiaxing,Hande,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Dear Customer :
Bulk order give you best price !! inquire me !
Thank you visiting our website.
We try to provide the best service and the perfect products to all customers. We have been making for lubrication products 10 years.We have our own factory ,can customized item you need (We supply OEM Service ) .Our main products are automatic lubrication pump, electric lubrication pump, pneumatic lubrication pump, manual lubrication pump, grease pump,progressive distributor, quantitative distributor, pipe connector, metering unit and so on .
Welcome to send us inquiry,We will do our best to answer and solve your problems you may meet. You can click the pic to view our new products and exhibition plan.
Thank you for your support, enjoy your shopping!
Best Regards ,
Best Regards ,
Had Team
Products Description

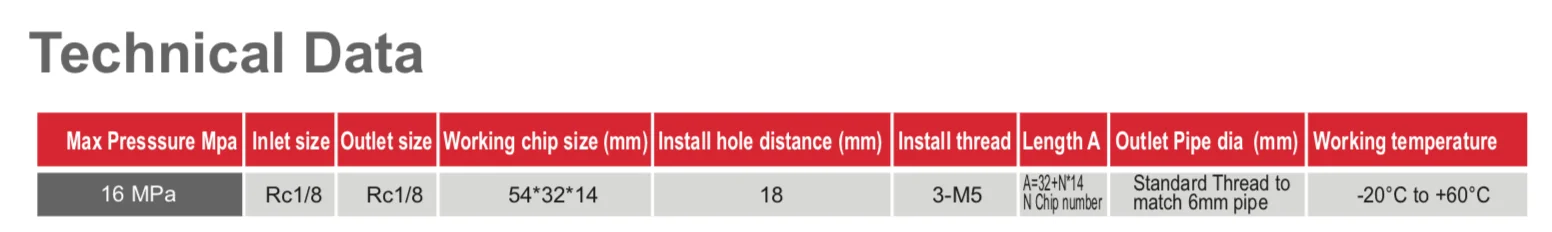

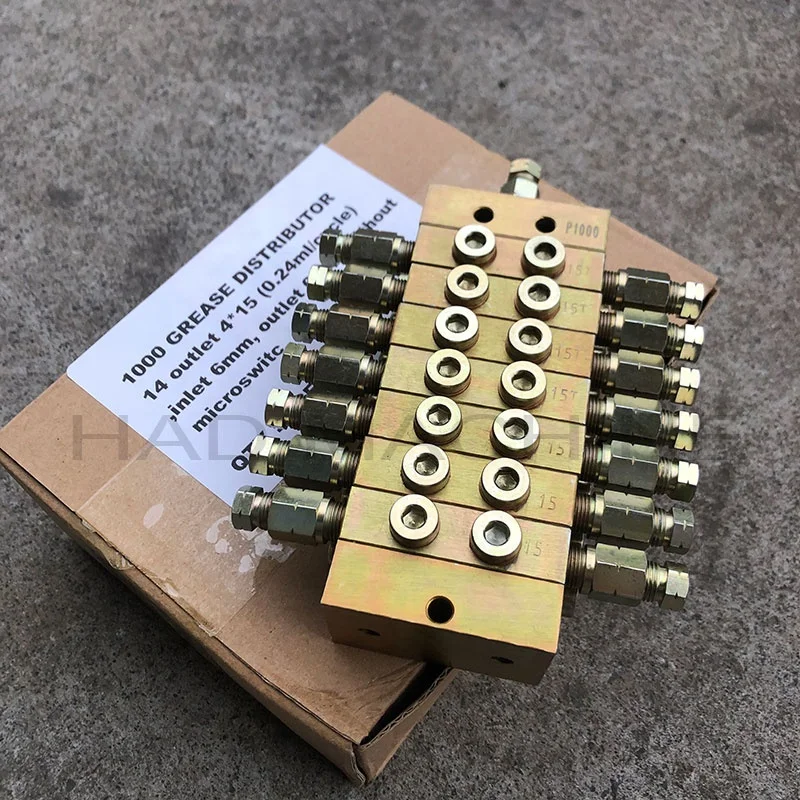

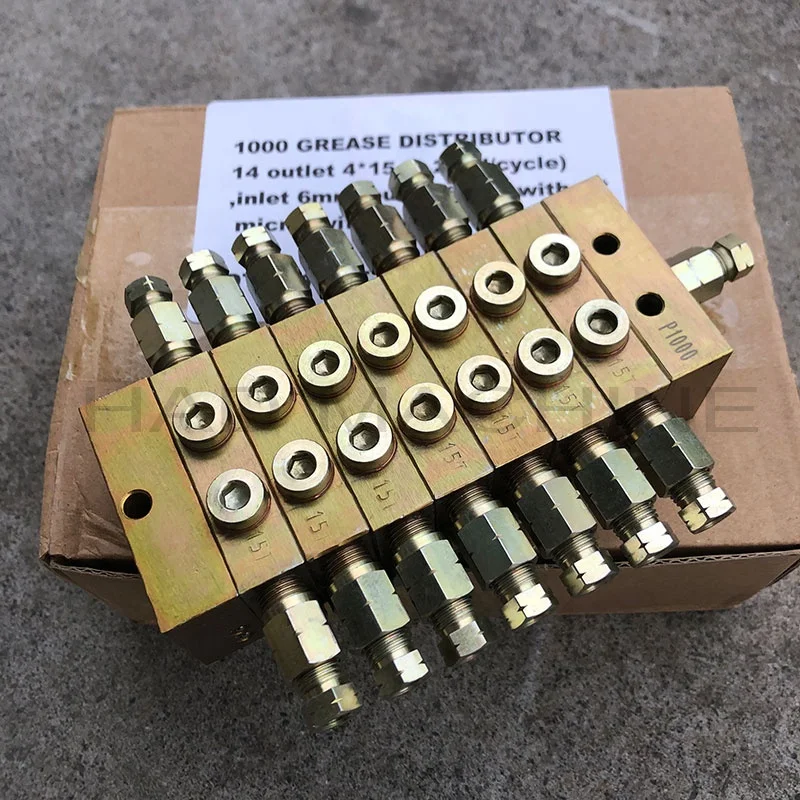

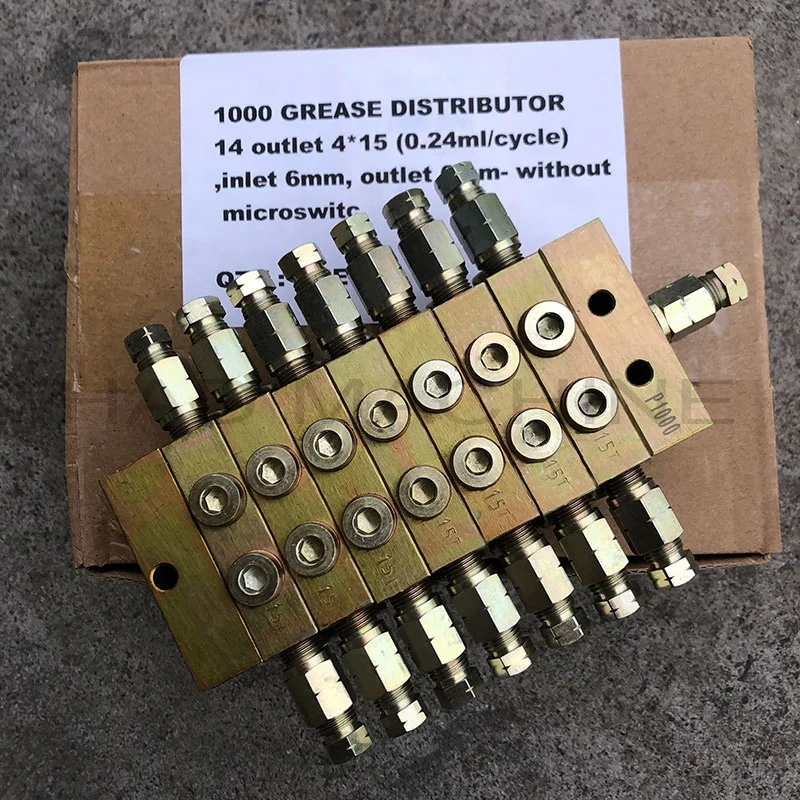

P1000 Type Grease Distributor 14 outlet no pin no switch
Max work pressure: 16 MPa,but can bear 25Mpa
Flow Delivery: 0.08ml/cyc ~ 0.48ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2#
Flow Delivery: 0.08ml/cyc ~ 0.48ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2#
Work temperature:-20°C~+60°C
Max work frequency(with stem):60cyc/min
Max work frequency (without stem):200cyc/min
Manifold number:3~8
Tubing: Outlet: Φ6mm length: 0.5~2.5m
,Inlet: Φ6mm length:1.2~3.5m
,Inlet: Φ6mm length:1.2~3.5m
PLEASE INQUIRE ME AND ASK CATALOGUE FROM ME . WE HERE CAN GIVE YOU GOOD PRICE AND EXCELLENT QUALTITY !! INQUIRE US !!

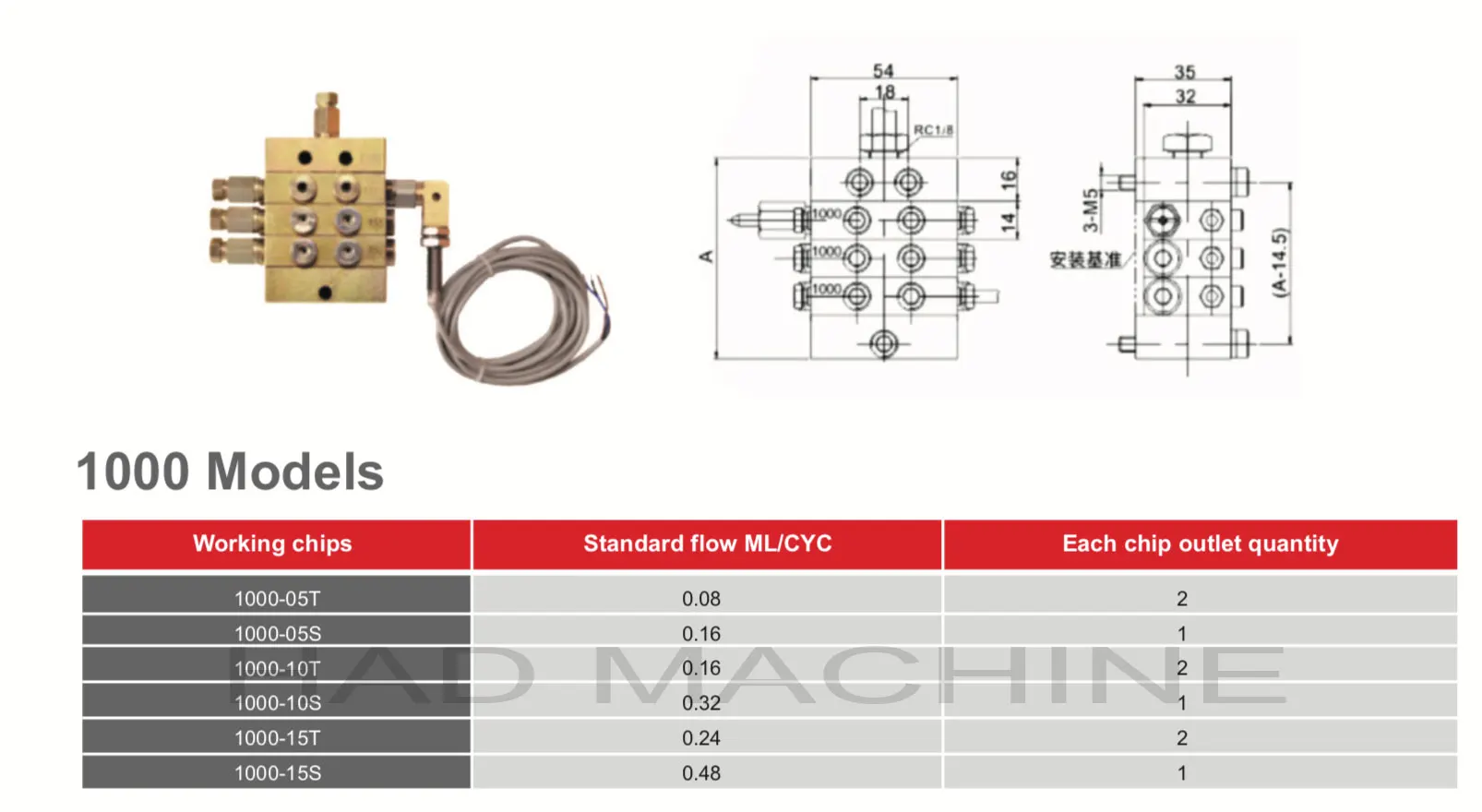

Progressive Divider Valves 1000
P1000 series progressive grease distributor is an advanced design and reasonable structural oil distributor; Can be used in high pressure and wide temperature change conditions. It can be combined with electric and pneumatic pumps to form a single line lubrication system. It is used as a female distributor for various large machine tools and port of equipment , or for large single-line lubrication systems.
A standard set of dispensers consists of a "firt chip"+a piece of "tail chip" + 3-10 piece. It can provides 3-20 lubrication points for lubrication.
Double outlet working chip, (after size use T to indicate the double outlet), there are two oil outlets, at the two ends of the working chip; Note that for the double outlet working chip, can not Block any oil outlet, which will affect its normal operation and damage the distributor .
Single grease outlet working chip (after the specification value of ,use S to indicate the single grease outlet), there is an oil outlet, which can be any of end of the working piece, and the other end of the outlet oil needs to be blocked.
A standard set of dispensers consists of a "firt chip"+a piece of "tail chip" + 3-10 piece. It can provides 3-20 lubrication points for lubrication.
Double outlet working chip, (after size use T to indicate the double outlet), there are two oil outlets, at the two ends of the working chip; Note that for the double outlet working chip, can not Block any oil outlet, which will affect its normal operation and damage the distributor .
Single grease outlet working chip (after the specification value of ,use S to indicate the single grease outlet), there is an oil outlet, which can be any of end of the working piece, and the other end of the outlet oil needs to be blocked.
