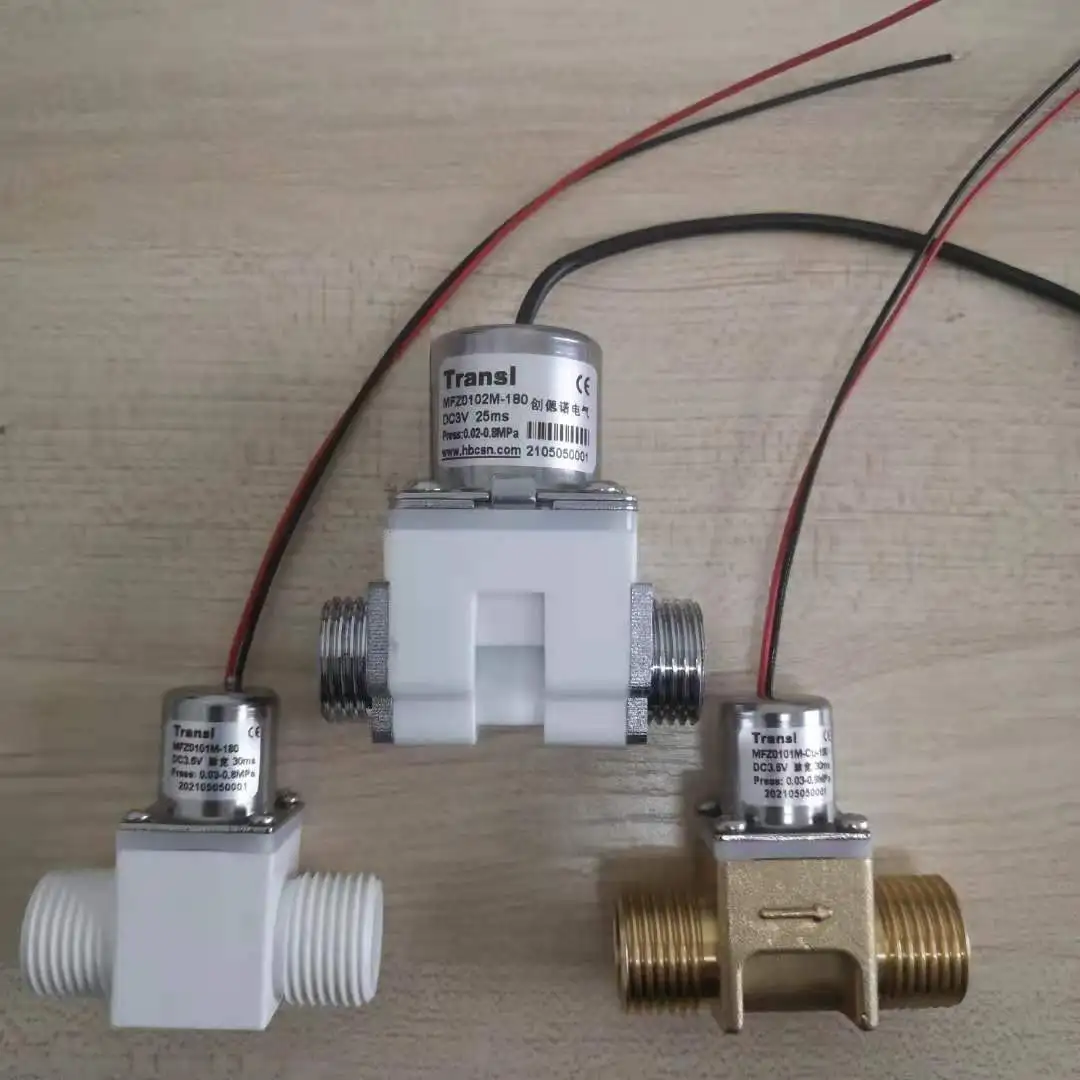

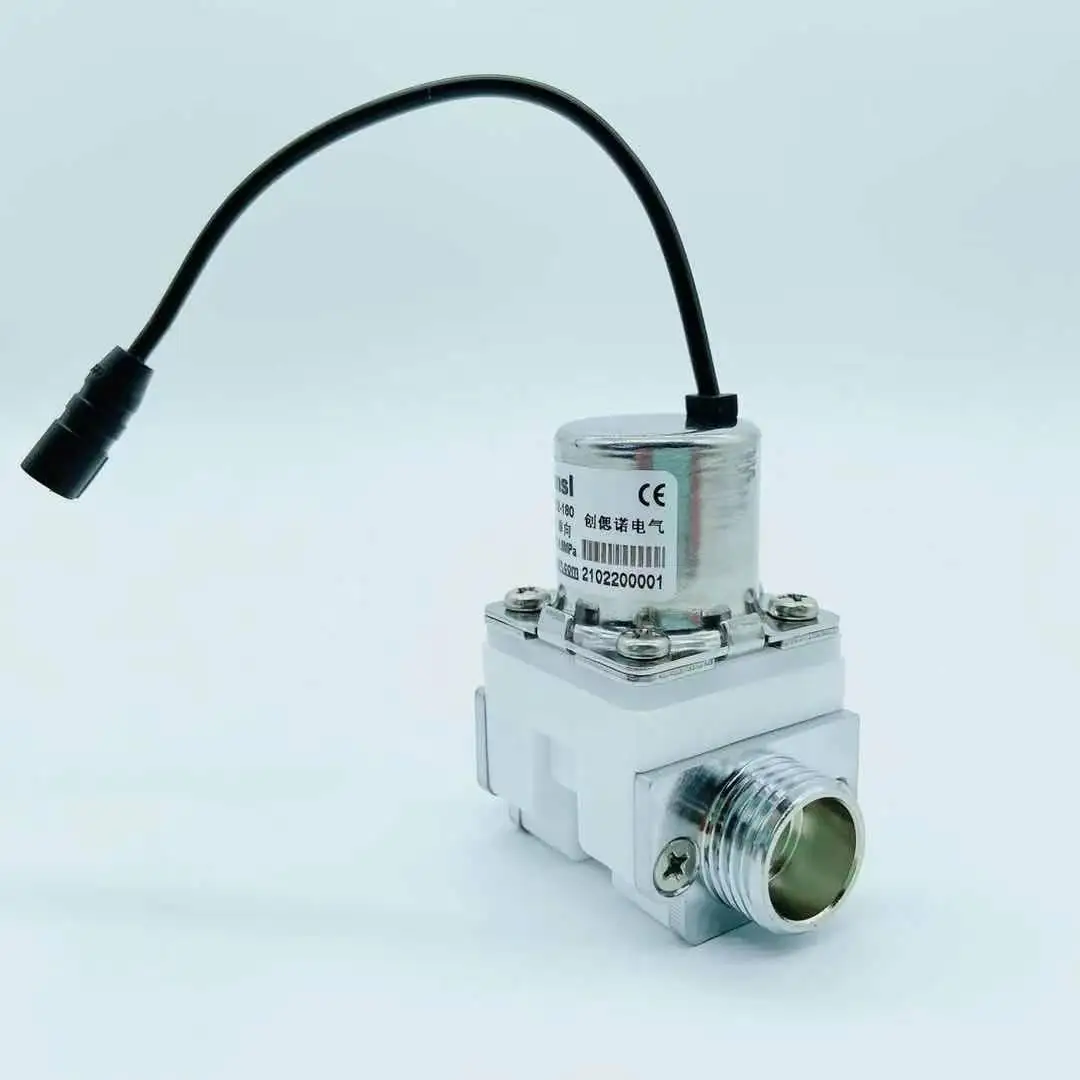

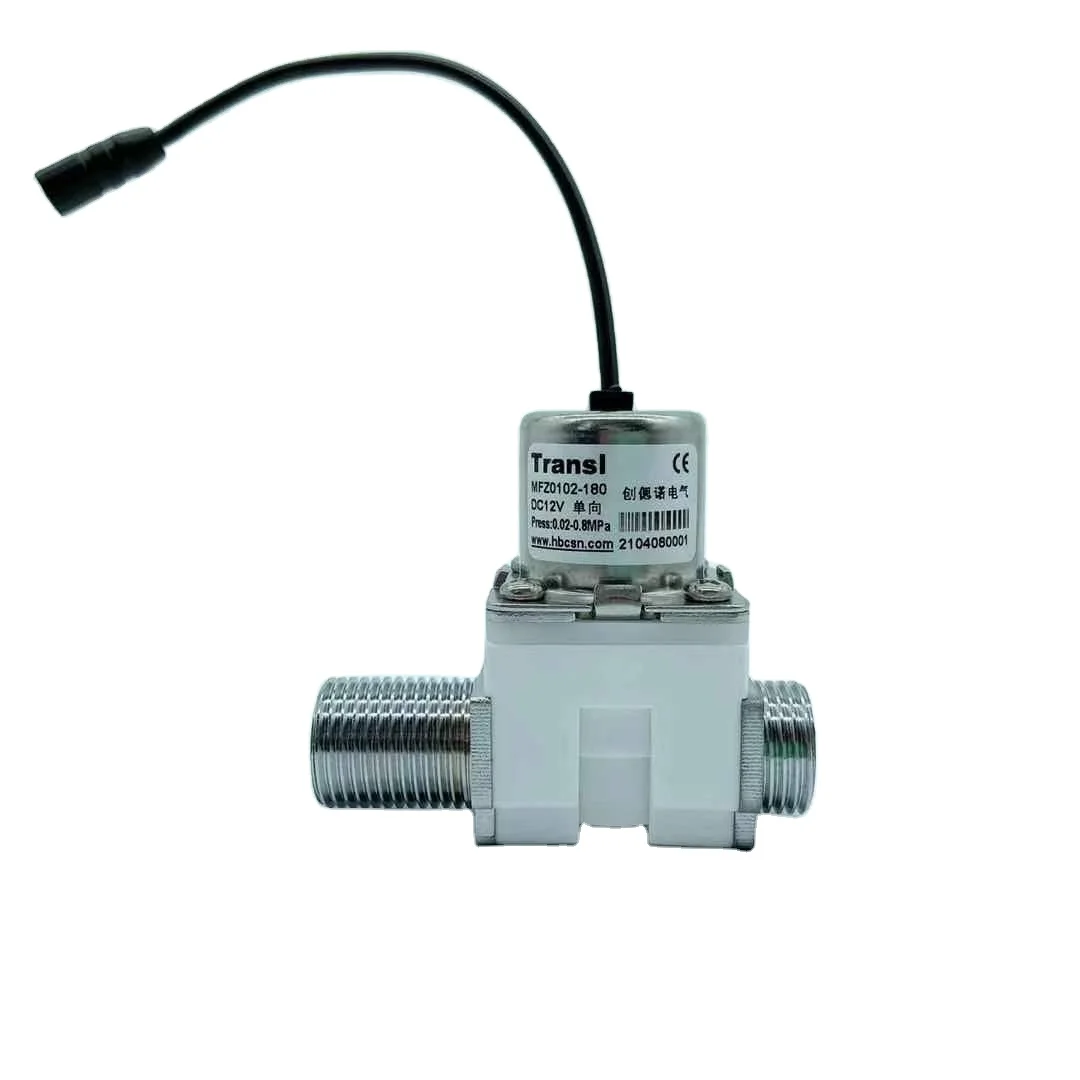

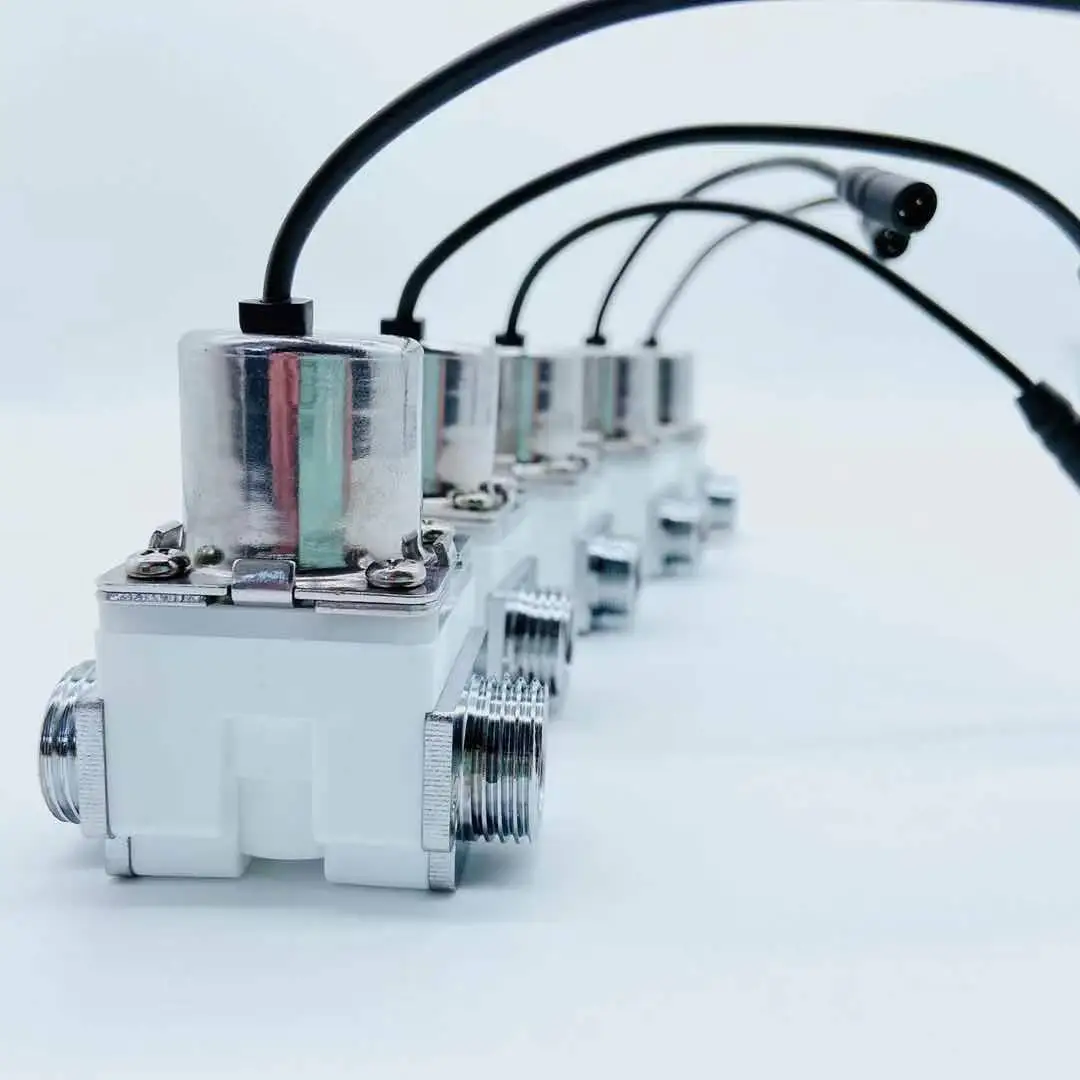

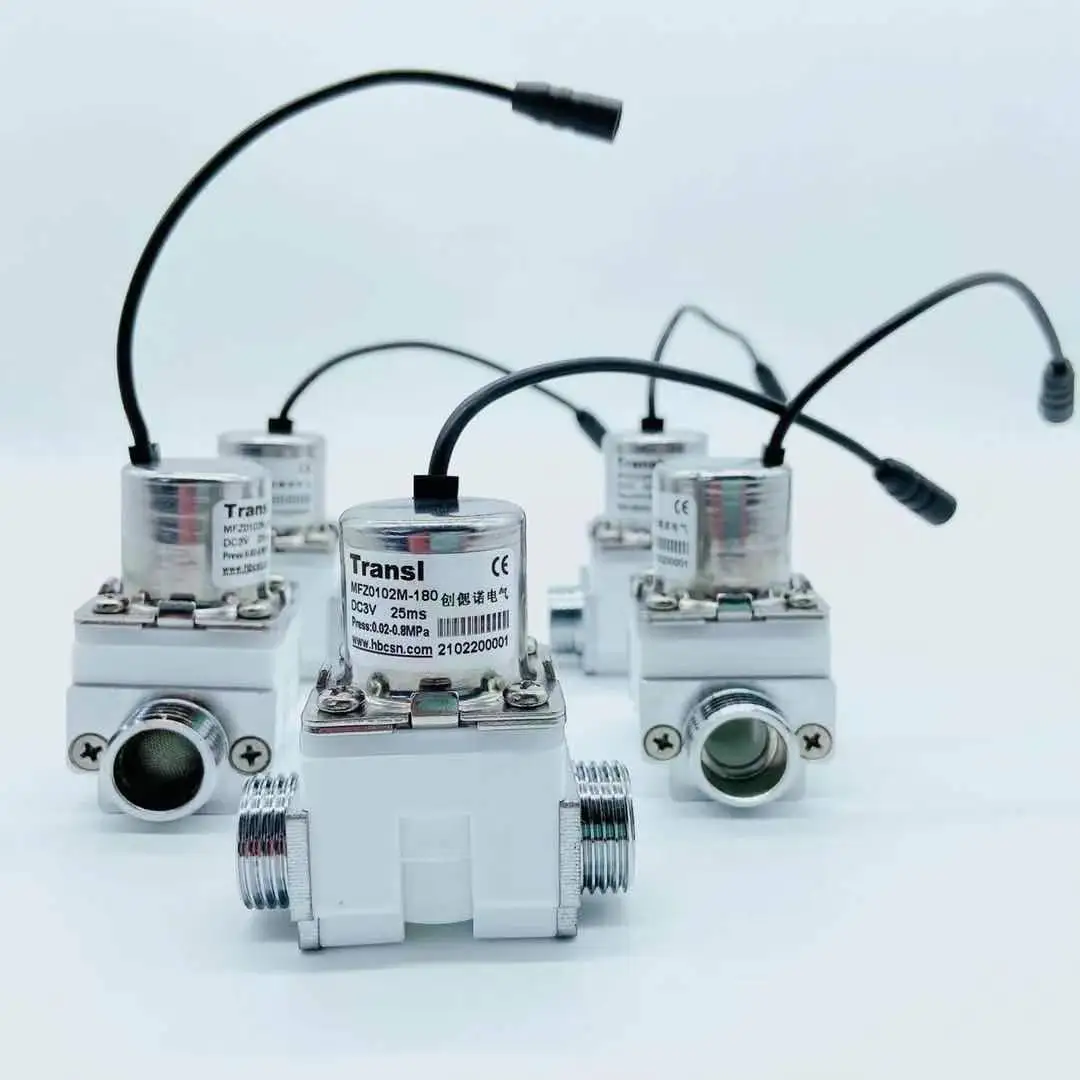

3V 6V DC battery operated magnetic latching water valve bi stable solenoid valve for Sanitary Home Kitchen Faucet
- Category: >>>
- Supplier: Hubei Chuangsinuo Electrical Technology Corp.
Share on (1600375680970):
Product Overview
Description
Product Description

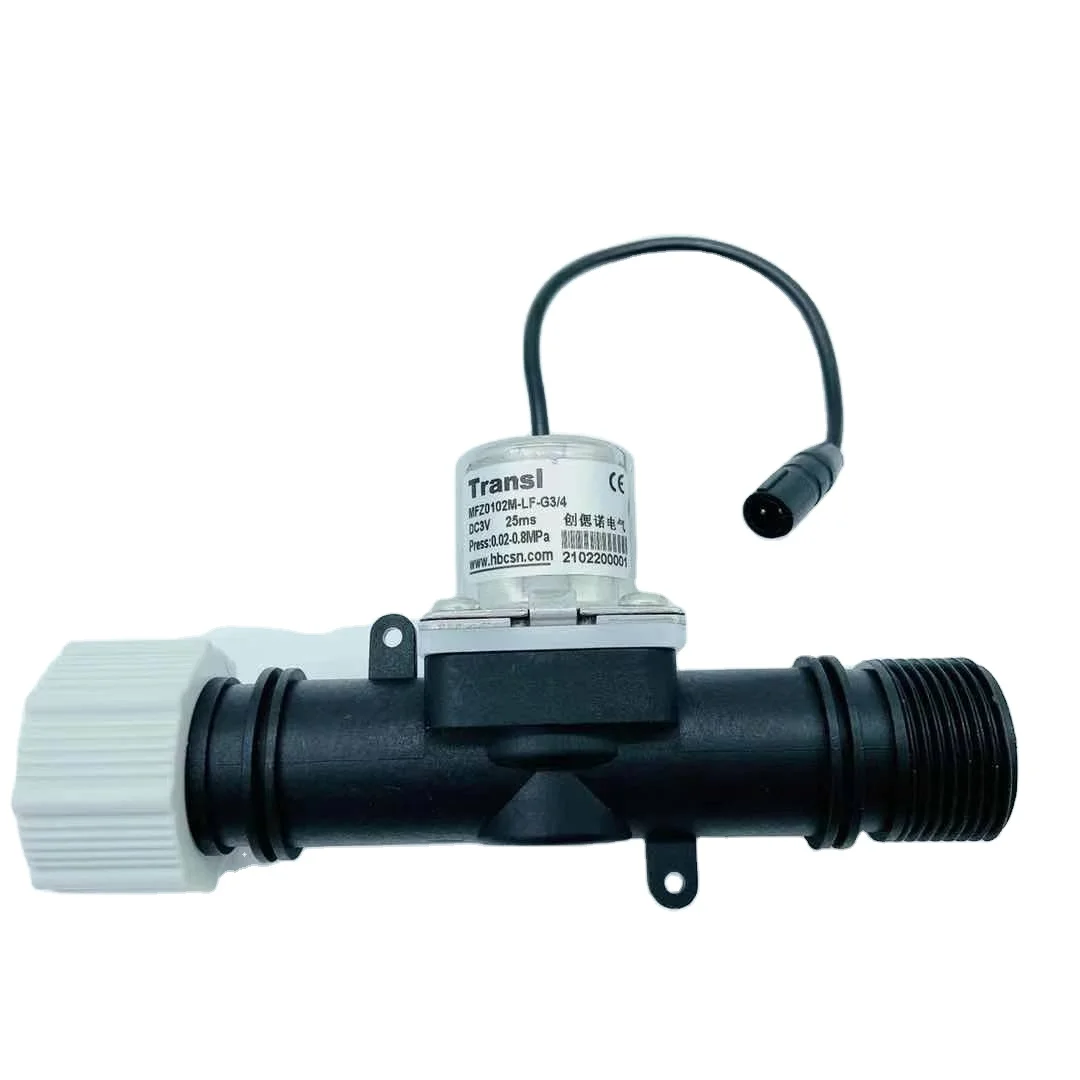

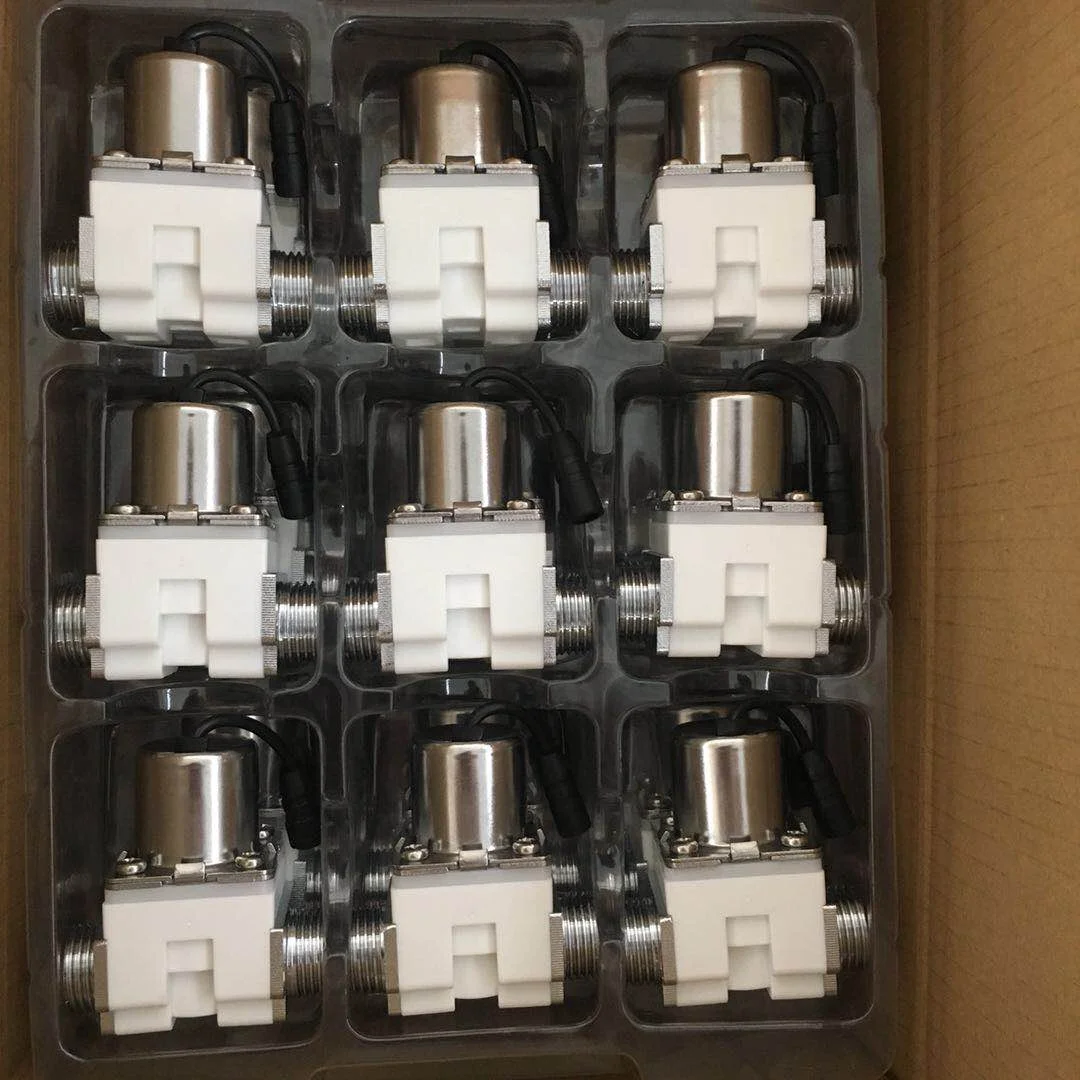

DC6V Mini battery operated magnetic latching solenoid water valve bi-stable valve for Sanitary ware Home Kitchen Faucet
What is Latching type Solenoid Valve?
Latching type Solenoid Valve is also named Bi-Stable Valve or Pulse Valve.
It includes a set of permanent magnets that allow the solenoid to offer hold force even after the power is off.
The term Latching type is given to this type of solenoid because it has two stable positions.
The first when the solenoid de-energized and plunger is fully extended and second when the solenoid is de-energized and the
plunger is held in position by the permanent magnets.
The electromechanical force moves the solenoids from one stable position to the other depending of the polarity of power applied.
A spring can be used to move the plunger out to the extended position as the charge applied only neutralises the permanent magnet
force.
Solenoids can only induced electromechanical force in one direction (pulling the plunger towards the endstop).
When the polarity is reversed, it has no effect on the plunger except to neutralise the magnets.
So it's energy saving type
Latching type Solenoid Valve is also named Bi-Stable Valve or Pulse Valve.
It includes a set of permanent magnets that allow the solenoid to offer hold force even after the power is off.
The term Latching type is given to this type of solenoid because it has two stable positions.
The first when the solenoid de-energized and plunger is fully extended and second when the solenoid is de-energized and the
plunger is held in position by the permanent magnets.
The electromechanical force moves the solenoids from one stable position to the other depending of the polarity of power applied.
A spring can be used to move the plunger out to the extended position as the charge applied only neutralises the permanent magnet
force.
Solenoids can only induced electromechanical force in one direction (pulling the plunger towards the endstop).
When the polarity is reversed, it has no effect on the plunger except to neutralise the magnets.
So it's energy saving type

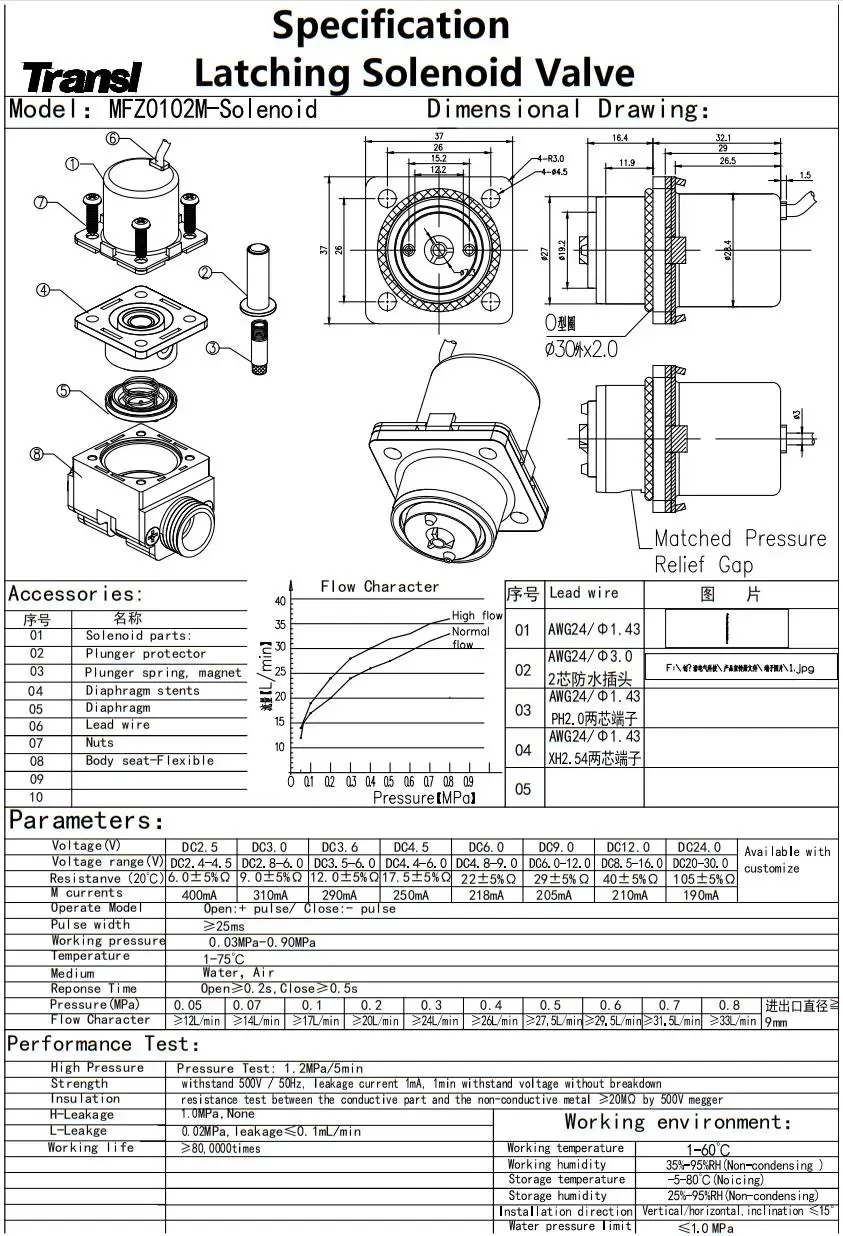

Specification
Product name | Latching water solenoid valve |
Part Number | MFZ0102M-180 |
Parameters (Voltage &Coil resistance) | DC2.5V 6ohms DC3V 9ohms DC4.5V 22ohms DC6V 17ohms DC9V 26ohms DC12V 40ohms DC24V 105 ohms |
Water Pressure | 0.02-1.0Mpa |
Medium | Water |
Pulse Width | ≥25MS |
Power Supply | Batteries or DC Power |
Thread Size | G1/2 " G3/4 NH3/4" |
Connector | Normal Red & Black Wire (Can specially customize ) |
Application | Home Kitchen Faucets ,Sanitary Ware , Home garden water irrigation timers |
