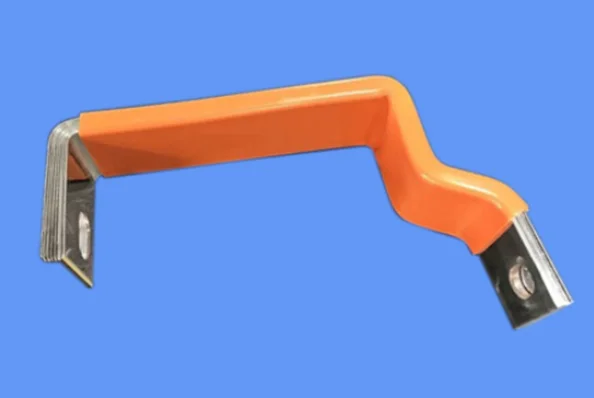

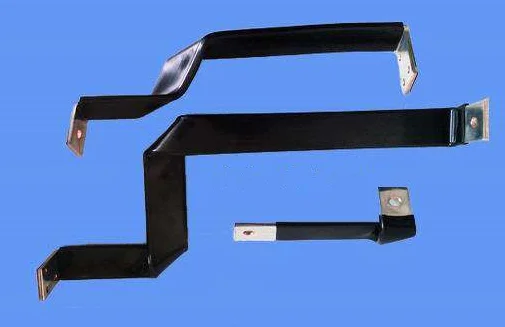

New Product Launch High Current Carrying PVC Material Insulation Soft Copper Bar
- Category: >>>
- Supplier: Shanghai Jiangtu Technology Co. Ltd.
Share on (1600375701743):
Product Overview
Description
Busbar operating temperature | JM-8817 |
Busbar flammability | self-extinguishing |
Busbar operating voltage range | 750V |
Busbar compressive strength | 15 min (50HZ) |
Busbar to ground | > 15KV |
Between busbars | >30kv |
Insulation material | PVC |
Insulation color | black |
Insulation coating methods | molding |
Insulation dielectric strength | > 23kv/mm |
Insulation oxygen indexl level | 30% |
Insulation tensile strength | > 20Mpa |
1. Easy to process and shape
Since the copper conductor can slide freely in the insulating layer, the insulated soft copper bar has unlimited bending and torsion characteristics.

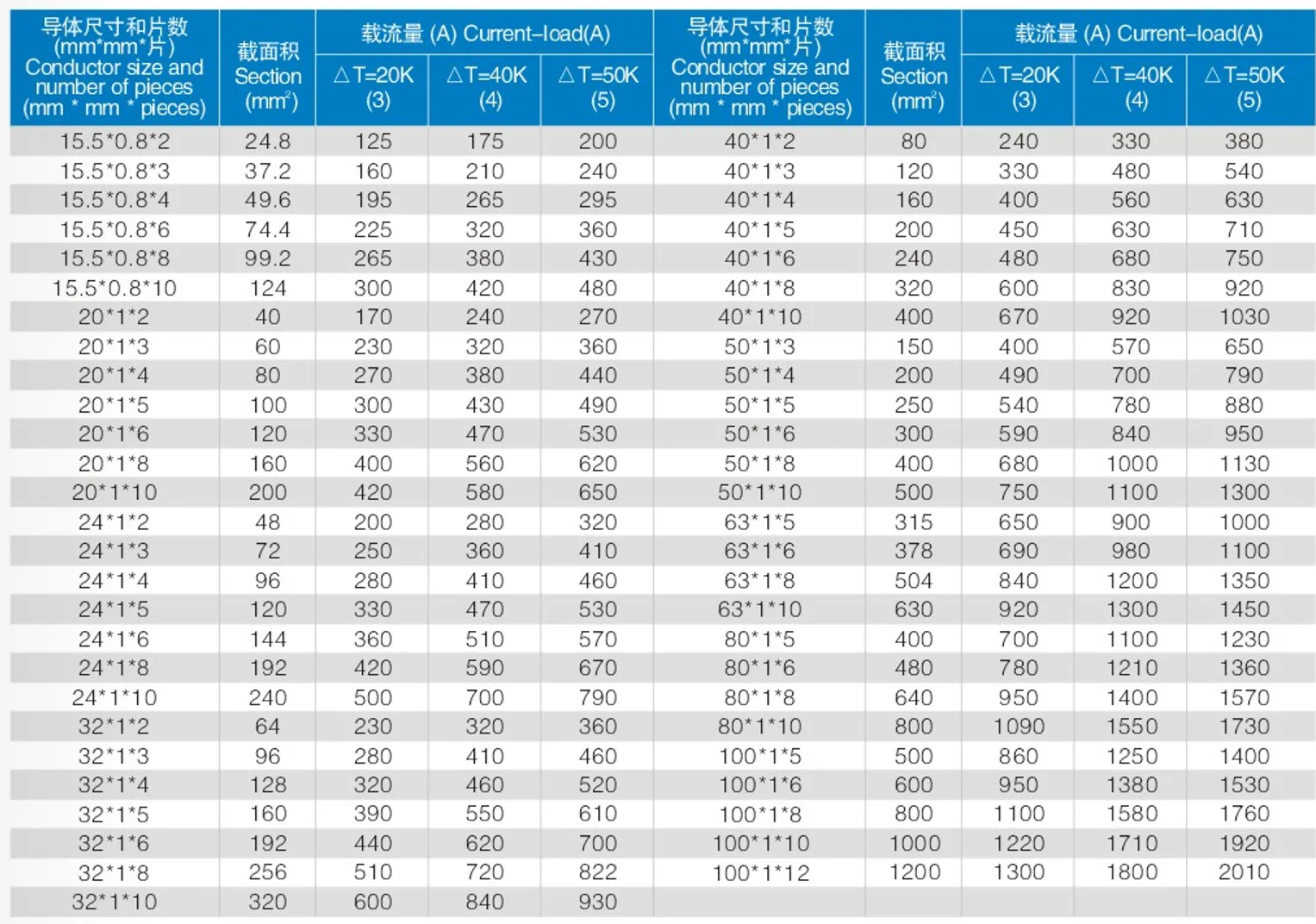

2. High current carrying capacity
Due to the skin effect, when passing alternating current, the current inside the conductor is actually very small, and the current is concentrated in a thin layer adjacent to the outer surface of the wire. The multilayer flat conductor structure of the insulated soft copper bar enables the same conductor cross-sectional area to carry a larger Pass current. Therefore, the amount of conductor material is reduced, which not only reduces the weight, but also saves the layout space.
3. Easy to install
After the insulating soft copper bar is punched by bending, the spatial shape of the structure can avoid the interference area, and it can easily return to the original shape after bending during installation. You can directly connect the contact surface to the terminal and fix it slightly. The complicated connection and fixing of traditional cables and busbars are eliminated.
Since the copper conductor can slide freely in the insulating layer, the insulated soft copper bar has unlimited bending and torsion characteristics.
2. High current carrying capacity
Due to the skin effect, when passing alternating current, the current inside the conductor is actually very small, and the current is concentrated in a thin layer adjacent to the outer surface of the wire. The multilayer flat conductor structure of the insulated soft copper bar enables the same conductor cross-sectional area to carry a larger Pass current. Therefore, the amount of conductor material is reduced, which not only reduces the weight, but also saves the layout space.
3. Easy to install
After the insulating soft copper bar is punched by bending, the spatial shape of the structure can avoid the interference area, and it can easily return to the original shape after bending during installation. You can directly connect the contact surface to the terminal and fix it slightly. The complicated connection and fixing of traditional cables and busbars are eliminated.
