Chint NPH1 1011 Key type button 220V 400V 50/60Hz for electrical circuit control 1.3A 3A 6A push button switches
- Category: >>>
- Supplier: Kunshan Pinzhe Industrial Materials Co. Ltd.
Share on (1600375712858):
Product Overview
Description
Product Description

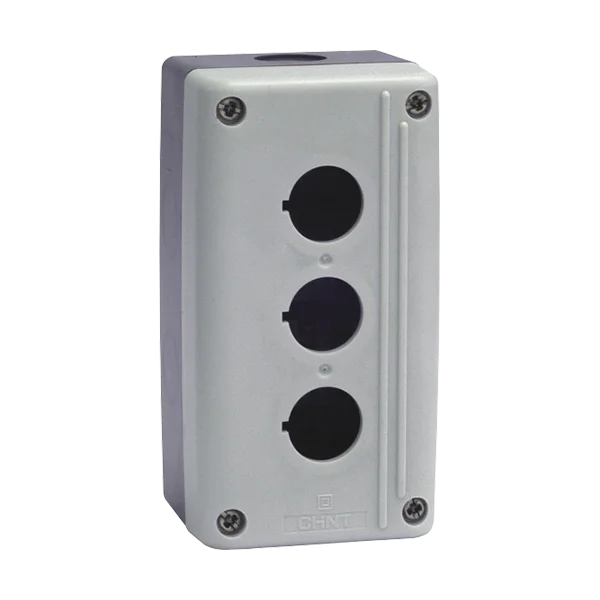

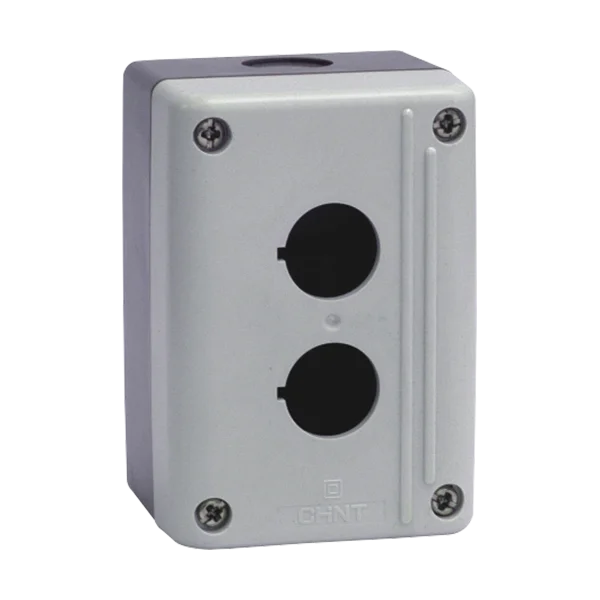

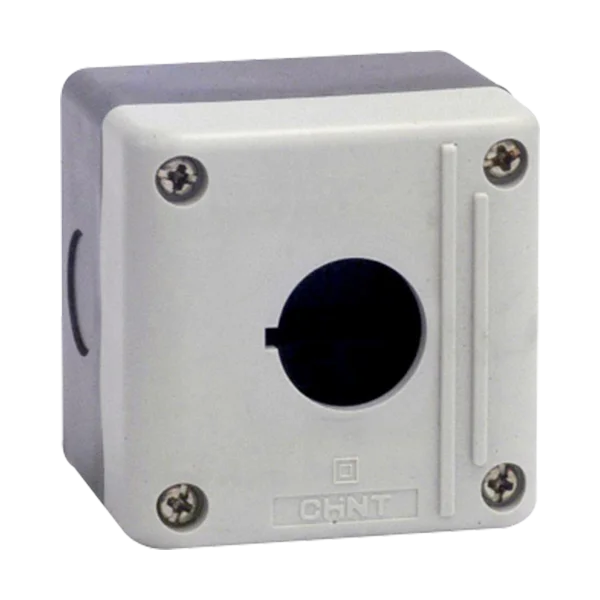

NPH1 Pushbutton Box
1. General
Electric ratings: AC50/60Hz, AC415V/DC250V;
Degree of protection: IP65
Standard: IEC/EN60947-5-1
2. Operating conditions
2.1 Ambient temperature is -5℃~+40℃, the average temperature during 24 hours couldn't exceed +35℃. 2.2
Altitude: ≤2000m.
2.3 Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40℃; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20℃, the relative humidity is up to 90%. As for dews, which contingently appear due to change of temperature, special steps should be taken.
2.4 Pollution grade: 3
2.5 Installation category: Ⅱ
2.6 Tightening torque is 0.8~1.2N·m for the cable terminals. Cross section of the cable connection is 0.5~2.5mm2, and 8mm conductor length is needed.
3. Technical data
3.1 Conventional heating current Ith: 10A

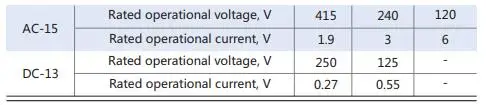

3.2 Refer to table below, for ratings under different utilization categories.
Life
Electric life: Flush-headed and mushroom-headed type: 5 5 AC 5×10 operations, DC2.5×10 operations; 5 other type: 1×10
operations; Mechanical life: flush-headed and mushroom-headed type: 1 million operations, 6 button with light: 3×10 operations; 5 other type: 1×10 operations
operations; Mechanical life: flush-headed and mushroom-headed type: 1 million operations, 6 button with light: 3×10 operations; 5 other type: 1×10 operations
Specification
Brand Name | CHINT |
Protection Level | IP65 |
Electric ratings | AC50/60Hz, AC415V/DC250V |
Degree of protection | IP65 |
Altitude | ≤2000m |
Conventional heating current | 10A |
AC-15 Rated operational voltage | 415V/240V/120V |
AC-15 Rated operational current | 1.9A/3A/6A |
DC-13 Rated operational voltage | 250V/125V |
DC-13 Rated operational current | 0.27A/0.55A |
Company Profile
Kunshan Pinzhe Industrial Material Co., Ltd. is a company integrating product development, design, production and sales. We have more than 2,000 cooperative factories in China, which can provide you with all conventional accessories and customized products. The main products are solar photovoltaic controllers, solar power generation systems, photovoltaic circuit breakers, photovoltaic modules, lithium-acid batteries, packaging machinery, Conveyor belts, pulleys, industrial control electrical, engineering plastic drag chains, steel aluminum alloy drag chains, machine tool lights, etc. Our products are sold at the lowest price and delivered in time. Our products can be used in a complete set of specifications. If you have any questions or requirements about the installation, please feel free to contact us, we will be happy to provide you with 24/7 service. Our company will provide you with satisfactory service with first-class quality and good reputation. We are willing to cooperate with domestic and foreign counterparts to make efforts for common development.

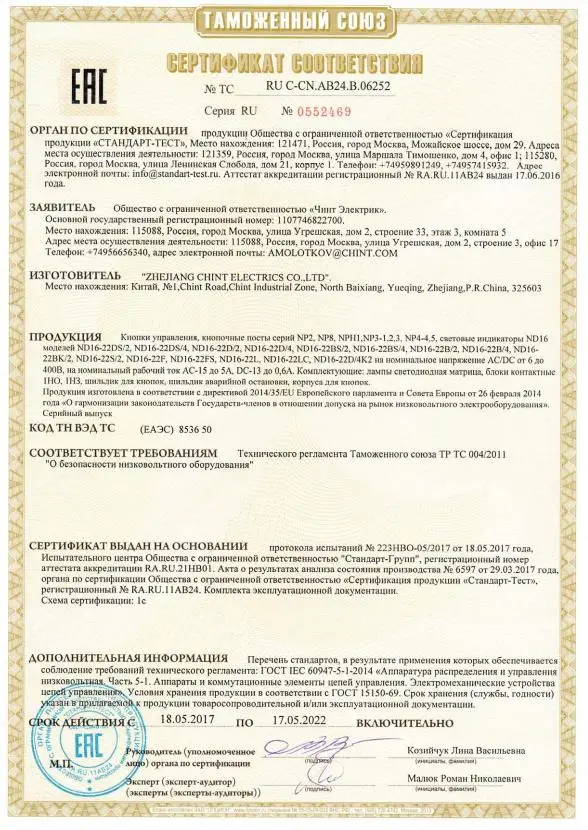

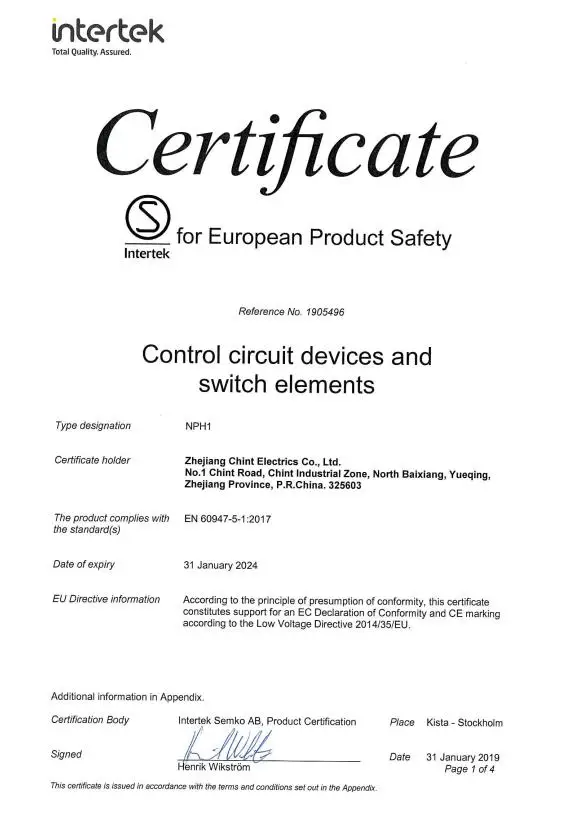

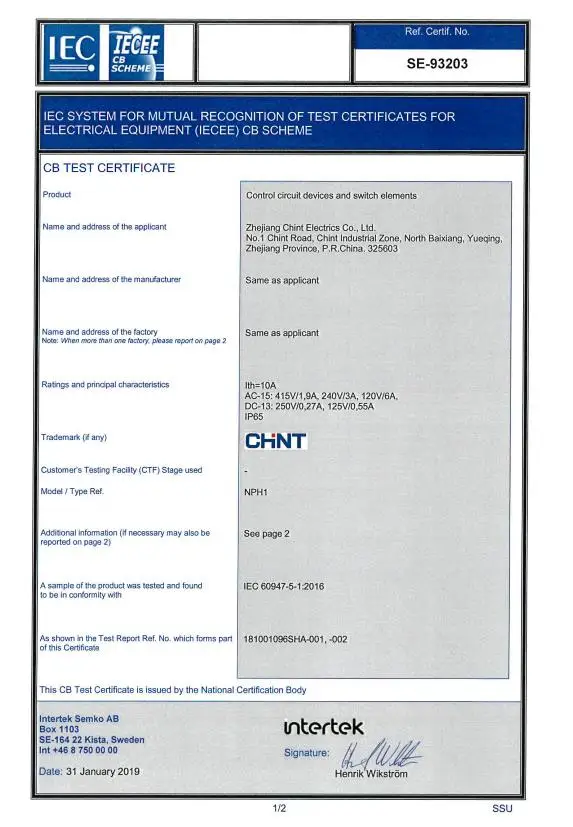

certificate
