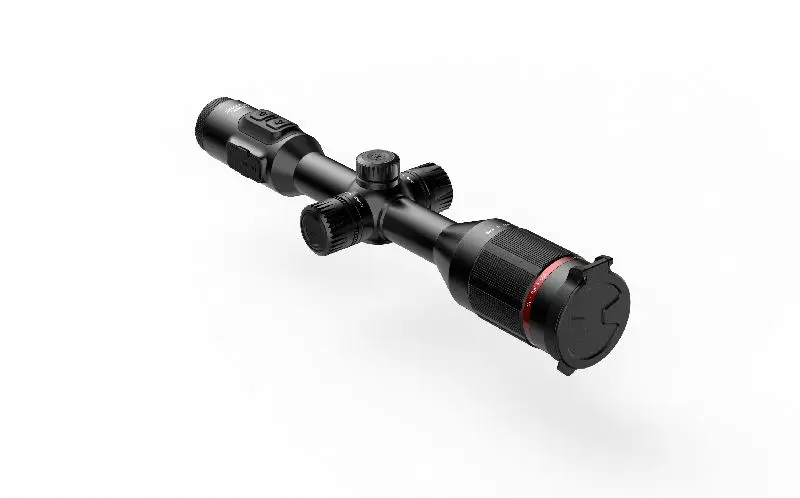

New released GUIDE TU430 Similar optics sight 35mm lens 384x288 Thermion XP38 thermal rifle sight
- Category: >>>
- Supplier: Beijing WTDS Optics Co. Ltd.
Share on (1600375823770):
Product Overview
Description

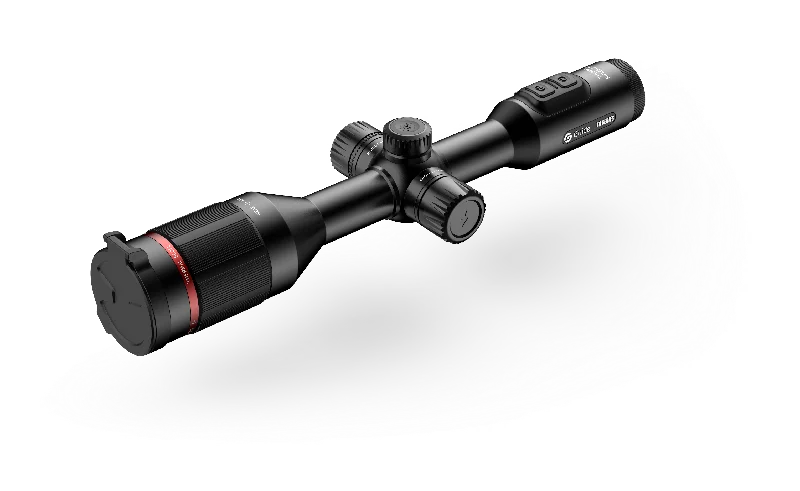

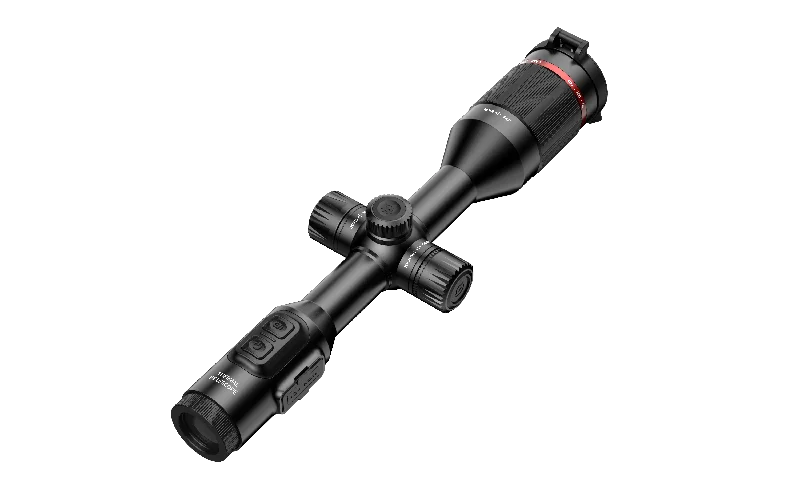

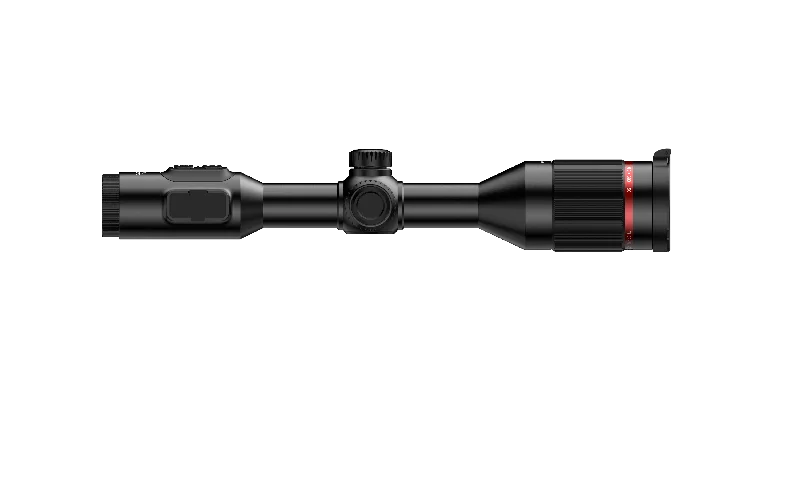

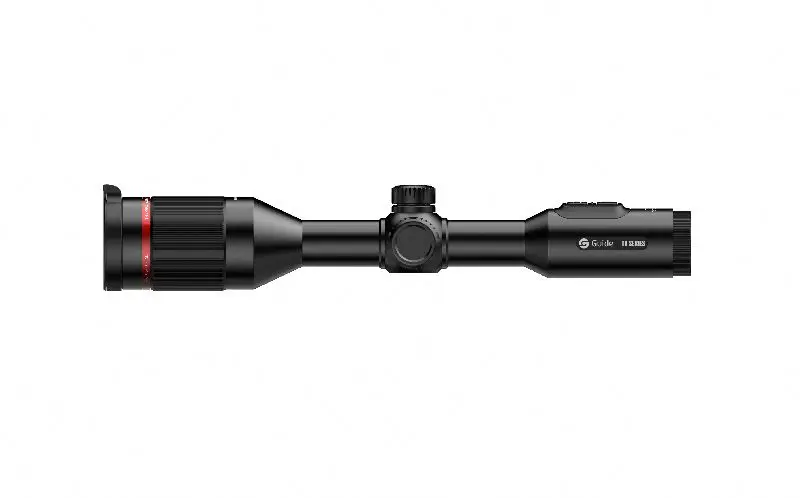

Guide TU thermal imaging riflescope retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters. TU series adopts 400x300 high- sensitivity thermal detector with three different lens options of 25mm,35mm,50mm, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.
Product Description
| Parameter | Guide TU | Pulsar Thermion | ATN THOR |
| Imaging Quality | ↑↑↑ | ↑↑ | ↑ |
| Battery life | 5 hours | 5 hours | 16 hours |
| Basic Function | WiFi, Photo/video, Zeroing | WiFi, Photo/video, Zeroing | WiFi, Photo/video, Zeroing |
| Special functions | Special designed reticle magnification model Bluetooth Shooting automatically triggers photos and videos | Build in Micro-phone | Bluetooth Accelerometer Gyro Barometer Compass Shooting automatically triggers photos and videos |
| App for Smartphone | ↑↑↑↑ | ↑↑↑↑↑ | ↑↑↑ |
| Reliability | IP67 -30~50℃ | IP67 -25~50℃ | Water proof -28~48℃ |
| Dimension / Weight | Maximum:385*80*67/1000g | 395*78*64/900g 402*78*64/1190g | Minimum:332x76x76 mm/880g Maximum:375x76x76 mm/1060g |
| IR Sensor | 384*288@17μm 640*480@12μm | 384*288@17μm 640*480@17μm | 384x288 @17μm 640*480@17μm |

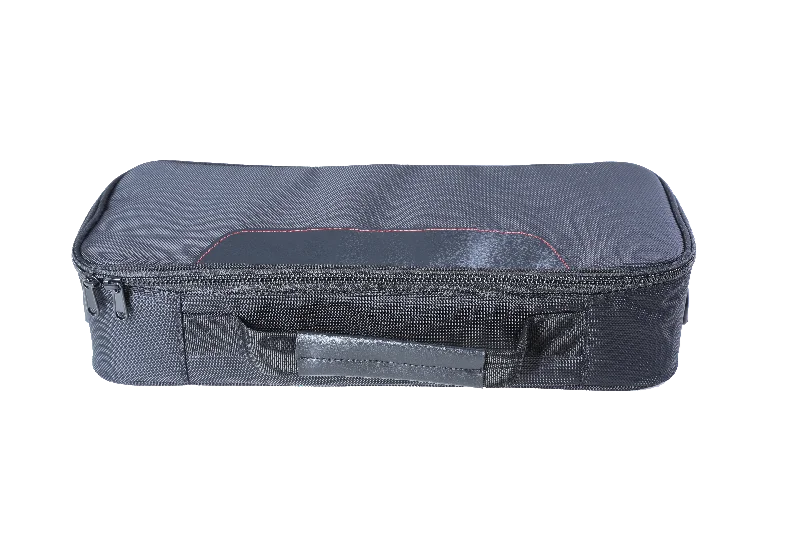

Packaging & Shipping
| Model | TU420 | TU430 | TU450 |
| Detector | |||
| Detector Type | 400×300@17μm, VOx | ||
| Spectral | 8μm~14μm | ||
| NETD | ≤50mk | ||
| Lens | |||
| Focal Length | 25mm | 35mm | 50mm |
| Focusing | Manual | ||
| FOV | 15.49°×11.65° | 11.1°×8.33° | 7.78°×5.84° |
| Display | |||
| Display Screen | Full-color 0.39'OLED screen,1024×768 | ||
| Eyepiece | Pupil distance of eyepiece 48mm,Eyepiece magnification 14× | ||
| Magnification | 1.6×~6.4× | 2.3×~9.2× | 3.2×~12.8× |
| Imaging | |||
| Frame Rate | 50Hz | ||
| Digital Zoom | 1×~4× smooth zoom | ||
| Scene Modes | Enhance, highlight, natural | ||
| Color Palettes | White hot, black hot,customized red hot, green hot, iron red, blue heat | ||
| Picture-in-picture | on/off, the position is adjustable | ||
| Functions | |||
| Wi-Fi/APP | Support WiFi to share pictures and videos, connect to APP (IOS & Android) to control the device remotely | ||
| Compensation Modes | Scene compensation, shutter compensation, automatic compensation | ||
| Zero Calibration | 50m/100m/200m/300m/500m | ||
| Gun Type Selection | 10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments | ||
| Reticle | 10 reticle styles, 6 colors, 10 levels of brightness | ||
| Others | Photo taking, video recording, hotspot tracking, Stadiametric rangefinder | ||
| Power Supply | |||
| Battery Type | 1× internal Battery + 1× external battery, rechargeable, change external battery without power cut off | ||
| Battery Operating Time | Battery continuous working time ≥ 10hrs | ||
| Interface | |||
| USB | Type-C, It can supply external power and charge, and can read the data of memory card | ||
| Video Interface | Micro HDMI | ||
| Environmental Characteristics | |||
| Operating Temperature | -30 ℃ ~ 50 ℃ (External power supply is required below -20℃) | ||
| Storage Temperature | -45℃~70℃ | ||
| Humidity | Working and storage 10%~95%, non condensing | ||
| Shock | 500G/1ms | ||
| Vibration | 10Hz~150Hz~10Hz 0.15mm IEC60068-2-6 | ||
| IP level | IP67 | ||
| Certificate | RoHS, CE, FCC, EAC, UN38.3 (Battery certificate) | ||
| Physical Characteristics | |||
| Internal Storage | 16G | ||
| Weight(excl battery) | 930g | 940g | 950g |

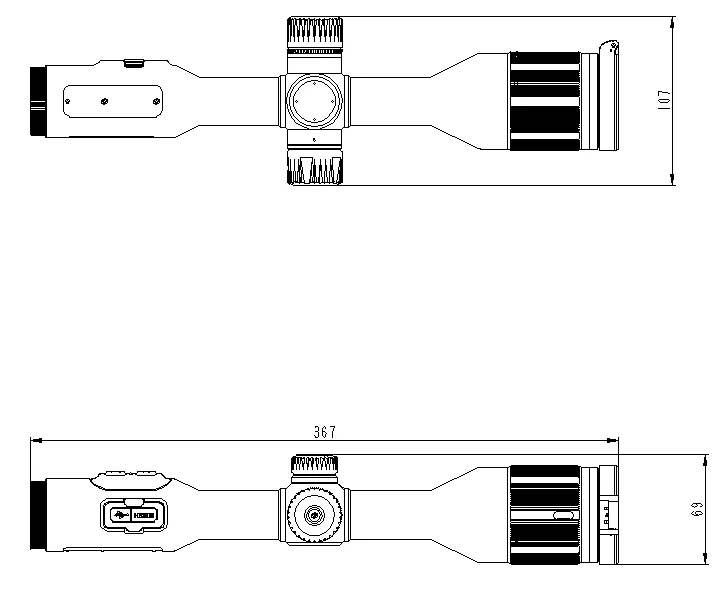

| Dimensions (excl eye mask) | 367×107×69mm | 367×107×69mm | 377×107×69mm |
| Package Contents | |||

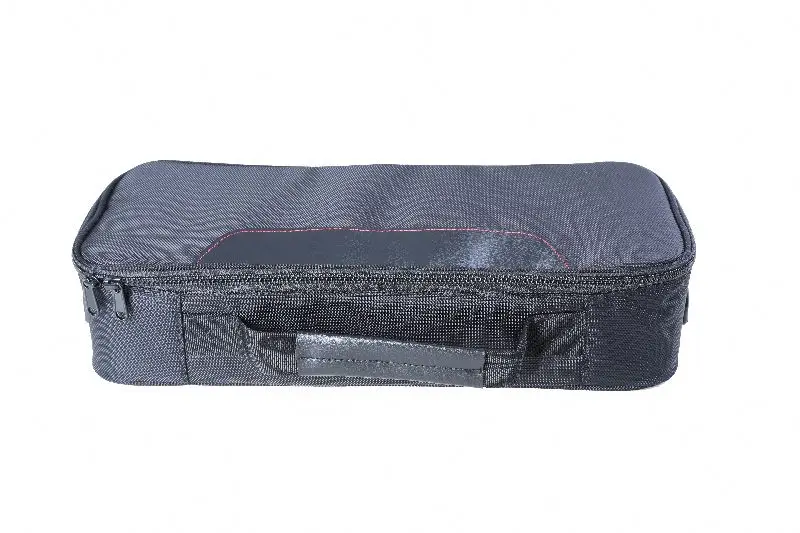

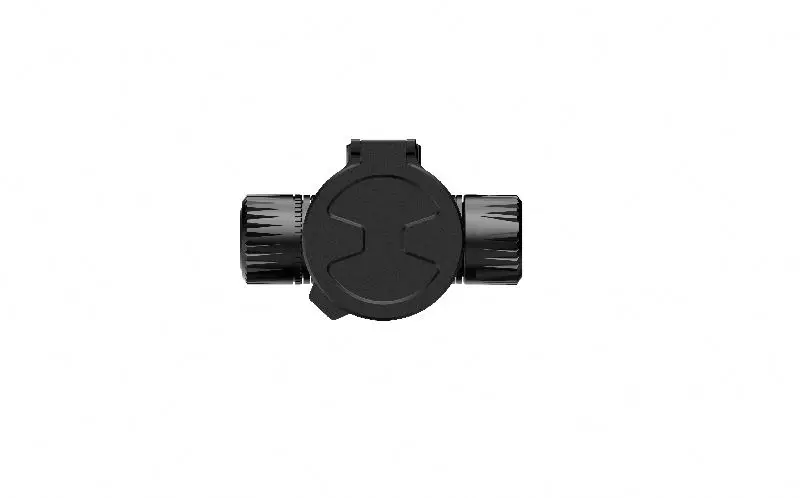

| Standard | Thermal Imaging Riflescope, TYPE-C Data Cable, Lens Cover, Adapter, Battery, Charger, Micro HDMI Video Cable, Eye Mask, Picatinny Tube Clip×2, Quick Start Guide | ||
| Optional | Battery, Remote Control | ||
Company Information
WTDS Optics is a well-known manufacturer of infrared thermal imaging products in China. Main products are thermal weapon sights, Binocular, Infrared lens, Uncooled thermal imaging cores, and cooled thermal imaging core . Means while, we provides customized services of all thermal products.
FAQ
1: How can I place order?
A: You can contact us by email about your order details, or place order on line.
2: How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) is the most usual ways we are using.
Trade Assurrance Order is welcome, you can pay by the way which you are more convenient.
3 : Could you tell me your price
A : The price is depending on quantity .
4: on hand stock available?
A Have in stock.
5: What is the MOQ
A: 1pcs small order it's ok.
6: Do you accept OEM
A: Yes, we accept OEM .
