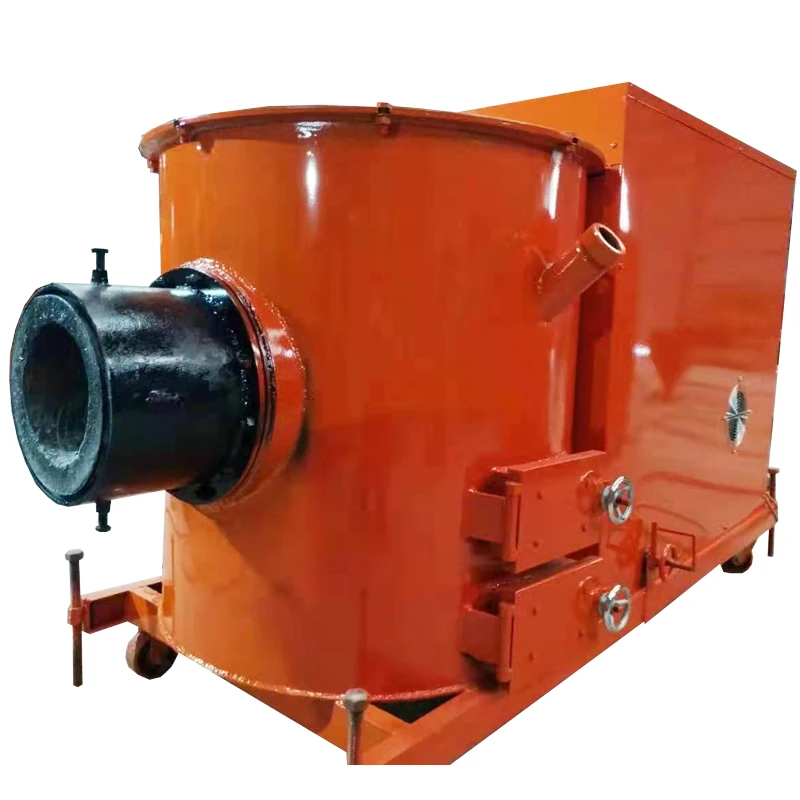

New arrivals OEM 3000000kacal/h gas cooktops Burner for industrial annealing furnace oil gas coal fired large tonnage boiler
- Category: >>>
- Supplier: Shandong Halo Imp& Exp Co. Ltd.
Share on (1600375830007):
Product Overview
Description
Product Description

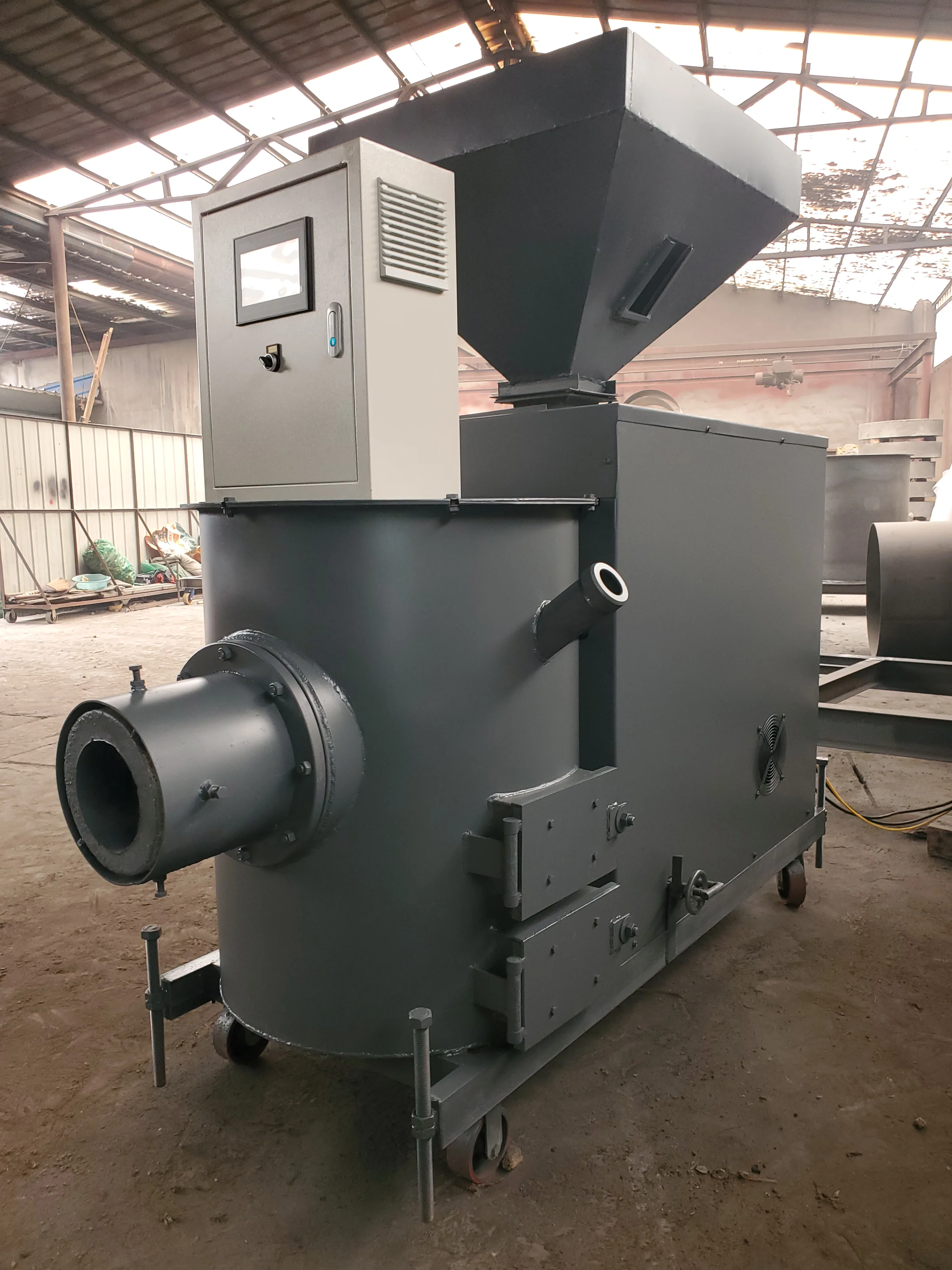

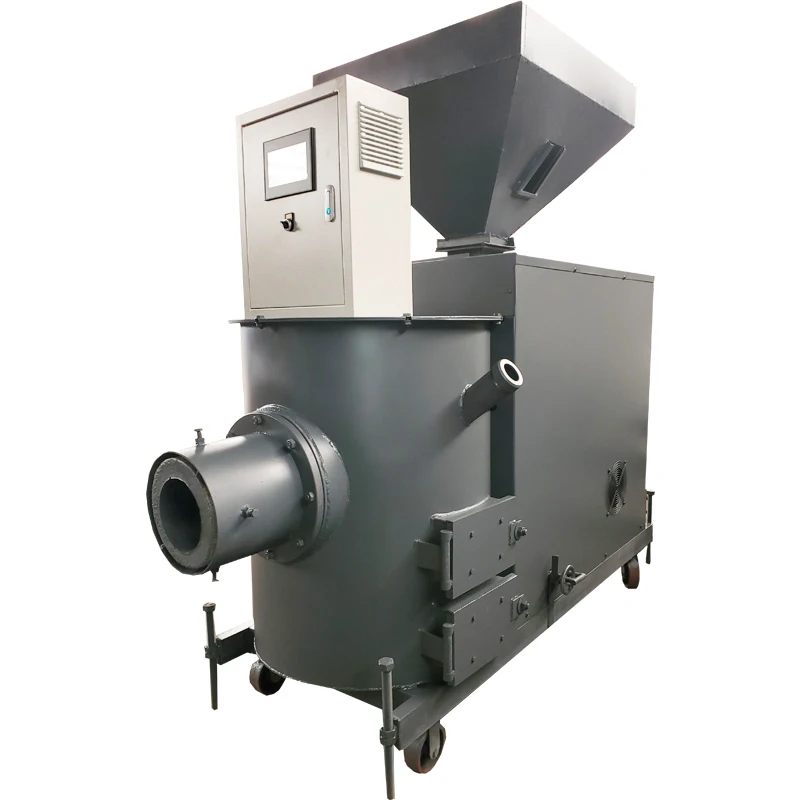

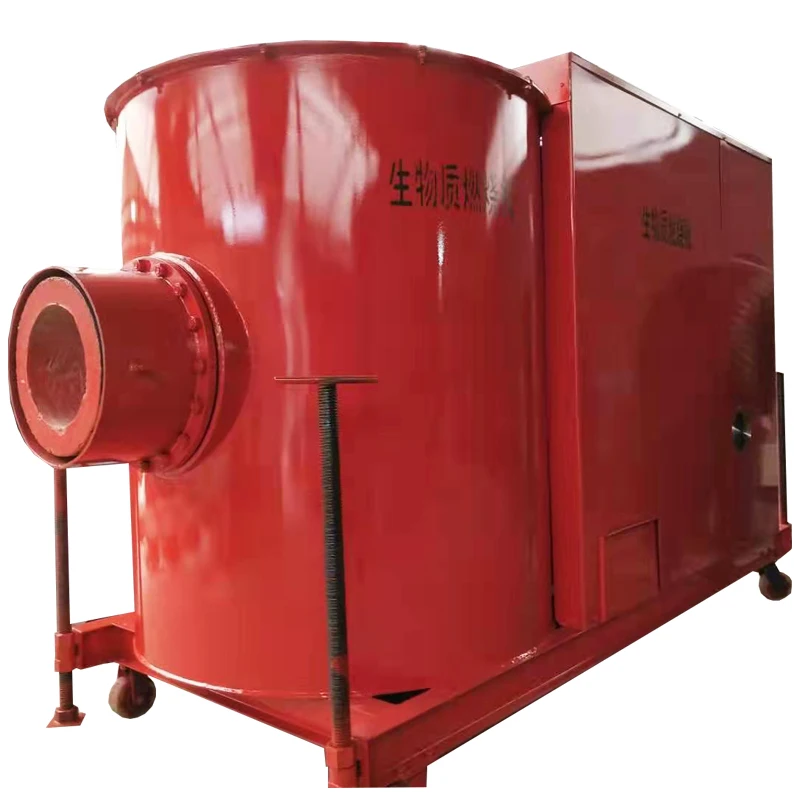

Biomass Burner Introduction
Biomass burner, a biomass semi-gasification automatic control burner to biomass pellets, wood chips, wood flour, sawdust and other biomass as fuel biomass high temperature cracking burner, generally divided into two models of air-cooled burner and water-cooled burner.

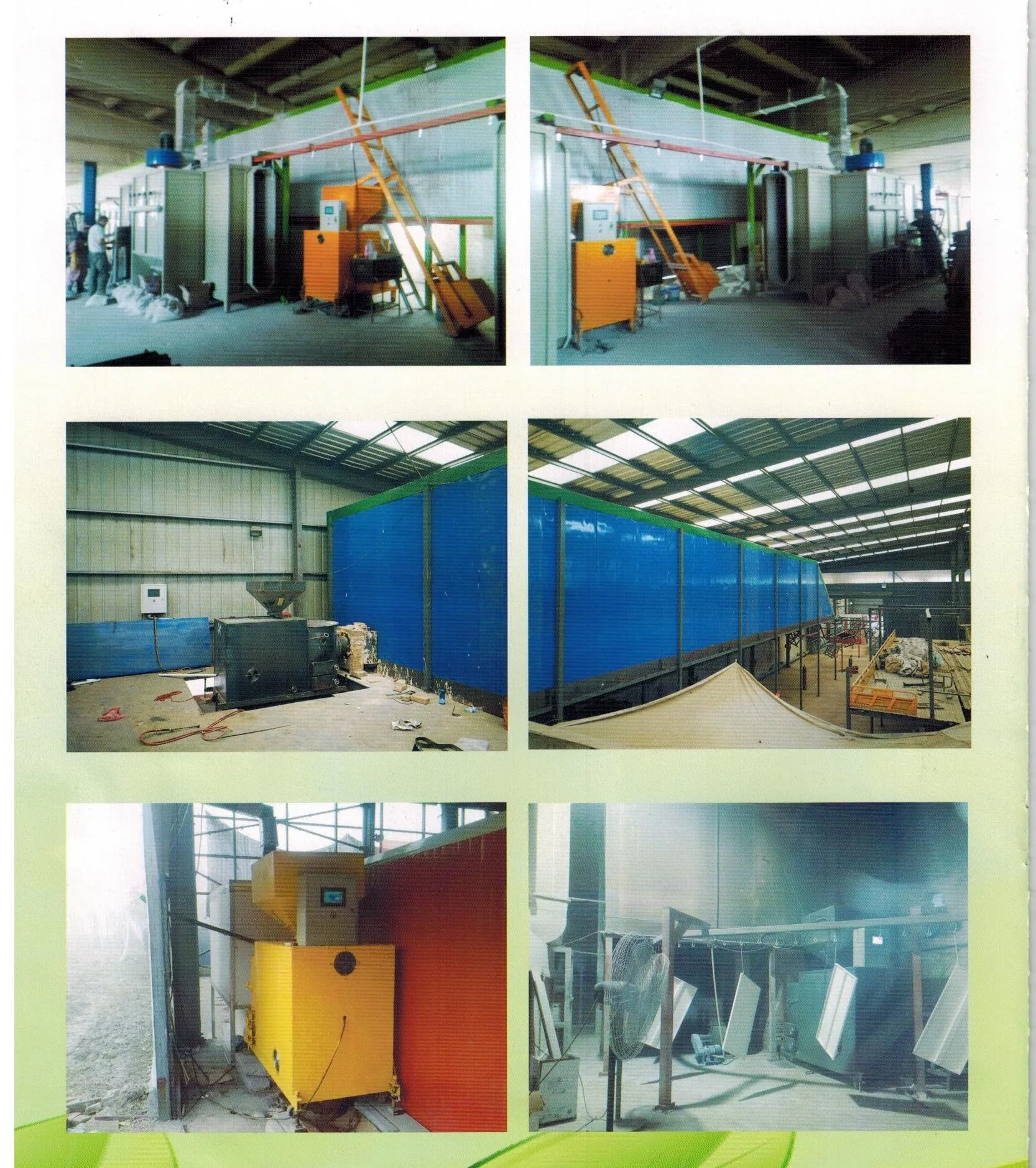

Biomass burner is suitable for coating line body, electroplating plant baking furnace, boiler, small power station boiler, industrial kiln, incinerator, melting furnace, die-casting machine, drying equipment, kitchen equipment, drying equipment, food drying equipment, ironing equipment, baking equipment, road construction machinery and equipment, industrial annealing furnace, fuel oil, gas, coal-fired large-tonnage boiler, asphalt heating equipment, heat-conducting oil boiler, hot water boiler and other industries . Simple operation; with intelligent control, automatic feeding, wind dust removal, reduce labor intensity, simple operation, easy maintenance, small workload, no need for manned.
Our Advantages:
1、Good thermal insulation performance of biomass pellet burner
Equipment can withstand more than 1000 ℃ high temperature at all times, mainly because of the special high temperature resistant materials as the core liner, up to 1300 degrees of high temperature, durable.
2、Automatic temperature control. Constant temperature controlIntelligent setting, feeding speed, the size of the oxygen supply are used to control technology, a comprehensive response to a variety of combustion needs, digital operation. And according to the actual combustion temperature demand, flexible and free to set the temperature.

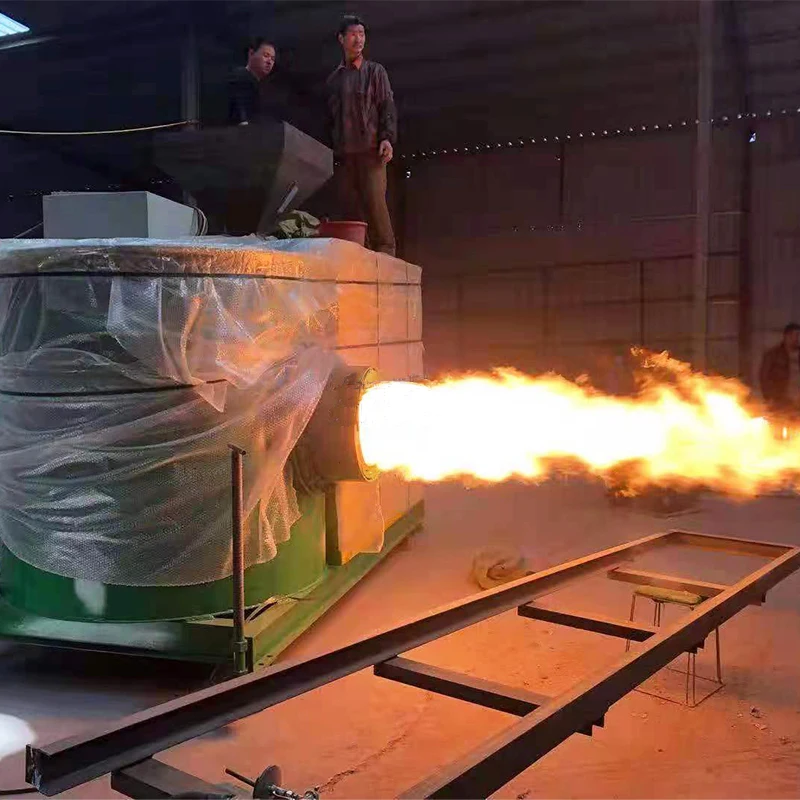

3、Pellet burner with high efficiency and fast fireThe equipment adopts the streamline fire design, so that the burner has no resistance to fire, and the combustion efficiency is higher.
4、Automatic alarm system function
Adopt automatic alarm system, lack of fuel or improper operation, the system will automatically alarm, safe to use.
8、Adopt three times to oxygen air distribution design, so that the combustion is more fully, reduce slag emissions, more environmentally friendly, more material saving.
5、Stable performance of the electronic control system6、Unique power link, anti jamming, anti tempering
7、Configuration of refractory nozzle, the nozzle is made of special stainless steel or refractory materials, heat-resistant temperature up to 1100 ℃, long service life.
Model | Heat output (kcal/h) | Motor (KW) | Corresponding boilers (T) | Max. fuel consumption | Size (mm) | Weight (t) |
ML45 | 450000 | 2.05 | 0.5-0.75 | 100/h | 1990*850*2100 | 0.96 |
ML90 | 900000 | 2.2+0.75 | 1-1.5 | 200/h | 2280*920*1850 | 1.5 |
ML120 | 1200000 | 3+0.75 | 2 | 266/h | 2450*1020*1980 | 1.86 |
ML180 | 1800000 | 3+0.75 | 3 | 400/h | 2700*1190*2100 | 2.64 |
ML240 | 2400000 | 5.5+0.75 | 4 | 533/h | 3050*1400*2300 | 3.1 |
ML300 | 3000000 | 7.5+0.75 | 5 | 667/h | 3200*1600*2600 | 4.3 |
ML360 | 3600000 | 7.5+0.75 | 6 | 800/h | 3850*1785*2720 | 4.8 |
ML420 | 4200000 | 11+0.75 | 7 | 933/h | 4150*1900*2800 | 5.1 |
ML480 | 4800000 | 14 | 8 | 1066/h | 4460*2068*2900 | 5.65 |

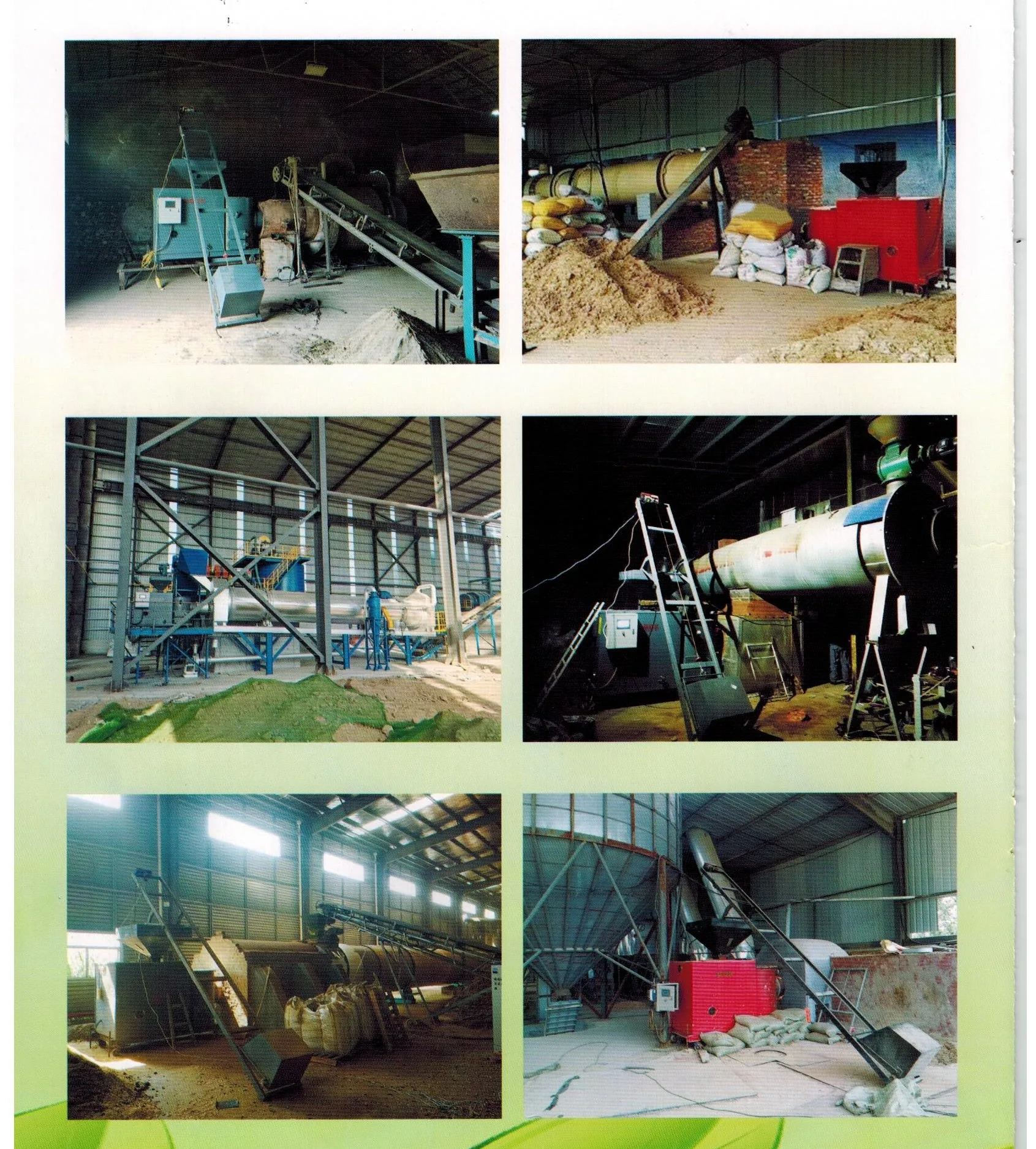

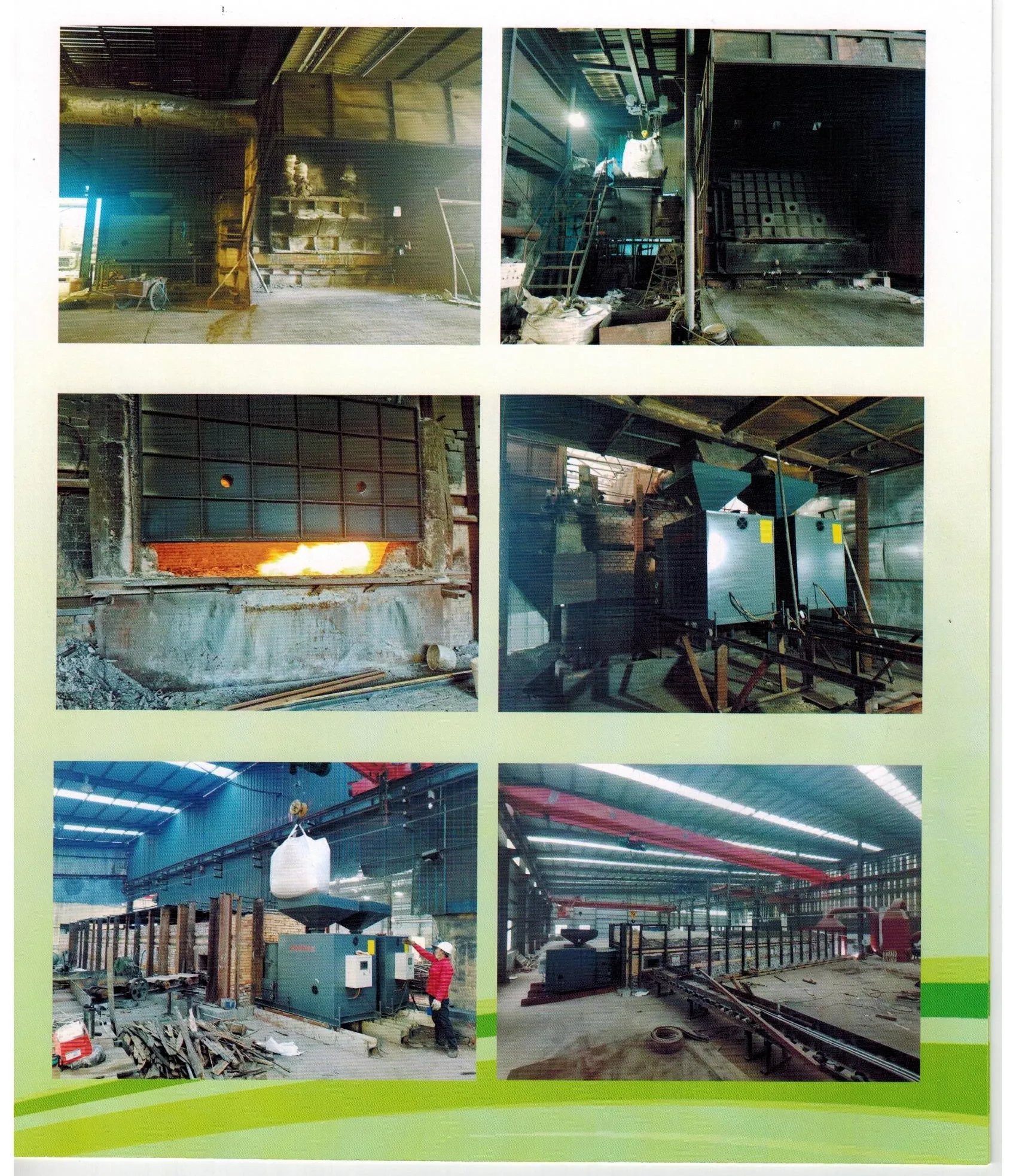

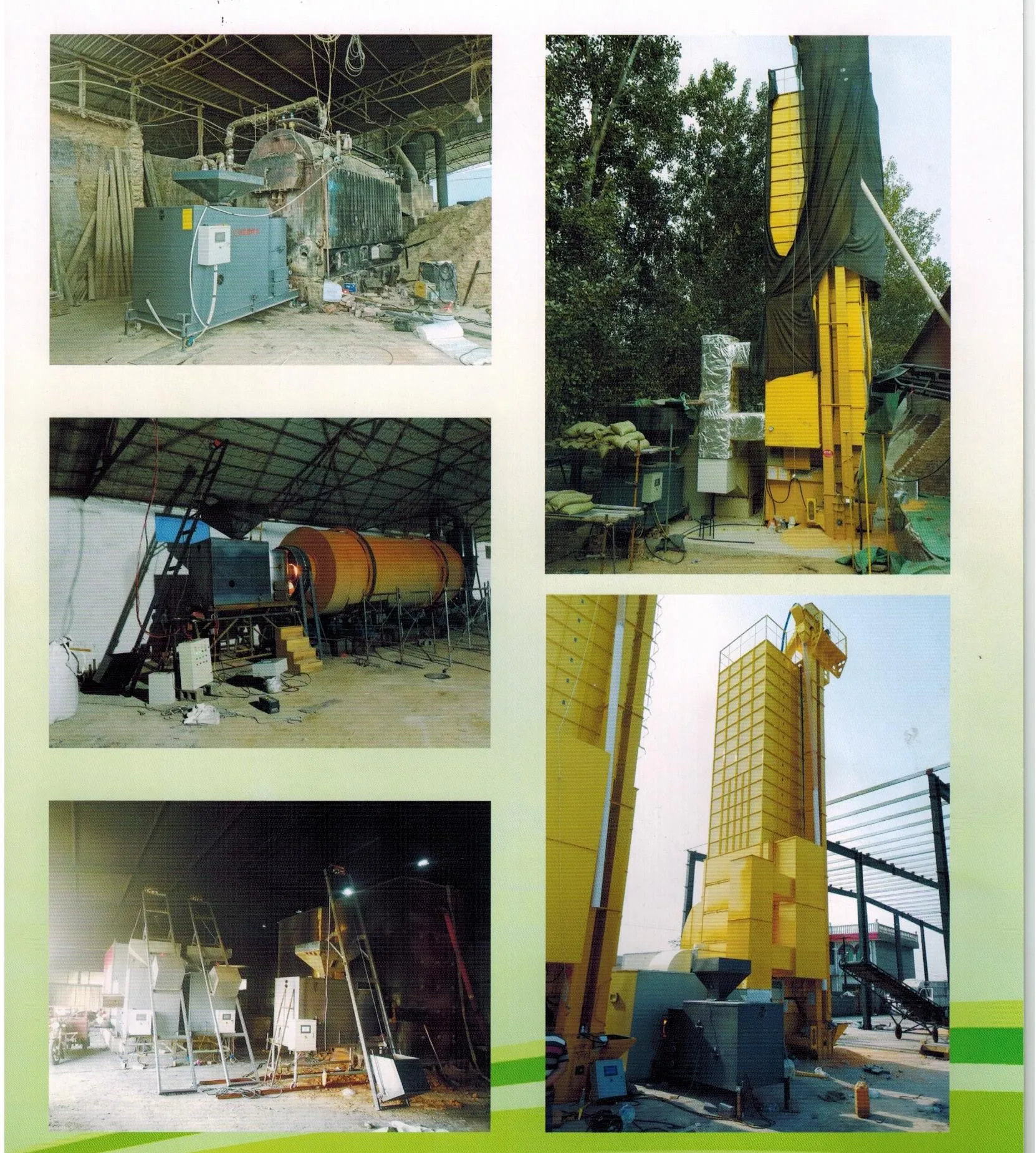

Widely used

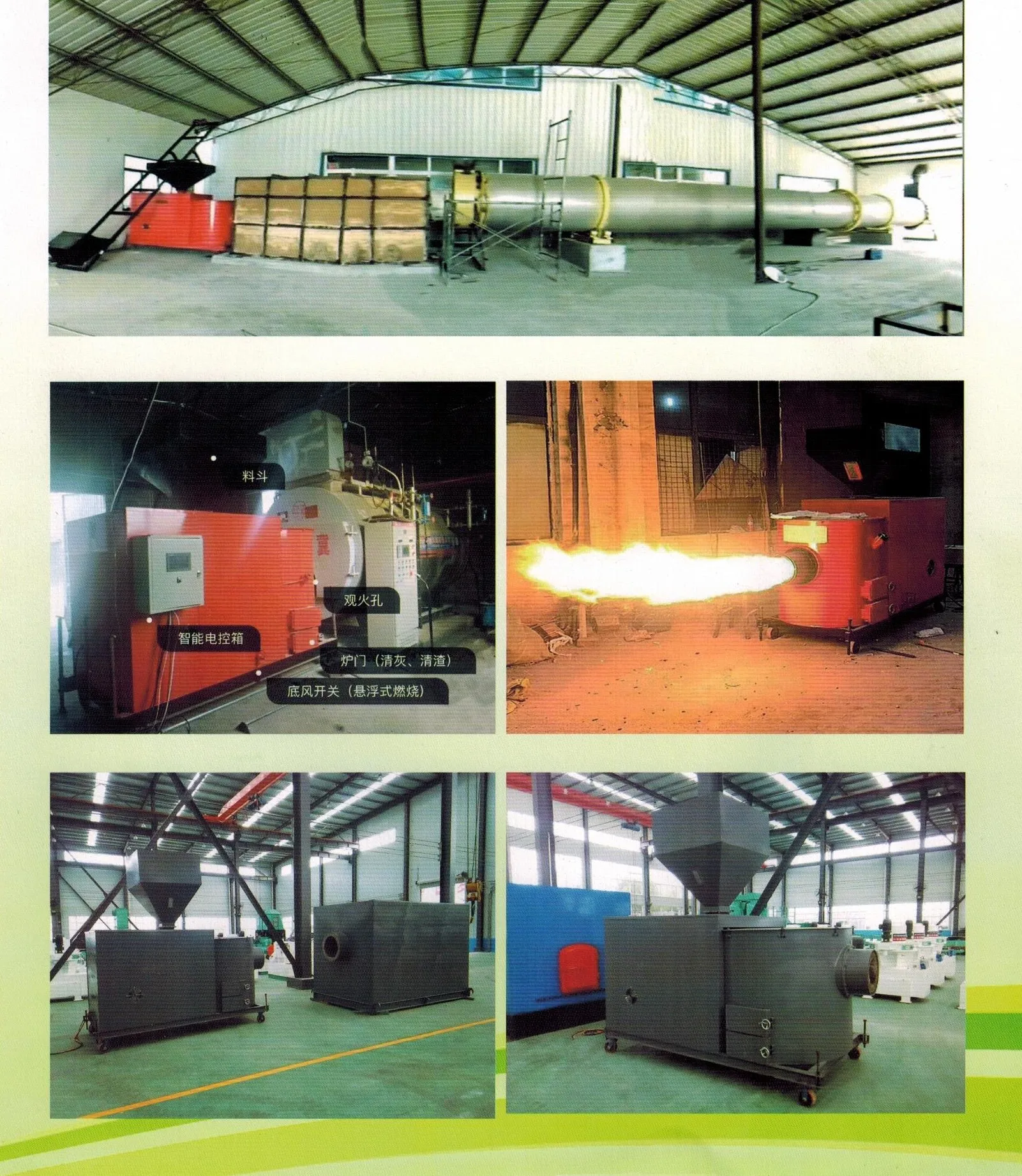

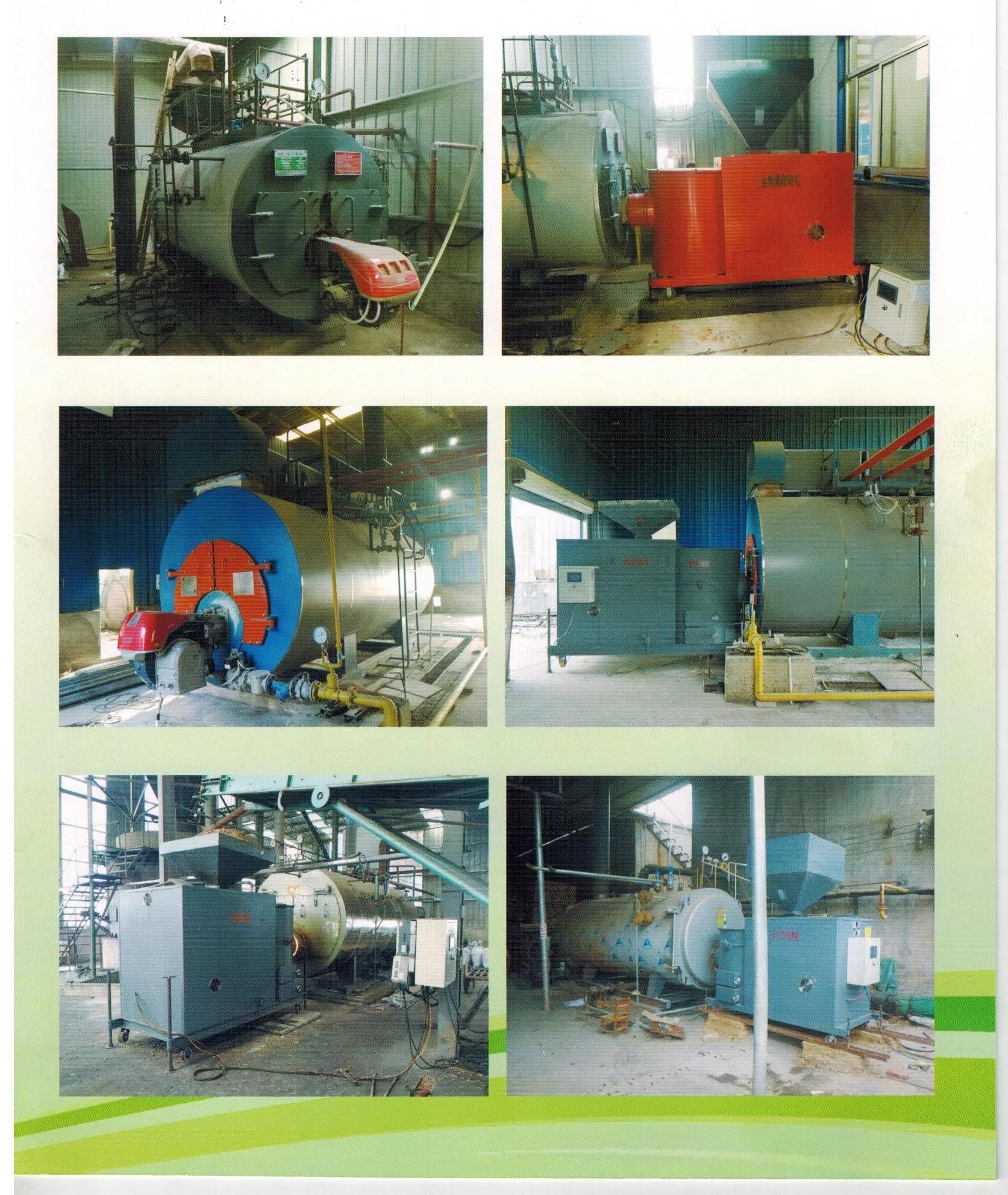

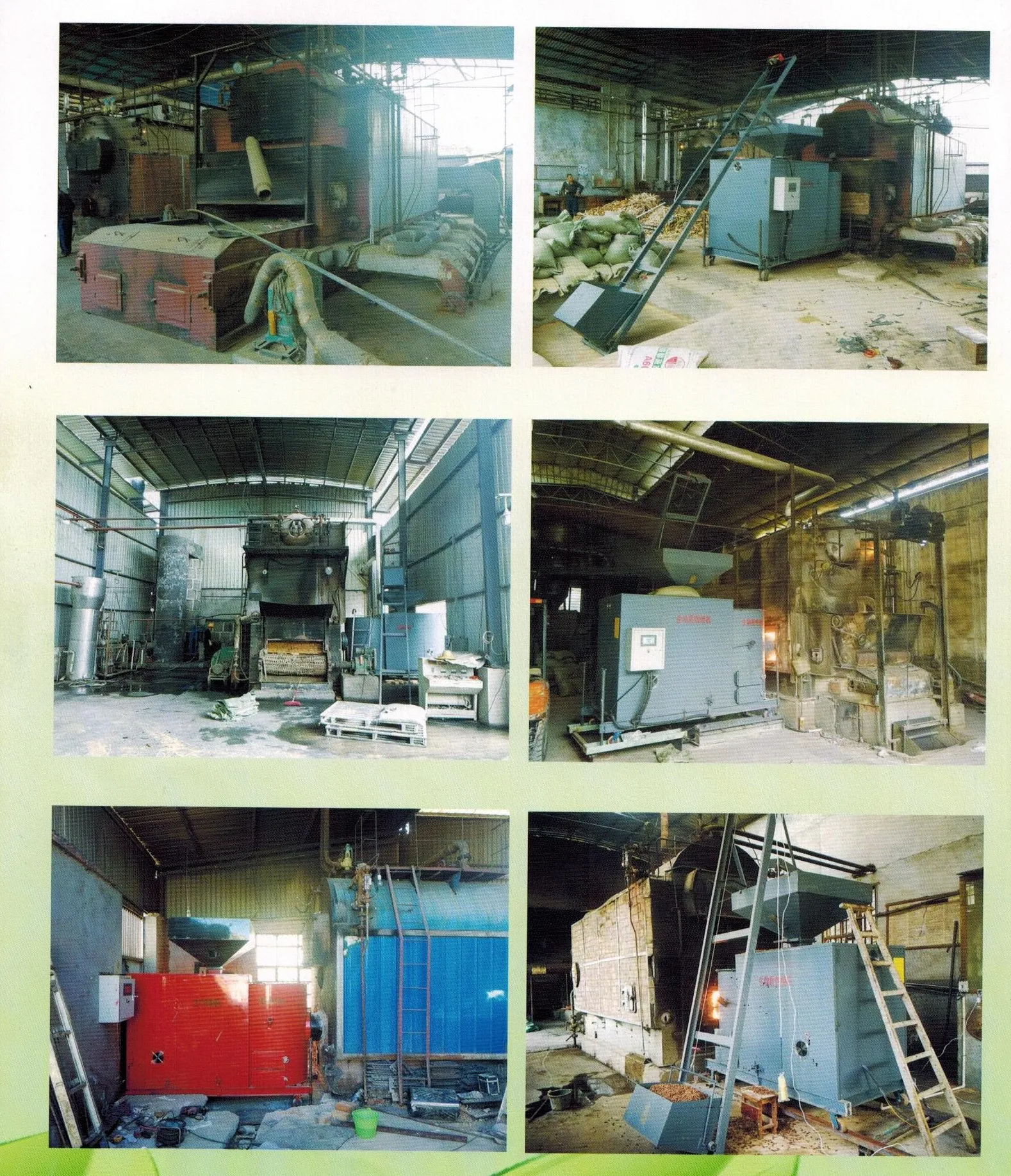

Biomass high temperature cracking multifunctional burner has good performance and can be customized according to the actual needs of customers, and can also be modified for coal-fired, gas-fired and oil-fired boilers that are now in operation. Biomass burners are mainly used in steam boilers, hot water boilers, metallurgical industry, drying equipment, spraying equipment, ironing equipment, industrial furnaces, asphalt heating equipment, centralized heating, etc.

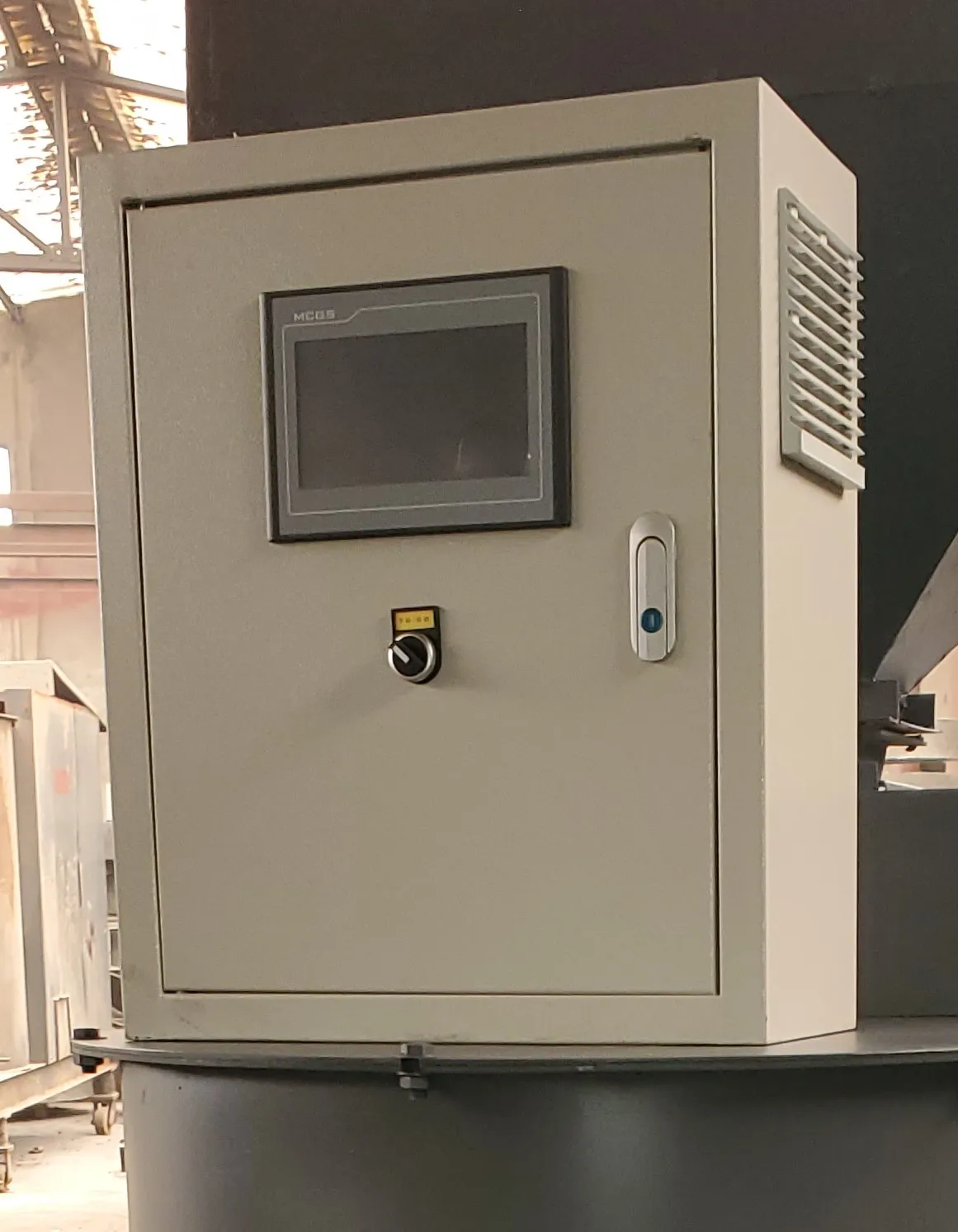

Power Distribution Boxes
Also called distribution cabinet, is the collective name of motor control center. Distribution box is according to the electrical wiring requirements of the switchgear, measuring instruments, protection appliances and auxiliary equipment assembled in the closed or semi-enclosed metal cabinet or screen width, constituting a low-voltage power distribution device. Easy to manage, when the circuit failure is conducive to maintenance. Distribution boxes and distribution cabinets distribution panels distribution with, etc., is the centralized installation of switches, instruments and other equipment sets.
Combustion chambers
1、Ensure that the pulverized coal airflow sent into the furnace can quickly and steadily catch fire and burn
2、Supply reasonable secondary wind, so that it can mix well with the primary wind in time to ensure high combustion efficiency.
3, the flame in the furnace chamber is filled with good degree, and will not rush the wall to avoid cinder.
4、Better combustion suitability and load adjustment range.
5、Smaller flow resistance, less pollutant generation.
2、Supply reasonable secondary wind, so that it can mix well with the primary wind in time to ensure high combustion efficiency.
3, the flame in the furnace chamber is filled with good degree, and will not rush the wall to avoid cinder.
4、Better combustion suitability and load adjustment range.
5、Smaller flow resistance, less pollutant generation.

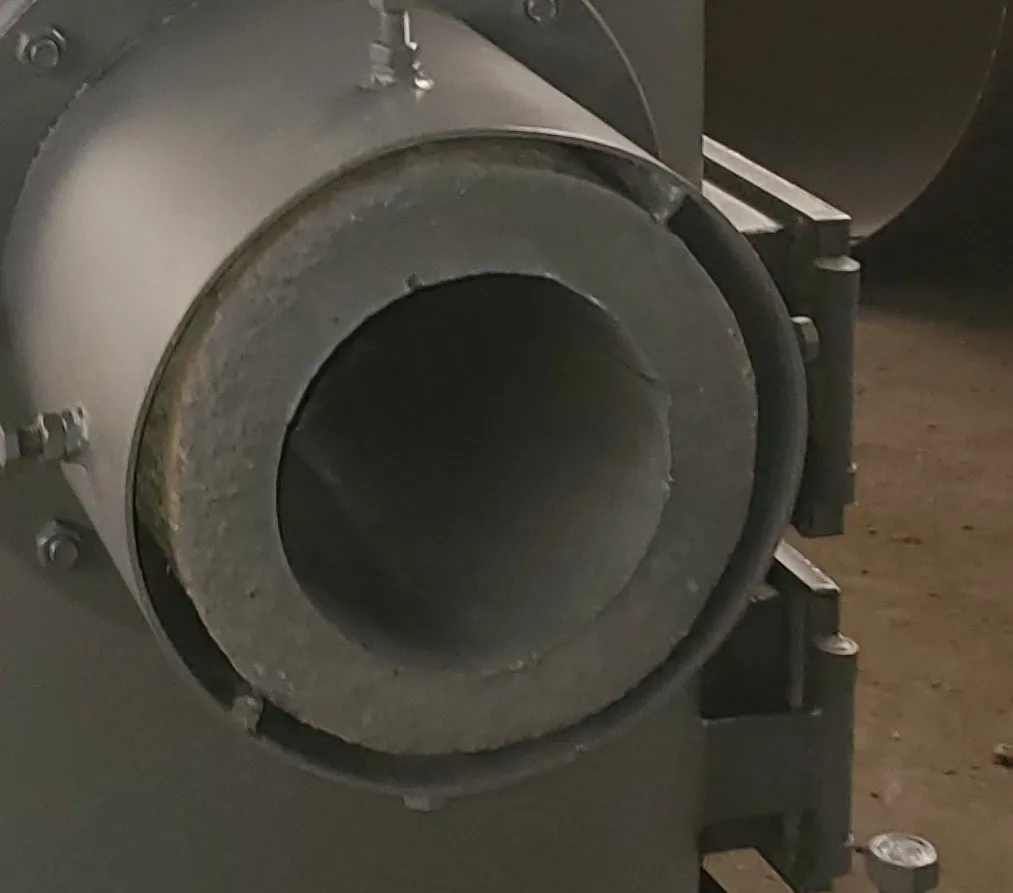

Burner outlet
Equipped with refractory nozzle, the nozzle is made of special stainless steel or refractory materials, heat-resistant temperature up to 1100 ℃, long service life.

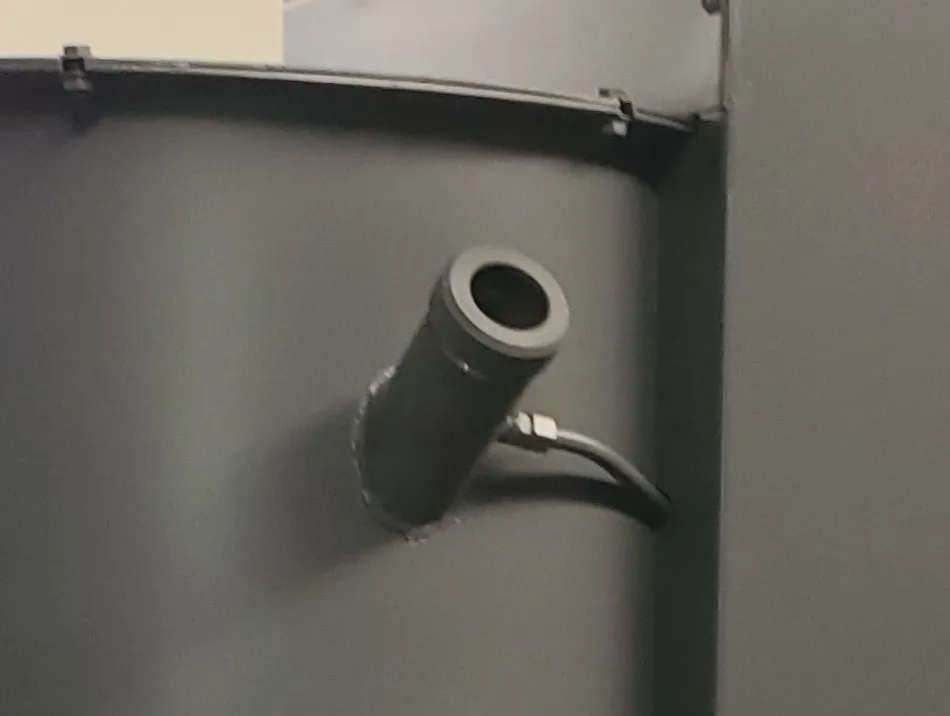

Burner view port
Adopt intelligent control, automatic feeding, wind dust removal, reduce labor intensity, simple operation, easy maintenance, small workload, no need for manned duty
Company Profile
Halo import and export co., Ltd. Is a professional machine manufacturer. located in Jinan city, Shandong Province, China and near to Qingdao port.
Our main products are feed processing machines wood pellet machine wood pellet stove wood pellet burner,etc. High quality, standard-tested, long-term foreign buyers such as:, Africa, Southeast Asia, Europe and America, and finally South America etc.We can support OEM at the same time.
We have a mature, first-class production team, hoping to give each other an opportunity to meet our own needs. Looking forward to establish business with you!
Honor to show
Product packaging
Fully enclosed wooden box packaging. This fully enclosed box can effectively prevent dust, moisture, oil. And it is because of the fully closed state, can play a maximum role to protect the goods it is packed. And for some small volume of goods, will not appear because of the incomplete packaging fall. So there are still a lot of large goods, according to their own volume to use wooden box packaging. Also can effectively adapt to the volume of the means of transport, to make certain changes.
FAQ
Q: Are you a manufacturer or an agent?
We are the manufacturer which has 6 years experience and own research and development team.
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically.
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
We are the manufacturer which has 6 years experience and own research and development team.
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically.
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
