Chint реле 800A 160 ~ 400KW моторный накопитель переменного тока реле защиты моторный накопитель переменного тока перегрузки, 320A ~ 800A AC 240V 400V реле защиты двигателя
- Category: >>>
- Supplier: Kunshan Pinzhe Industrial Materials Co. Ltd.
Share on (1600375890635):
Product Overview
Description
Product Description

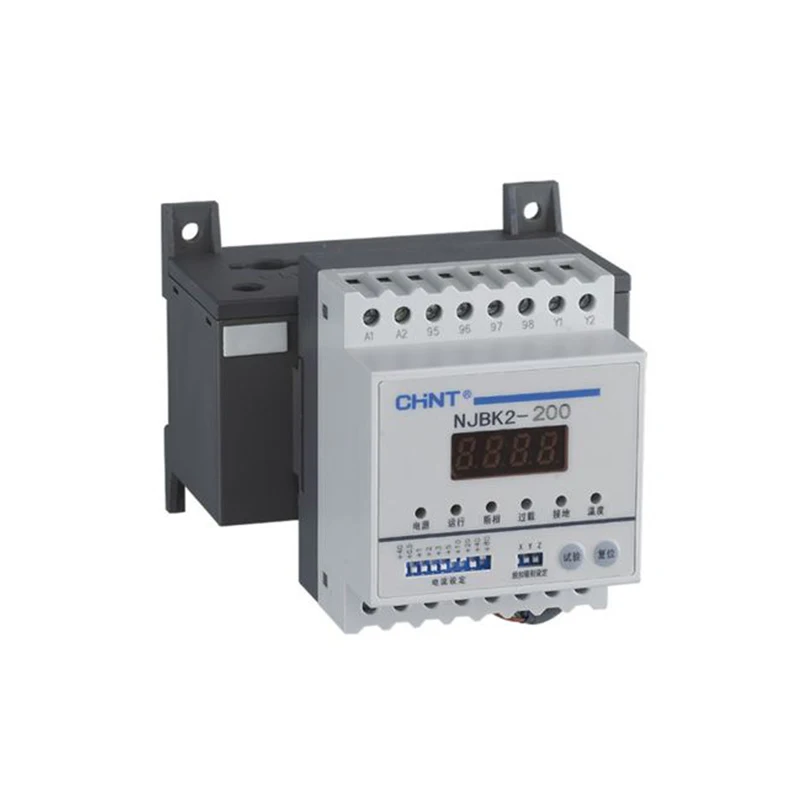

NJBK2 Motor Protection Relay
1. General
NJBK2 series motor protection relay (hereinafter referred to protector as simply) is applicable for overload, locked-rotor,
phase-failure, three phase current unbalance, earthing and PTC temperature protection of AC motor @ A.C.50Hz, less than 690V rated insulation voltage and 1A ~ 800A rated operating current for its continuous working or discontinuous working.
phase-failure, three phase current unbalance, earthing and PTC temperature protection of AC motor @ A.C.50Hz, less than 690V rated insulation voltage and 1A ~ 800A rated operating current for its continuous working or discontinuous working.
3. Operating conditions
3.1 Altitude ≤2000m.
3.2 Ambient air temperature -5℃ ~ +40℃, with daily average ≤+35℃.
3.3 Atmospheric condition: when the highest temperature is +40℃, relative humidity of air shall be no more than 50%, higher relative humidity shall be allowable at lower temperature. The max monthly average relative humidity of the most humid month shall be not more than 90% and the lowest monthly average temperature of the same month should be no more than +25 ℃, condensed dew on surface of the product due to the change of the temperature should be taken into account.
3.4 Pollution Level: Level 3.
3.5 Installation Category: Ⅲ.
3.6 Inclination between installation plane and vertical plane shall ≤±5°.
3.7 At places without prominence rock, impact and vibration.
3.8 At places without explosive risk, without gases that may be corrosive to metal or gases that may cause damage to the insulation, and with little conducting dust
3.9 At places where rain & snow proof facilities are equipped with and not being full of steam.
5. Design features
5.1 Equipped with functions of overload, locked-rotor, phasefailure, three-phase unbalance, earthing and PTC temperature
protection etc.
protection etc.
5.2 Six indicators indicate status of power supply, operation, phase-failure (three phase unbalance), overload, earthing and temperature, respectively. Equipped with function of fault memory.
5.3 Four kinds of trip class.
5.4 Digital dial-up settings with high precision.
5.5 Three kinds of reset modes: manual reset, remote manual reset and automatic reset.

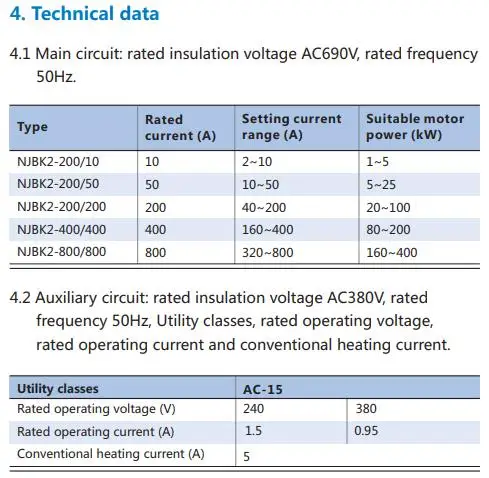

Specification
Brand Name | CHINT |
Model Number | NJBK2 |
Rated current | 10A~800A |
Setting current range | 2A~800A |
Suitable motor power | 1KW~400KW |
Utility classes | AC-15 |
Rated operating voltage | 240V/380V |
Rated operating current | 0.95A/1.5A |
Conventional heating current | 5A |
rated insulation voltage | 690VAC |
rated frequency | 50Hz |
Pollution Level | Level 3 |
