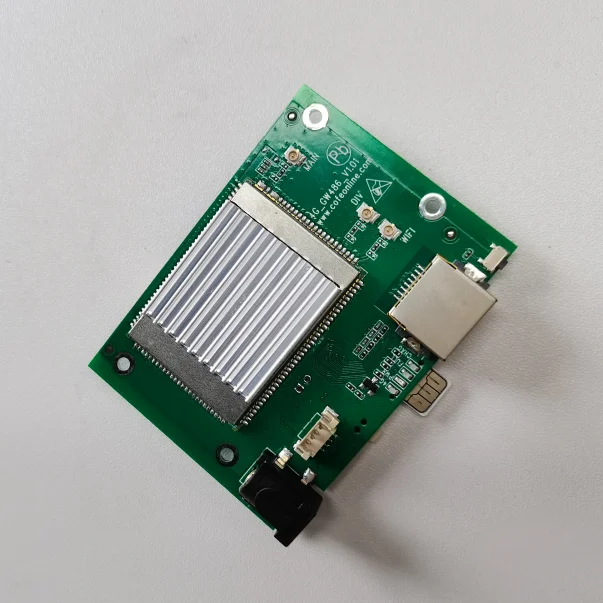

Factory OEM 4G Router Module PCB Circuit Board PCBA Wifi Wireless Router 4g Lte Router
4G Router Board of GW486GW486,4G Indoor Customer Premise Equipment(CPE) PCBA provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data toend-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network(LAN). Wireless and wired devices, including mobile phones,laptops,tablets,and others mart devices, can access the CPE simultaneously.
GW486 has two versions, one with and one without backup battery fuction
GW486-A | Without battery function |
GW486-B | With battery function |
Product parameters | Describe |
Supply Voltage | Wide voltage input ，DC[5V---12V] |
Power Waste | Normal operation power <3W; peak value 400mA@12V |
Power Interface Form | DC2.0Power socket |
Working Frequency Band | FDD LTE: B1/B3/B5/B8 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B5/B8 CDMA2000 1X/EVDO：BC0 |
Speed | LTE-FDD： Max 150Mbps(DL) Max 50Mbps(UL) LTE-TDD： Max 130Mbps(DL) Max 35Mbps(UL) DC-HSPA+：Max 42Mbps(DL) Max 5.76Mbps(UL) UMTS： Max 384Kbps(DL) Max 384Kbps(UL) TD-SCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL) CDMA: Max 3.1Mbps(DL) Max 1.8Mbps(UL) |
WiFi | 802.11b/g/n |

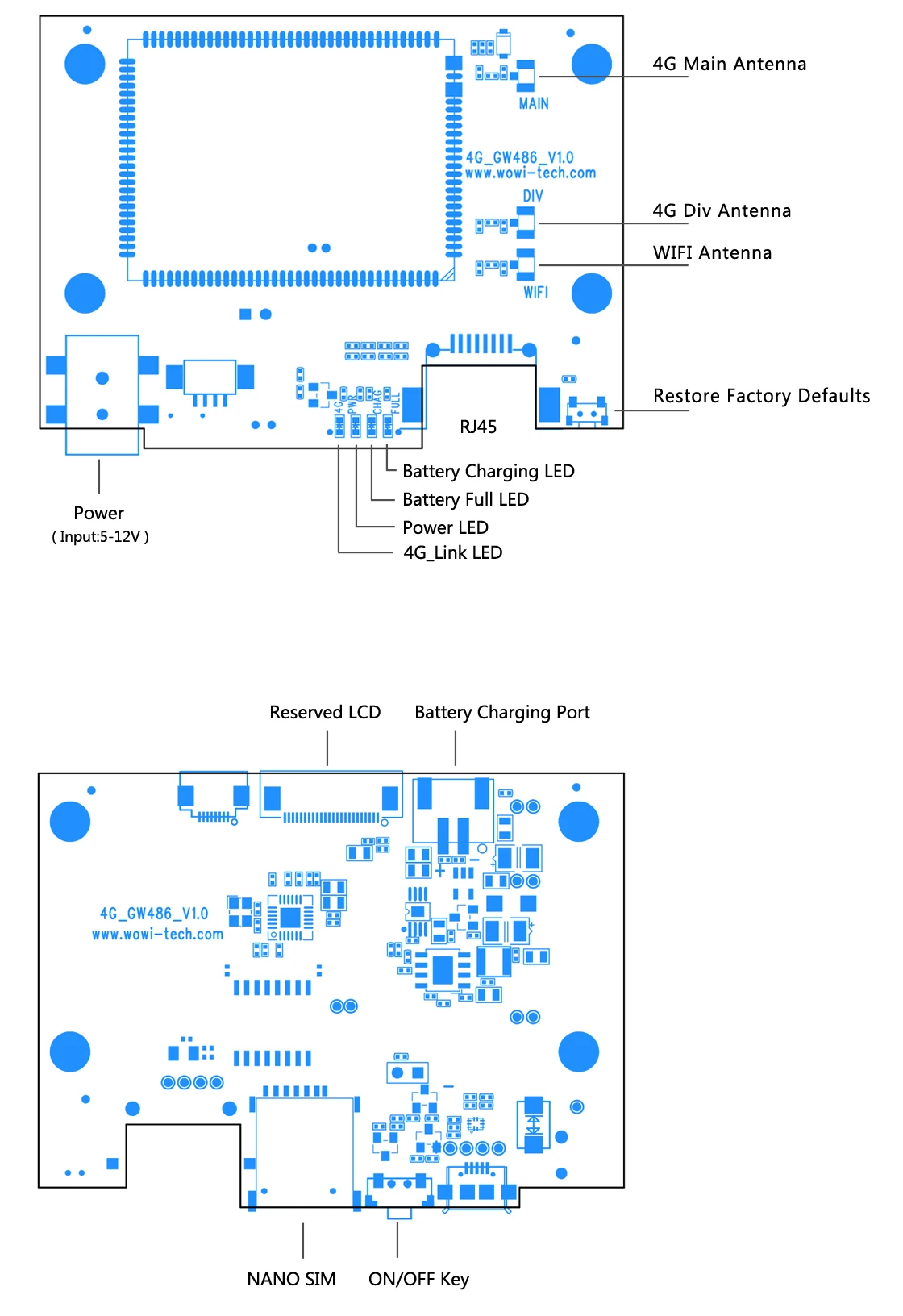

Network Interface | 1 port RJ45，100M，Auto MDI/MDIX |
4G Antenna | IPEX first generation，two socket |
WiFi Antenna | IPEX first generation，one socket |
LED Indicators | Power LEDx1 LTE Link LEDx1 Battery Charging LEDx1 Battery Full LEDx1 |
LCD Interface | Optional, supprot 1.44 Color screen LCD |

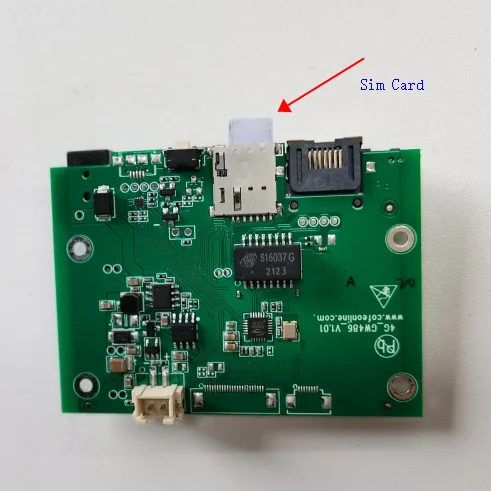

USIM/SIM | 1.8V/3.0V USIM 2FF |
Key1 | One, press and hold 10S to restore the factory default settings |
Key2 | ON/OFF key |
Working Temperature | -25°C－+50°C |
Working Humidity | 10%－95%RH |
Storage Temperature | -40°C－+85°C |
Dimensions | 72.5mm * 52mm * 20mm (W*D*H) |
Weight | About 100g |

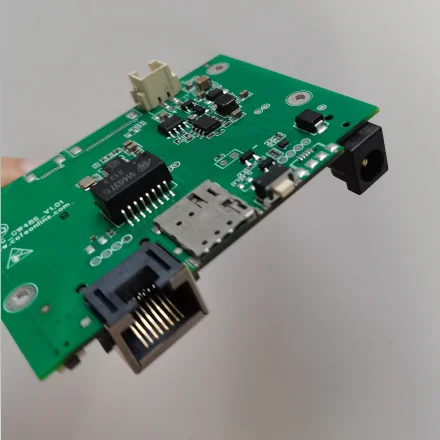

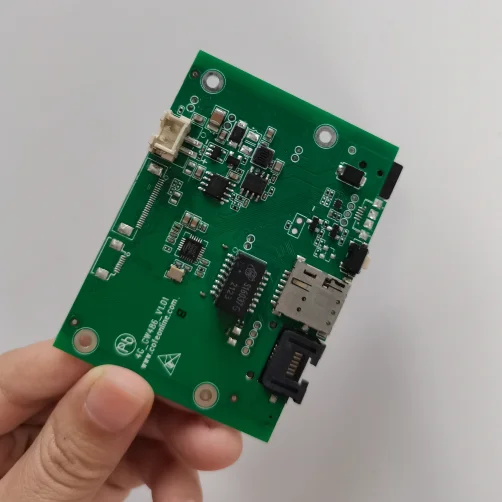

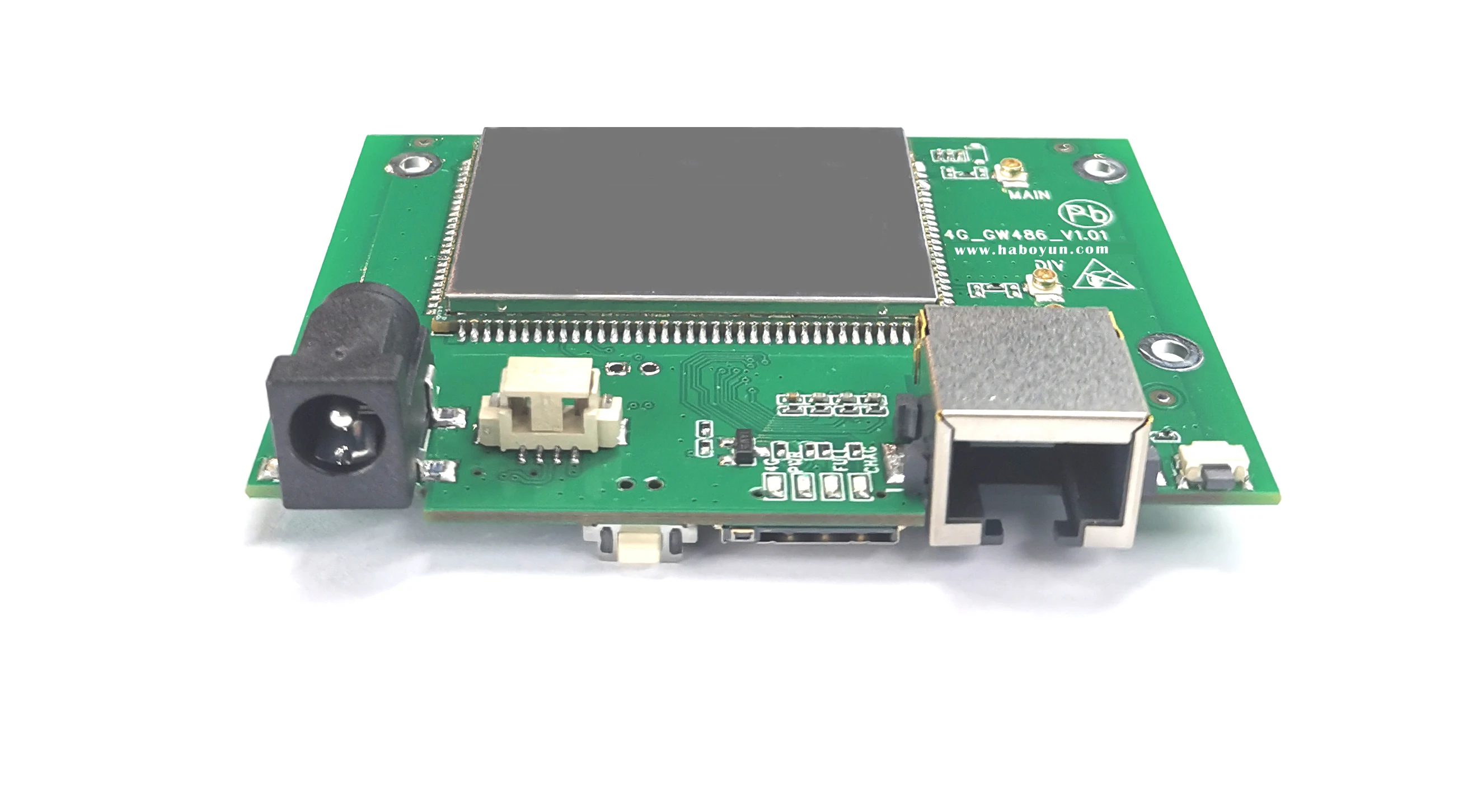

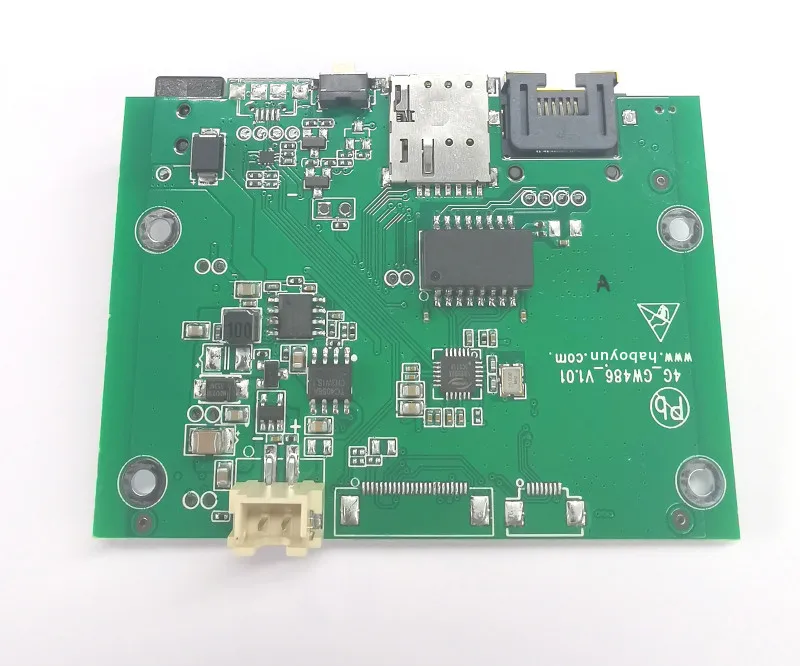

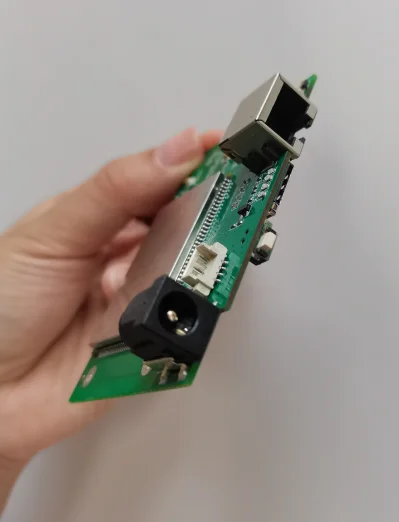

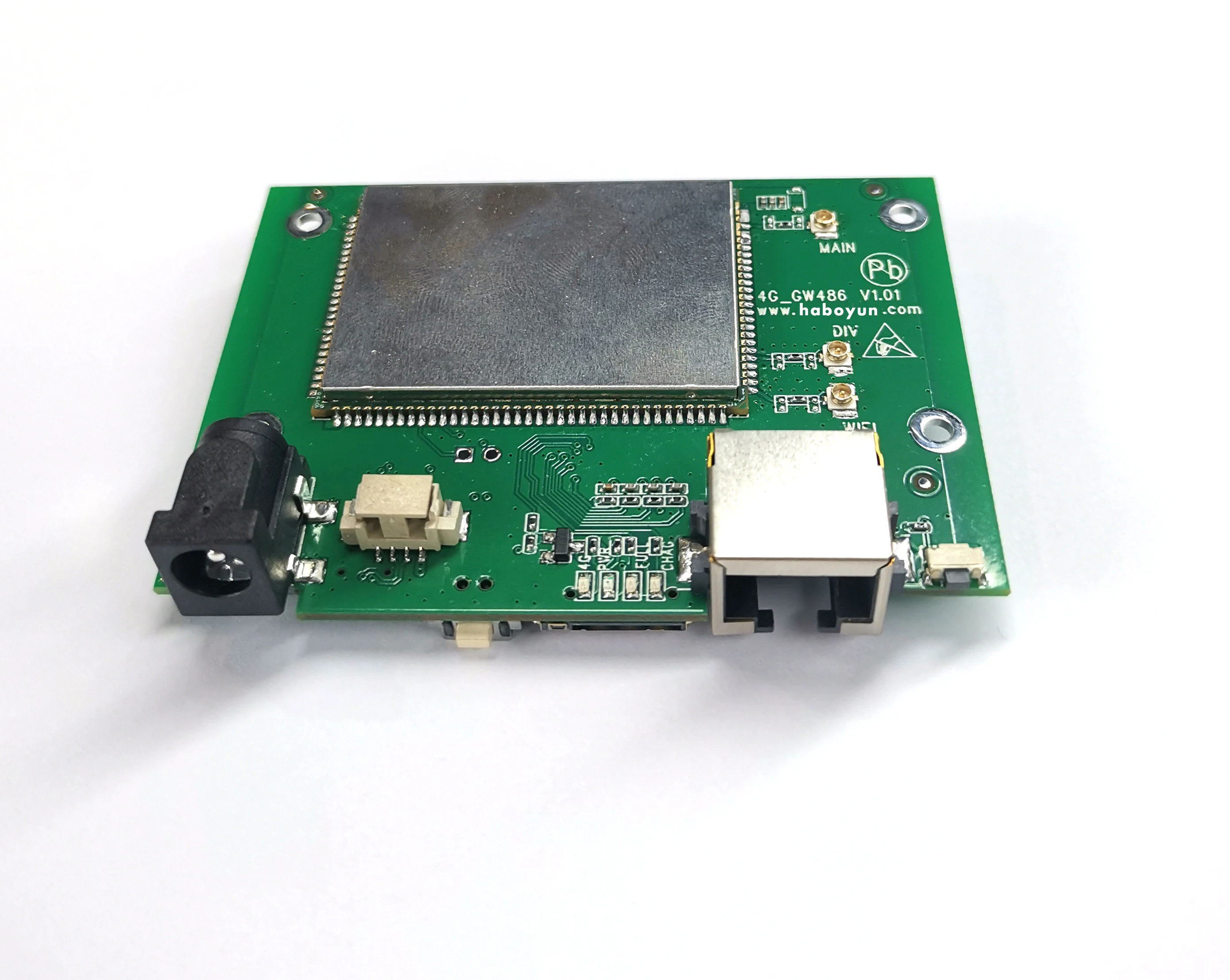

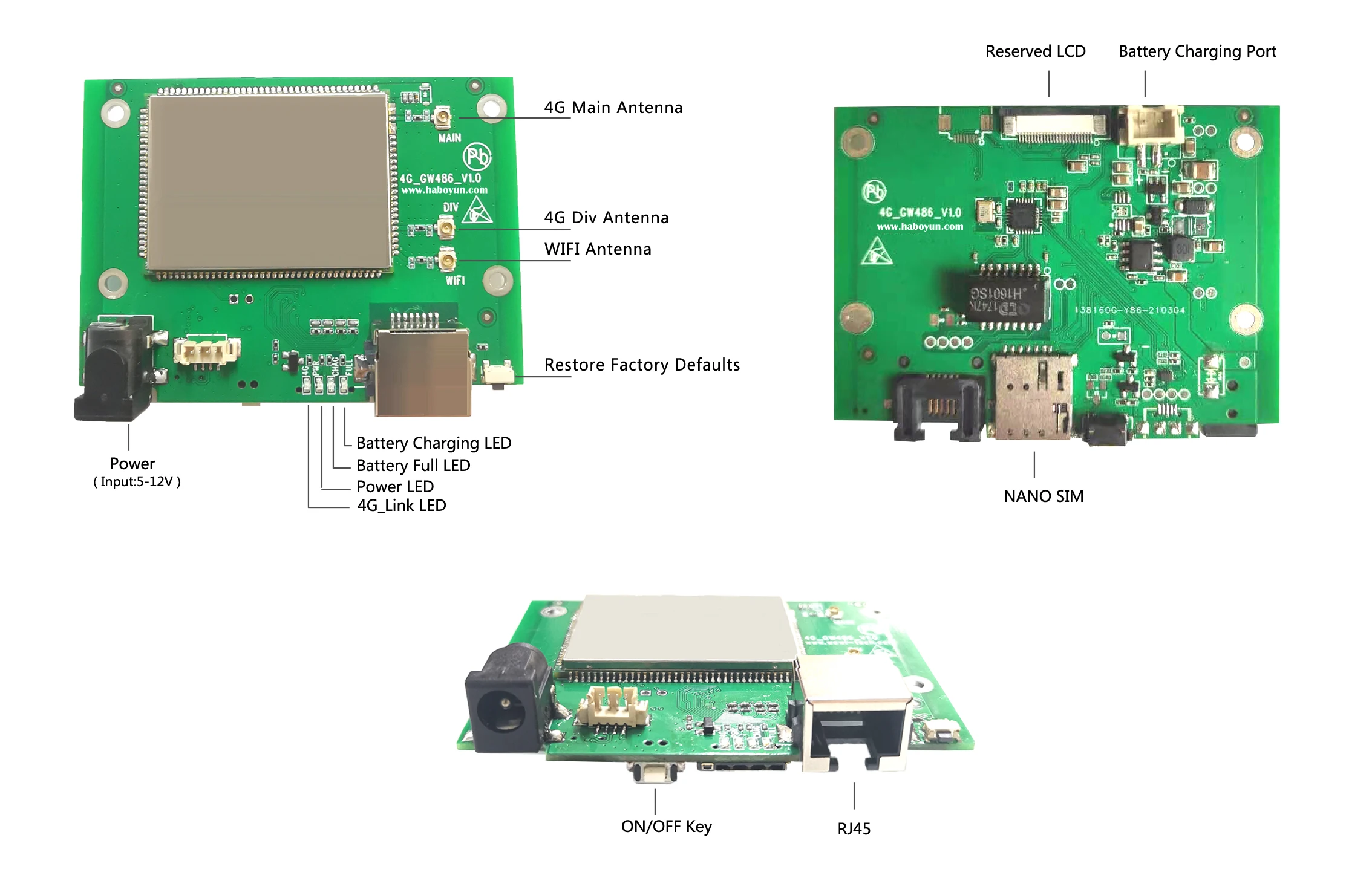

Details Images
