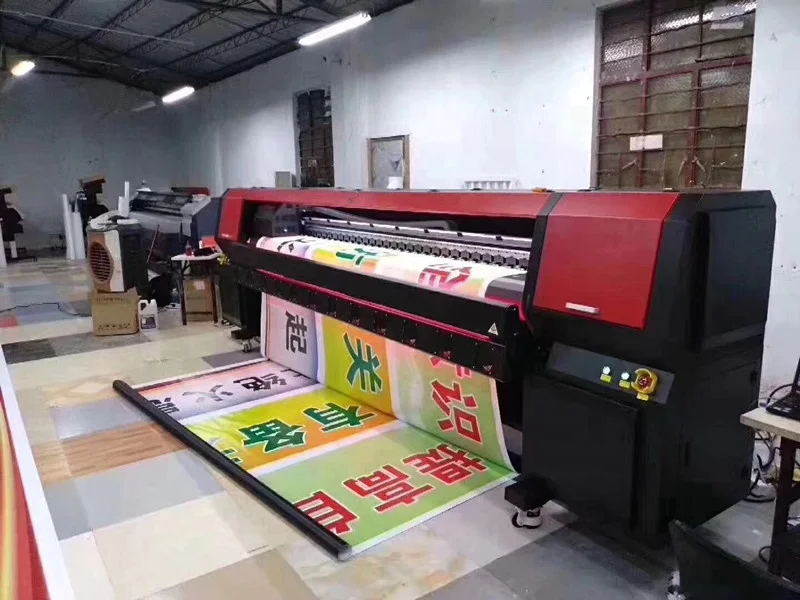

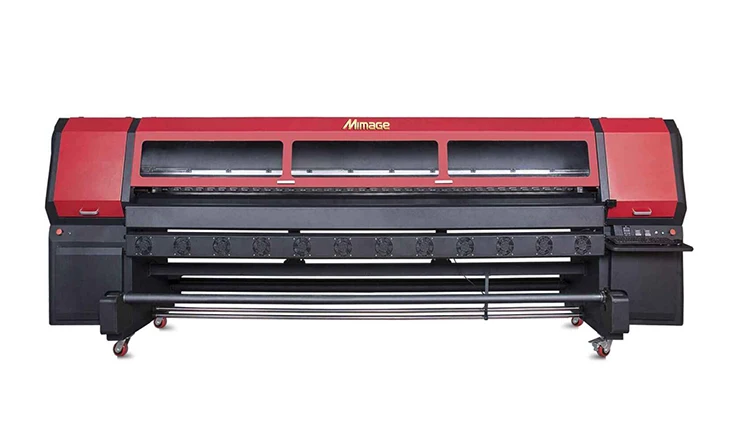

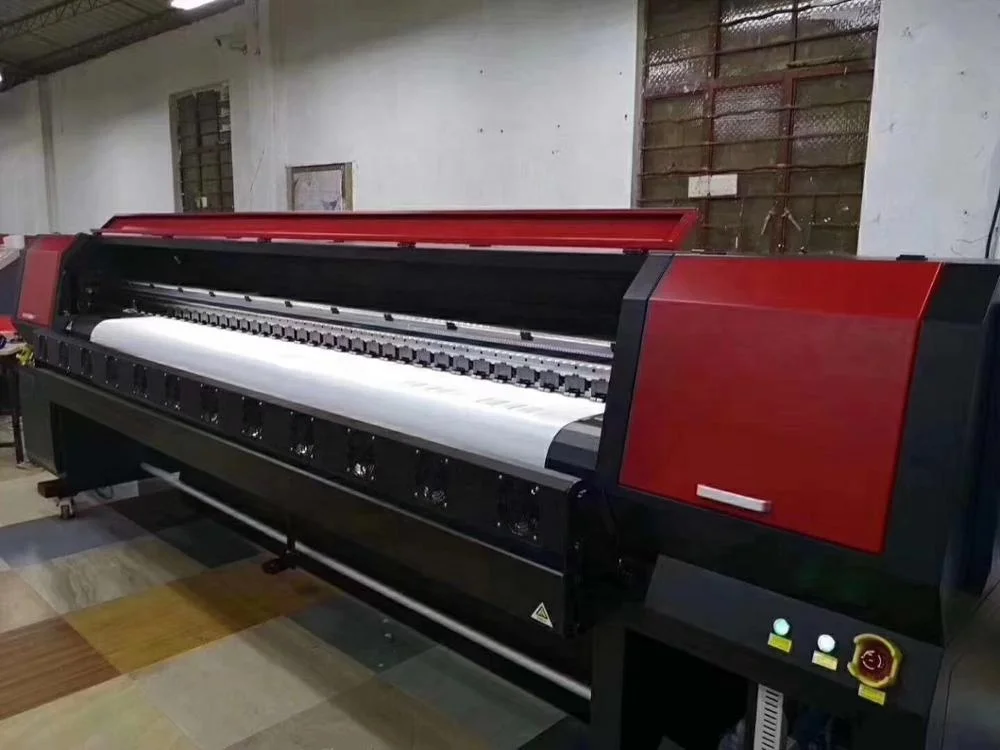

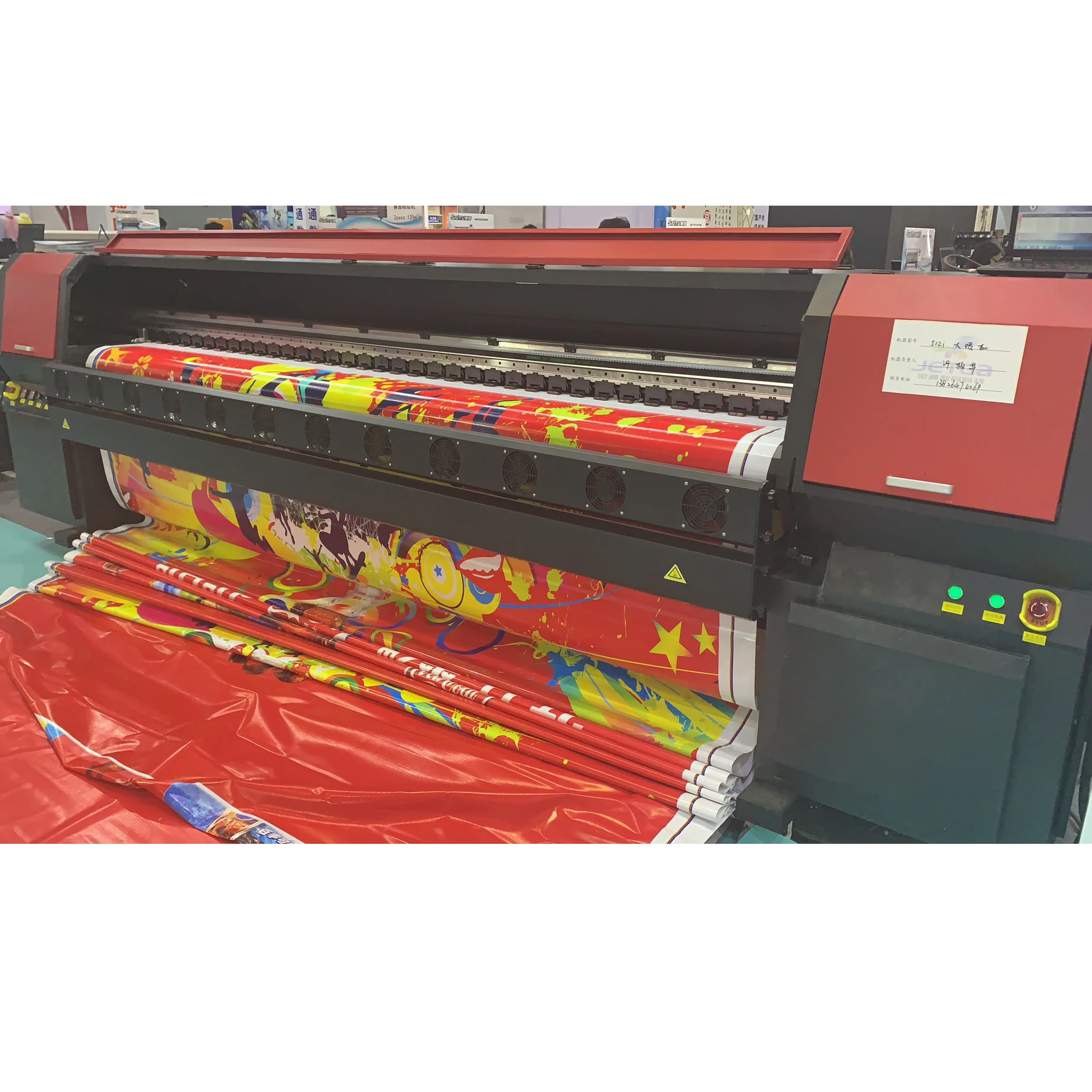

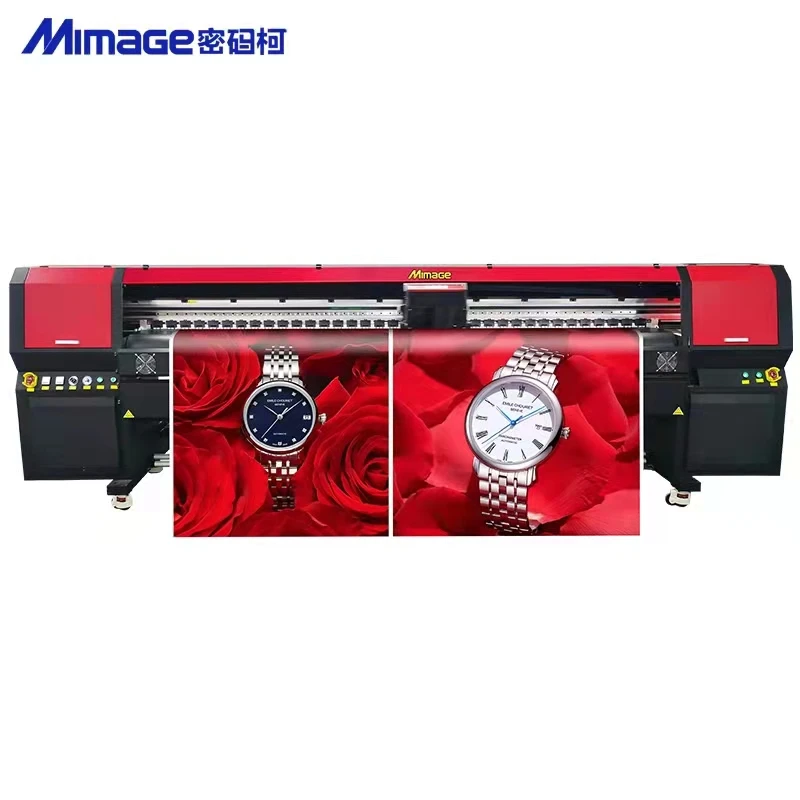

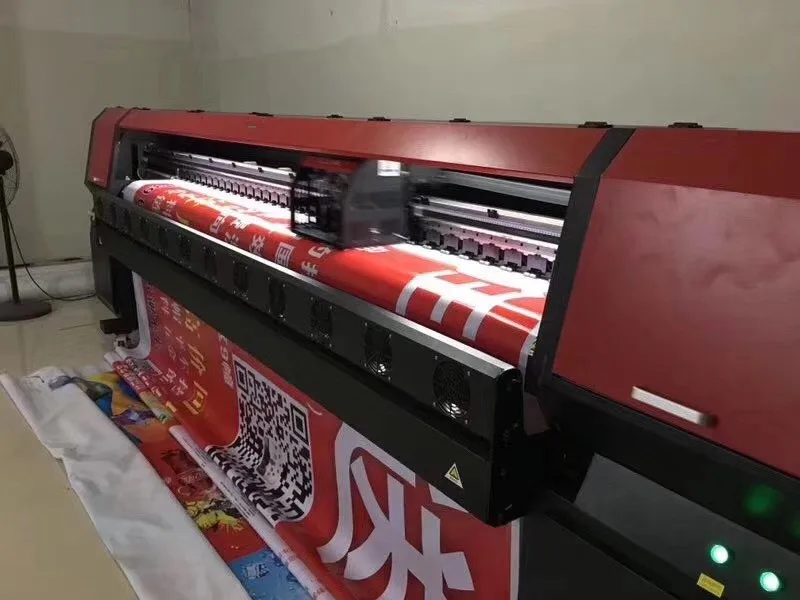

Mimage 3.2m 10ft large format printer fast speed 512i pvc banner tarpaulin printing machine
- Category: >>>
- Supplier: Zhengzhou Hongcai Digital Technology Co. Ltd.
Share on (1600375907200):
Product Overview
Description
Product Description
Industrial 3.2m/10feet Konica 512i 30PL large format flex banner tarpaulin solvent printer
This 3.2m eco sovlent printer can be equipped with 4pcs/8pcs Konica 512i print head. It is the classical print head with high printing quality and resolution. You can be attracted not only for the productivity, but also the brilliant color. Get it to start
your printing business, it will be a good helper of you.
your printing business, it will be a good helper of you.
Specification
Model | M3204（4 heads） | M3208（8 heads） | |||
Printer heads quantity | Konica 512i，highest resolution up to 480dpi 30pl | ||||
Print Width | 3200mm | ||||
Speed and resolution | 480*540 163㎡/h | 480*540 326㎡/h | |||
480*720 120㎡/h | 480*720 240㎡/h | ||||
480*1080 55㎡/h | 480*1080 172㎡/h | ||||
Ink | Ink Type | Solvent ink | |||
Ink tank volume | 5L | ||||
Media | Width | 3300mm | |||
media thickness | 1.8-7mm adjustable | ||||
loading | 225KG | ||||
Media type | Light banner、coated banner、car sticker、self adhesive vinyl ect. | ||||
Precision resolution | Fixed point | ||||
Heating system | Front/Rear heating system | ||||
Media take-up system | non | ||||
Drying system | External fans | ||||
Print interface | Network port | ||||
RIP software | Maintop 5.3 Photoprint、ultraprint | ||||
Power supply | 220V | ||||
Working Environment | Temperature 15-30℃ humidity35%-65% | ||||
Power | 3500W | 5000W | |||
Printer size | 4815*1200*1560mm | 4690*1010*1380mm | |||
Net Weight | 750kg | 980kg | |||
Gross Weight | 830kg | 980kg | |||
Application
Our Service
Warranty Service:
1 Year Warranty for printer; 3 Years Warranty for borads;
(not include print head, cable, damper and cap. as they are consumables.)
1 Year Warranty for printer; 3 Years Warranty for borads;
(not include print head, cable, damper and cap. as they are consumables.)
Online after sales service, professional engineers team for online technical support and solutions
More than 17 years rich printer experience
Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement.
More than 17 years rich printer experience
Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement.

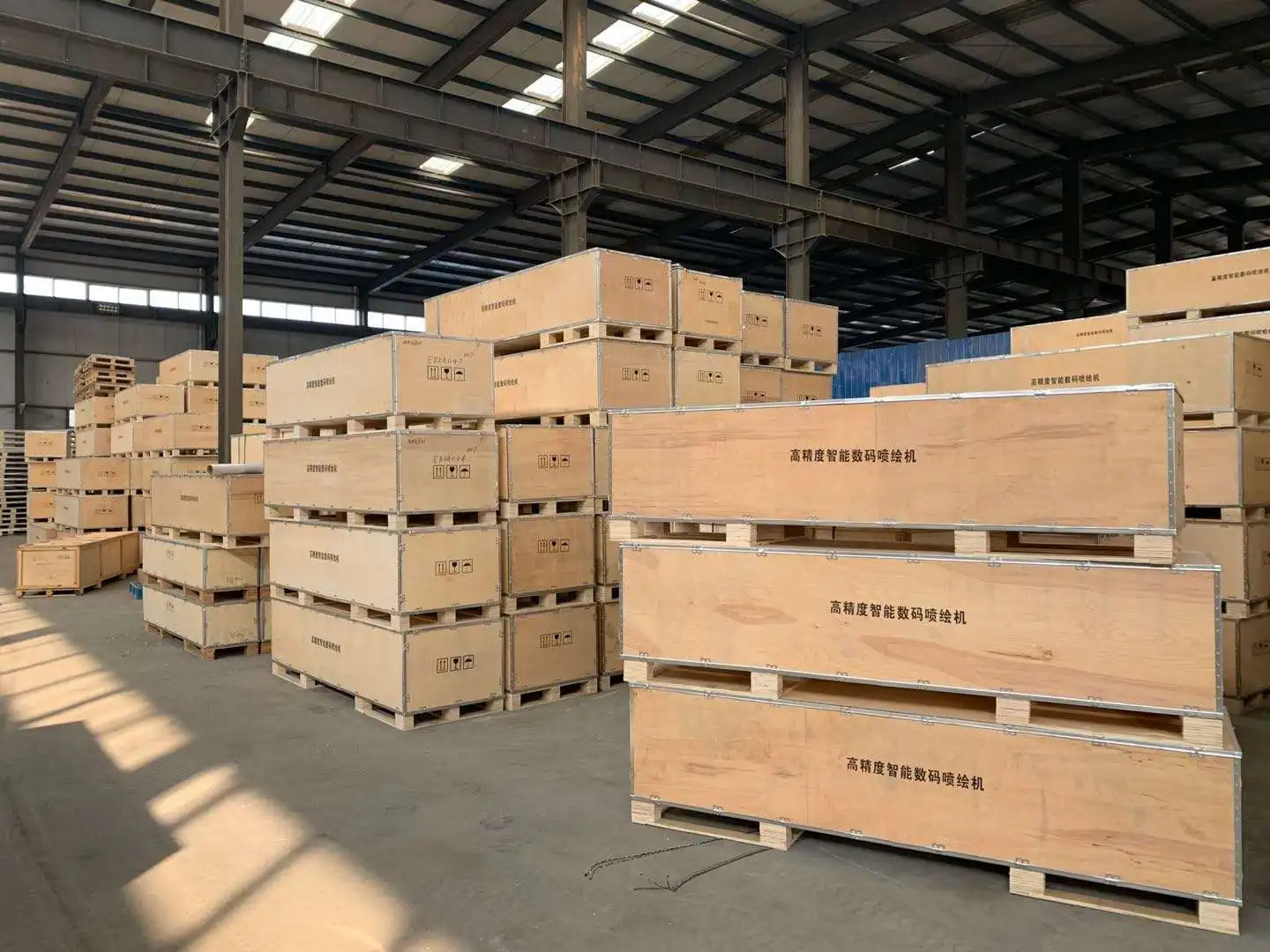

Packing & Delivery
Standard plywood box
Company Profile
Established since 2005, Zhengzhou Hongcai Digital Technology Co., Ltd is a factory with core technology and copyrights on printers. With focusing on independent design, research, manufature and sale systems, Mimage has developed into top ranks of professional supplier for printers&related equipments, consumables and materials. Hongcai brand(Hongyin/Mimage/Spring) digital printers , UV roll to roll printers , UV flatbed printers and other printing products are awarded by Technology Department of Henan Province Government as among China First Class Prodcts for original/creative design, latest technolody and cost effective performances.
With professional research and engineer team, Hongcai mainly focuses on independent printer technology research and applications with latest Micro-electromechanical and Micro electonics explotary research. Hongcai also have special insights and creations on print head drive analysis, printer structure design&test, contorlling systems design and develop.
With a profesional&efficient eilite team, Hongcai Digital Technology Co,. Ltd is devoted to be China leading and world class enterprise.
Join us for profitable long term business!
With professional research and engineer team, Hongcai mainly focuses on independent printer technology research and applications with latest Micro-electromechanical and Micro electonics explotary research. Hongcai also have special insights and creations on print head drive analysis, printer structure design&test, contorlling systems design and develop.
With a profesional&efficient eilite team, Hongcai Digital Technology Co,. Ltd is devoted to be China leading and world class enterprise.
Join us for profitable long term business!
