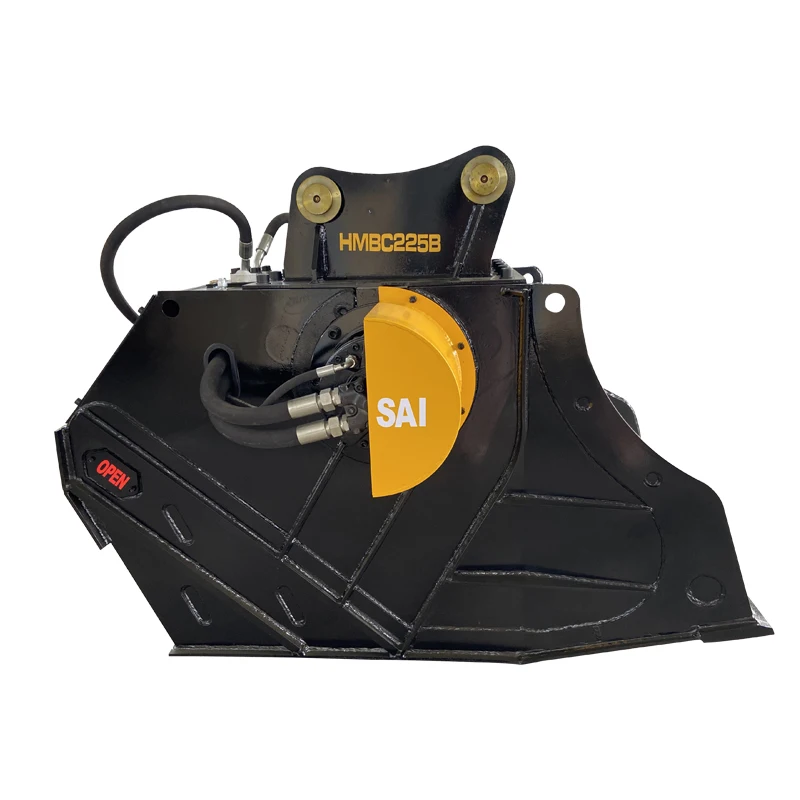

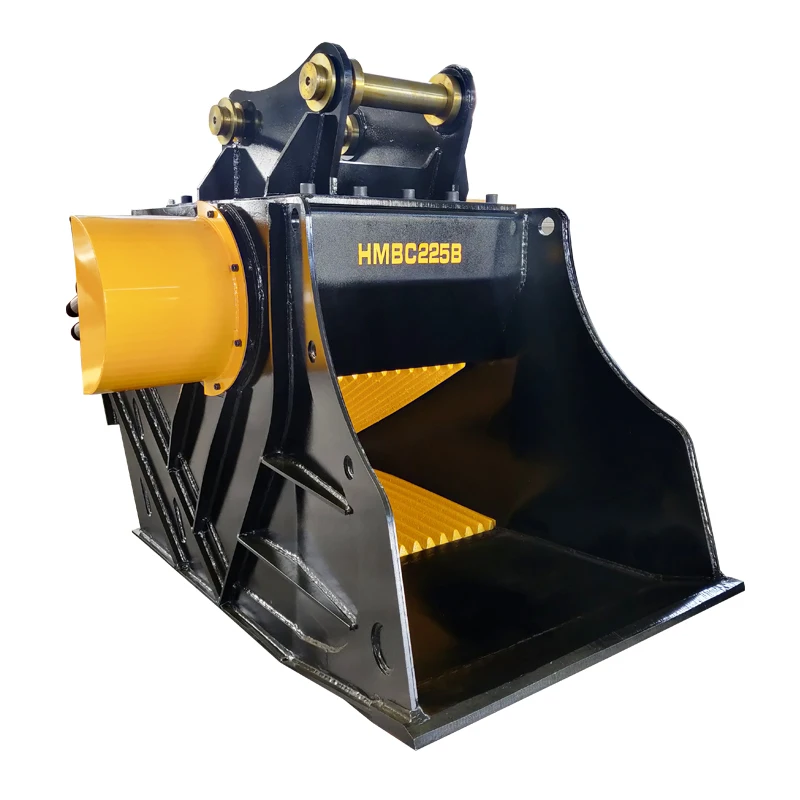

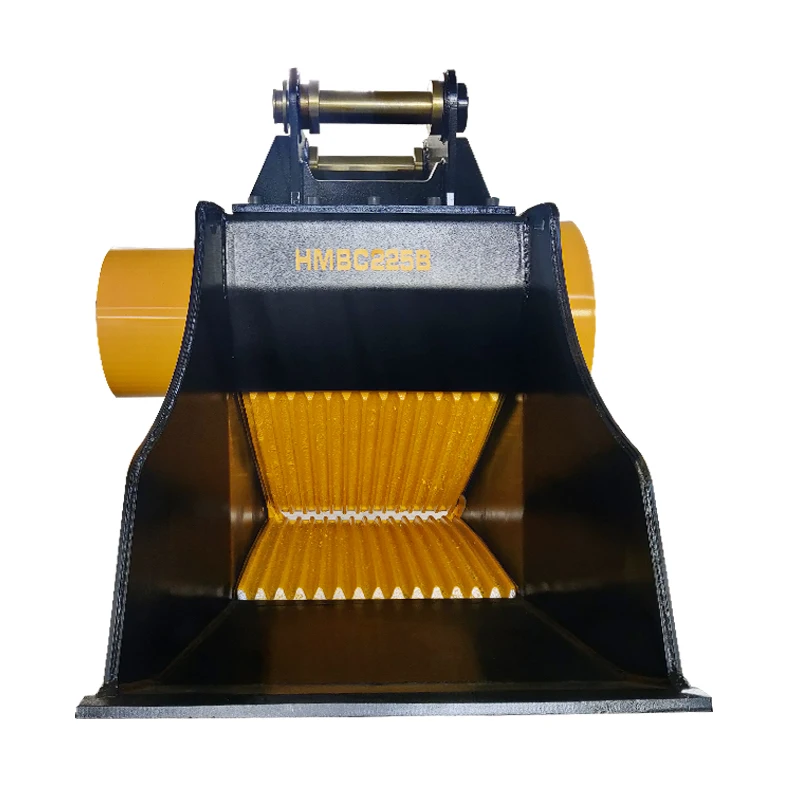

HOMIE 20 tons jaw crusher bucket with SAI motor
HOMIE 20 tons jaw crusher bucket with SAI motor
HOMIE 20 tons jaw crusher bucket with SAI motor
HOMIE 20 tons jaw crusher bucket with SAI motor
HOMIE 20 tons jaw crusher bucket with SAI motor
HOMIE 20 tons jaw crusher bucket with SAI motor
HOMIE 20 tons jaw crusher bucket with SAI motor

HOMIE 20 tons jaw crusher bucket with SAI motor

Share on (1600375920738):


Price:

Quantity:


Product Overview

Description



Heavy Duty Construction Machine Attachment 20T Excavator Crusher Bucket


Product Description


A bucket crusher or crusher bucket is a type of jaw crusher. It's an attached tool for excavators for built-in crushing construction waste and demolition materials. It has the design of a shovel, which is open at the rear for releasing the shredded material. Compared to normal jaw crushers, the jaw crusher bucket has a lower production, but can be transported more easily and only needs an excavator to operate.




Specification


Catagory
Unit
HM06
HM08
HM10
Suitable Excavator
Ton
13-18
19-25
26-35
Feed Hole
mm
600*500
740*500
900*500
Weight
Kg
2050
2800
3300
Load Volume
m³
0.58
0.7
0.85
Work Pressure
Bar
200
200
200
Oil Flow
L/Min
130
160
180
Discharge Hole
mm
15-120
15-120
15-120

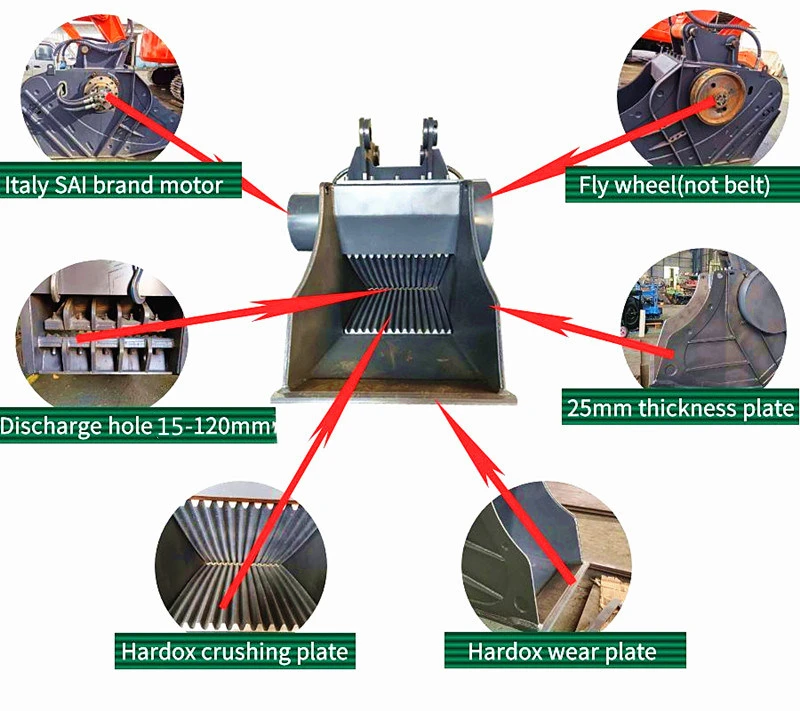

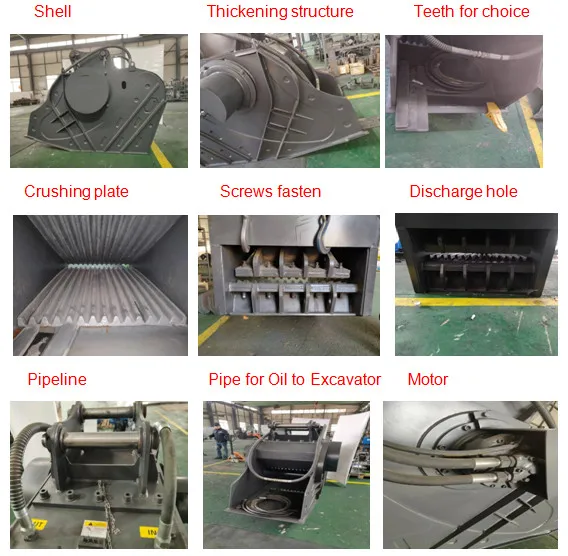

Features


1. Shell- made of 90% NM material
2. Crushing plate- HARDOX Wear Plate, can crush hard material

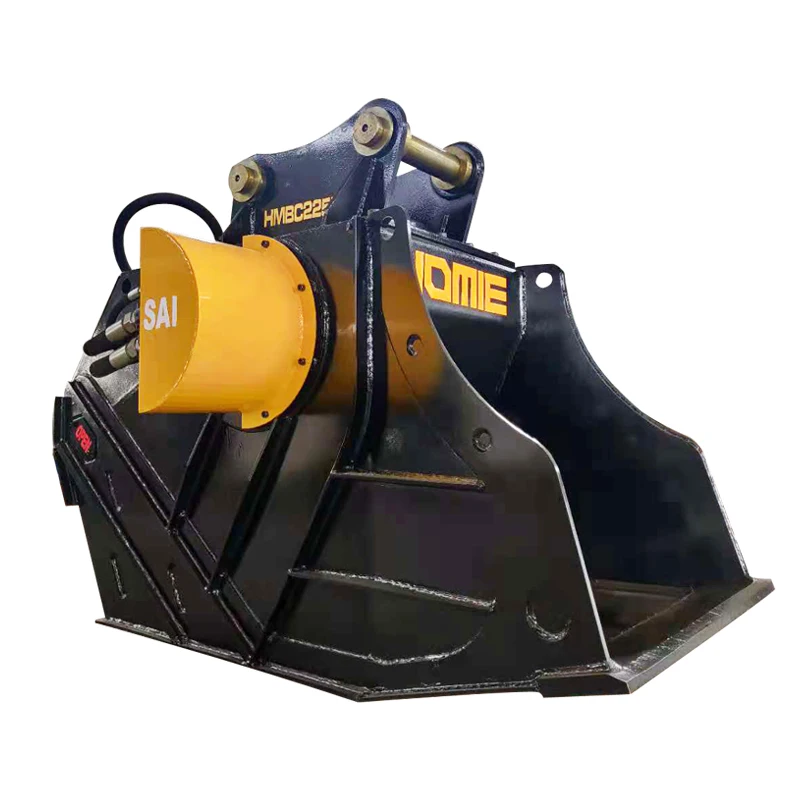

3. Italy original brand SAI motor, stable performance
4. Built in fly wheel replace belt, no maintenance cost
5. Discharge hole adjustable from 15mm-120mm .
6.Internal thickening structure more strong
7.Easily changeable crushing plate- screws fastened






Application:

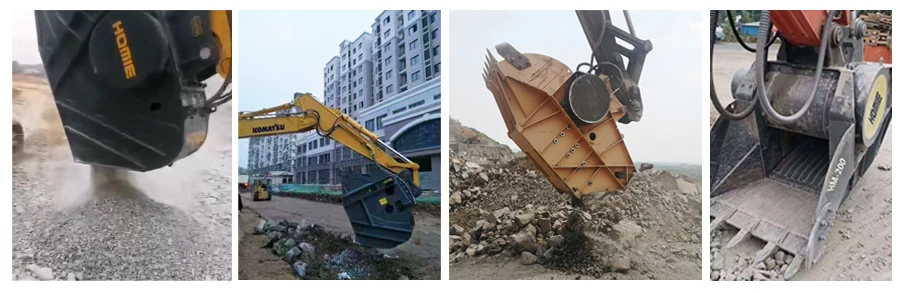

Bucket crushers are primarily employed in mining and demolition for the breaking-down of crude minerals, concrete and masonry.




Working Principle:
Its way of working consists on a bucket with two crushing jaws inside, one of them is fixed and the other one is driven by motor directly and moves back and forth relative to it, has a unique, aggressive figure-eight crushing motion that produces high quality cubical product, enabling the aggregate to be reused on site.


Packing & Delivery




Plastic cloth, Tensile membranes, Packing tape, Steel Belt and Wooden box contribute a wonderful packing procedure. With Plastic and tensile membranes, can prevent products rusting when sailing on the sea for long time. Packing tape , steel belt and outside wooden box can protect product free from collision.
We can also packed as customer's requirement.


More Products


HOMIE develop and produce different types of excavator attachments, provide one-stop purchasing service. Our main products are different types of grapple, quick coupler, hydraulic plate compactor, rotary screening bucket, crusher bucket, heavy duty shear, demolition shear, hydraulic pulverizer, orange peel grapple, car dismantling shear, sleeper changer...








Company Profile


Yantai Hemei Hydraulic Machinery Equipment Co., Ltd is one of leading manufacturers for excavator attachments in China. All products’ quality are strictly under control from processing to delivery. By continuous innovation and improvement, the company has got ISO 9001, CE certifications and technical patents successively. Our products have been sold to widely domestic and oversea customers and long term partnerships have been developed.




Certification:




Exhibition:




Our Service:


1, As one of the leading excavator attachments manufacturers in China, we have professional R&D team to design for customers and skilled workers to produce.
2, Strict quality control system, ISO9001:2015 and CE certificate.
3, 12 months warranty.
4, The OEM/ODM and customization service is available.
5, On time delivery.
