2018 PP PE plastic recycle machine
US $20000-$40000
Greenlandplast очищенный полиэтиленовый пленочный скрап гранулятор пленка пластиковый рециркуляционный гранулятор
- Category: Rubber Recycling Machinery >>>
- Supplier: Zhangjiagang,Greenlandplast,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

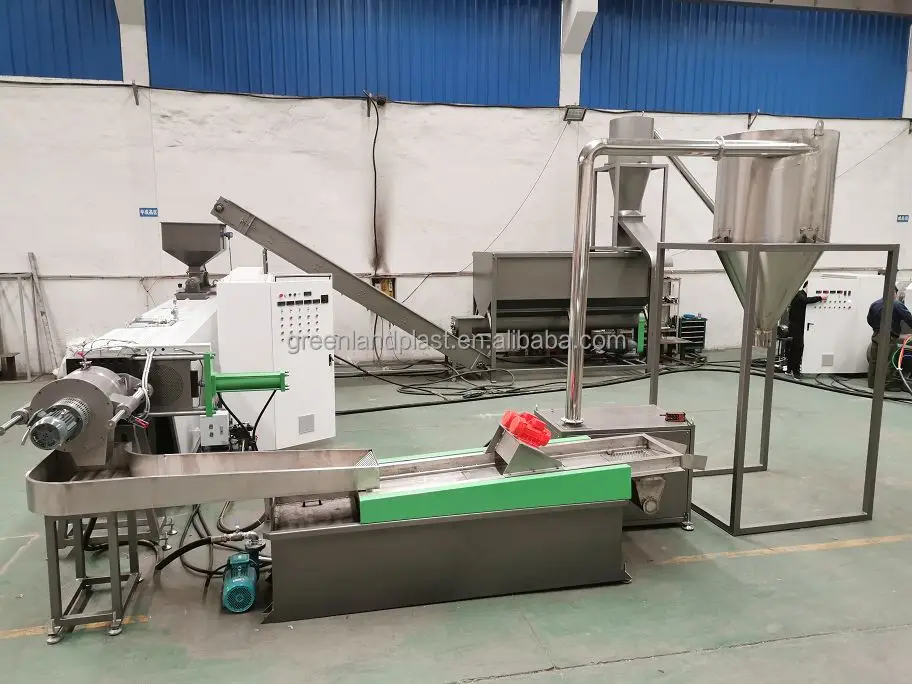

Greenlandplast Cleaned PE Film Scrap Granulator Film Plastic Recycling Granulator
The GLAP series Cleaned PE Film Scrap Granulator Film Plastic Recycling Granulator combines function of crushing,compacting,and pelletizing to one-stop ,applied in the plastics recycling and pelletizing process. GLAP pelletizing system is a reliable and efficiency solution of plastics films, raffia, filaments, bags, woven bags and foaming materials recycling and pelletizing.
Final product pellets/ granules produced by this machine, can directly be used in the production line for film blowing, pipe extrusion and plastics injection, etc
Final product pellets/ granules produced by this machine, can directly be used in the production line for film blowing, pipe extrusion and plastics injection, etc
PRODUCT SPECIFICATIONS
Model | Scew diameter(mm) | L/D | Capacity |
GLA-85 | 85 | 33 | 100-200kgh |
GLA-100 | 100 | 33 | 200-350kgh |
GLA-130 | 130 | 33 | 400-600kgh |
GLA-160 | 160 | 33 | 600-800kgh |
GLA-180 | 180 | 33 | 700-1000kgh |
GLA-200 | 200 | 33 | 800-1200kgh |
PRODUCT CONFIGURATION
Belt conveyor
plastic material be conveyed into the compactor chamber by belt conveyor,as to rolls films ,we may add roller hauling off system.
Feeding speed are frequency controlling,speed is automatic adjusting based on how full compactor chamber is!
Metal detector
Metal detector can be combined with belt conveyor
Agglomerator/Compactor
The rotatory blades of compactor crush incoming into scraps,at the same time ,frictional heating which caused by high speed rotation will heat and let scraps shrinking ,
the material and directs it into extruder screw barrel by rotation blades' centrifugal force .Compactor incorporates automatic water cooling and water spray technology,to cool down when it's overheated
Agglomerator/Compactor
The rotatory blades of compactor crush incoming into scraps,at the same time ,frictional heating which caused by high speed rotation will heat and let scraps shrinking ,the material and directs it into extruder screw barrel by rotation blades' centrifugal force .Compactor incorporates automatic water cooling and water spray technology,to cool down when it's overheated
Extruder system
38CrMoAl screw&barrel nitrogen treatment,the surface of the screw is sprayed with alloy wear layer,
Extruder system
double vacuum exhaust,more effectively remove moisture from the material to ensure pellets quality
Water ring cutting system
Water-ring die-head cutting type, cutting speed frequency controlling ,SKD material blade,pellets size uniform and beautiful
Water ring cutting system
stainless steel water tank
Vibrator dewatering system
Vibration dewatering method, saving power consumption and low noise，high performance of pellets dewatering drying !
Vibrator dewatering system
Vibration dewatering method, saving power consumption and low noise，high performance of pellets dewatering drying !
Product packaging
SIMILAR PRODUCTS
Why Choose Us
Technical innovation ,Quality first
Greenlandplast Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
Offer different customers customized solutions of plastic recycling
Greenlandplast Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
One-stop turnkey project concept
Since the customer consider setting up recycling project, we will design the most suitable production line process and installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project. With complete pre-sale and after-sales service
Installation ,training & Good after-sales service
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
