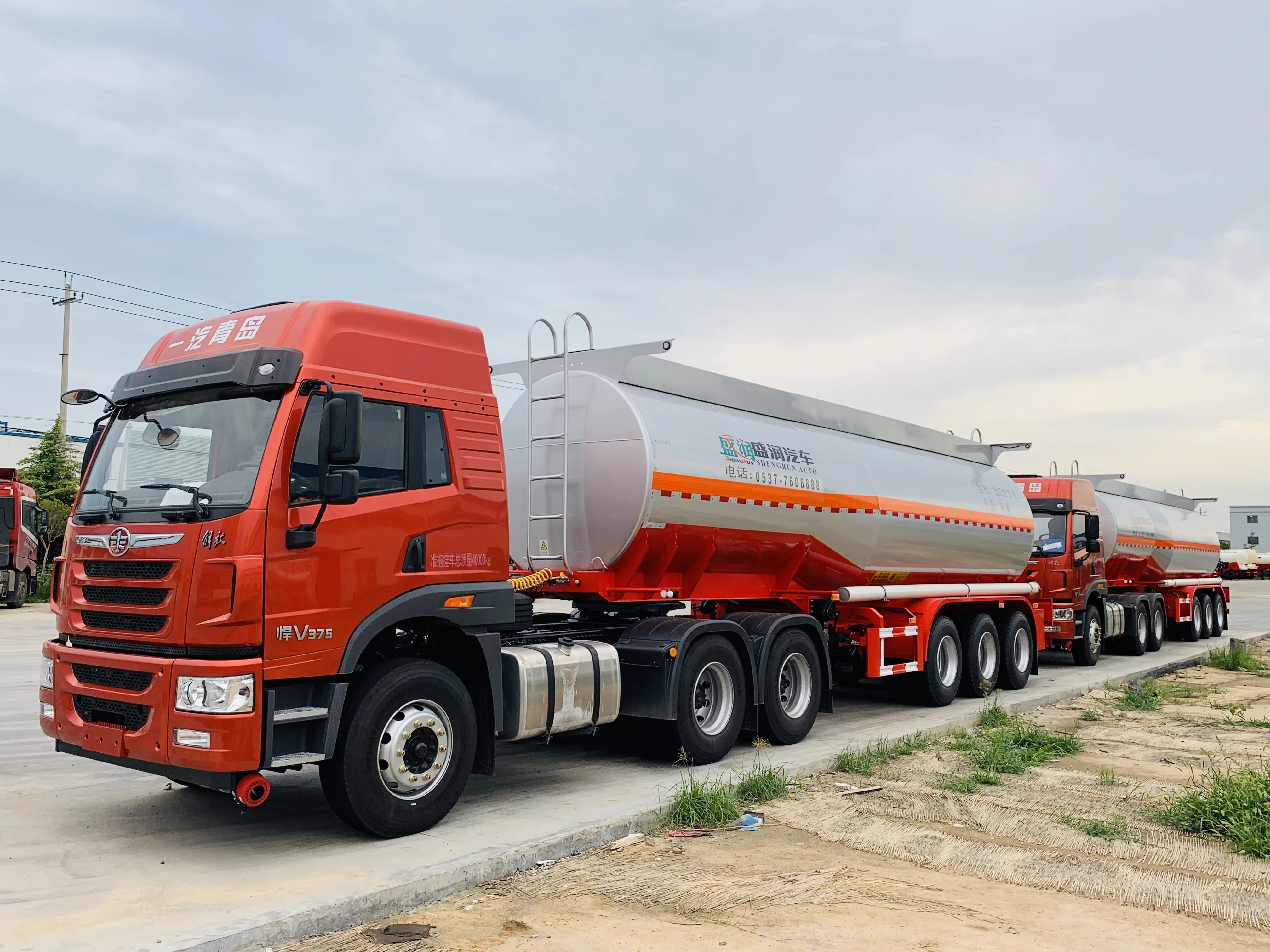

4 Axles 5 Compartment High Capacity oil tanker Fuel Tanks trailer

Tanker Semi Trailer, large volume range, filling up from the top and bottom, filling up from the top and bottom, appropriate to the LGBF tank code and hierarchy, can carry up to single or seven divisions of the ADR Class-3 hazardous substances, the unique body structure, its “Special Cut “makes it unique and being produced by the point of least combination (T) consisting of seamless whole plates in the main body structure and with the longest welding seam technique, challenges both roads and years with its technology.

6. Tank Body: Gooseneck cross section design conforms to EN 13094 standard. Dished heads at the front and rear, in accordance with EN 13094 design standard internal baffles fit the selected number of compartments. ISO 3834 Welded manufacturing quality qualification approved. Unique body structure in the tanker manufacturing sector with a smooth surface, with a minimum number of (T) joints, produced by the longest welding seam technology in the gooseneck body structure, seamless, integral plates and their welded joints Using seamless high-performance robotic welding technology, welding faults on the body due to tension and human factors are minimized and secured against impact Tanks and connections are tested with the method of analysis of the end elements under maximum allowable load to increase the strength of the body and re duce the tension effect at the frame junctions. The robotic welding technology is applied to the OMEGA monoblock connection saddles.The slope in the chassis design allows complete discharge of each compartment of the tank, with no liquid remaining. Air gap safety against expansion and overflow conforms to EN 15120 standard.

7. Loading/Discharge Line Loading Line Depending on the driving direction, it is filled through the right-handed couplings from the bottom or the filler opening on the manhole covers from the top. Discharge Line Meets EN 13094, on the right side according to the driving direction, gravity discharge through the discharge piping line extending from the bottom valves up to the couplings, at such a slope in order not to remain any liquid in the line after discharge. ISO 3834 Welded production quality qualification approved discharge pipes welded to the patent padded.

8. Paint at least 2 coats of epoxy primer.  "OVEN-DRYING" application on topcoat with 2 coats of acrylic paint. Improved technical equipment ensures homogeneous distribution on each side of the body and surface gloss of varnish paint gloss.
