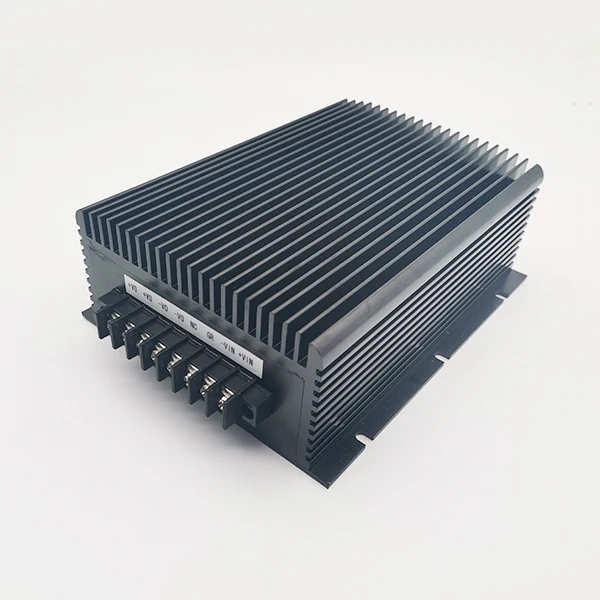

High quality 24v 8a switching power supply
- Category: >>>
- Supplier: Nanjing Pengtu Power Supply Co. Ltd.
Share on (1600376540441):
Product Overview
Description

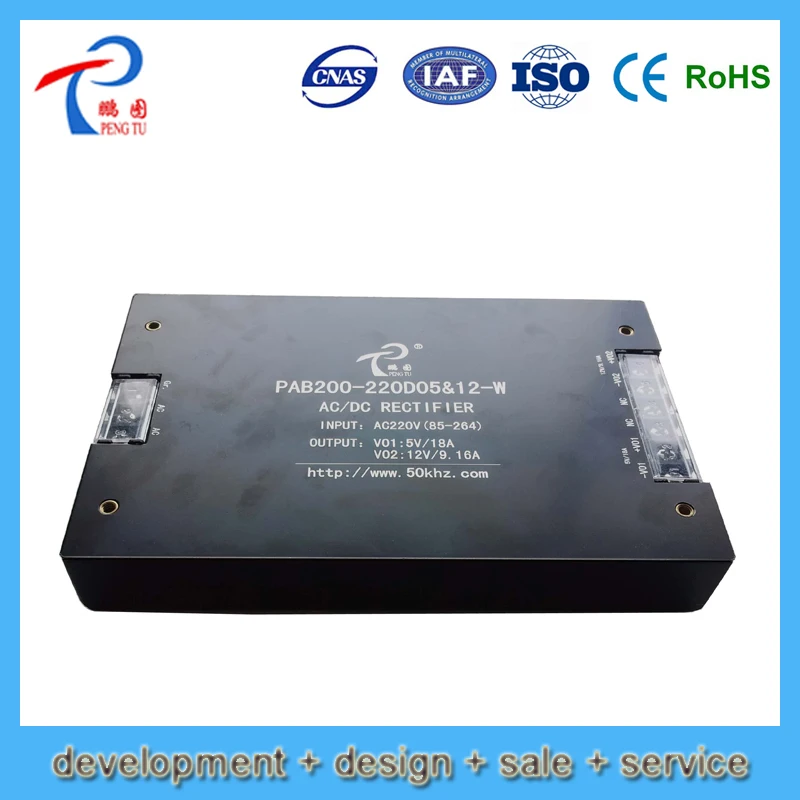

PAB-W series 24v 8a switching power supply
Product Description
Features
l Wide input voltage
l Broadband noise filter of input
l Surge suppress circuit of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Terminal connection method
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………100 ~ 240 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±1%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 5-60A
l Output voltage …………………………… 5-110VDC
l Power …………………………………… 200-300W
General Characteristic
l Switching frequency …………………… 160-200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>1500 VAC/Min (Leakage current<5mA)
Input-case: >1500 VAC /Min (Leakage current<5mA)
Output-case: >500 VDC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃; Military I: -40-+85℃; Military II: -55-+85℃
Storage temperature ……………….. Industry: -45~ +105℃; Military: -55-+105℃

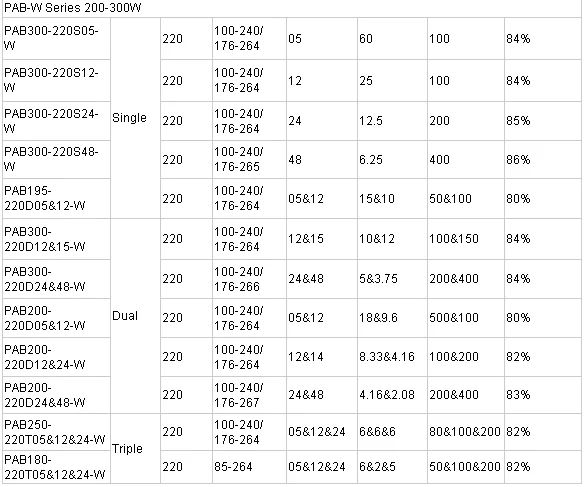

Models
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Remark: Custom-made specifications are acceptable.

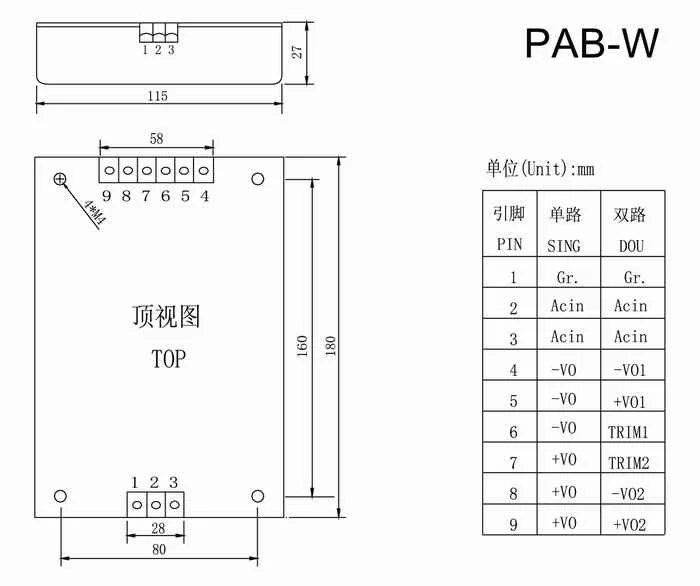

Mechanical drawing and pin definition
Packaging & Shipping
Company Information
Our Services
24v 8a switching power supply
Shipping:
We Ship to Worldwide, except APO/FPO.
Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
Delivery time depends on destination and other factors, it may takes up to 20 business days
Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Warranty and Guarantee:
24 months Warranty. Buy with confidence!
Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid.
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
