Various Leaf Spring for trucks and trailers

Product Overview

Description



Cedars Leaf Spring Product Description

Material	60Si2Mn; 55CrMn(SUP9); 50CrV; 51CrV4.
MOQ	50 Pieces/Sets
Application	Trucks, trailers, agriculture vehicles, and light or heavy-duty vehicles etc.
Delivery	20-45 working days
Certificate	ISO 9001 & ISO/TS 16949
Customerized Service	Logo/Labal/Packing and customerized according to drawings.



Why Choose Cedars?

1. Strictly Quality Control

    Material analysis and inspection;

    Manufacture process strictly complied with ISO/TS 16949;

    Metallographic test and hardness test during production;

    100% finished product test.



2. Reliable Product

    60+ sizes of material to provide one-stop purchasing service

    Low MOQ, short delivery time

    Customerized according to drawings



3. Experienced & Professional Team

    Do business with integrity.

    The factory has been manufactureing from 1993;

    14 years export experience;

     24 hours reply





How to Get a Leaf Spring Quotation?



1. OE part number, application vehicle model, quantity;

2. Drawings.

** If you can send us more information about your company such as company name, main business and product, size, website etc., so that we can provide better service for you.

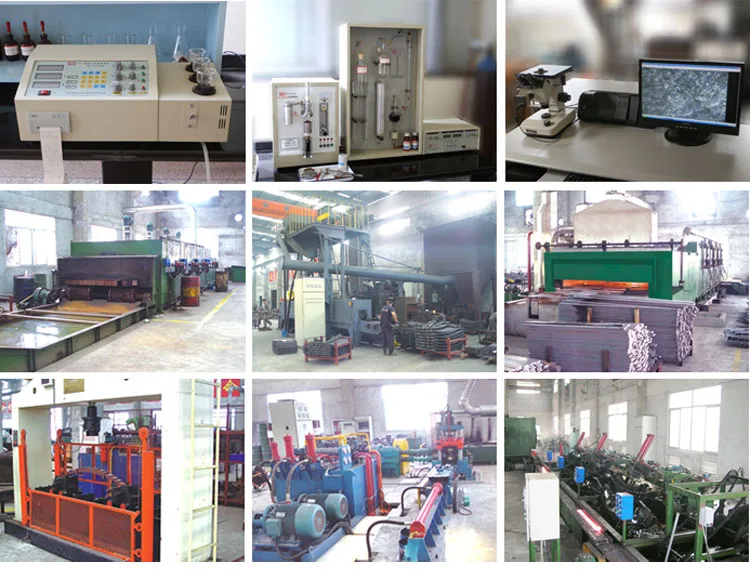

Equipments & Production

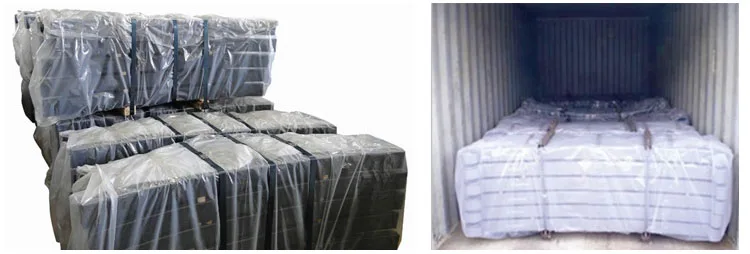

Packing

Steel pallet wrapp-ed with plastic

Loading



Leaf Spring Regular Items Catalog



This is a part of our catalog, you can contact us for the complete leaf sprinf catalog. We can also provide customerized service according to drawings.



Item No.	Description	Material	Size (mm)	Weight (kg)
1	32T/BPW  (880-534-00)	SUP9/55CrMnA	14*120; 20*120; 18*120.	395.15
2	1479518	SUP9/55CrMnA	28*90	110.02
3	24T	SUP9/55CrMnA	14*90/ 18*90/ 16*90	271.02
4	ATF-ASSY	60Si2Mn/SUP9	18*70/ 9*70	37.8
5	TRAILER-REAR	60Si2Mn/SUP9	12*100	93.43
6	GERMANY MODEL	60Si2Mn/SUP9	12*100	94.75
7	R-02-GMP-KZ	60Si2Mn/SUP9	10*75	84.14
8	TRAILER/PARABOLIC	60Si2Mn/SUP9	20*76	27.5
9	EQ1061-FRONT ASSY (BERLIN STYLE EYE)	60Si2Mn	11*75	44.75
10	515-460-00	SUP9	22*100	225.84
11	312-740-10	60Si2Mn/SUP9	14*90	9.79
12	FV413-REAR ASSY	60Si2Mn	20*90	159.62
13		60Si2Mn	12*100	84.17
14	54010-02Z61F	60Si2Mn/SUP9	22*90	67.61
15	ELSH-17	SUP9/60Si2Mn	9*90/12*90/ 14*90/24*90	79.27
16	RH-REAR ASSY	60Si2Mn	9*70	25.25
17	JP40A-REAR ASSY (FOR TRAILER)	60Si2Mn	16*90	63.83
18	REAR ASSY FOR BEIFANG BENCHI	SUP9	20*100	25.91
19	JT5-98412	SUP9	20*76	48.91
20	48210-35670 R	60Si2Mn	6*60/7*60/ 10*60	23.54
21	NJ131-HELPER ASSY	60Si2Mn	12*70	27.22
22	ASSY FOR BENZ 313-370-00	SUP9/55CrMnA	20*100	205.21
23	304-270-00	SUP9/55CrMnA/60Si2Mn	14*100	271.05
24	WD14/WD18	WD14: 55CrMnA WD18: 50CrVA	WD14: 20*90 WD18: 25*100	WD14: 25.72 WD18: 24.22
25	WD16/WD17	50CrVA	WD16: 22*100 WD17: 22*100	WD16: 23.07 WD17: 23.95
26	1491 FRONT ASSY FOR  STYER	60Si2Mn	14*90	119.13
27	ASSY FOR VOLVO (PARABOLIC)	SUP9	26*90	162.55
28	ASSY FOR DAEWOO (PARABOLIC)	SUP9	20*100	161.53
29	PARABOLIC ASSY	60Si2Mn	14*100/ 15*100	107
30	SEMI TRAILER ASSYFOR YORK	60Si2Mn	15*75	81.25



Company

Registered in 2007, Cedars is committed to providing tensioners & idlers with OE-matching quality, focusing on Japanese vehicles. Cedars acquired SGS ISO 9001:2008 certificate in 2013 and upgraded to ISO 9001:2015 in May 2016.



Reliable Team 1. 45 Hours/year constant training; 2. 16 years average work experience; 3. Licensed Windows & Office; 4. Employees taking an oath to comply with "Code of Conduct" 5. Keeping our words with all partners.

Reliable Service 1. Customerized service 2. 5 working days to settle claim; 3. 0.1% FOB value per day for the delay;
