Widely used container truck loading unloading telescopic belt conveyor for sale
- Category: Conveyors >>>
- Supplier: Shenzhen,Weipai,Tengda,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Brand | wei pai teng da |
Certification | ISO9001：2008 |
After-sale service | 1 Year Video technical support, No overseas service provided |
Product model | WP-SS-3-6/8 and Accept customization |
Fixed end length | 6000mm |
Expansion length | 8000mm |
Total length | 14000mm |
The belt material | PVK |
Motor Brand | SEW |
Power of 3 section | 2.2KW/0.75KW |
Power of 4 section | 3.0KW/0.75KW |
Belt interface mode | hot melt connection/steel buckle connection (default) |
Belt width | 800MM |
Carrying capacity | 60Kg/m2 dynamic load; 100Kg/m2 static load |
Transfer speed | 25-45 m/min，frequency conversion adjustment. |
Telescopic speed | 5-10m/min; frequency conversion adjustment. |
Stand-alone equipment noise | 70dB (A), measured at a distance of 1500 from the equipment |
Button settings on the front of the machine head | Forward and reverse, start-stop, and emergency stop buttons are set at the front end, and switches are required on both sides. |
Illumination | 2 LED lights on the front |
Route method: | adopt plastic drag chain. |
Startup warning | set the buzzer, if there is a foreign object, the buzzer will sound an alarm |
Buttons | All buttons adopt 24V low voltage control |
Part replacement convenience | all key parts should be quickly disassembled and replaced |
Maintenance window | need to set up maintenance holes for key parts, such as the telescopic chain adjustment window, the motor and chain maintenance window, and the belt tension adjustment window |
Size | Accept customization |
The telescopic belt conveyor is added to the common belt conveyor, which makes the belt conveyor freely retractable in the length direction. Users can adjust the button according to their own requirements to control the length of the conveyor at any time. In the model with automatic lifting device, the user can also control the height of the telescopic belt conveyor end at any time. Telescopic belt conveyor is mainly used in vehicle loading and unloading and material transmission system with telescopic requirements. It shortens the distance of manual transportation of materials, shortens the loading and unloading time, reduces the labor intensity, reduces the damage of goods,reduces the loading and unloading cost, and improves the work efficiency. the telescopic belt conveyor can be operated in two directions to transport materials. the telescopic belt conveyor can be used with other conveying equipment and material sorting system to realize the automatic production of materials in and out of storage or vehicle loading and unloading, especially in tobacco industry.
Product model
WP-SS Series | Measurement unit：MM | |||||
Specification/Model | Number of sections | Fixed length-A | Extension length-B | Total length-C | Bandwidth-W | Height-H |
WP-SS-2-6/4 | 2 | 6000 | 4000 | 10000 | 600/800 | 800 |
WP-SS-3-5/7 | 3 | 5000 | 7000 | 12000 | 600/800 | 800 |
WP-SS-3-6/8 | 3 | 6000 | 8000 | 14000 | 600/800 | 800 |
WP-SS-3-7/9 | 3 | 7000 | 9000 | 16000 | 600/800 | 800 |
WP-SS-4-6/12 | 4 | 6000 | 12000 | 18000 | 600/800 | 800 |
WP-SS-4-7/14 | 4 | 7000 | 14000 | 21000 | 600/800 | 800 |

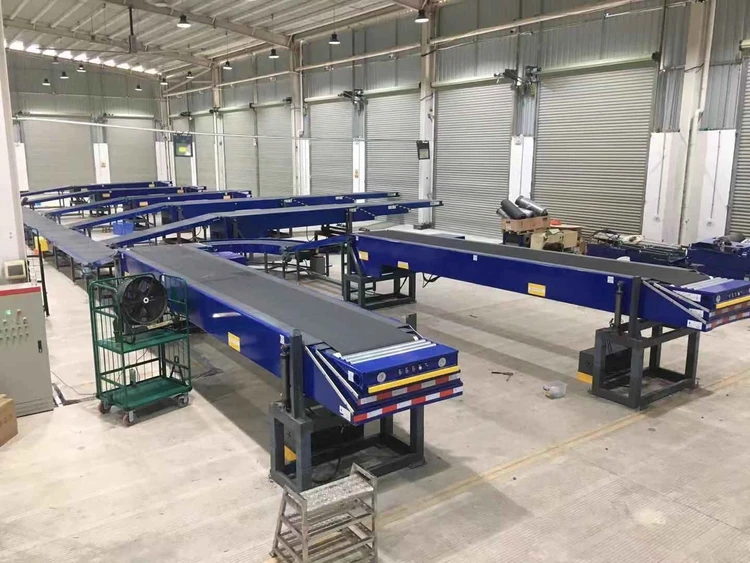

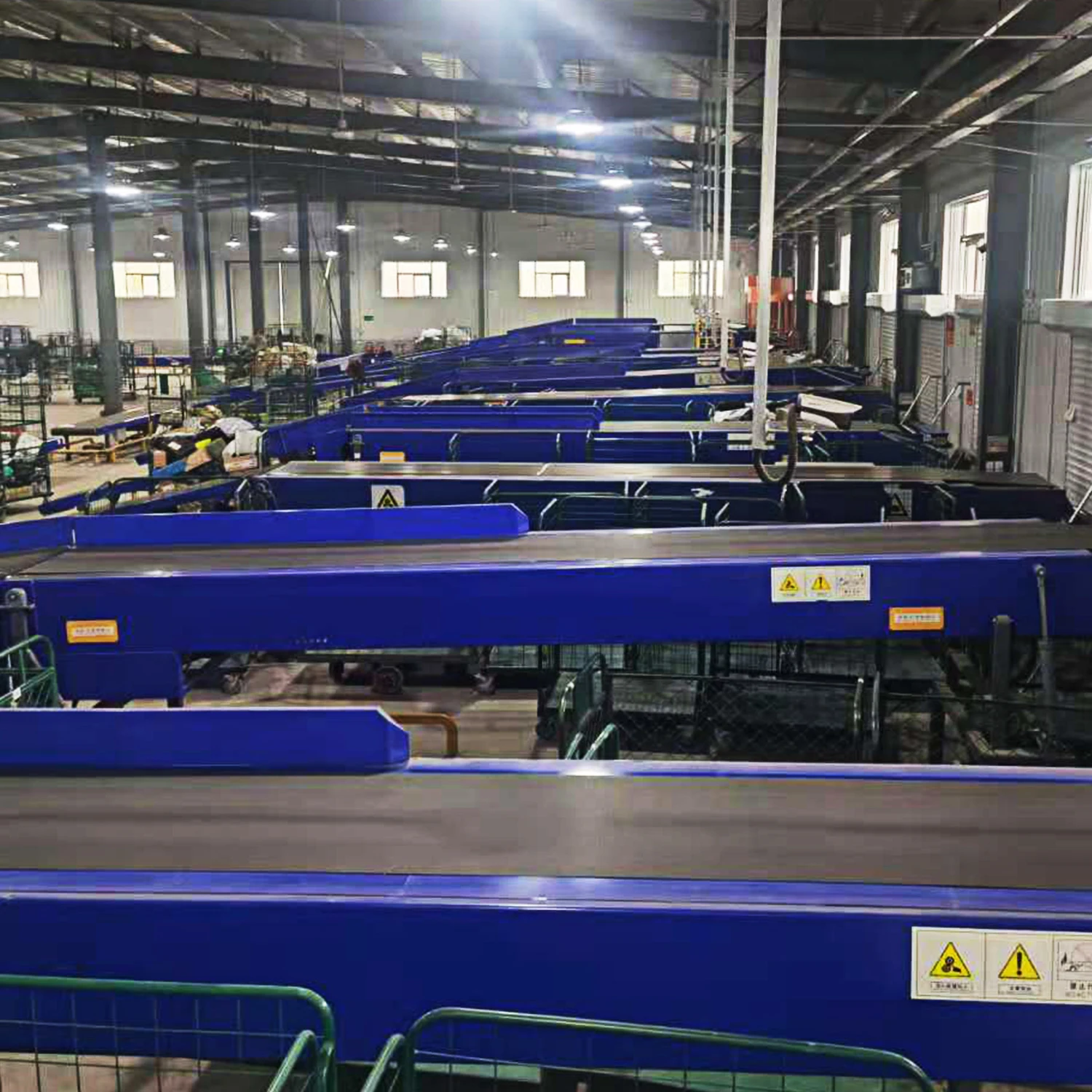

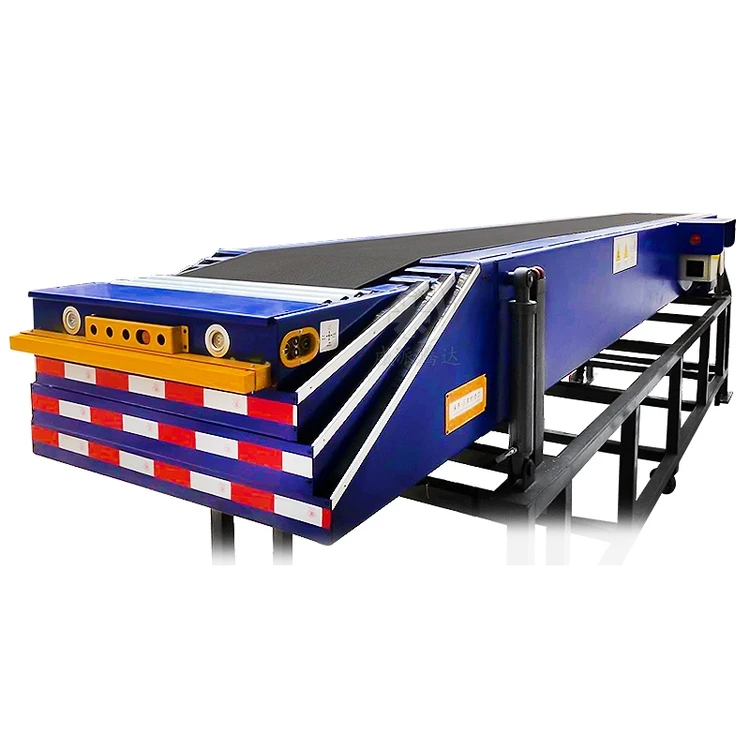

Product image
Main Features
1.Adjustable：you can adjust buttons according to your own requirements to control the length of the conveyor. If the machine is equipped with a lifting device, you can also control its end height at any time. It can finish loading and unloading by pulling the goods just beside operating personnel. You can load the goods if the belt turning forward and unload goods if the belt turning reversely. Its handling efficiency can reach 30 pieces per minute.
2.Reduce cost: it greatly shortens the distance of carrying materials by labor. It reduces the lay time , labor intensity and the damage to goods so that you can reduce handling cost and improve work efficiency.
3.Flow operation：it can load and unload the goods stably and continuously to avoid messy phenomenon and ground operation all around.
4.Safety operation: It reduces the accidents caused by extensive fatigue of unloading and unloading goods by labor.
Product Application
Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps
enterprises decrease costs and increase efficiency and quality.

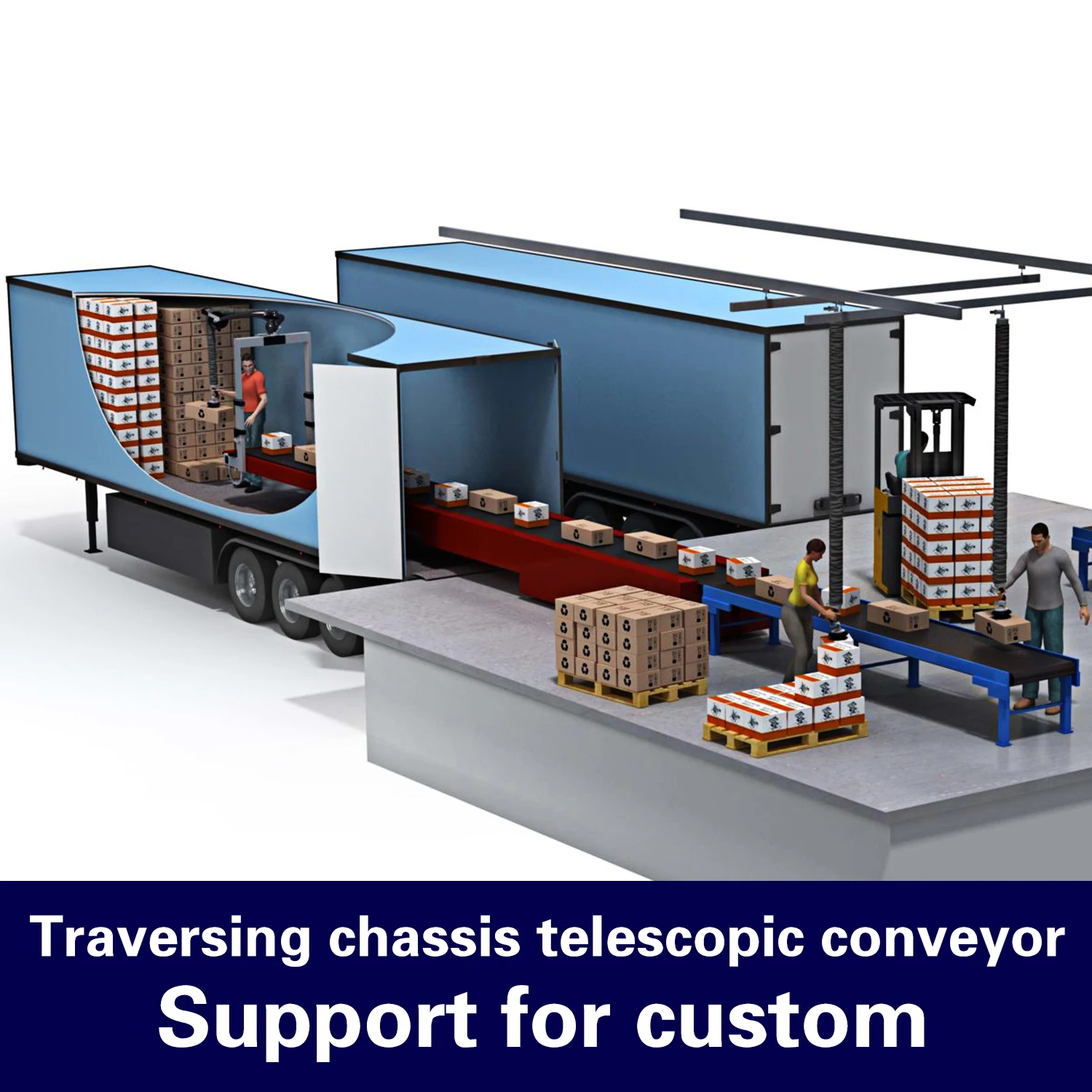

Telescopic belt conveyors can be used to load, unload parcels, boxes, sacks & tires. An intuitive smart-pad on either side enables precise control of the elevation and telescopic movement.
enterprises decrease costs and increase efficiency and quality.
Telescopic belt conveyors can be used to load, unload parcels, boxes, sacks & tires. An intuitive smart-pad on either side enables precise control of the elevation and telescopic movement.
Company Profile
Weipaitengda Technology Co., Ltd. is a high-tech enterprise integrating R & D, design, production and sales of logistics automation equipment ,It is specialized in the equipment R&D and senior manufacturing in logistics industry. Our company is founded in 2005 . It has established R & D centers and production bases in Beijing, Huzhou,shenzhen, Zhejiang and Wuhan, and set up branches in Xi'an and Yunnan, forming a group operation and is one of including flexible belt conveyor,the biggest and the most professional manufactures in logistic field in China.With the unremitting efforts of all employees of WeiPai group, we have established long-term mutual trust and cooperation partnership with famous enterprises such as tmall supermarket (Xinyi logistics), Gome online, SF express, Sanyuan food, Master Kang, Putian logistics, Coca Cola, Great Wall Motors, China Post and other well-known enterprises.
Exhibition
Packing & Delivery
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by airor by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
