Slim Design quickly heat Silent Built in safety LED indicator forced 1500W Manual controller convector PTC Fan Heaters
- Category: >>>
- Supplier: Jinhua Vega Thermo Equipment Co. Ltd.
Share on (1600376971307):
Product Overview
Description
Product Description
Detailed Images

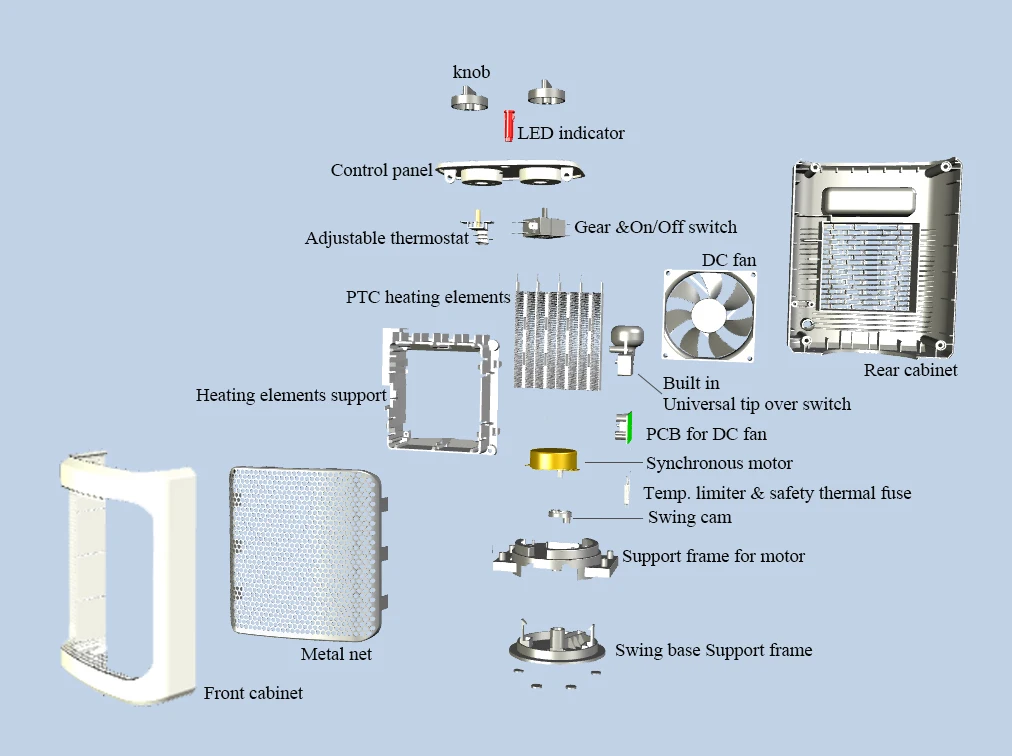

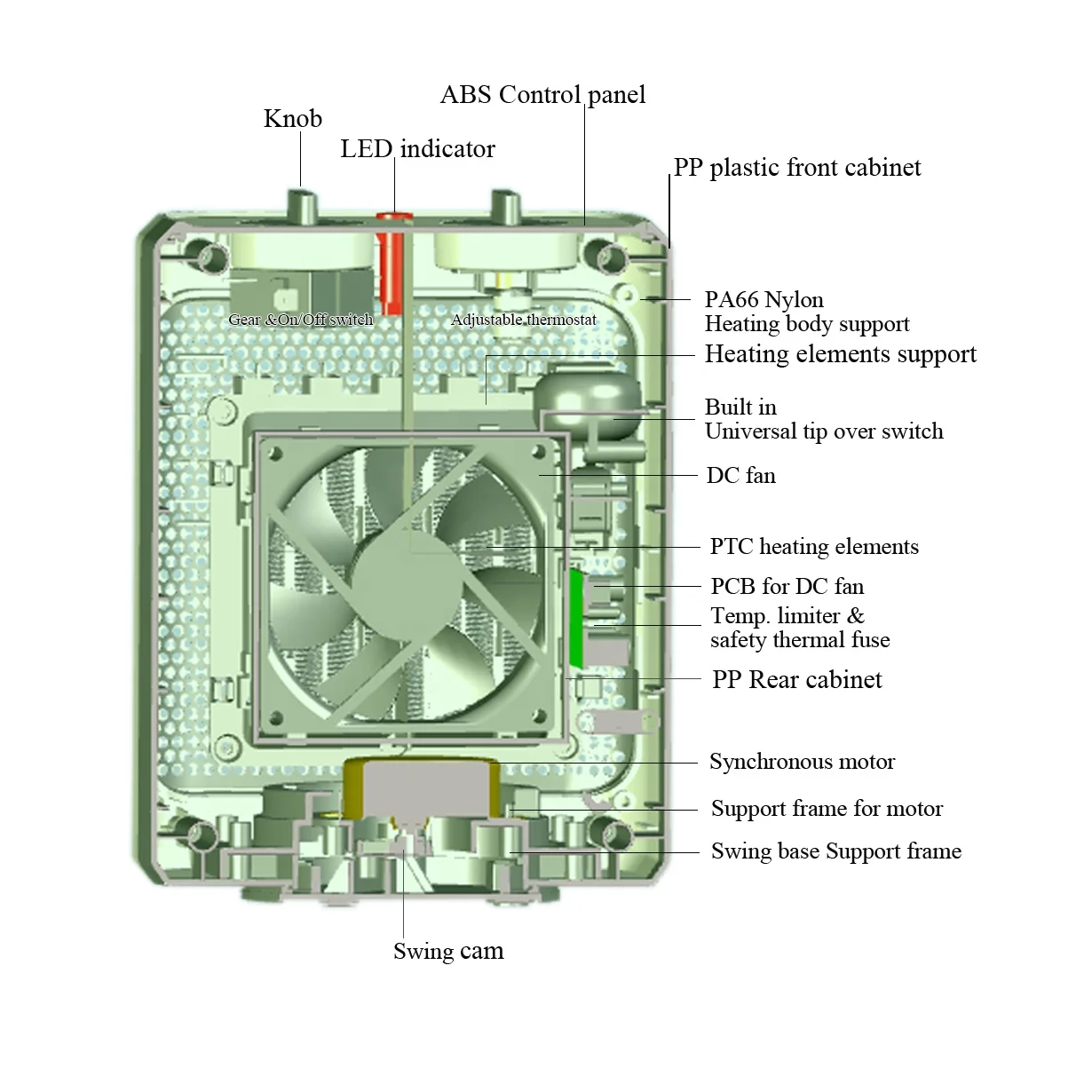

Product detail drawing

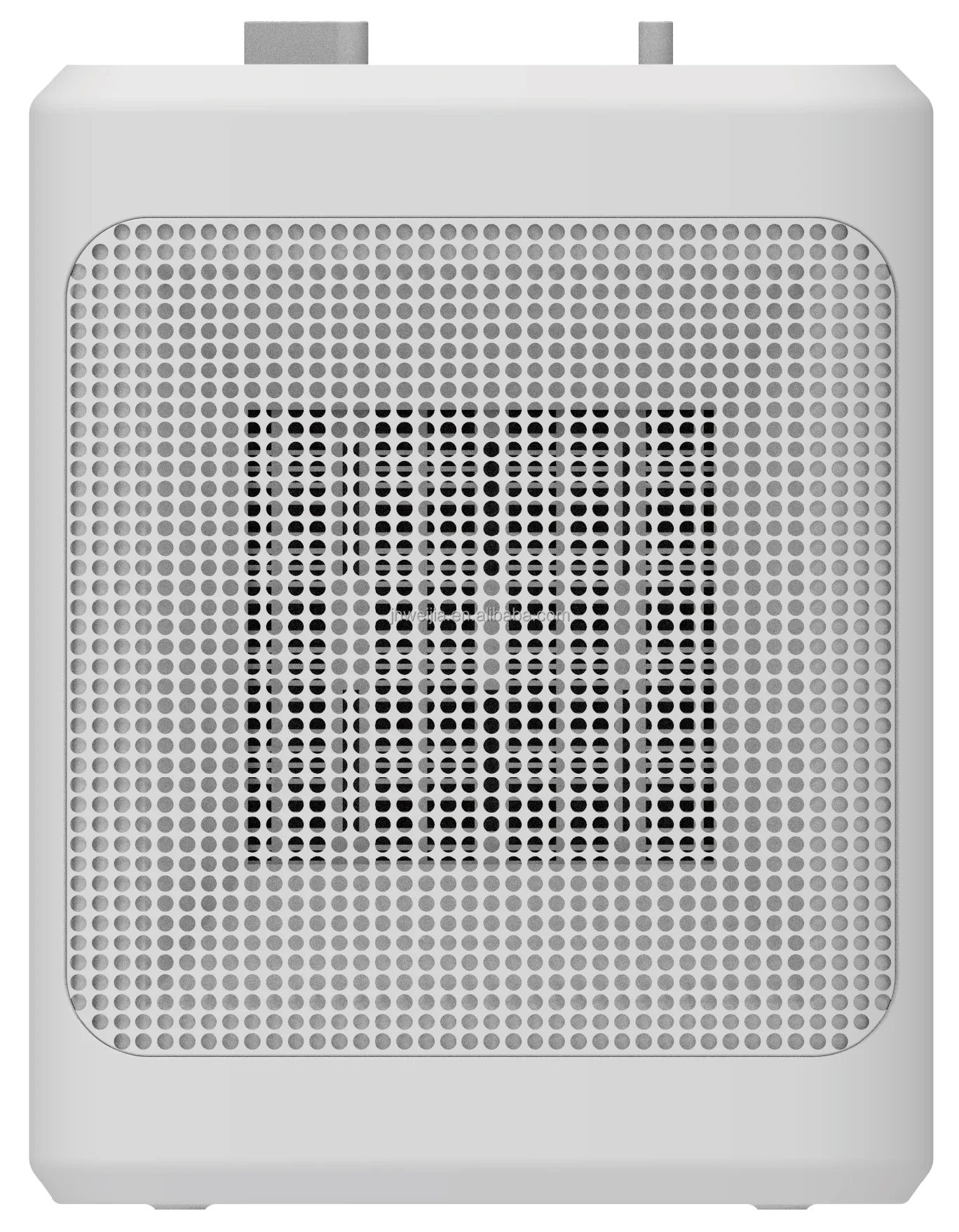

Front

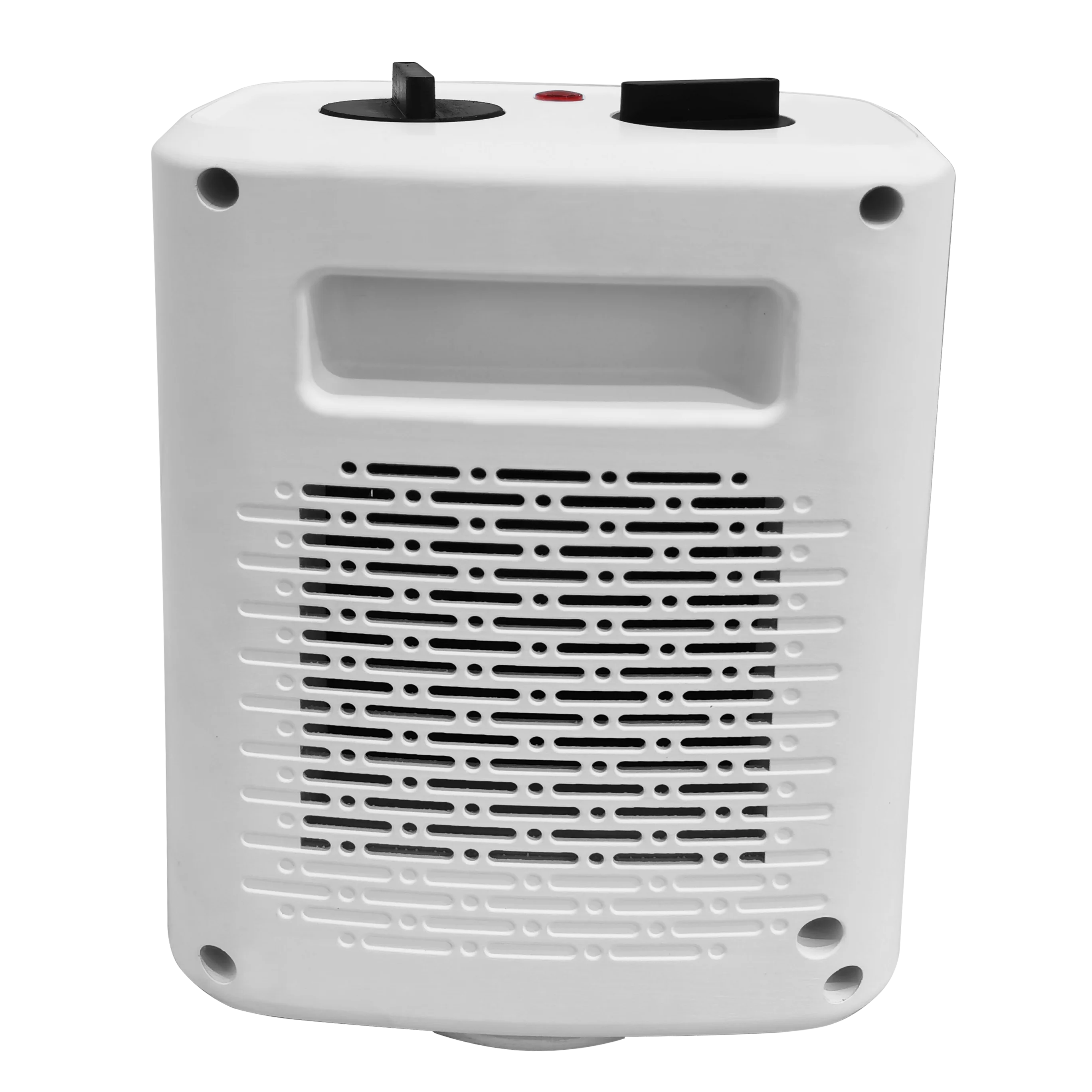

Rear

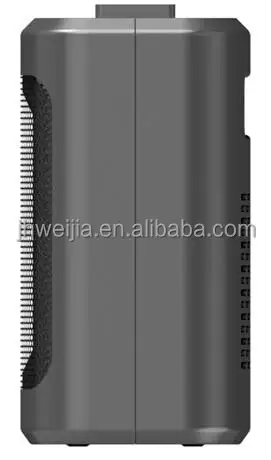

Side

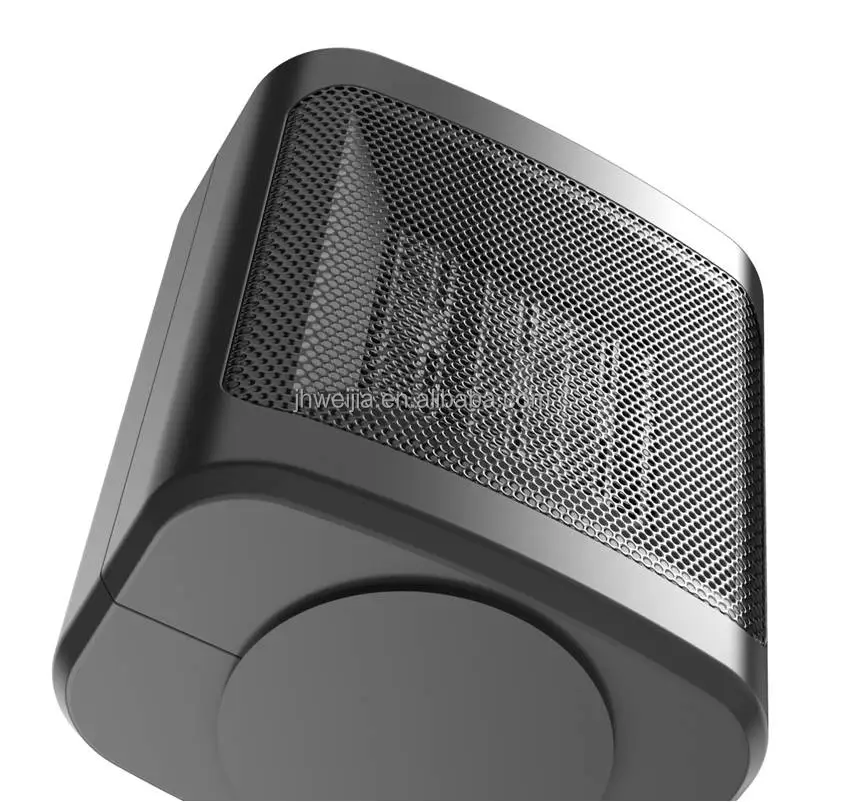

The Hidden swing base

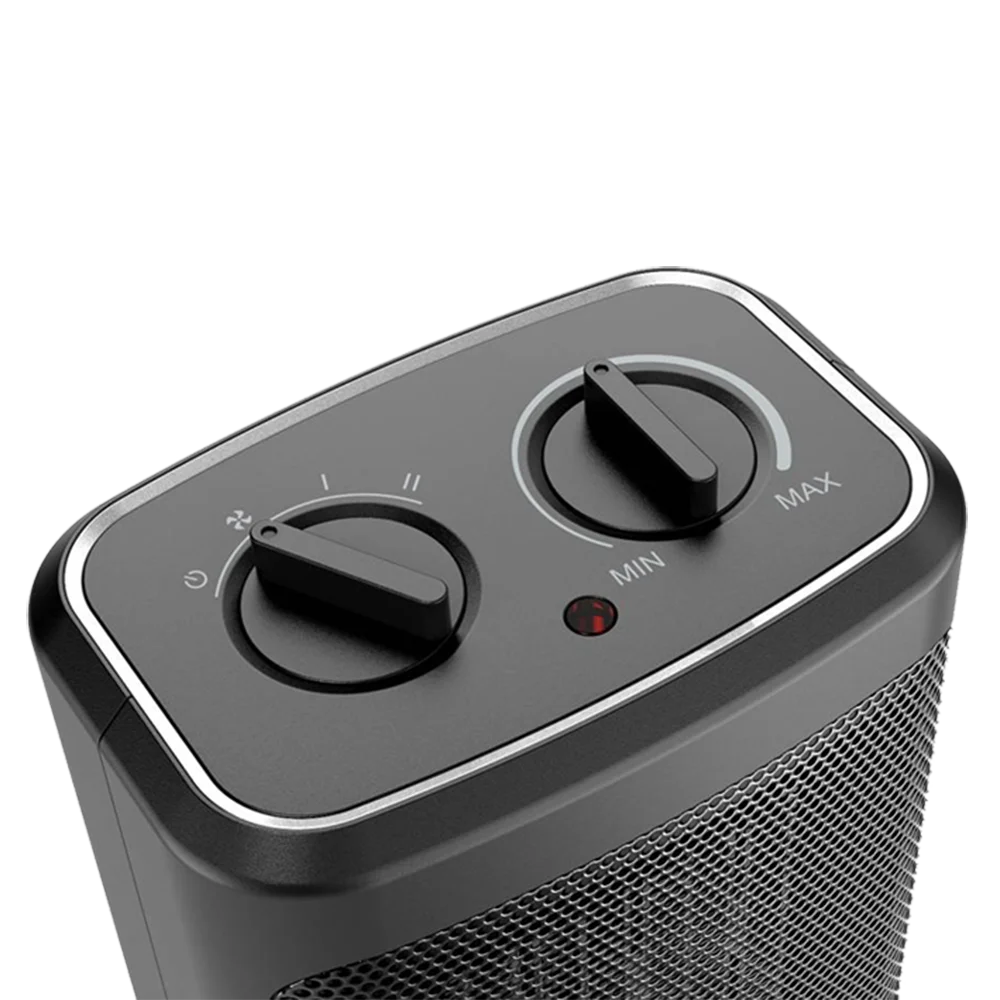

Control panel
Normal base(No swing)
Aluminum Finned heating Resistor
* Frame body with PA66.
* Motor winding wire with pure cupper.
* Special connector.
PTC ceramic heating body
* Aluminum alloy Fins.
* Ceramic heater.
* Terminal with stainless steel.
Synchronous motor
* 220~240V 50/60Hz, 4 W.
* 2.4~3r/Min
* TüVRheinland Certificate
Introduction of product advantages or application effect or application mode
Multi Protection
* Heating temperature ranges: 80-130℃.

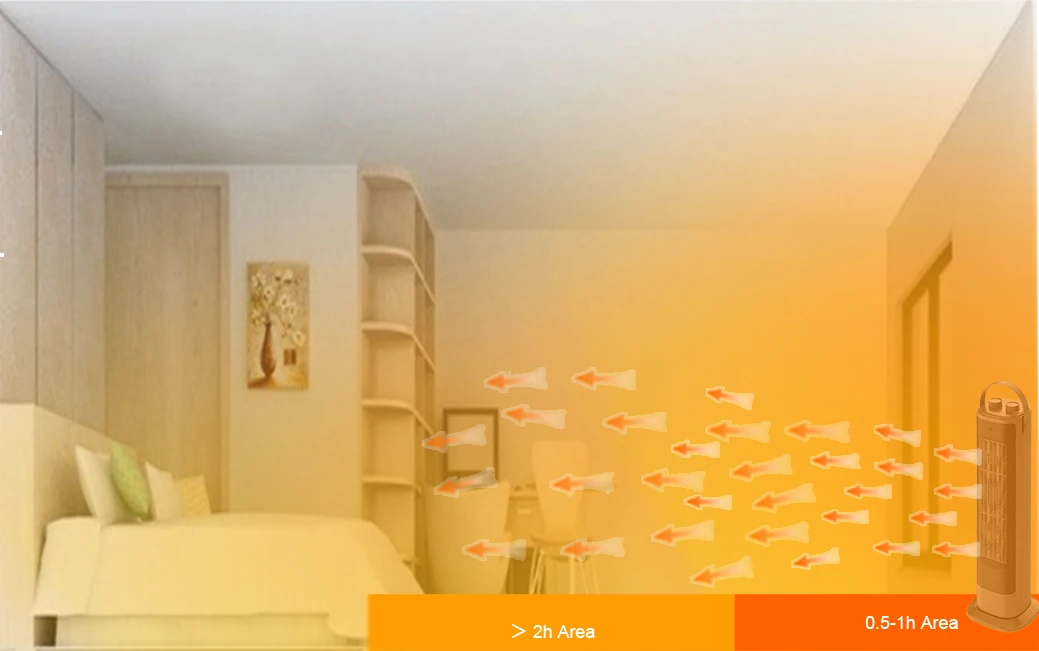

* Air supply distance:100-150 cm.
* Convection distance:100-150 cm.
* Minimum distance from floor:≥ 0 cm.
* Minimum distance from wall: ≥10 cm.
* Minimum distance from object: ≥15 cm.
Product Presentation
Product introduction: application, function, style, etc
The following configuration is a product diagram + table with the specific parameters of the configuration product
Product Name | Forced convection PTC Fan heaters |
Material | PP Plastic: Front & Rear cabinet. PA66 Nylon: heating body holder and the fan Frame. ABS: Control panel, swing base and the motor holder. SPCC: Metal net. |
Power | * 110~130 V: 1000/1200/1500 W * 220~240 V: 1500/ 1800 W |
Voltage | 110~130V or 220~240V |
Over Heat Protection: | Dual over heat protection |
Model | DA100/120/150M (US.) . DA150/180M (EU.). |
Style | Forced convector directly heated air heaters with PTC ceramic heating body. |
Related Products
Packing&Shipping
Packing type: Molded pulp tray+ Gift box
* Product/ Carton/ Gift box( 2-color carton or 4-color gift box): 1 Products / Gift;
External packing
* Gift box/ Carton ( 2-color carton ): 8 Gift /Carton ;
Manufacturing Technique
Equipment & Production site
* Die casting & Injection
* Die casting Mould and Injection mould
* Final goods Warehouse
* Assembly Line
* Coating Line
* CNC workshop
Total Quality Control
* Glow-wire testing machine
* Basic testing machines
* Salt spraying tester
* Packaging testing machine
International Market Certification.
