Price:$290.00 - $300.00

Quantity:


Product Overview

Description









Product Description























Specification

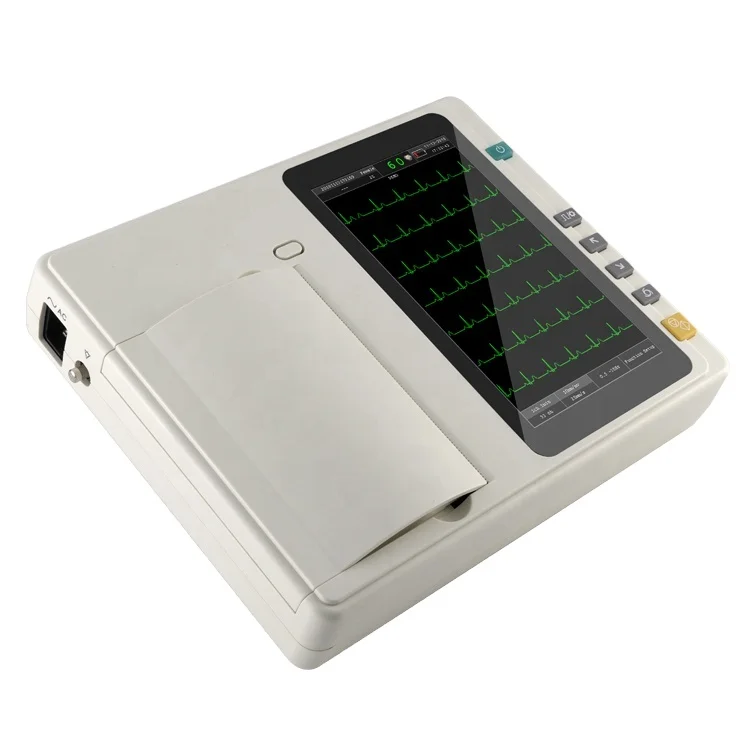

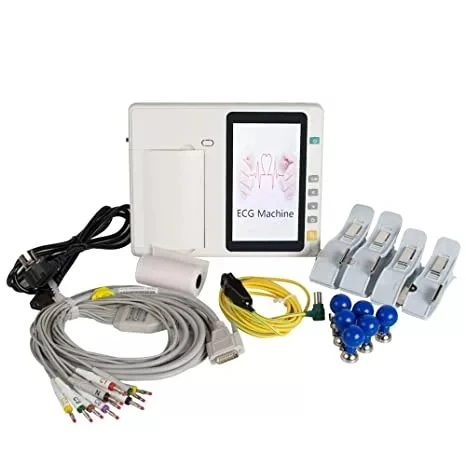

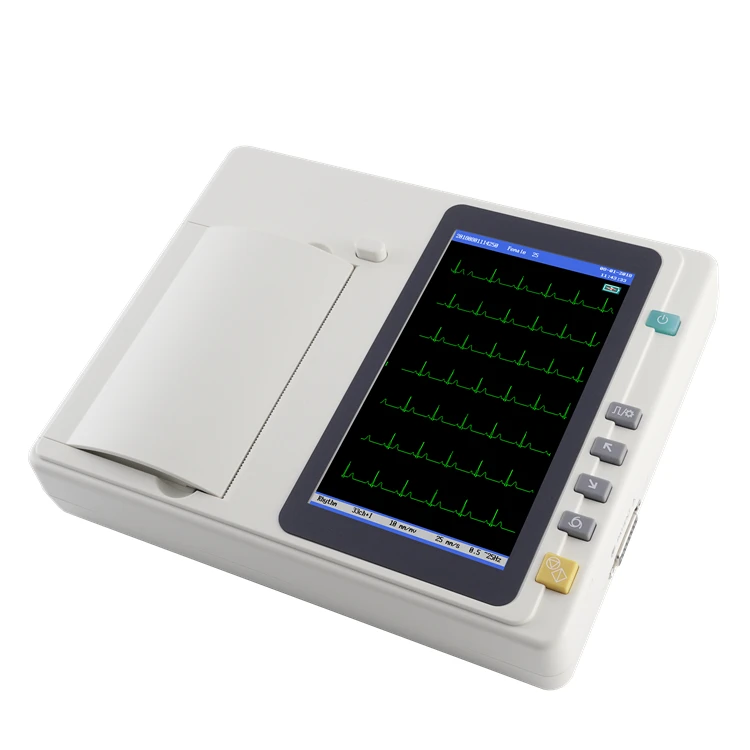

Function features of ECG machine

1、Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.

2、Both push-button and touch operation, simple and practical

3、7-inch colorful TFT-LCD display, more powerful functions

4、Electrocardiogram automatic measurement, diagnostic and analysis. Self-Determined whether to print analysis report

5、Lead off detection function with sound indication，real-time ECG waveform freezing

6、Multiple operation modes: manual, automatic, rhythm, physical examination

7、Support high-capacity SD memory，real-time storage of waveforms and diagnostic analysis

8、Built-in rechargeable li-ion battery, AC/DC power conversion.

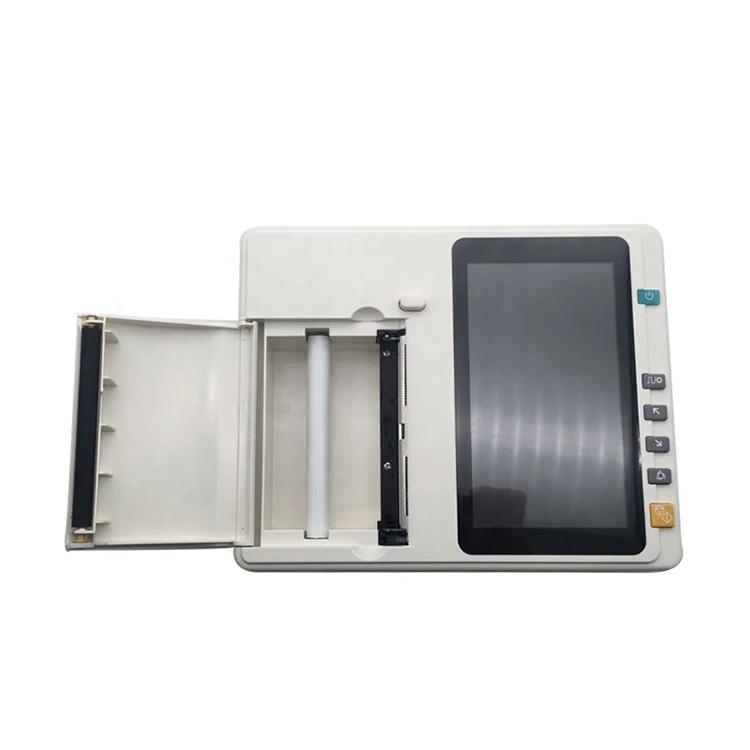

9、High-performance processors and thermal plotting integration printer

10、Portable with only 1.2kg weight, convenient to carry it outside for diagnoses.

Technical data:
Input mode: Floating, defibrillation protection，pacemaker pulse rejection

Lead: 12 standard leads，Auto-switching leads

Operation mode:Simultaneously 12 channel

A/D switching: 12 / 16/ 24

Measurement range: > ±5mV

Time constant: ≥ 3.2s

Frequent response: 0.05Hz ~ 150Hz

Sensitivity: 2.5，5，10，20 (mm/mV)

Input impedance: 50M（10Hz）

Input circuit current: ≤ 50nA

Input voltage tolerance: < ±5 mVpp

Calibrating voltage: 1mV±3%

Noise level: < 15Vp-p

Inter-Channel Interference: ≤ 0.5mm

Patient current leakage: < 10A (220V-240V/50Hz)

Patient auxiliary current leakage: < 0.1A (DC)

Insulation strength: 4000V rms

Filter: AC filter ON/OFF/Baseline drift filter 0.05/0.15/0.25/0.5/ADP/EMG filter 25Hz，35Hz，OFF/Low-pass filters 150Hz/100Hz/75Hz

CMRR: >100dB



































Model Number



YK-8203




Weight



Approximately 1.2kg




Dimension



255mm×205mm×65mm
