High quality machine color doppler ultrasound ultrasound machine color doppler ultrasound color doppler laptop
- Category: >>>
- Supplier: Nantong Yikun Medical Apparatus Co. Ltd.
Share on (1600377004563):
Product Overview
Description
Product Description

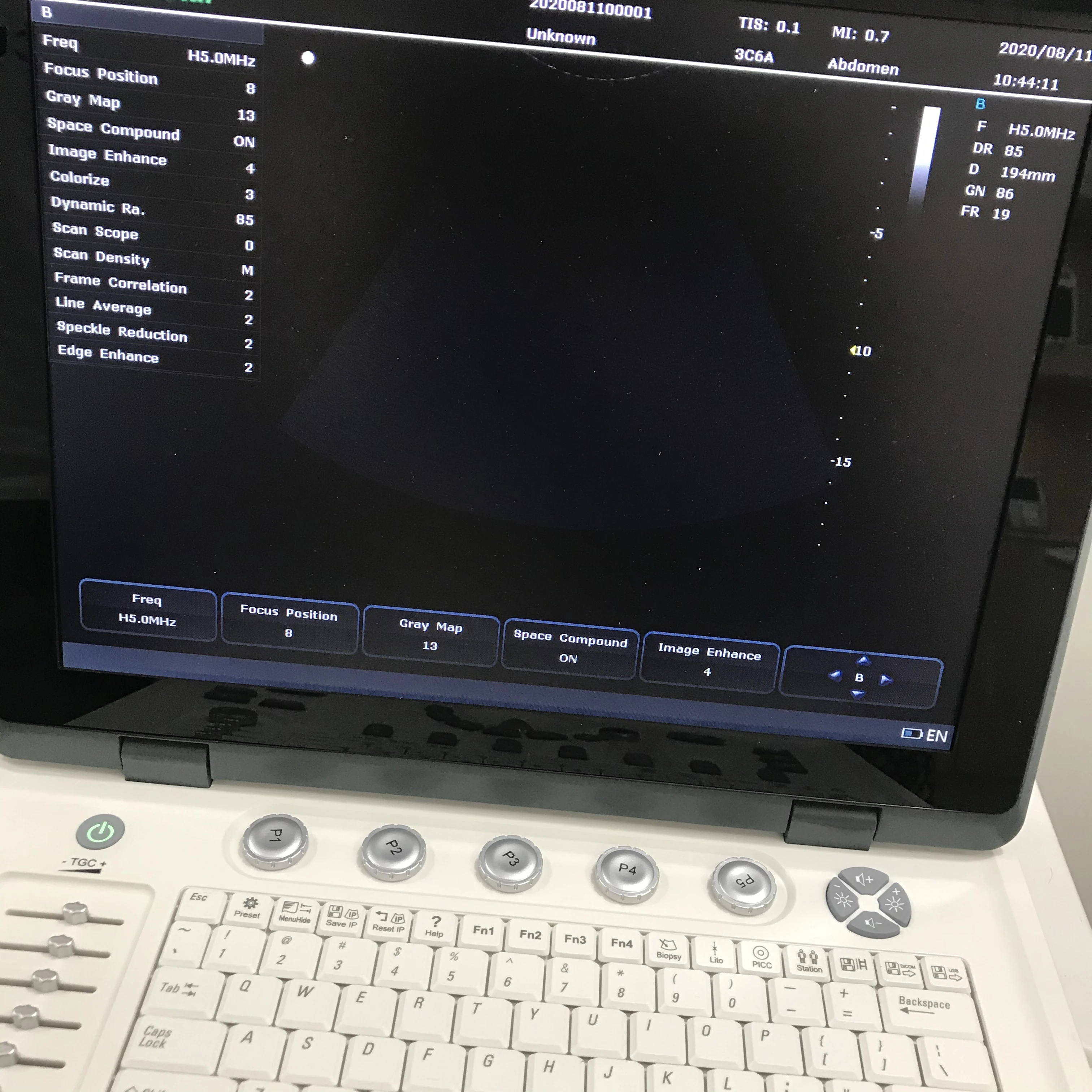

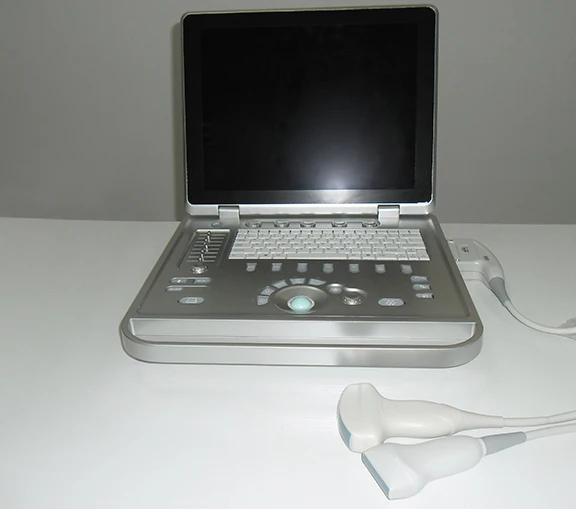

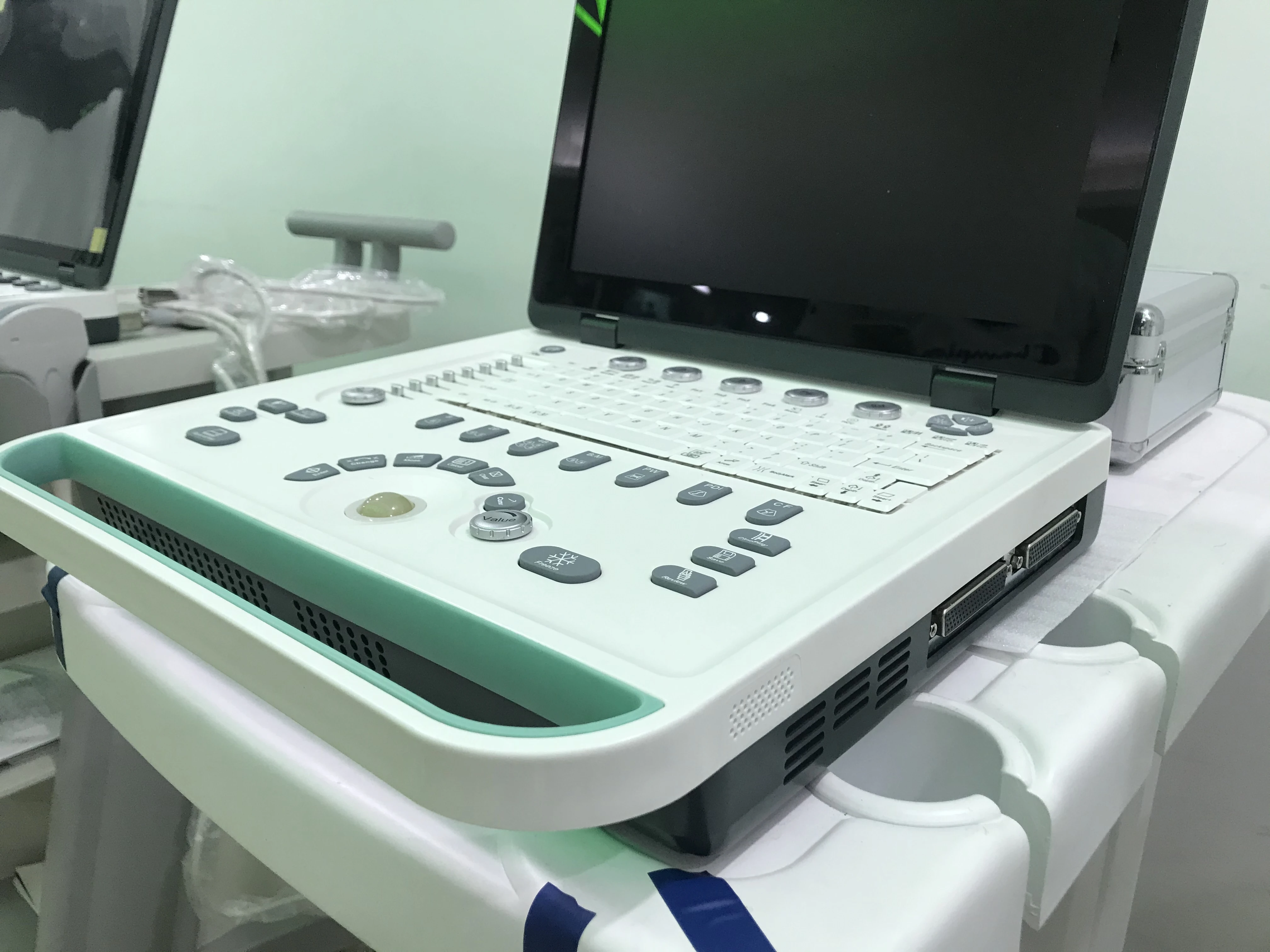

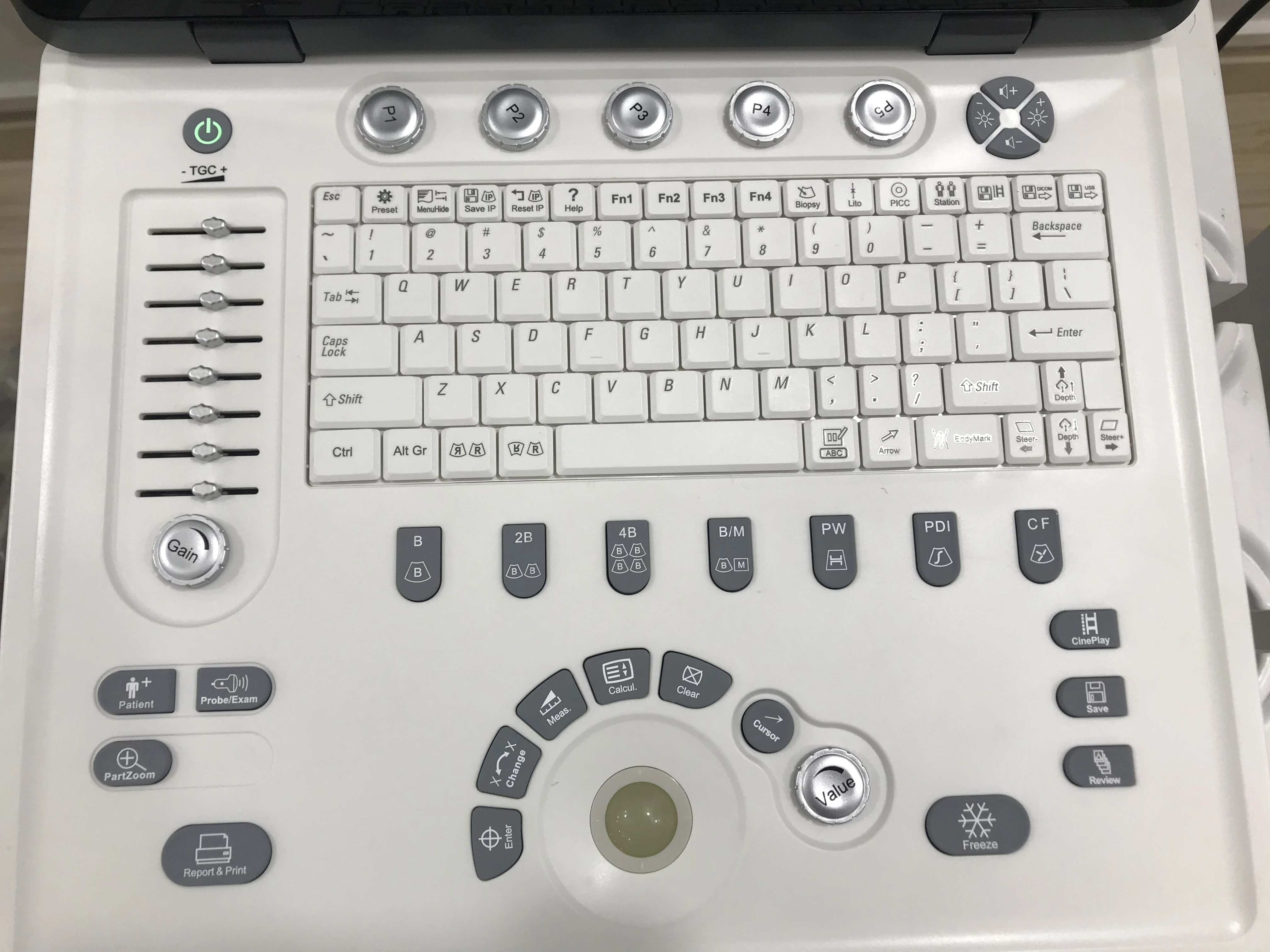

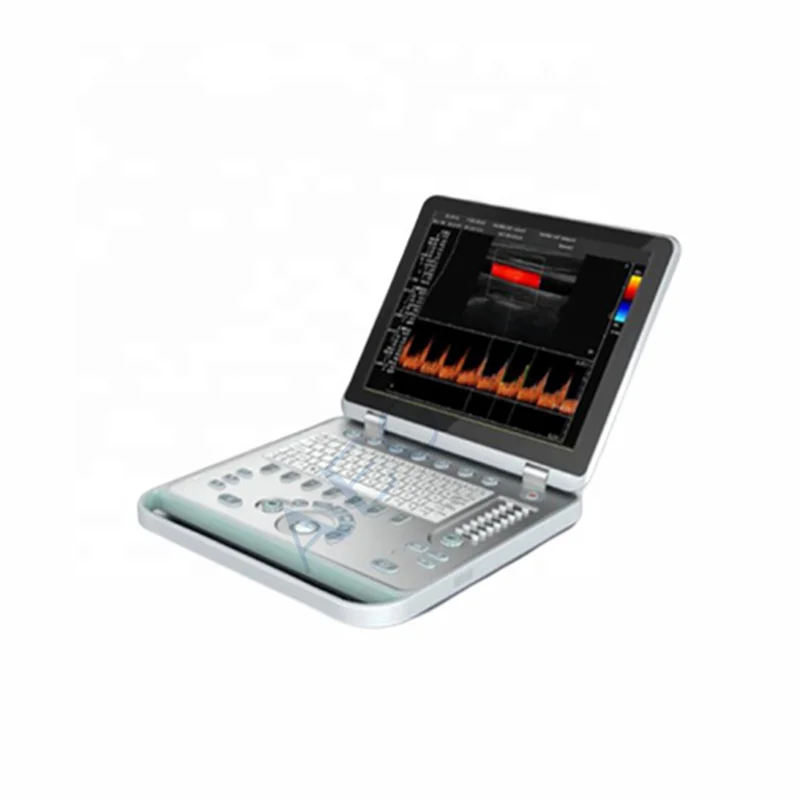

Details Images
Feature
·CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF, THI
·High definition image
·Very thin, light and pretty
·15inch LED Screen
·Built-in Battery
·3D imaging(option)
·Abundant functions, Multilingual
·Hardisk, USB storage
Specifications
1. Imaging Modes:
-B, B|B, 4B, B|M, M
-Color Doppler (CFM)
-Power Doppler (PDI)
-Directional Power Doppler (DPDI)
-Pulsed Wave Doppler (PWD)
-B+PWD (Duplex)
-B+CFM/PDI/DPDI+PWD (Triplex)
-High Pulse Repetition Frequency (HPRF)
-Tissue Harmonic Imaging (THI)
2. Scanning Method: electronic linear, electronic convex, electronic micro-convex, scanning depth: 2-24cm
3. Color Doppler:
-PRF variable: 0.5-9 kHz
-Wall filter settings: 3 steps (5%, %10%, 15% PRF)
-Angle steering for linear transducers: ±10°
-Real-time spatial filter: 4 values
-CFM palette>10 maps
-PDI palette>10 maps
-B/Color priority control
-Color threshold control
-CFM baseline control
-Doppler frequency selection
-Color frame averaging
-Transparent Color Mapping (TCM)
4. Pulsed Wave Doppler:
-PRF variable: 1-10 kHz
-Wall filter settings: 16 steps (2.5%-20% PRF)
-Angle steering for linear transducers: ±10°
-Real-time trace line with automatic calculation of spectrum parameters
-Stereo sound: volume control
-PWD palette>10 maps
-Doppler frequency selection
5.Processing:
-High Line Density scan mode for better resolution
-8 sliders TGC Control
-Dynamic range>120 dB
-Overall gain control
-M - mode sweep speed control
-Acoustic power control
-Variable frame averaging
-Brightness, contrast
-Advanced gamma control
-Scan direction, rotation, up-down controls
-Negative / positive control
-Echo enhancement control
-Noise rejection function
-Speckle reduction
6. Image and video: AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
7. General Measurements and Calculations: Distance, Length, Area, Circumference, Volume, Angle, Stenosis %, A/B Ratio, Velocity,
Pressure Gradient (PG), Acceleration, Resistivity Index (RI), Heart Rate, Velocity Time Integral (VTI), etc.
8. Measurements and Calculations Software Packages: Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular,
Cardiology, etc.
9. Expansion interfaces:
-VGA, TV Interface
-USB2.0 Interface
-RJ-45 Network interface
-Support DeskJet printer, LaserJet printer, video printer
Specification
| item | value |
| Place of Origin | China |
| Brand Name | Yikun |
| Model Number | NT-X1 |
| Power Source | Electric |
| Warranty | 1 Year |
| After-sale Service | Return and Replacement |
| Material | Metal, Plastic, Steel |
| Shelf Life | 6months |
| Quality Certification | CB |
| Instrument classification | Class II |
| Safety standard | MOL |
| Type | Doppler Ultrasound Equipment |
| Name | Ultrasound Machine |
| Imaging mode | Portable |
| Application | Hospital,clinic,Veterinary |
| Warranty | 2 Years |
| Certificate | CE ISO |
| Screen | 7inch |
| Depth range | 46-208mm |
Our Company
Nantong Yikun Medical is located in Nantong City, which enjoys the highly developed economic expansion and convenient transportation access. It takes 2 hours by driving or 50 minutes by high speed train from Shanghai.
Managed by a professional team who has a wide range of managerial experience, our Sales-team, Research and Development department, Production department and QC department are working with great enthusiasm and efficiency. Our vision is providing the world-class products and service and improving health-care system worldwide.
