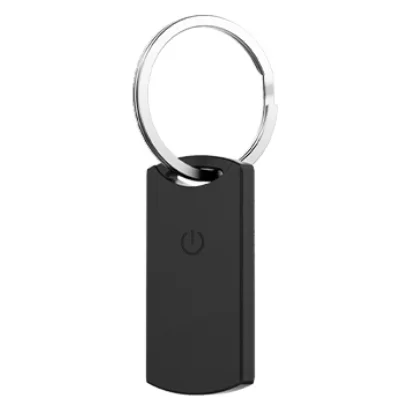

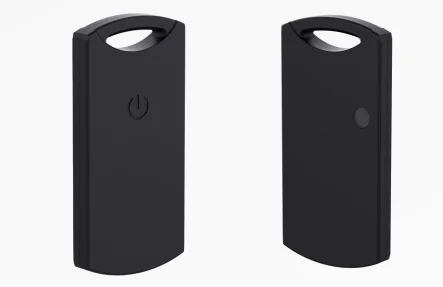

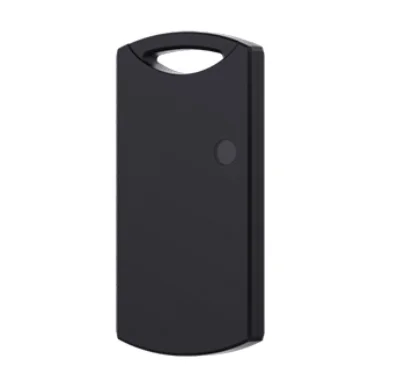

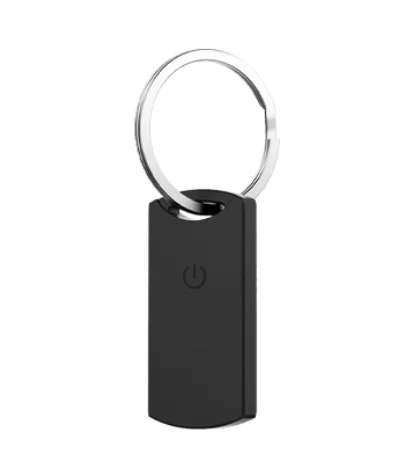

H6 Light Sensor Beacon Tag
Ambient light sensor extended beacon application scenarios

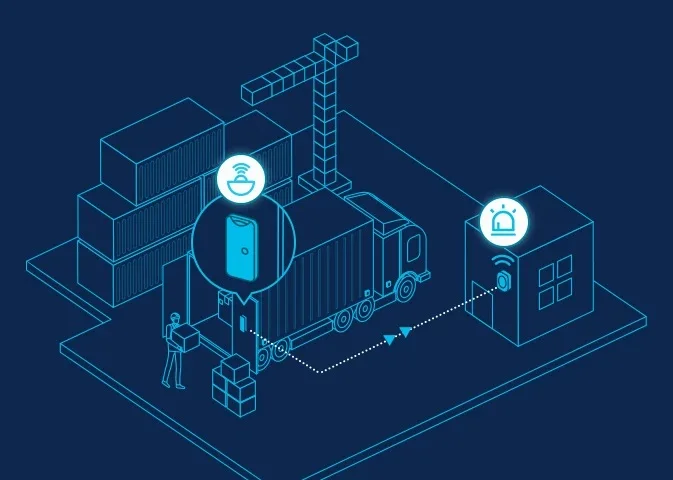

1. Integrated with ambient light sensor to realize anti-dismantling
alarm or power saving mode.

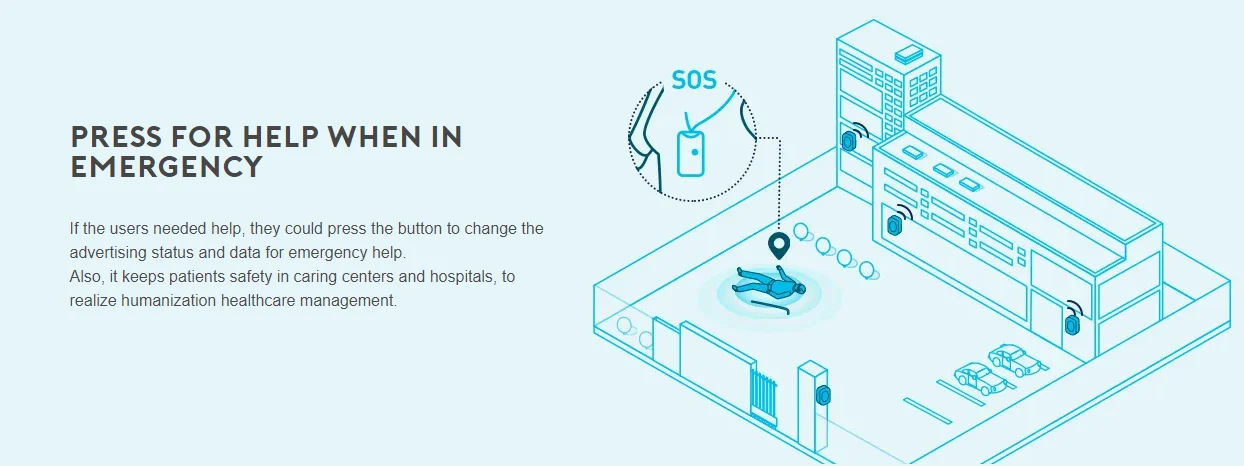

2. Emergency button to notify emergency situations, task
completion, or other predefined events in time.
Marketing promotion
1. Ambient light monitoring.
2. Multiple advertising protocol provided and customized format supported.

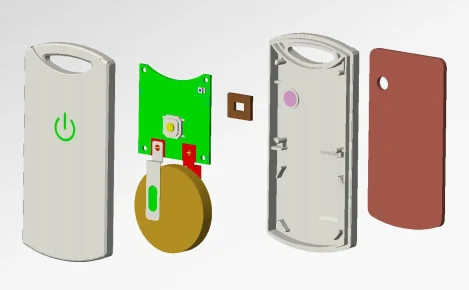

3. Ultrasonic welding design with IP65 waterproof.
4. 3-axis accelerometer sensor available for motion detection.
5. Mechanical button for SOS shortcut trigger.
All-round service to save your time and costs to market quickly
1. Certified for USA (FCC), Europe (CE) including REACH and
2. RoHS environmental regulation
3. All other worldwide certifications can be customized Branding, Logo, Label, Packaging, Manufacture parameters, strap, even hardware and firmware are all customizable



Specification


Model Number
H6 light sensor beacon
Button
Mechanical button
Brand Name
MOKO
Chipset
Nordic nrf52
Advertising Range
Up to 150 meters (in the open area and no obstacles)
Application
IOT asset tracking
Product name
H6 light sensor beacon tag
Chipset
Nordic NRF52
Sensor
Light sensor and 3-axis accelerometer sensor (optional)
Function
Broadcasting BLE Data & Light detection
Protocol
IBeacon Eddystone
Size
51.0mm x 24.5mm x 5.5mm
Battery
CR2032(225mAh)
Warranty
12 Months
Certification
BQB CE ROHS FCC Etc
Operating temperature
-20°C / + 60°C
Advertising format
Apple iBeacon Google Eddystone (UID, URL, TLM) MOKO BeaconX Pro sensor data ( with 3-axis G-sensor)
Multi-advertising
Support up to 6 active slots (Beacon can broadcasts different advertising packets separately)
Firmware update
Nordic DFU OTA/ J-link

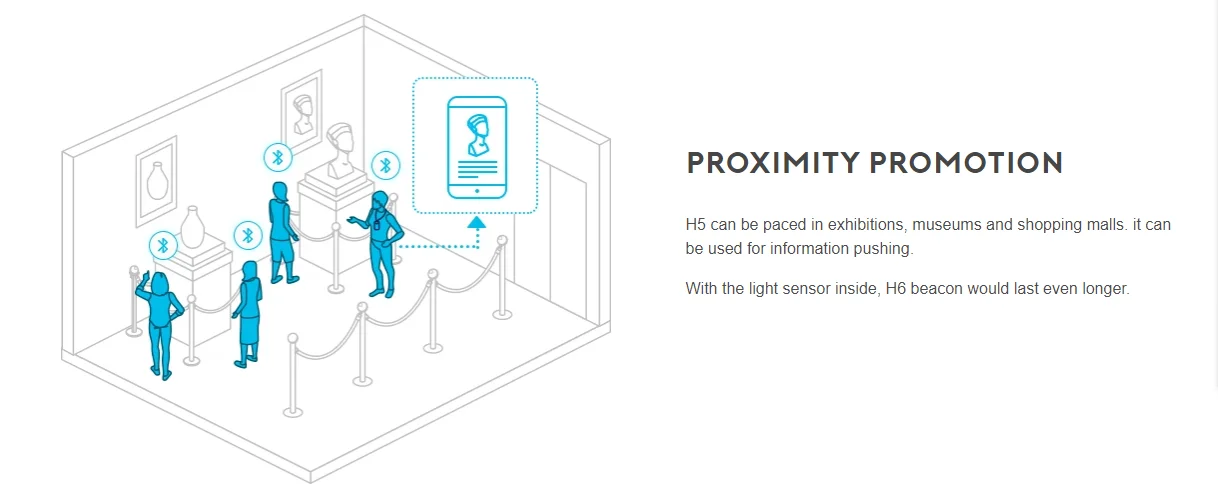

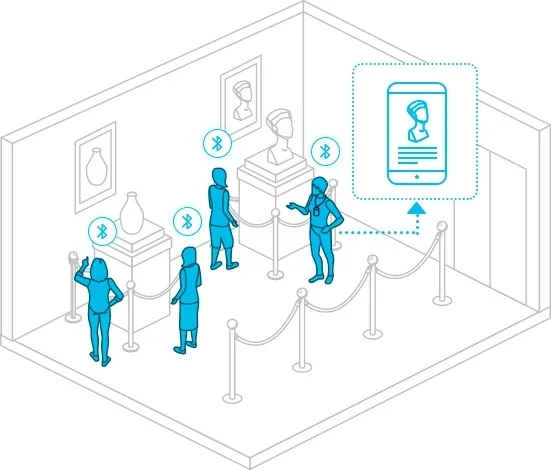

Application and Solution










Company Profile




MOKO Founded in 2007,has been engaged in IoT (Internet of Things) field for many years. We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products. our main products including BLE iBeacon, Eddystone beacon, beacon with sensors, bluetooth modules, WIFI module and OEM&ODM services.

MOKO R&D team focus on designing and manufacturing many different high quality and low cost bluetooth hardware , offering one-stop services include: 1. Schematic design; 2. Mold design; 3. PCB layout; 4. Firmware design; 5. Production and assembling.

Moko will keep straight ahead in IoTindustry. The better service, solution, products and price is our core target .










FAQ


Q1： Can the products compatible with iBeacon and Eddystone?A1: Yes, it's the standards compatibility of our beacons.

Q2: What's the warranty of the product?
A2: We supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.

Q3: Could brand the product with our company LOGO?
A3: Sure,all of the beacons can be customized in color/logo/laber according to your requirements.

Q4: Which certifications do you have?
A4: All of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.

Q5: Will you provide technical support for customer?
A5: Sure. We will provide the technical support as below:
Configure APP for IOS&Android
SDK for iOS&Android APP
User manual.

Q6: What's your advantages?
A6: * Focus on PCB Design & Manufacturing for 14 years.
* We provide IoT Devices ODM & OEM Services.
* We design & manufacture iBeacons/Bluetooth Beacons.
* FCC CE certified beacons supporting Eddystone&iBeacon.
* Programmable beacons & related SDK provided for your development.
* Product customization allowed, like adding motion sensor, different colors, adding logo…
* All the parameters like UUID, major minor, URL can be modified by configuration app.
