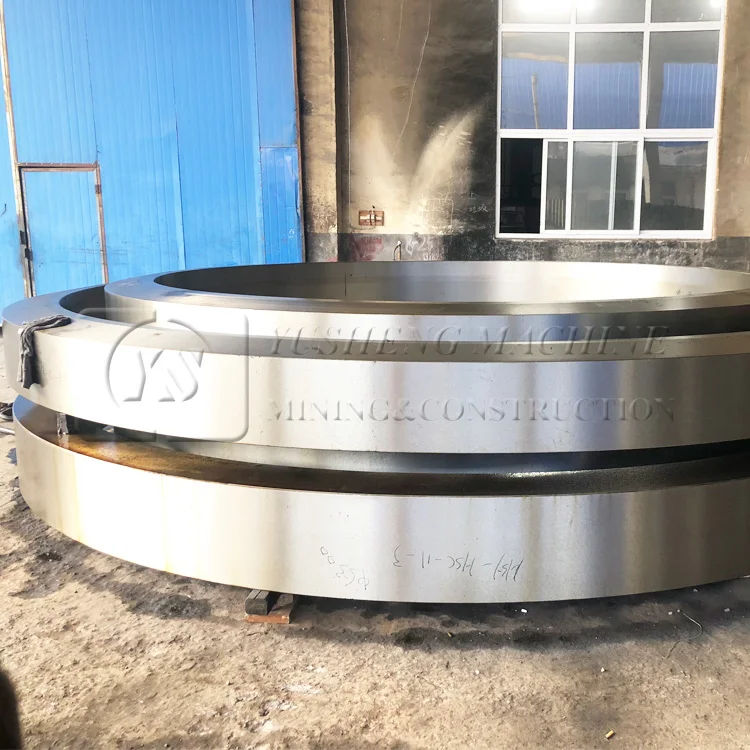

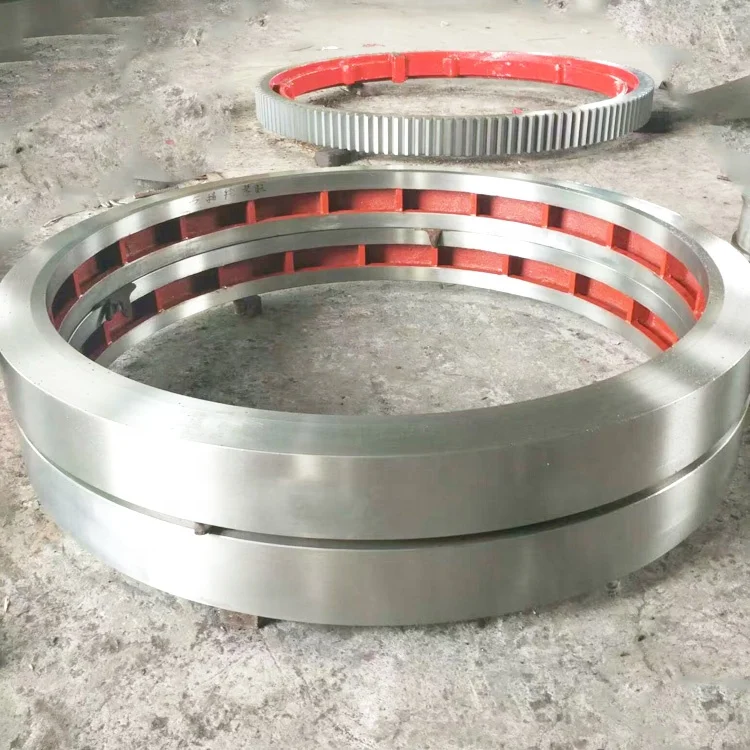

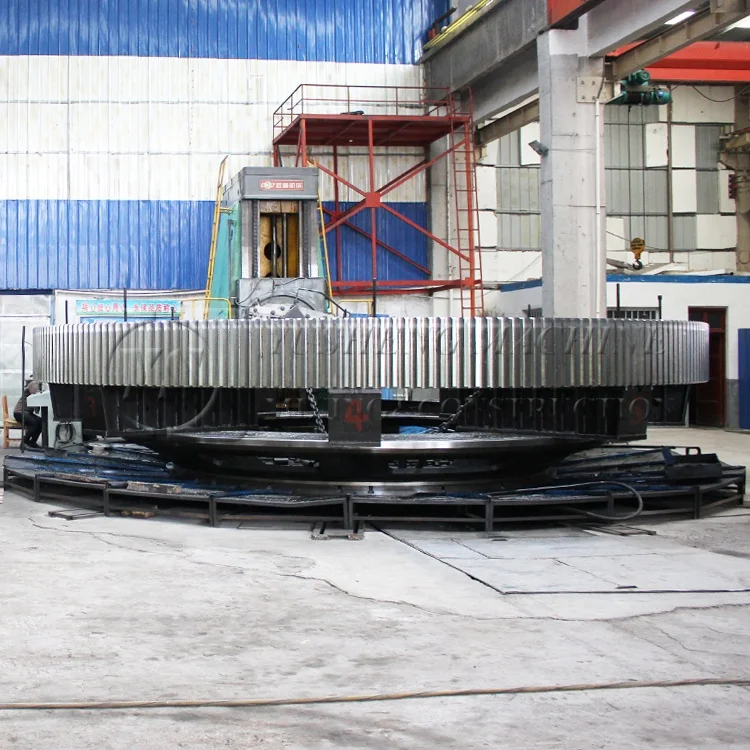

Cement Factory Large Rack Wheel Casting Steel Iron Girth Ring Spur Gears For Rotary Kiln

Product Overview

Description

High Quality Large Girth Gear Advantages:
- Products with Customers' Designs
- Strong Machining & Heat Treatment Abilities
- Strict Quality Control
- Prompt Delivery
- Experience in Cooperation with Fortune 500 Companies
High Quality Large Girth Gear Process:
Forging/Casting
Normalizing&Tempering-Proof Machinnig
Quenching&Tempering
Finish Machining(Teeth Grinding)
We can offer you in various process conditions Solutions for Many End Markets and Applications
--Mining
--Metallurgy
--Power Generation
--Sugar
--Cement Plant
--Port Machinery
--Oil and natural
--Papermaking
--OEM gear case
--General Industrial



Specifications of High Quality Large Girth Gear:

No.	Item	Description
1	Diameter	≤15m
2	Module	≤45
3	Material	Cast Alloy Steel, Cast Carbon Steel, Forged Alloy Steel, Forged Carbon Steel
4	Structure From	Integrated, Half to Half, Four Pieces and More Pieces
5	Heat Treatment	Quenching & Tempering, Normalizing & Tempering, Carburizing & Quenching & Tempering
6	Tooth Form	Annular Gear, Outer Gear Ring
7	Standard	ISO, EN, DIN, AISI, ASTM, JIS, IS, GB

Facilities For Manufacturing High Quality Large Girth Gear Pinion Gear for Ball Mills

No. Item Description

1

Smelting & Casting Capability
40t ,50t, 80t Series AC Electric Arc Furnace
2×150t, 60t LF Ladle Refining Furnace
150t, 60t Series VD/VOD Furnace
20×18m Large Pouring Facility
We can pour 900t refining liquid steel one time, and achieve vacuum poured 600t steel ingots.
We can produce the high quality steel of more than 260 steel grades as carbon steel,structural alloy steel and the structural steel, refractory steel and stainless steel of special requirement. The maximum weight of casting steel, gray casting, graphite cast iron and non-ferrous casting is 600t, 200t, 150t and 20t separately.



2

Forging Capability
The only one in the word, the most technologically advanced and the largest specification18500t Oil Press, equipped with 750t.m forging operation machine
8400t Water Press
3150t Water Press
1600t Water Press
Φ5m High Precision Ring Mill ( WAGNER,Germany)
Φ12m High Precision Ring Mill
We can roll rings of different sections of carbon steel, alloy steel, high temperature alloy steel and non-ferrous alloys such as copper alloy, aluminum alloy and titanium alloy. Max. Diameter of rolled ring will be 12m.



3

Heat Treatment Capability 9×9×15m,8×8×12m,6×6×15m,15×16×6.5m,16×20×6m ,7×7×17m Series Heat Furnace and Heat Treatment Furnaces
φ2.0×30m,φ3.0×5.0m Series Heat Treatment Furnaces
φ5.0×2.5m,φ3.2×1.5m,φ3.0×5.0m,φ2.0×5m Series Carburizing Furnaces & Nitriding Furnaces & Quenching Bathes
φ2.0×30m Well Type CNC Electrical Furnaces
Φ3.0×5.0M Horizontal Gas Temperature-differential Furnace
Double-frequency and Double-position Quenching Lathe of Pinion Shaft



4

Machining Capability 1. ≥5m CNC Heavy Duty Vertical Lathes
12m CNC Double-column Vertical Lathe
10m CNC Double-column Vertical Lathe
10m CNC Single-column Vertical Lathe
6.3m Heavy Duty Vertical Lathe
5m CNC Heavy Duty Vertical Lathe

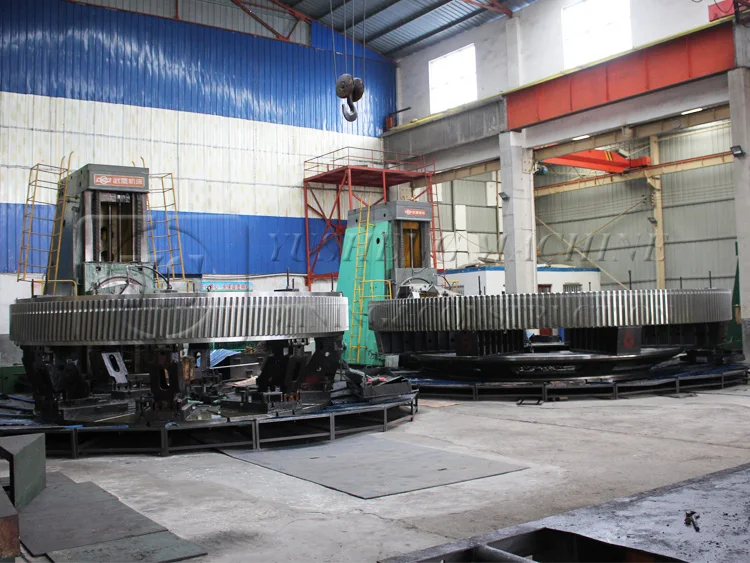

2. ≥5m Vertical Gear Hobbing Machines
15m CNC Vertical Gear Hobbing Machine
10m Gear Hobbing Machine
8m Gear Hobbing Machine
5m Gear Hobbing Machine
3m Gear Hobbing Machining



3. Imported High-precision Gear Grinding Machines
0.8m~3.5m CNC Molding Gear Grinding Machines



4. Large Boring & Milling Machines
220 CNC Floor-mounted Boring & Milling Machine
200 CNC Floor-mounted Boring & Milling Machine
160 CNC Floor-mounted Boring & Milling Machine
