Cheaper MINI PC Fanless Computer Cele ron J1900 Barebone MINI Computer with 1*VGA 1*HD Support Win 7/8/10/Linux
- Category: Industrial Computer & Accessories >>>
- Supplier: Yanling,Industrial,Computer,Technology,(shenzhen),Co.,Ltd.
Share on:
Product Overview
Description
Cheaper MINI PC Fanless Computer Cele-ron J1900 Barebone MINI Computer with 1*VGA 1*HD Support Win 7/8/10/Linux
If you are interested in our products, please feel free to contact Lucky.
(Phone/Wechat/Whatsapp:+86-15779748091)
Product Feature
1) Intel celeron J1900 quad core 2.0GHz
2) 1*VGA+1*HD port+2*LAN+1*COM+5*USB2.0+1*USB3.0(2*COM,4USB optional)
3) AMI 32MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
4) High-quality pure aluminum Case
5) 1*MSATA,1*mini-PCIE, support wifi and BT
6) 2*RTL8111E 1000M lan card, support wake on lan
7) DC-IN 12V power supply and AC power adapter
8) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,
Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance
Parking Pay Station, Channel System, Medical electronic etc

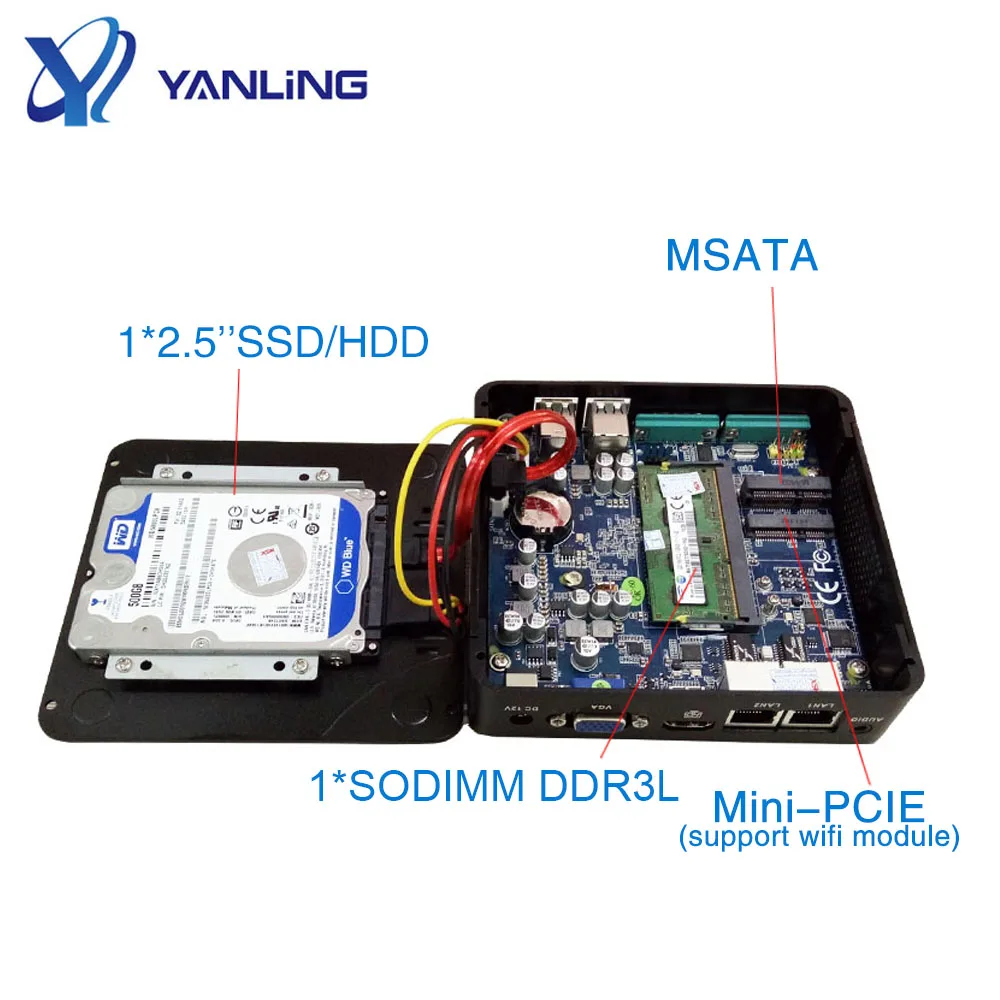

Product Display
Specifications
Save energy barebone system fanless mini pc IBOX 501 N3 mini pc | |||
Model | IBOX-501 N3 | ||
Case Color | Black(color can be customized) | ||
Material | High-quality pure aluminum | ||
CPU | Adopt Intel Celeron J1900 quad core 2.0GHz | ||
Chipset | Adopt Intel express chipset | ||
Mainboard | 120*120mm mini itx mainboard | ||
RAM | 1*SO-DIMM DDR3 , Support Max 8G | ||
Storage | 1*MSata, 16G/32G/64G/128G/256G/512G SSD (optional 500~1T HDD ) | ||
Audio | Integrated Realtek ALC662 6sound channel | ||
Display Interface | 1*VGA, 1*HD port | ||
Display | Integrated Intel HD Graphic card, support VGA, HD port, display input | ||
I/O | USB | 5*USB2.0, 1*USB3.0 | |
COM | 1*RS232 COM(2*COM optional) | ||
WIFI Antenna | 2 | ||
Lan | 2*RJ45 lan | ||
Audio | 1 | ||
Network Card | 2*RTL8111E 1000M lan, support wake on lan | ||
Expansion | 1*mini-PCIE, support Wifi and BT | ||
Watch Dog Timer | Support | ||
Power Supply | DC 12V-IN power supply and AC power adapter | ||
Operating System | Windows 7/8/10, Linux | ||
BIOS | AMI 64Mbit Flash ROM | ||
Working Temperature | -10°C - 60°C | ||
Working Humidity | 0% - 95% relative humidity, Non-condensing | ||
Size | 134*126*39 mm (W*D*H) | ||
Weight | 0.65kg | ||
Packaging & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box, ten or sixteen neutral box for one carton.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Company Information
YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd. established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd. has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
Exhibition
Certifications
Our Advantages
1. As a professional manufacturer and supplier of mini pc over 17 years,we win our customers with good quality,best service and competitive price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 3 days.
5.We are Alibaba assessed 11 years Gold Supplier with more than 16 years industrial experience.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 12 months maintenance warranty for our products.
