Огнеупорный керамический изоляционный модуль для тепловой изоляции

Product Overview

Description

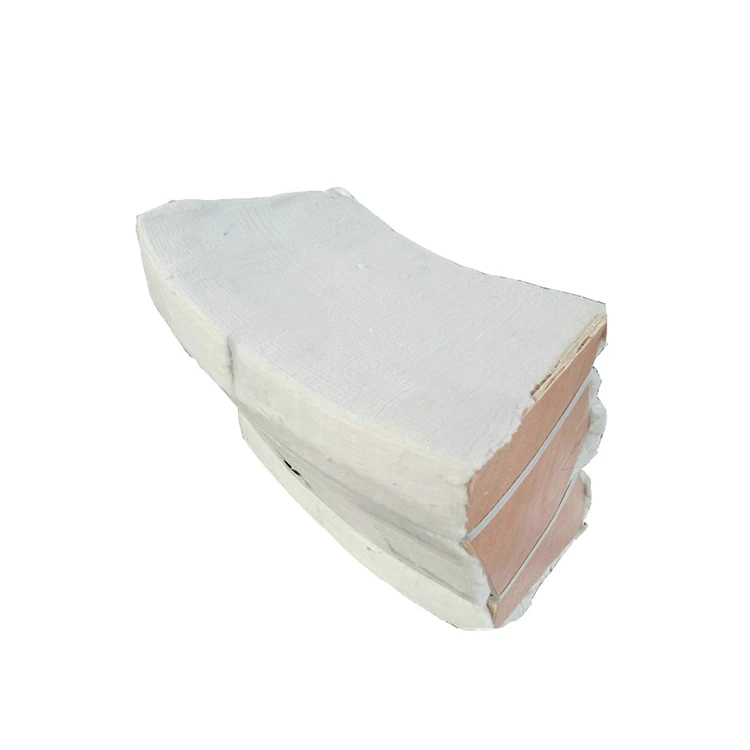

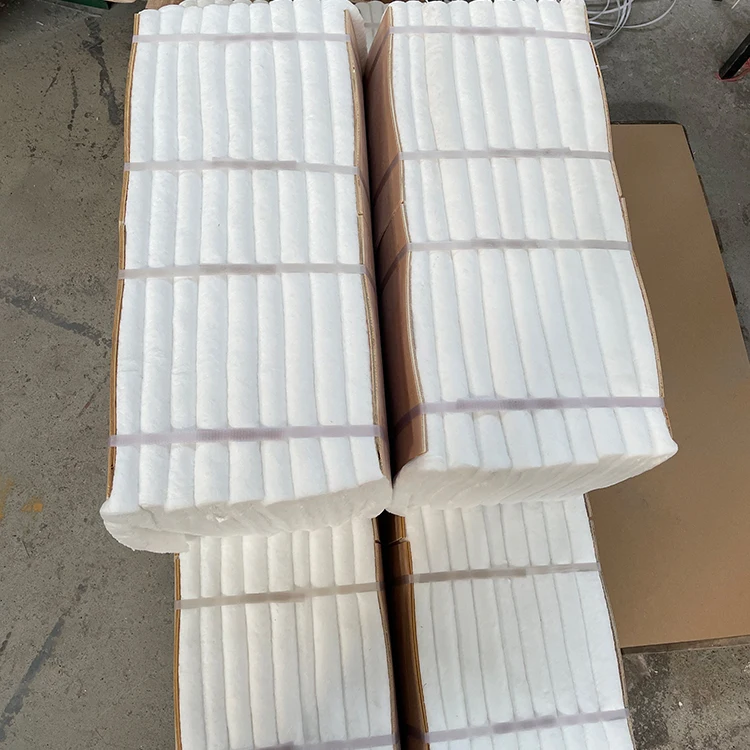

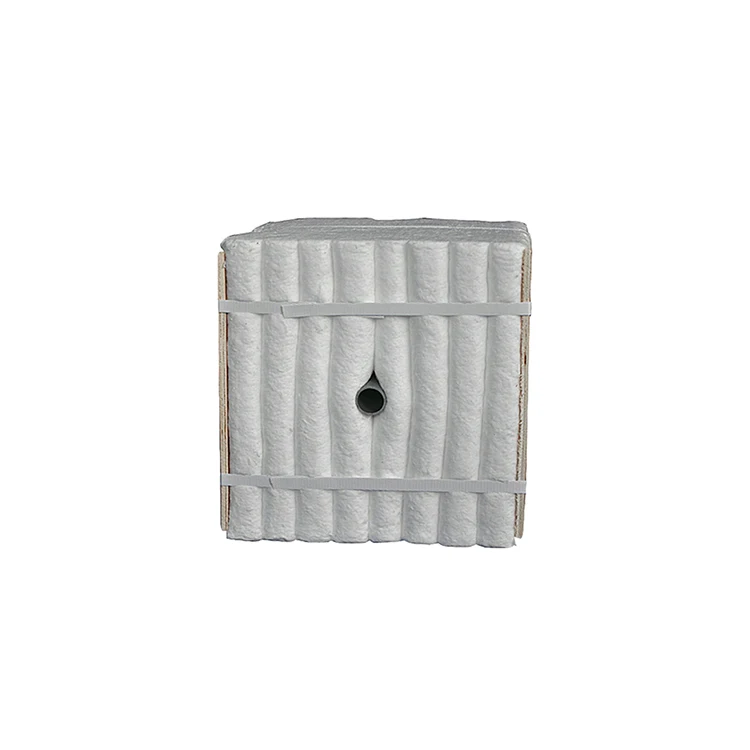

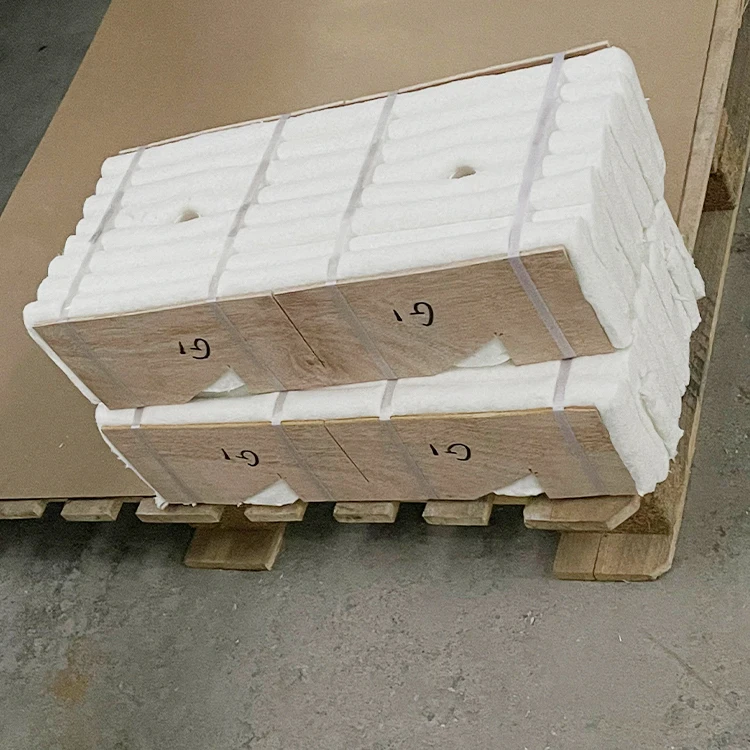

Refractory Ceramic Fiber Insulation Module for Heating Thermal Insulation





• The anchorage on the back allows for both in-line and parquet installation.


• The decompression of the blanket folds gives tightly sealed intermodular joints with both configurations


• The resilient blanket is resistant to mechanical damage


• Low thermal conductivity give high thermal efficiency


• Total resistance to thermal shock


• No drying or curing required – so available for production operation immediately after installation


• The anchor is remote form the module hot face

Type	CT 1000	CT 1260	CT 1360	CT 1430	CT 1500	CT 1600
Classification temperature oC	1100	1260	1360	1430	1500	1600
Density(kg/m3)Density	170,190,210					170,190,200

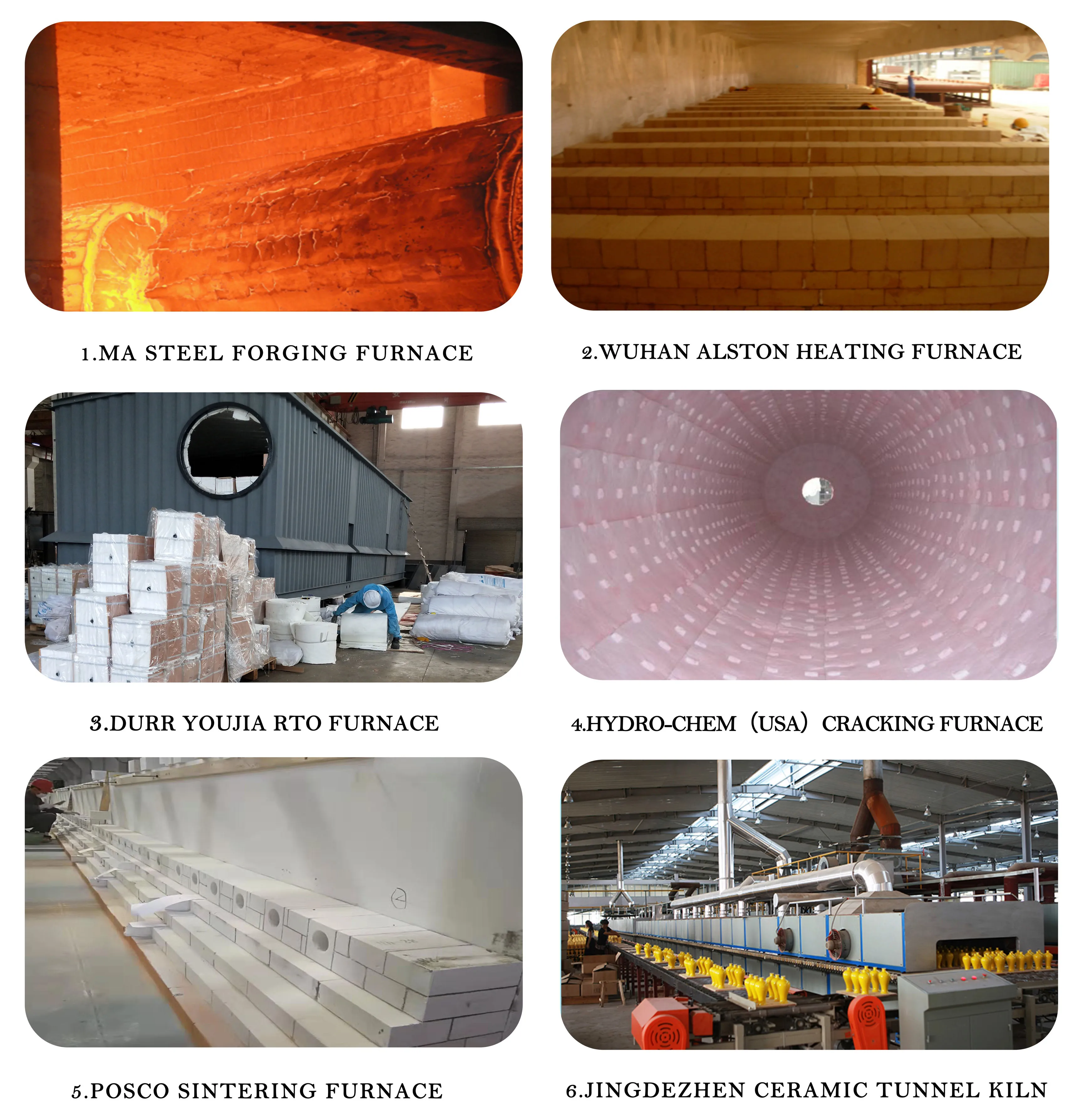

• Heat treatment: annealing furnace, tempering furnace, soaking pit, etc


• Ceramic: whiteware, sanitary ware and brick firing tunnel and intermitted kiln.


• Iron and Steel: Transfer ladle lids, soaking pit covers, reheating furnace, continuous annealing furnaces, lift-off furnaces


• Petrochemical: ethylene pyrolysis furnace,reformers,atmosphere / reduced pressure furnace,ductwork pyrolysis heaters


• Aluminium: Soaking pits and covers, bale out furnaces, homogenizing and ductwork


• Utilities: waste heat recovery units, combustion chambers and boiler ductwork

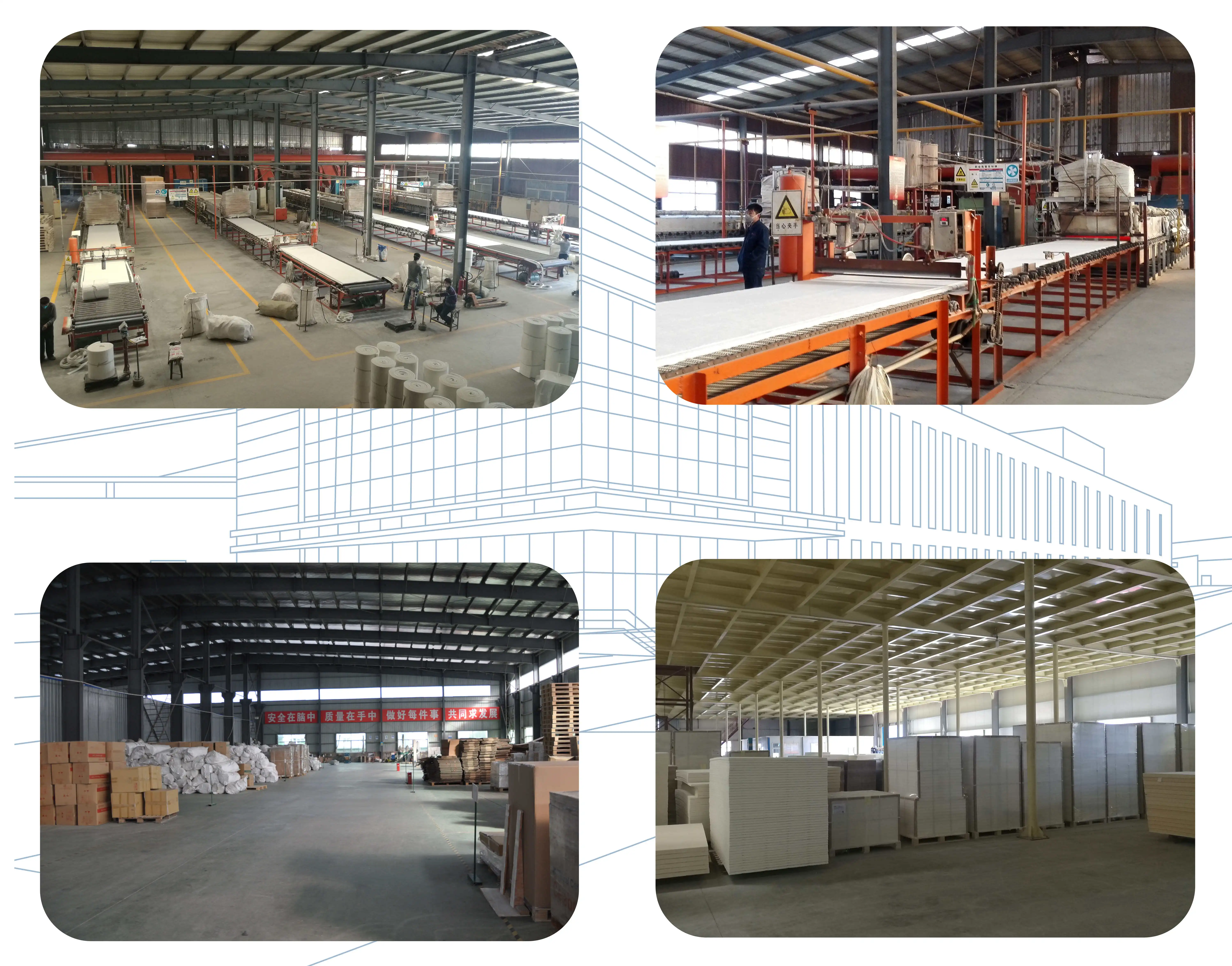

Jiangsu Cera Thermal Technology Co., Ltd. is formerly known as Nanjing Cera Material Technology Co., Ltd.

The main business of our company includes refractory materials production, furnace lining design and

construction of high-temperature thermal engineering, furnaces equipment, research and development

and sales of refractory material. Through years of cooperation with the British Morgan Thermal Ceramics,

we have accumulated rich experience in a good deal of engineering projects. We can provide our customers

 with all kinds of high quality products, professional and customized products and engineering services

according to the actual working condition and requirements of each customer, in order to meet customers’

increasing demand of energy-saving.

Our tenet is: quality and credibility is fundamental, technology and service is the life.

• 2002  Established Nanjing Cera Material Technology Co., Ltd.


• 2005  Set up Nanjing workshop.


• 2009  Started Suzhou SLMC Thermal Insulation Materials Co., Ltd.


• 2010  Started Shandong Zibo Baoyang Refractory Fiber Co., Ltd.


• 2013  Started Thermaltec Insulation(Zhejiang)Company Limited.


• 2013  Started Jiangsu Cera Thermal Technology CO.,LTD

      We obtained the quality system certification GB/T 19001-2008/ISO 9001:2008.

      High-tech enterprises are under declare.

       1. Thermal calculation, material selection support.

        With advanced calculation software, it can calculate the heat storage loss and heat loss of

        the kiln according to the temperature in the furnace, the working environment of the kiln,

        and the economic selection of materials.



        2. Process design.

Professional lining design team.



      3. On-site guidance.

       Have a rich team of on-site construction experience to provide customers with excellent

       construction site guidance.



      4. Installation Supervision.

       Possess professional construction supervision ability, can provide professional construction

       supervision service for furnace lining installation and constructio.



      5. Special application consultation of thermal insulation materials.

       We can provide technical support for customers and solve the difficulty of applying special

       thermal insulation materials.
