LPG Compressor manufacturers ZW 1.1/16 24 Propane Gas Booster LPG Compressor
- Category: >>>
- Supplier: Keepwin Technology Hebei Co. Ltd.
Share on (1600378183263):
Product Overview
Description
Product Description

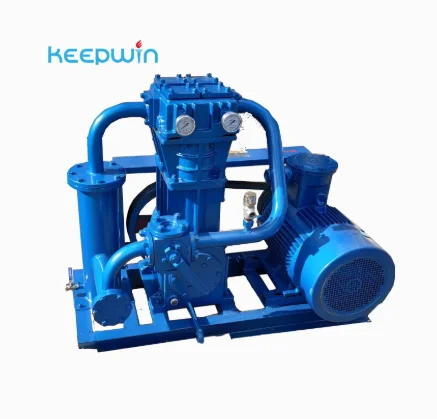

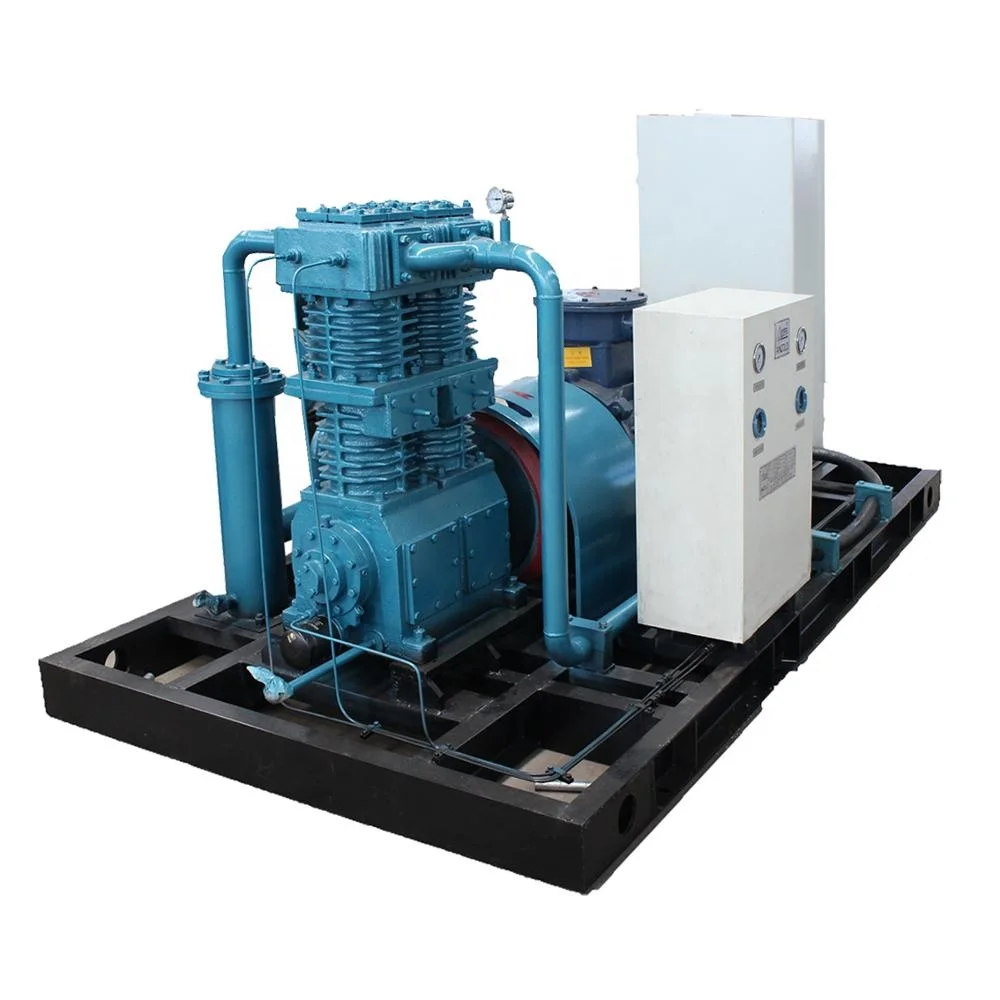

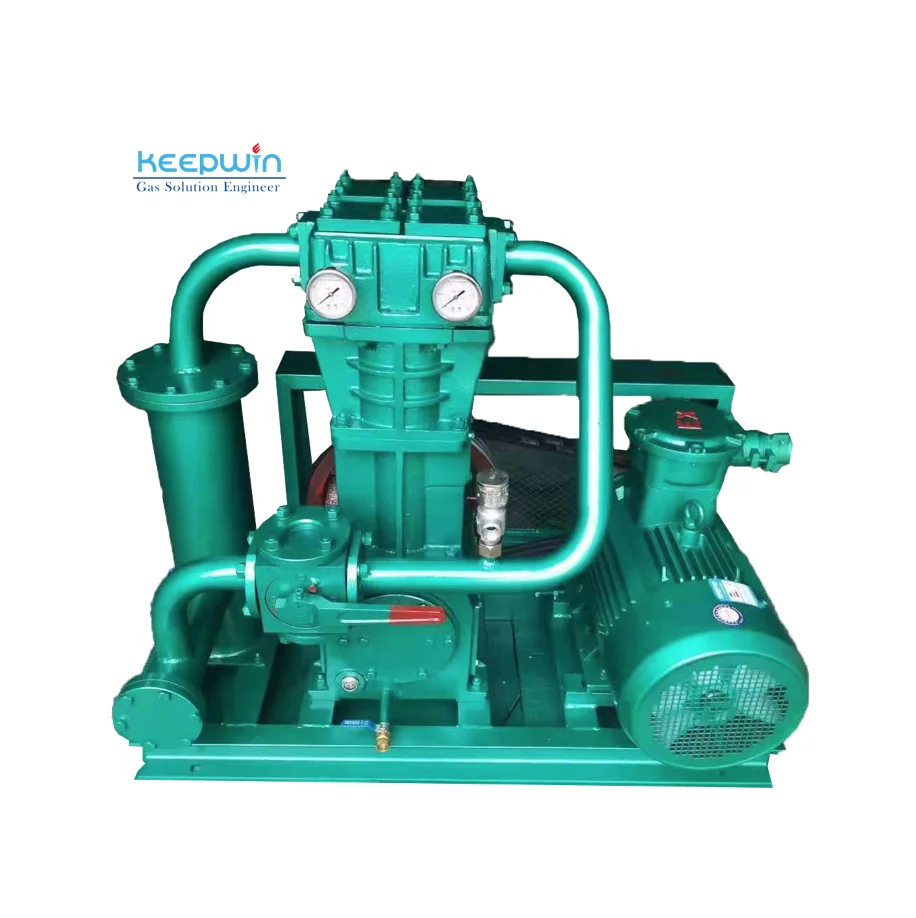

LPG Compressor manufacturers ZW-1.1/16-24 Propane Gas Booster LPG Compressor
ZW series Oil-Free LPG Gas Compressor, it has many functions, small volume, lightweight, small power, stable and reliable operation, and has good safety performance. It can transport highly volatile liquid such as liquefied petroleum gas and recover the gas left in the tank. Due to the unique oil-free lubrication design, there is no need for oil lubrication in the cylinder, so it will not pollute the medium (ensure the purity of gas) and keep the transported substances pure.
LPG Compressor Technical Parameters | ||||
Model | Flow rate m3/min | Inlet pressure (MPa) | Discharge pressure (MPa) | Motor power (Kw) |
ZW-0.6/10-16 | 0.6 | 1 | 1.6 | 7.5 |
ZW-0.8/10-16 | 0.8 | 1 | 1.6 | 11 |
ZW-1.0/10-16 | 1 | 1 | 1.6 | 15 |
ZW-1.3/10-16 | 1.3 | 1 | 1.6 | 18.5 |
ZW-1.5/10-16 | 1.5 | 1 | 1.6 | 22 |
ZW-2.0/10-16 | 2 | 1 | 1.6 | 30 |
ZW-2.5/10-16 | 2.5 | 1 | 1.6 | 37 |
ZW-3.0/10-16 | 3 | 1 | 1.6 | 45 |
ZW-4.0/10-16 | 4 | 1 | 1.6 | 55 |
ZW-8.0/10-16 | 8 | 1 | 1.6 | 110 |
ZW-1.0/1-10 | 1 | 0.1 | 1 | 15 |
ZW-1.0/2-5 | 1 | 0.2 | 0.5 | 7.5 |
| The above models are commonly used and can be customized according to each industry plant's different requirements. The above data are calculated according to: Inlet pressure: ≤ 1.0Mpa; Exhaust pressure: ≤ 1.6Mpa; Maximum pressure difference: 0.6Mpa; Maximum instantaneous pressure ratio: ≤6 Cooling mode: air cooling or water cooling (according to end user's local conditions to design); Inlet temperature: 40℃; Liquid density of liquefied gas: 582.5kg/m3. Note: please you kindly send us your base specifications inquiry to mail: keepwin at keep-win dot com | ||||
Main purpose and scope of application
This series of compressors are mainly used for loading, unloading, tank pouring, residual gas recovery, tank loading, residual liquid recovery and other operations of LPG. They are ideal equipment for liquid transportation and gas recovery. Therefore, it is widely used in LPG storage and distribution station, gas mixing station, gasification station, tank plant, automobile filling station, etc., especially in large, medium and small LPG stations.
In addition, it is suitable for liquid transportation and residual gas recovery of propane, butane, butene and other volatile substances with low boiling point. Its variant products can be used for liquid transportation and gas recovery of propylene, liquid ammonia, etc.
Technical Paramter
| No. | Item | Specification | |
| 1 | Compressor Model | ZW-0.6/10-15 | |
| 2 | Compress medium | LPG Gas | |
| 3 | Structure | Vertical Type, Air Cooking, Single action | |
| 4 | Compress stage number | single stage | |
| 5 | volume capacity (F.A.D) | 0.6 m3/min | |
| 6 | Suction pressure | 1Mpa | |
| 7 | Discharge pressure | 1.5Mpa | |
| 8 | Suction temperature | ≤40℃ | |
| 9 | Discharge temperature | ≤110℃ | |
| 10 | Compressor speed(r/min) | 500 | |
| 11 | Motor Power | 7.5KW ,YB3-132M-4 dⅡBT4 | |
| 12 | Cooling method | Air Cooling | |
| 13 | Lubricate method | Crank case, Crankshaft, Connect rod, Crosshead | Splash lubrication |
| Cylinder, filling | Oil free lubrication | ||
| 14 | Driven Method | Belt driven | |
| 15 | Installation | with skid-board | |
| 16 | Noise | 85dB (A) | |
| 17 | Vibration intensity | 28 | |
| 18 | Dimension | about 1220×680×980mm | |
| 19 | Weight | about 360KG | |
| 20 | Scope of supply | Compressor, motor, common underframe, gas pipeline, four-way valve, safety valve, instrument, random spare parts, factory documents, etc. | |
Packaging & Shipping
Why Choose Us
FAQ
Q1: What's your delivery time?
A: Generally 5-10 days if the goods are in stock. Or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q2: How long is your air compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.
Q3: How long could your compressor machine be used?
A: Generally, design service life for 20years, According to real condition not less than 10 years.
Q4: Can you do OEM for us?
A: Yes, of course. We have around two decades OEM experience. And also we can do ODM for you.
Q5: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, Trade Assurance and etc. Also, we could accept USD, RMB, GBP, Euro, and other currency.
Q6: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q7: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.
Q8. Are you factory?
A4: Absolutely! You have touched the primary sources of Air /Gas Compressor. We are factory.
