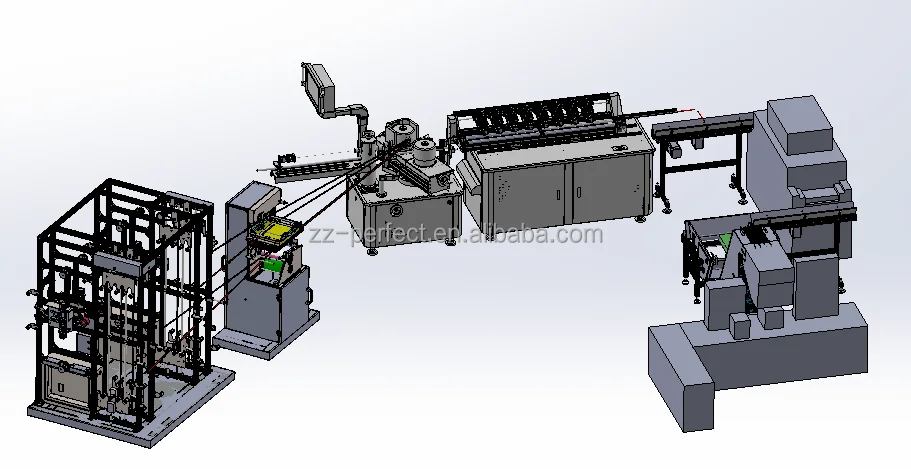

PFS-80 High-speed Paper drinking straw making machine including paper unwinding, gluing, twisting, cutting, conveying and collecting units, equipped with 7 pcs round knives to cut off paper drink straw on line. It is suitable for making 3.5-12mm outer diameter paper drink straw. Meeting Food grade production standard.
Design concept: small, simple, stable, high speed, intelligent, networked
♦Application♦
♦Technical parameters♦
Technical Parameter | |
Paper Layer | 3 layers |
Inner Diameter | 3.5-12 mm |
Min. Length | 90 mm |
Wall Thickness | 0.5-1.5 mm |
Speed | Up to 100 m/min. |
Rewinding Noses | Two noses/single belt |
Cutting method | Pneumatic blades |
Gluing way | Single/Double face or no glue |
Length fixation | Encoder |
Way of shaft fixing | Pushing |
Speed control | Servo |
Operator | 1 person |
Power input | 3*380V |
Measurement & Weight | |
Main machine size | 3511*1265*1800mm |
Area space | 5000*5000mm |
Wheel hub diameter | 215 mm |
Wheel hub height | 125 mm |
Min. tread | 320 mm |
Max. tread | 500 mm |
Weight | 1700kgs |
♦Features♦
1.The 80m paper straw making machine adopts full servo motor, the precision cutting is more precise. The sound is much lighter.
2.The glue rack is controlled by a separate inverter, which can better control the amount of glue.
3.The automatic splicing tray does not need to slow down machine and does not require manual splicing. Reduce much labor costs. In the later period, one person can look at several high-speed machines.
4.The appearance of high-speed machine is all 304 stainless steel. And the cut straw is much more beautiful.
♦Details♦
8 knives online cutting system

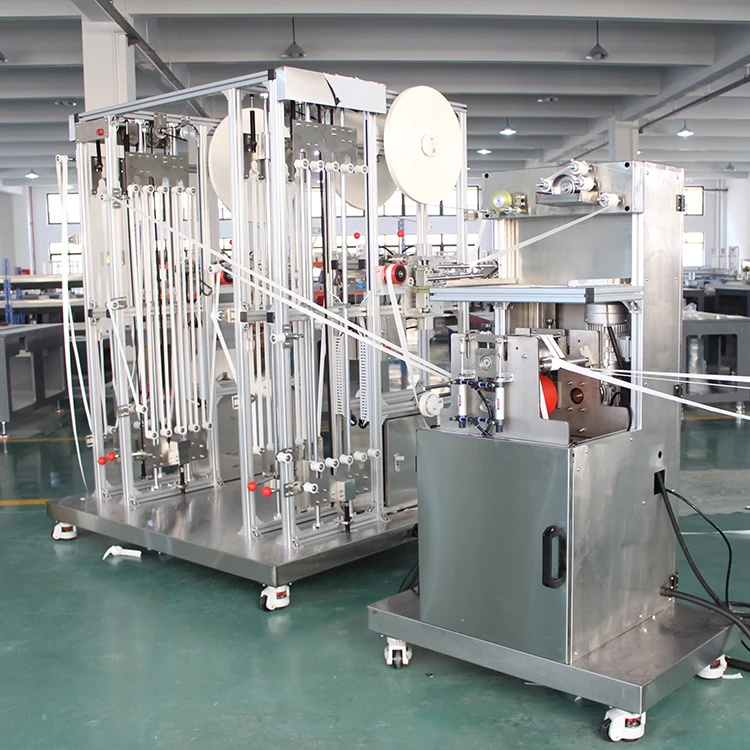

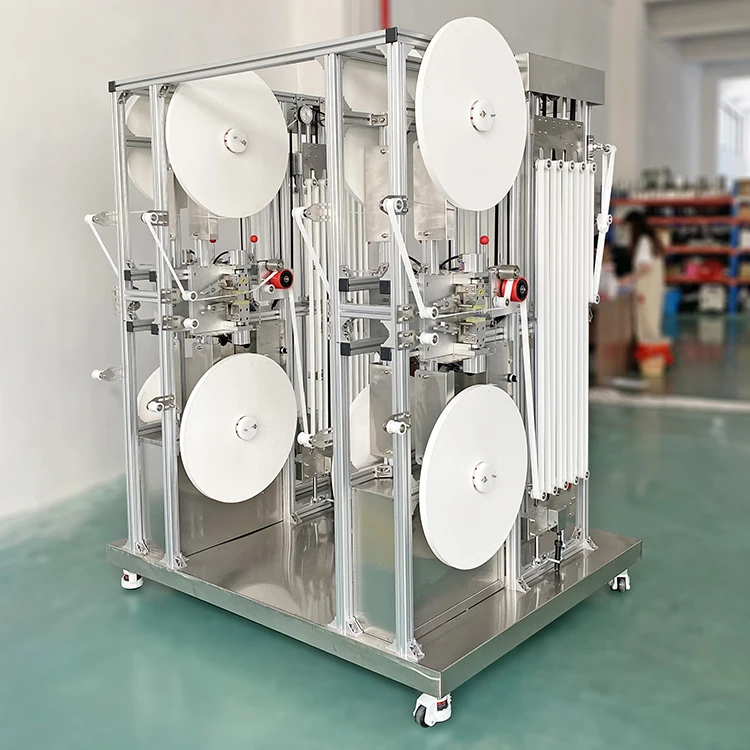

4 Layers Automatic Paper Connection
Finished Paper Straws
Package Detail | Wooden case/intelligent networked servo high speed multi-cutters winding belt for paper straw machine |
Package Seize | 3611*1365*1900mm |
Gross Weight | 1800kg |
1.Pre-Sales Service:
Our service team will glad to reply inquiry and consulting support in every way as soon as we can, we can support sample testing.
2. Package & Delivery
Our service team will pack goods under export standard, and prepare delivery in time as agreement.
3.Technical Support:
Free Replacement of accessories within 1 year
Remote assistance,24 hours online technical service
Detailed operation video
Zhengzhou Perfect Co., Ltd. is a manufacturer of packaging and printing machinery with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for external packaging materials' printing, coating, die cutting, slitting, embossing and others on the products including cigarettes and wines, food, cosmetics, medicine and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at
the airport
Q2:: Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3: Do you inspect the finished machines?
A: Yes, we have QC department, they will inspect every machine before packing and provide test video to ensure there is nothing problem of the machines.
Q4: What payment terms are accepted?
A: TT (Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q5 : When can the machine be shipped after order is placed?
A It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info. ©
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available
Contact us:
For this paper straw machine
Thanks for visiting our web, if any interests or questions, please don't hesitate to contact us, we will do our best for you, your kind inquiry will be replied as soon as we can.
Alice Wang
Zhengzhou Perfect Co., Ltd.
Tel/Whatsapp: +86 18339132672
Email: alice @zz-perfect.com

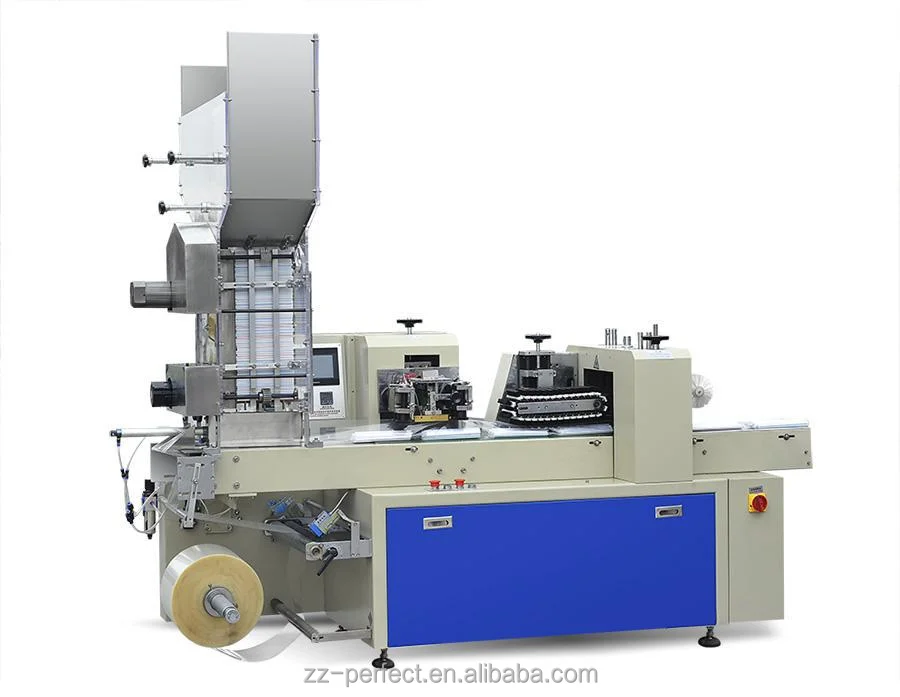

High Speed Individual Two-color Printing Paper Drinking Straw Packing Machine
