TV Video wall controller support upto 4k@60Hz signal input and NTSC,PAL and SECAM color system and auto detecting

Product Overview

Description

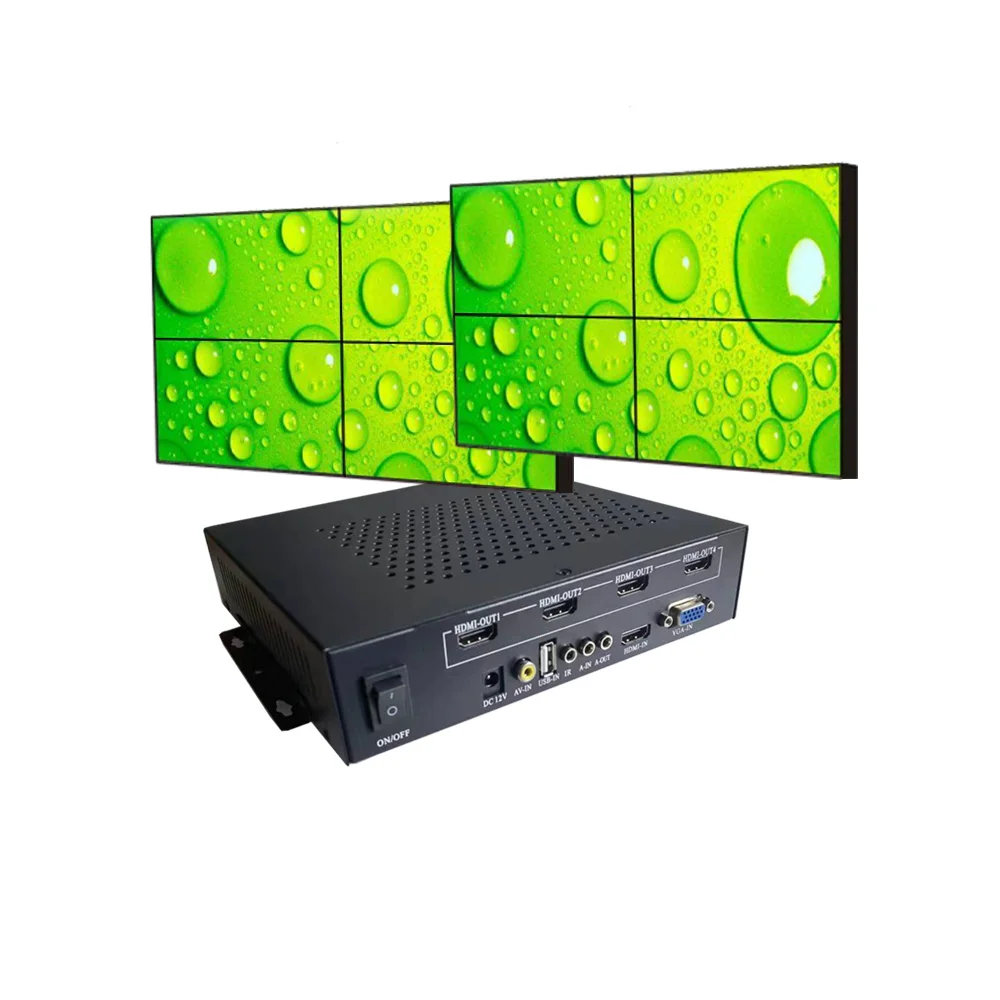

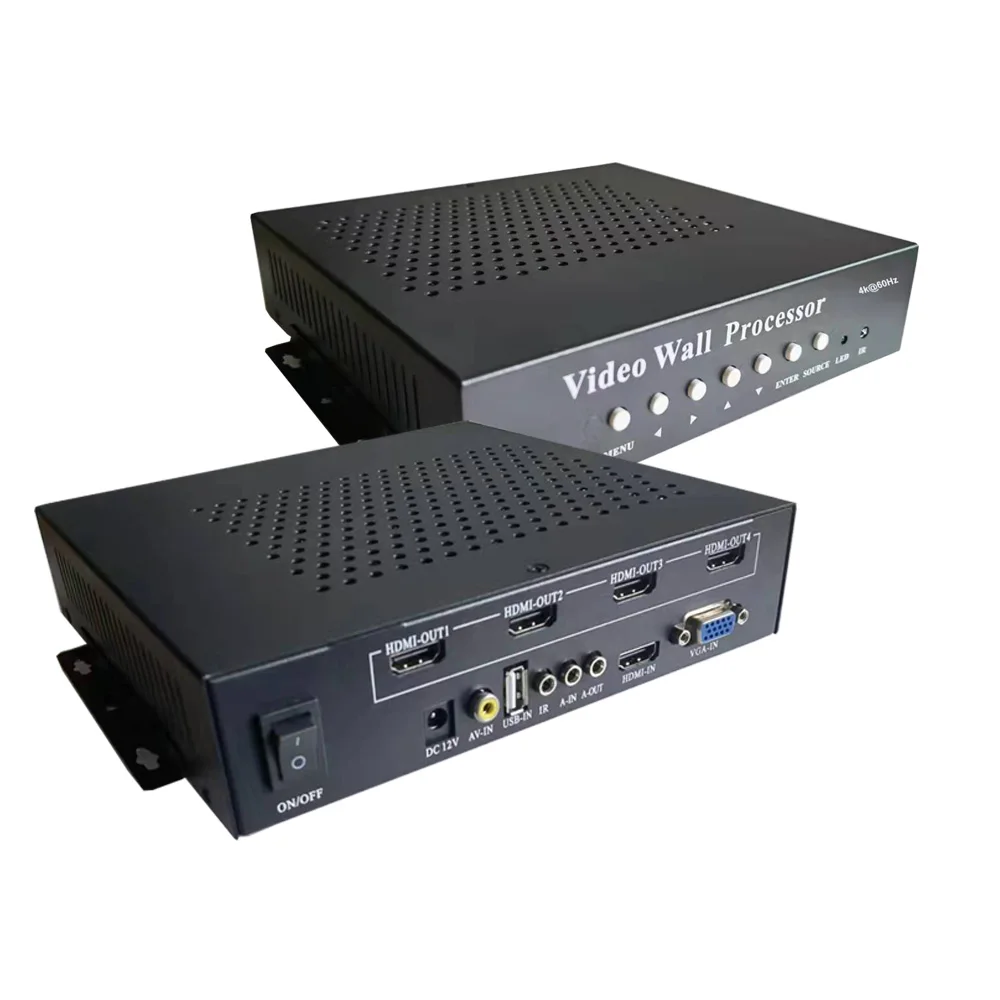

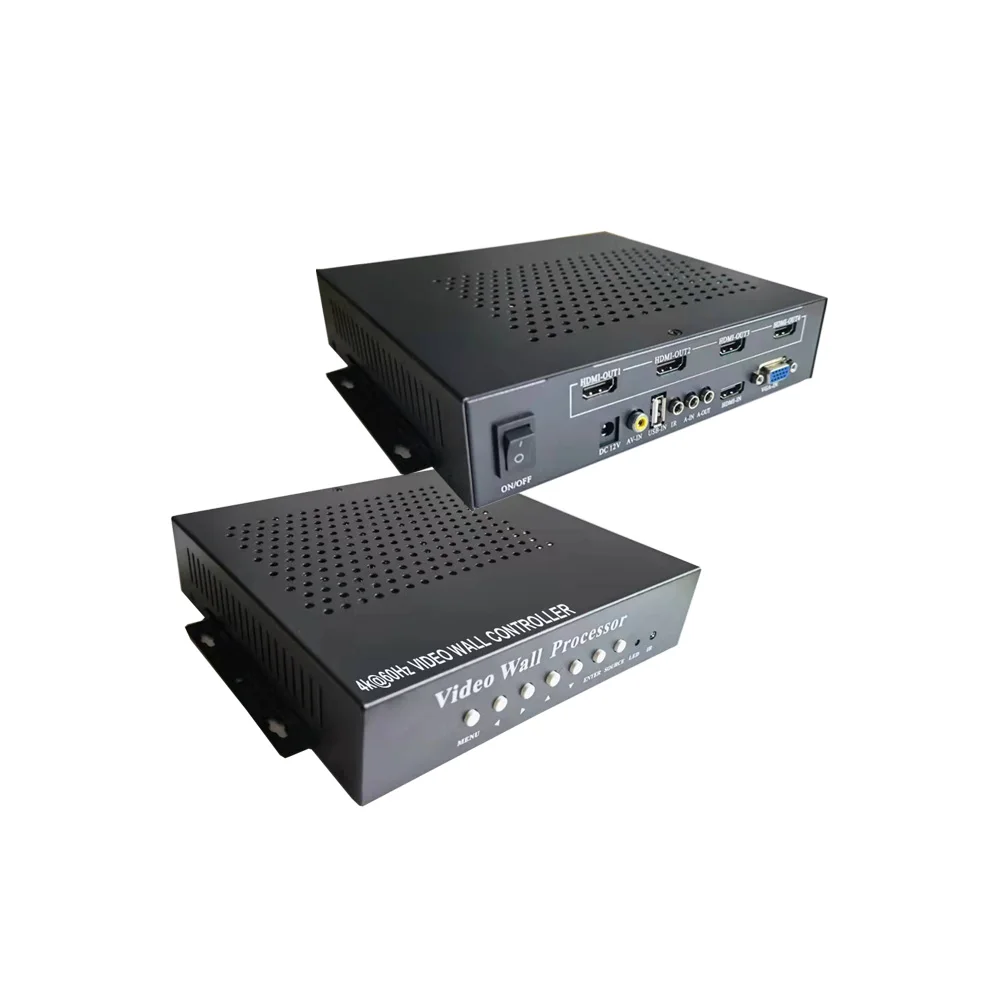

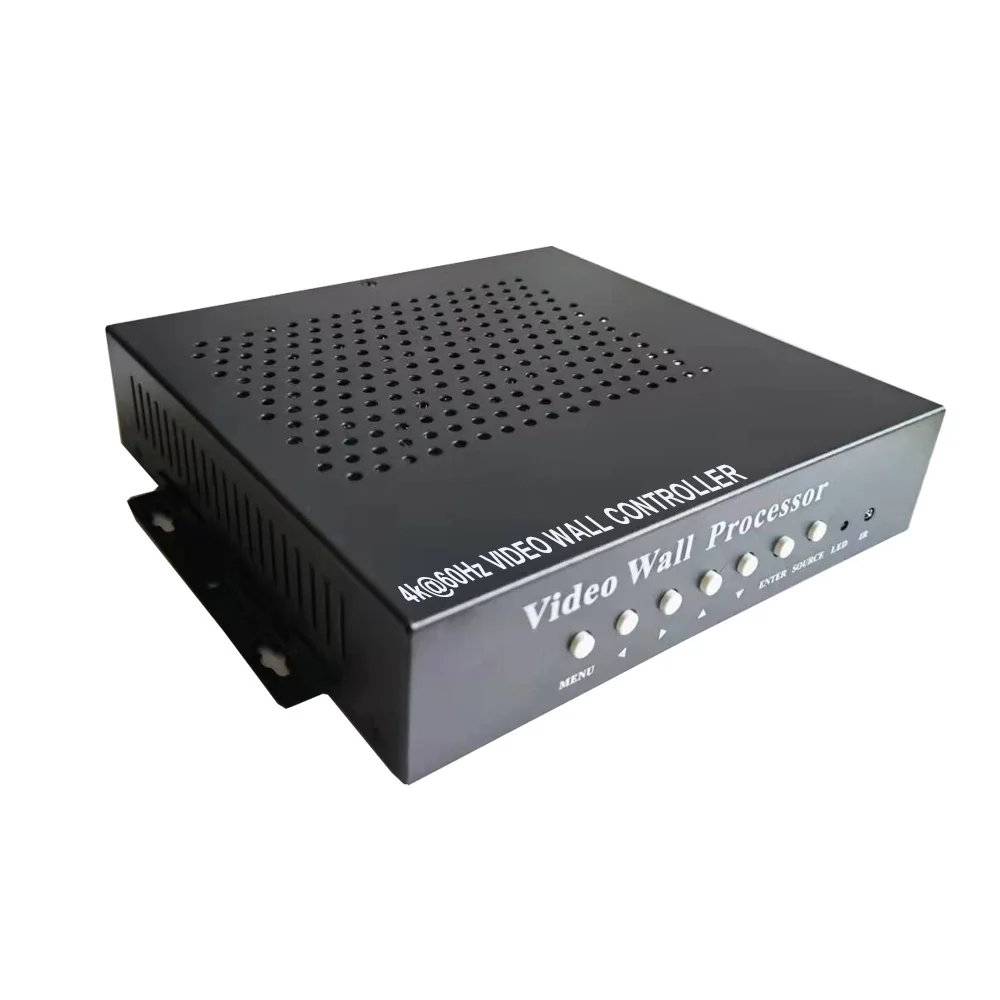

AG35U4-2, TV video wall controller, it's function is to split one input video image into several equal video blocks and zoom out these video blocks to full screen picture, then output each image via HDMI port, connect it’s HDMI output to your HDMI display panel, you can get the video wall display. It is built with software and all functions can be set in OSD menu, no need professional technology. You can get your video wall display .





Features:

Input signal resolution is up to 4096x2160@60HZ

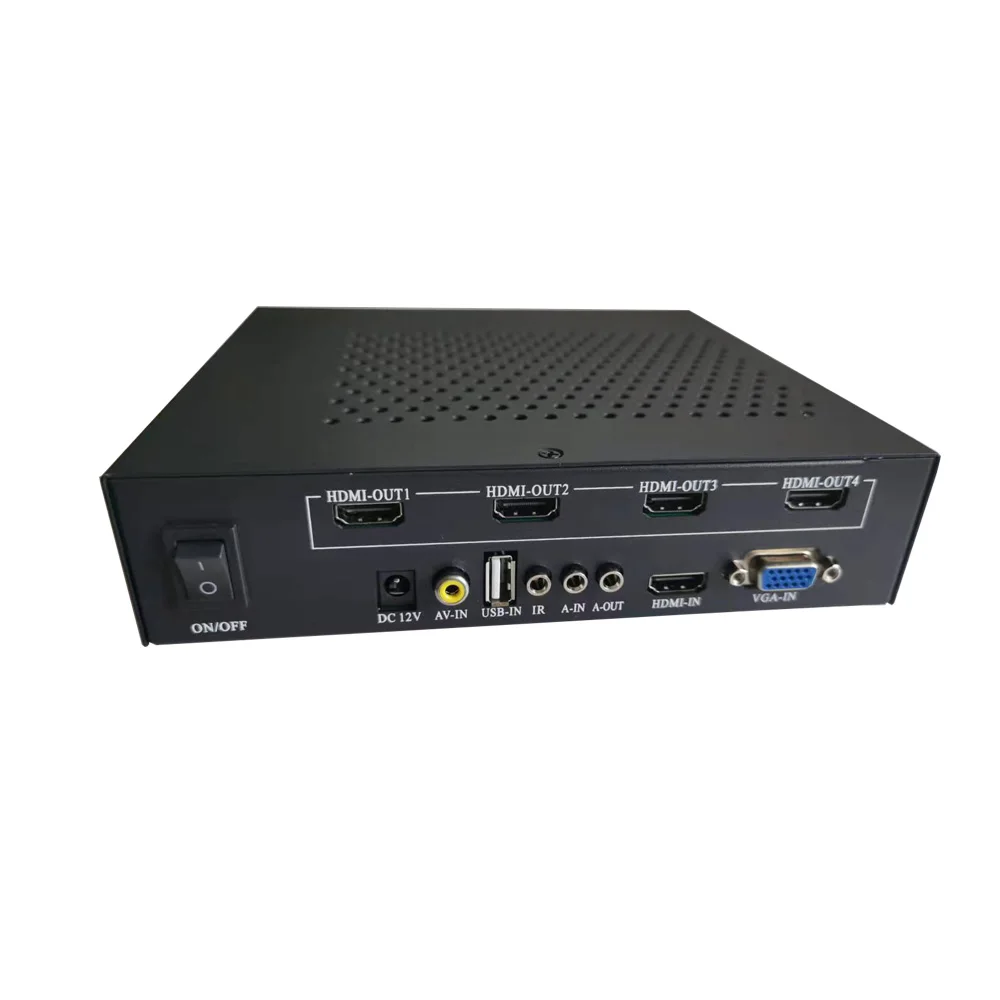

Support VGA, HDMI, AV and USB disk input .USB input can play video, picture and music.

Support any of output picture 180 degree rotation

Many splits configuration available for user, such as 2x2,1x4, 1x3,3x1,2x1,4x1 etc.Output signal resolution is up to 1920x1080@60Hz,and 1024x768 or 1366x768 is selectable. HDMI or DVI output format is also selectable.

Support edge mask function



Item	Specification
VGA Input
Interface	HD15
Sync mode	separate sync,composite sync,green sync
Pixel clock rate	165MHz
Resolution	640x480@60HZ - 1920x1200@60HZ
Color Depth	24 bit
HDMI Input
Interface	HDMI2.0(HDCP1.4), DVI1.0 compatible
Resolution	4096*2160@60HZ,3840*2160@60HZ,1920*1080@60HZ
Color Depth	36 bit
AV Input
Color system	NTSC,PAL and SECAM
Method of detecting	Auto detecting
USB Disk Input
Format	Video, picture and music
Output
Interface	HDMI-19(DVI compatible)
Signal Type	Digital TMDS video and I2S audio
Output resolution	1920x1080, 1024x768, 1366x768
Refresh rate	60Hz
Color Depth	30 bit
Others

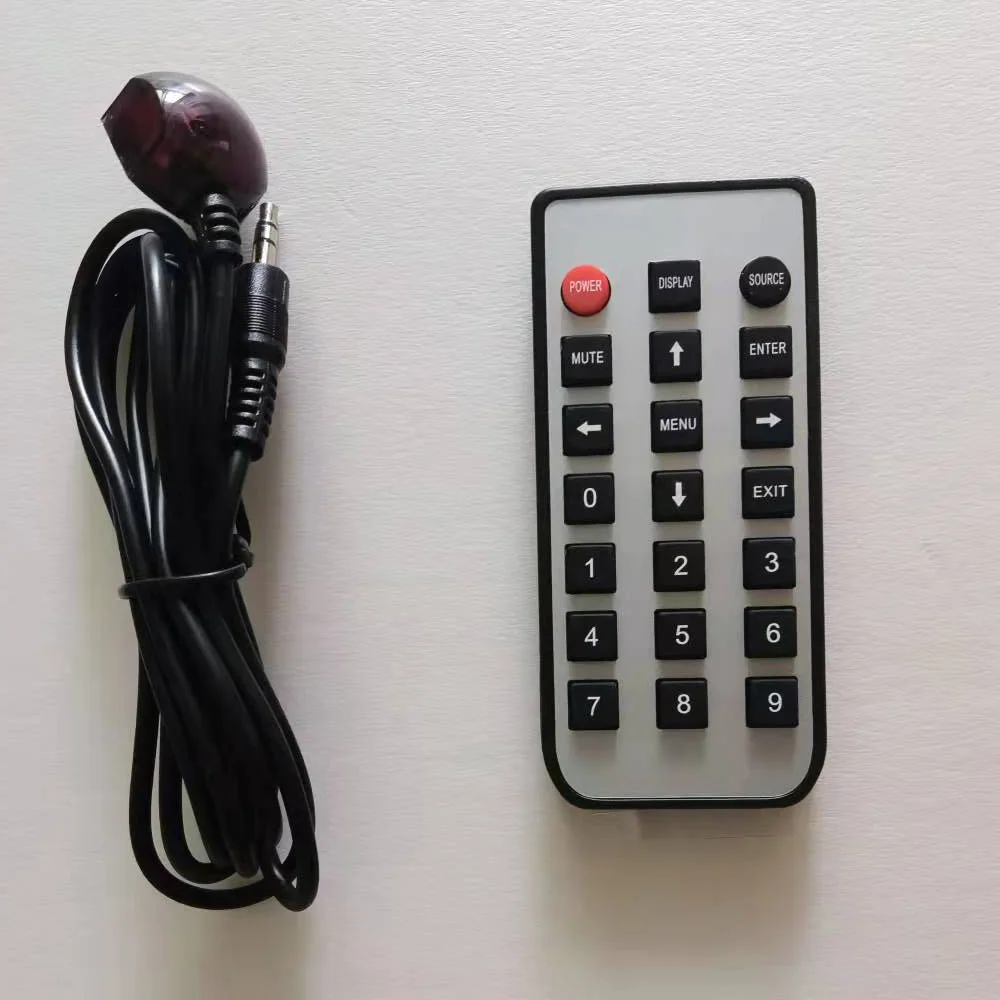

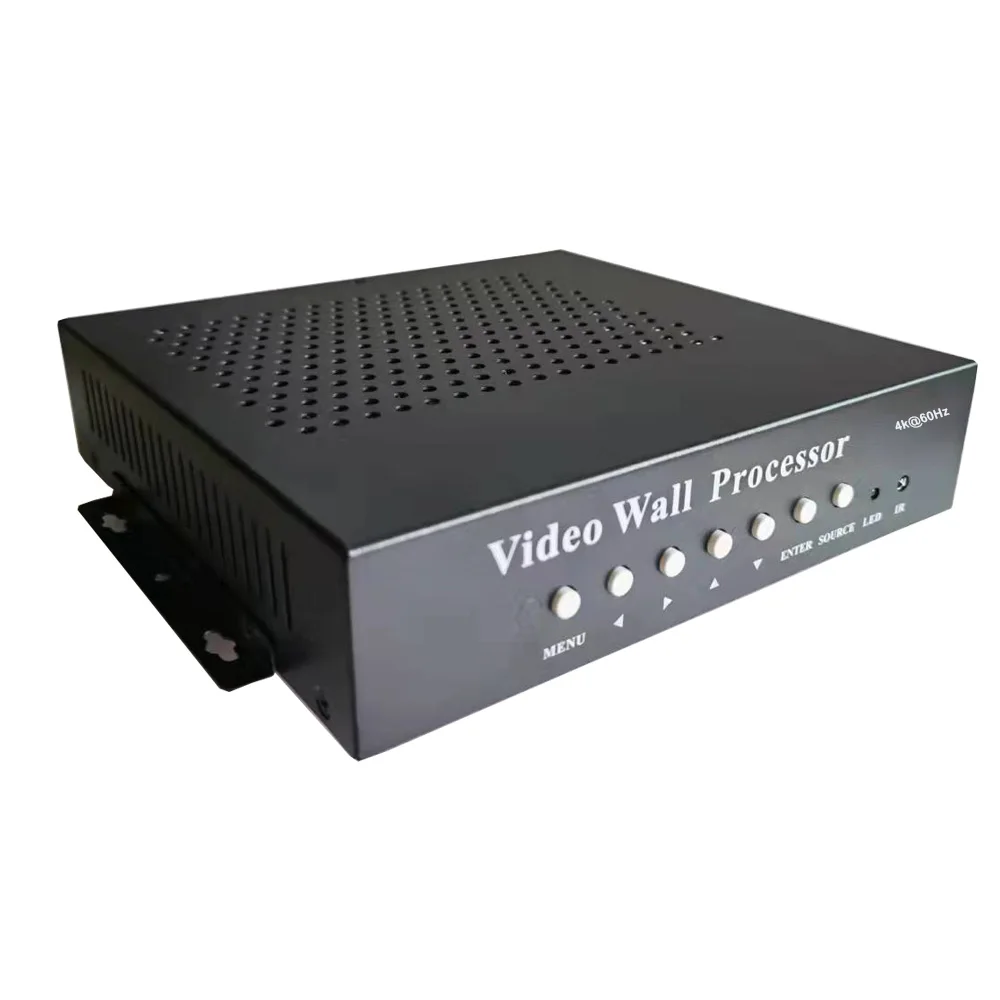

Control	IR & Front Keypad
