Product Overview
Description
Introduction

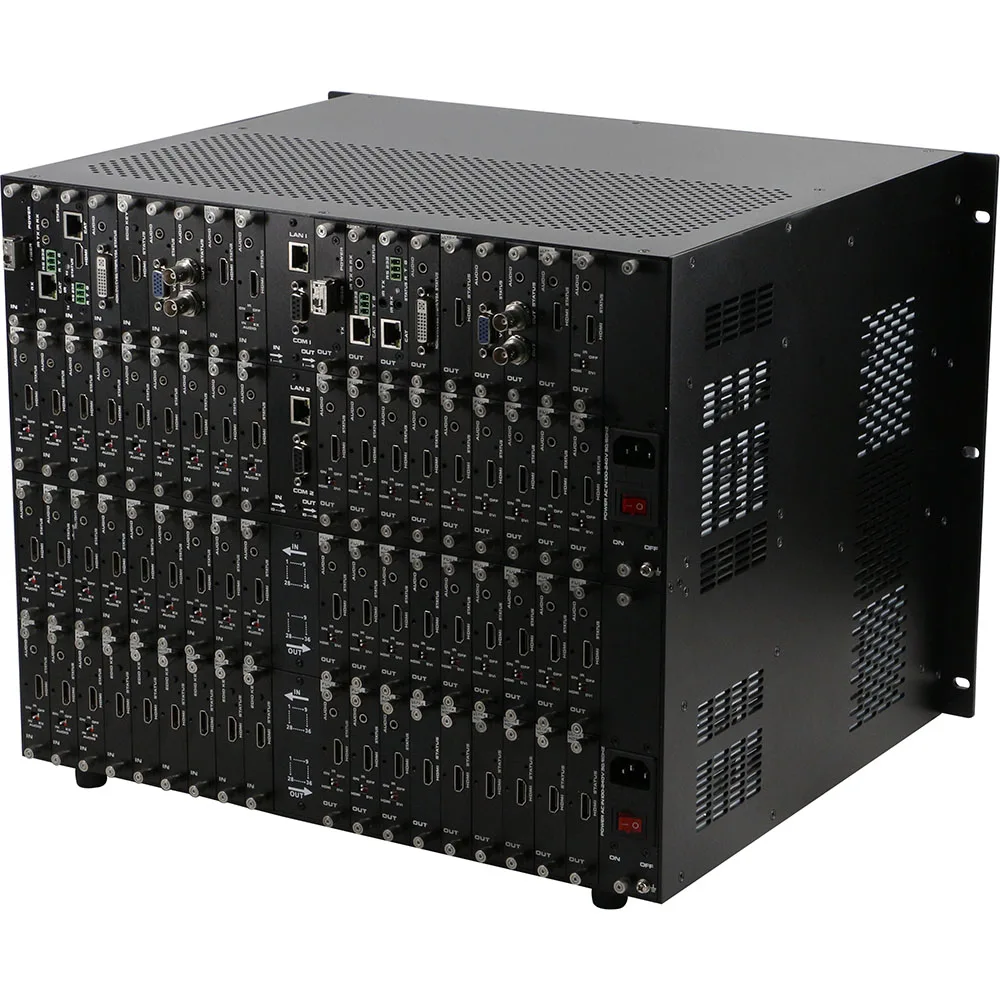

This is a modular matrix switcher, with 36 input slots and 36 output slots, so it can support maximum 36 inputs and 36 outputs, all
the input and output cards are using 1-card 1-port, the signals are including the DVI, hdml, HDBasT, Fiber Optic, 3G-SDI. Users
are able to have mixed signals inputs and mixed signals outputs.
The single channel signal switching speed can reach 12.5Gbps, and the main board is using Four core four links processing
technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make
sure the image High fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, the
internal data switch has super strong capacity of resisting disturbance and long continuous and stable working ability. Supports
7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and
the 3rd parties central control by the the RS232 control commands.

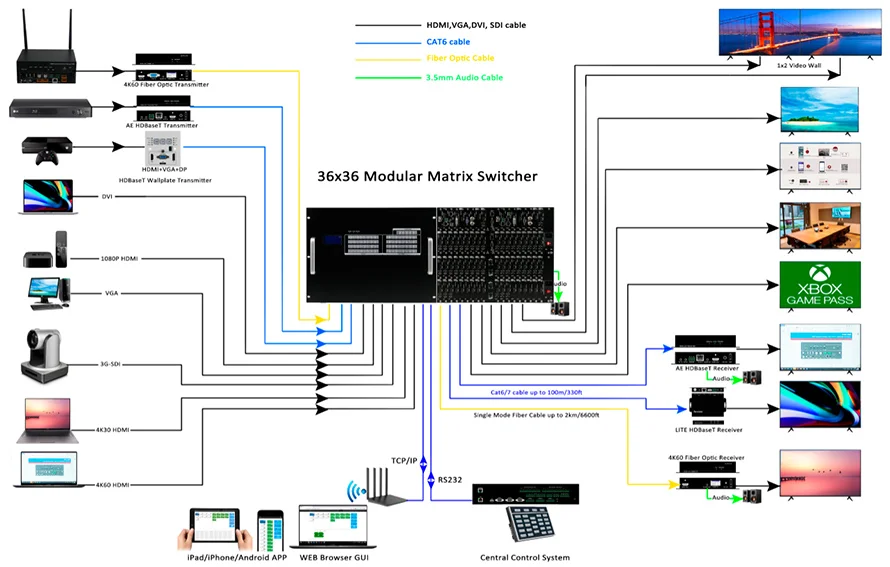

With the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector,
electric curtain and TVs.
the input and output cards are using 1-card 1-port, the signals are including the DVI, hdml, HDBasT, Fiber Optic, 3G-SDI. Users
are able to have mixed signals inputs and mixed signals outputs.
The single channel signal switching speed can reach 12.5Gbps, and the main board is using Four core four links processing
technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make
sure the image High fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, the
internal data switch has super strong capacity of resisting disturbance and long continuous and stable working ability. Supports
7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and
the 3rd parties central control by the the RS232 control commands.
With the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector,
electric curtain and TVs.

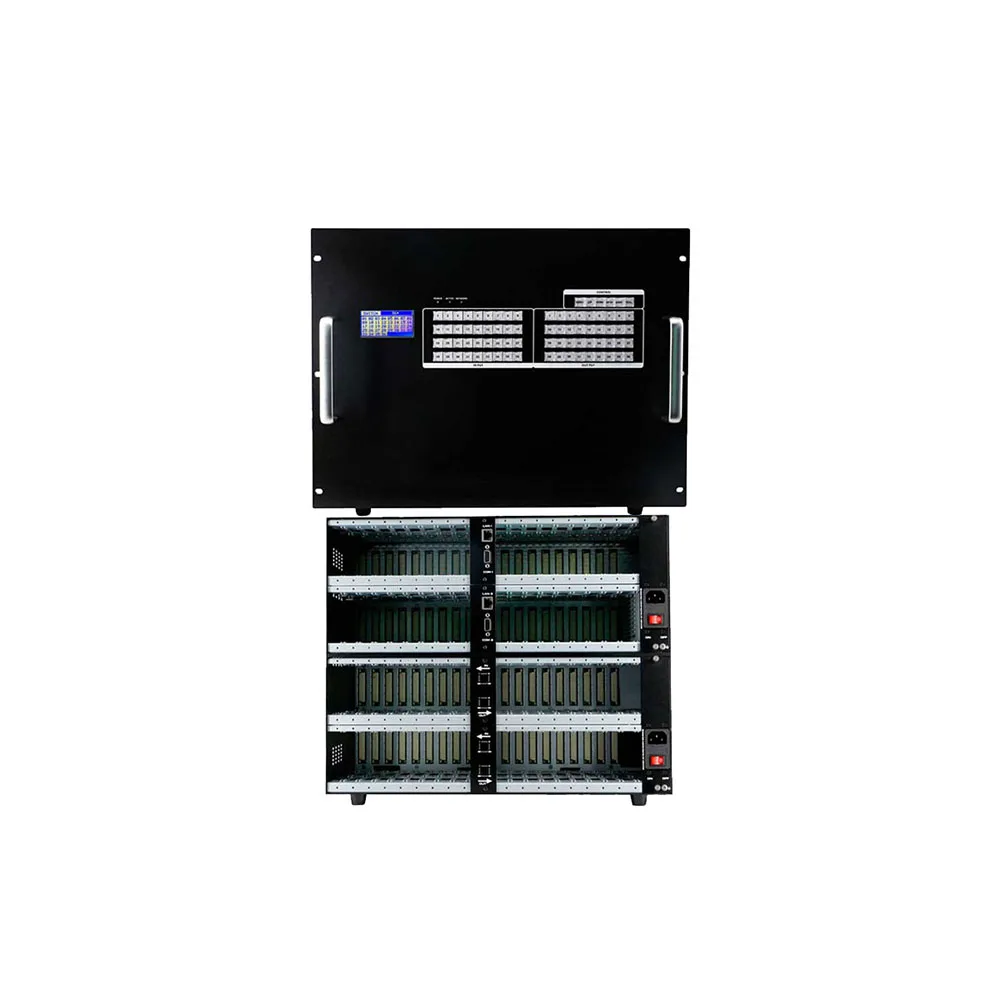

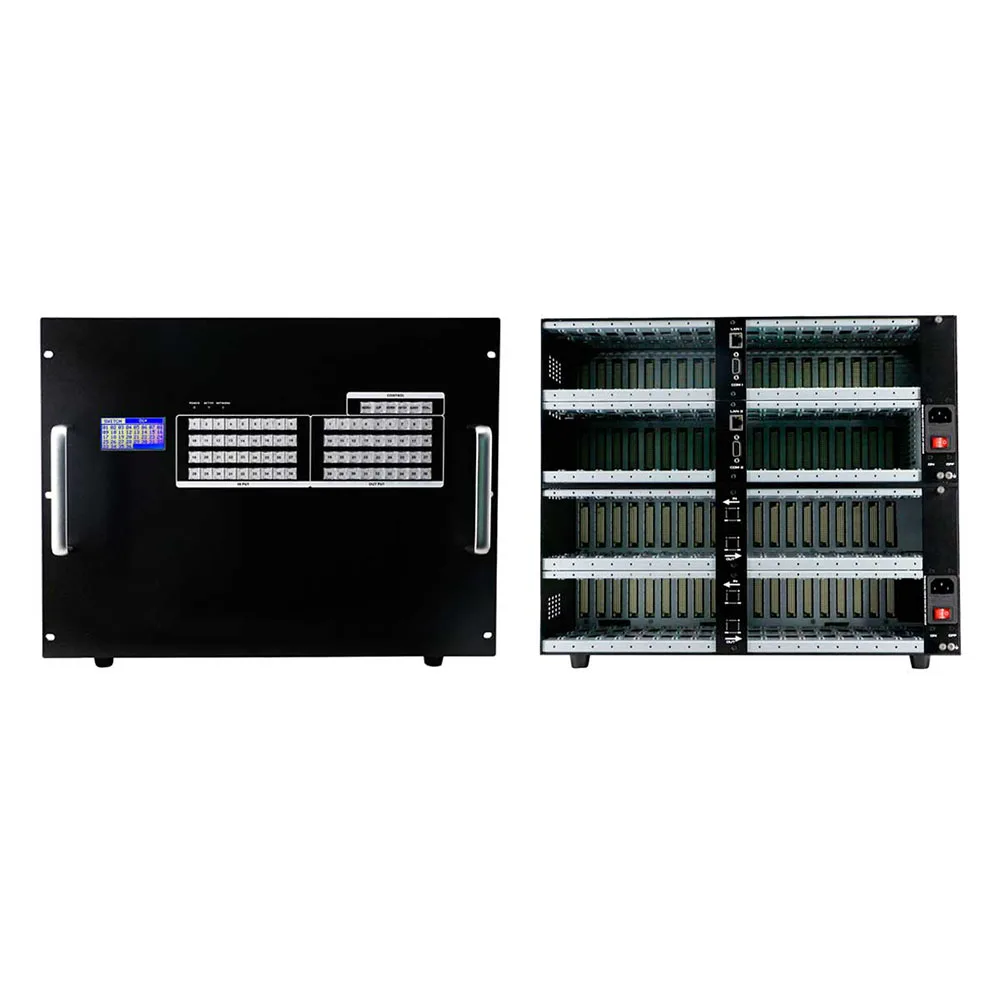

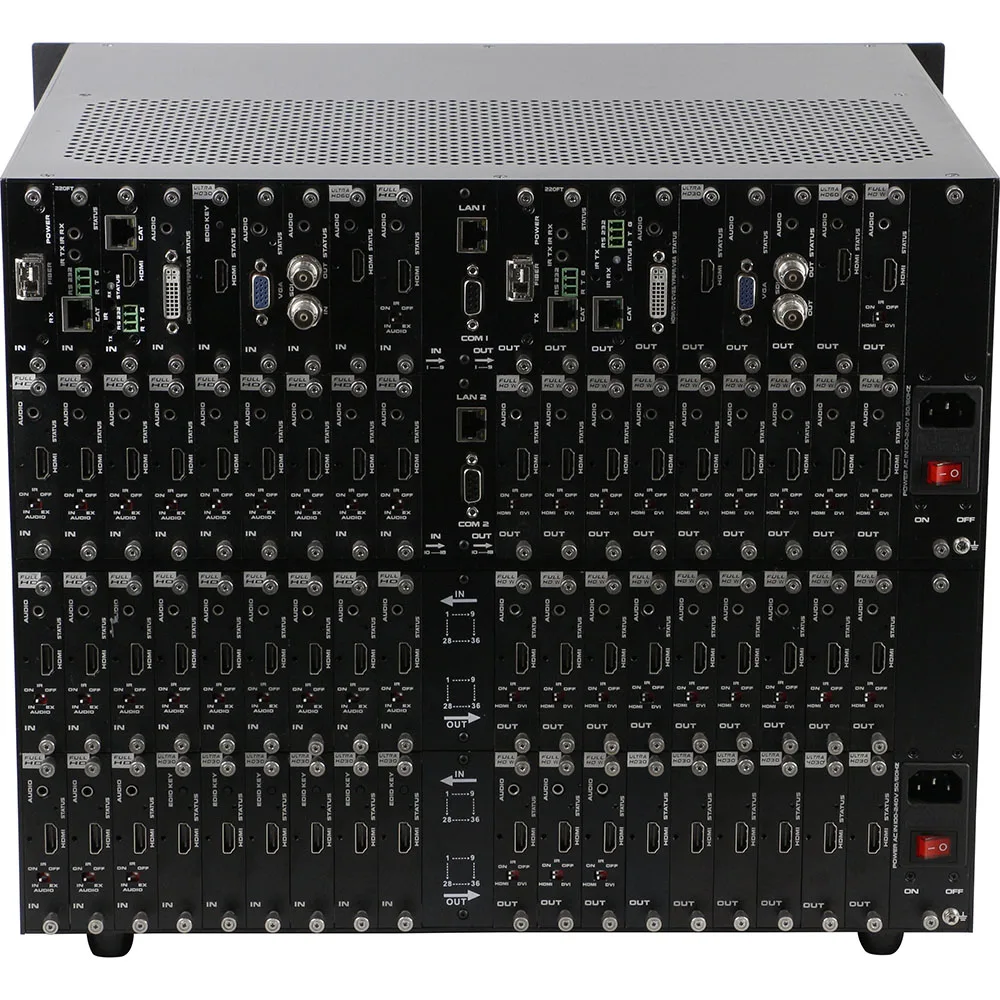

·Modular designing chassis, with 36 input slots and 36 output slots
·1-card 1-port input and output card
·Supports 1080P, 4K30 and 4K60 cards for selections
·1-card 1-port input and output card
·Supports 1080P, 4K30 and 4K60 cards for selections
·Supports DVI-I/ hdml/ 3GSDI/ HDBaseT/ Fiber to mix input and output
·Support Video wall and seamless switching with the 1080P and 4K60 cards
·Support 3.5mm audio embedded and de-embedd function
·Support Video wall and seamless switching with the 1080P and 4K60 cards
·Support 3.5mm audio embedded and de-embedd function
·Support up/down scaling function via the DIP switch
·Support dual LAN and RS232 ports for backup control
·Support dual LAN and RS232 ports for backup control

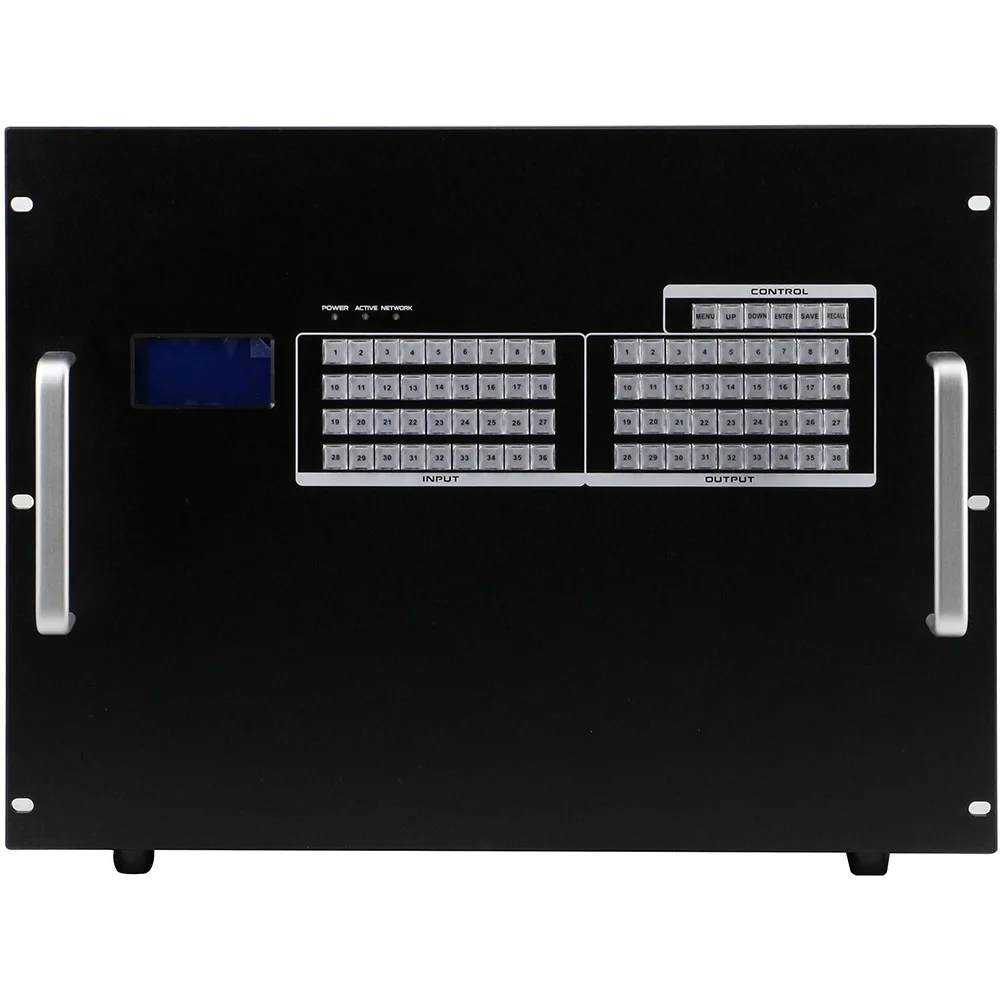

·Front buttons with background lights, easier to operate at any time
·Support auto saving protection and auto recovery function while power cut
·Support auto saving protection and auto recovery function while power cut
You can choose different boards according to your needs, contact our business manager to solve your needs
Model | MINI-MANAGER-900 | MINI-MANAGER-1800 | MINI-MANAGER-3600 | ||
Description | 9x9 modular chassis | 18x18 modular chassis | 36x36 modular chassis | ||
Input Card | 1 Channel 1 Card, support HDMI, DVI, 3GSDI, VGA, YPBPR, CVBS, HDBaseT, Fiber Optic | ||||
Output Card | 1 Channel 1 Card, support HDMI, DVI, 3GSDI, VGA, YPBPR, CVBS, HDBaseT, Fiber Optic | ||||
Protocol | HDMI1.4a/ HDMI2.0, DVI1.0, compatible with HDCP and EDID function | ||||
Color Space | RGB444, YUV444, YUV422, support x.v.Color extension color gamut standard | ||||
Resolution | 640x480---1920x1200@60Hz(VESA), 480i---4K30Hz(HDTV), 4K60Hz | ||||
Data Speed | 12.5Gbps | ||||
Transmission distance | 70/100m(Cat6), 80Km(Single-mode), 20m(Digital cable), 25m(Analog cable) | ||||
Control Methods | Broadcasting switching button, dual RS232+LAN control | ||||
Dimension | 482*390*88(2U)mm | 482*390*178(4U)mm | 482*390*355(8U)mm | ||
Weight | 6KG(No cards) | 12.5KG(No cards) | 25KG(No cards) | ||
Consumption | 17W(No cards) | 21W(No cards) | 30W(No cards) | ||
Power Supply | AC 110V-240V 50/60HZ | ||||
Working Temp | -10℃ - 50℃ | ||||
Storage Temp | -25℃ - 55℃ | ||||
Our overseas customers
F A Q
Question 1. What is the difference between the splicing processor and the HD matrix?
Answer: 1. The matrix switcher can only switch signals and cannot do other processing.
Answer: 1. The matrix switcher can only switch signals and cannot do other processing.
2. The splicing processor not only supports the input and output of various types of analog and digital signals, all input signals can also be arbitrarily displayed on the screen. Open window, superimpose, roam, realize single-screen split, multi-screen splicing, multi-screen display and picture-in-picture and other display effects.
Question 2: What are the input and output boards of the HD hybrid matrix?
Answer: 3GSDI board, HDBaset board, HDMI board, VGA board, 4k60HDMI board, CVBS board, we have a strong R&D team that can meet most of the needs.
Question 3: In which area does your product advantage concentrate?
Answer: Mainly focus on the research and production of plug-in hybrid matrix switching, signal transmission extension,signal format conversion, video signal processing, PCM/PDH optical fiber transmission and other equipment.
Answer: Mainly focus on the research and production of plug-in hybrid matrix switching, signal transmission extension,signal format conversion, video signal processing, PCM/PDH optical fiber transmission and other equipment.
Question 4. How many inputs and outputs do you support?
Answer: The specifications of our fixed matrix are 4X4, 8X8, 9X9, 16X16, 18X18, The mixing matrix can combine the number of inputs and outputs arbitrarily, and it can be configured with different hosts: 8X8, 9X9, 16X16, 36X36, 80X80, 160X160, and supports up to 160 inputs and 160 outputs.
Answer: The specifications of our fixed matrix are 4X4, 8X8, 9X9, 16X16, 18X18, The mixing matrix can combine the number of inputs and outputs arbitrarily, and it can be configured with different hosts: 8X8, 9X9, 16X16, 36X36, 80X80, 160X160, and supports up to 160 inputs and 160 outputs.
Question 5. Can your matrix software interface customize my logo?
Answer: The customer has no special requirements. We all provide neutral equipment and neutral software. If the customer has requirements, we can paste your logo on the device for you, and the software interface will customize the logo for you.
