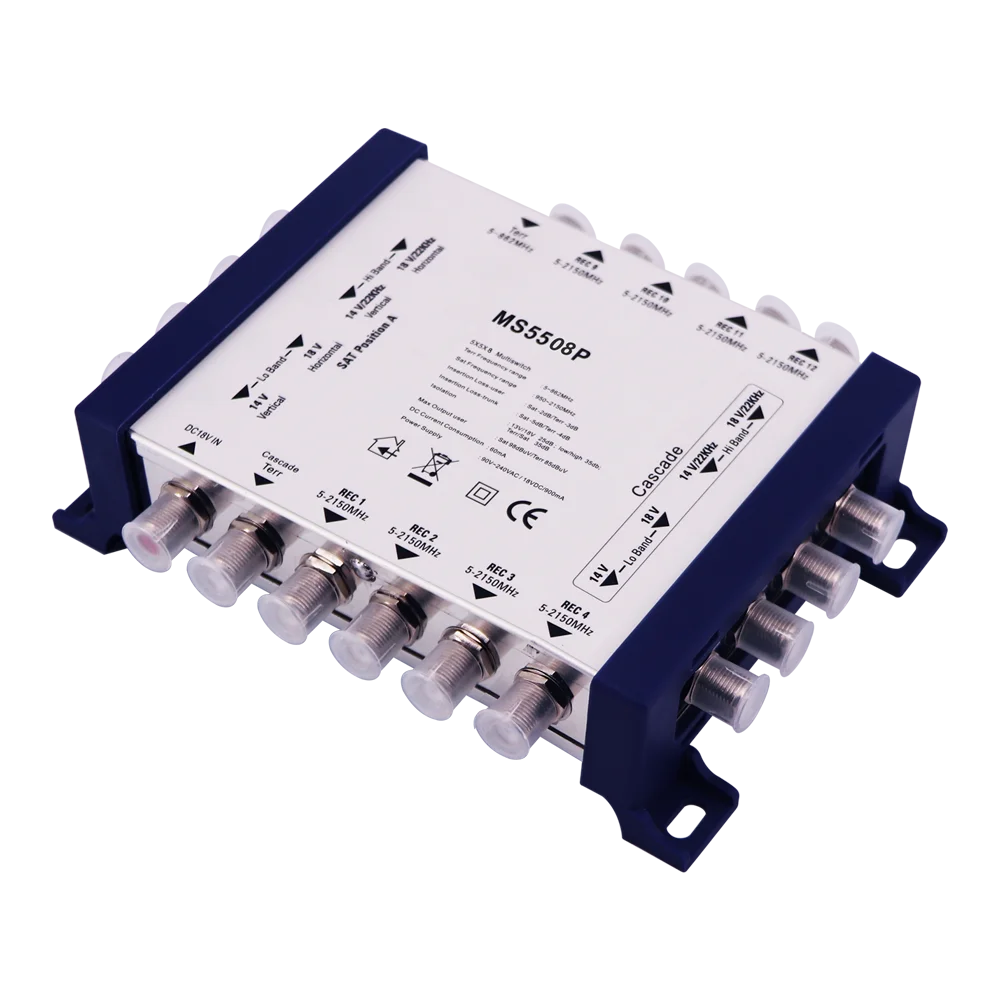

5X5X8 satellite cascade multiswitch









Features:

1.  4 satellite IF input and 1 terrestrial TV input, for 8 users output.

2.  Subscribers output select truck signal controlled by :13V / 18V ,0 / 22K.

3. Built-in amplifications circuit to compensate cable loss

4.  There is the built-in 22KHz signal generator in this multiswitch, which can automatically drive by universal LNB

     (different kinds of LNB can be used with this multiswitch)

 5. Our products have the environmental tinplate shell and unique luxury plastic frame.





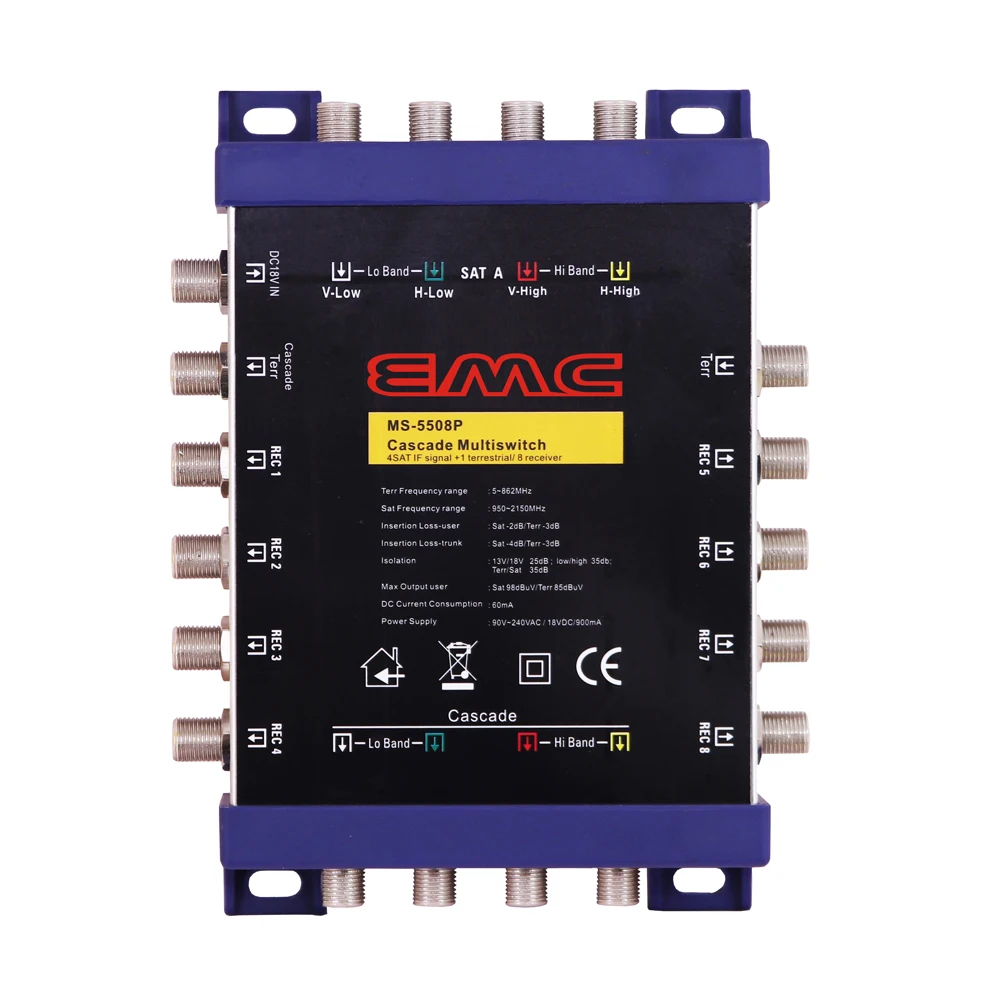

Product Specification

Sat  frequency :	950-2150MHz
Terr  frequency :	5-862MHz
User  frequency :	5-2150MHz
IN Port :	V/0'k ,  H/0'k , V/22K , H/22K , TERR
OuT Port:	8 User + 5Cascade
User to control:	13V/18V ,0'K/22'K
SAT -user insertion loss:	-5dB
Terr -user insertion loss:	Max -5dB
SAT -trunks insertion loss:	-5dB
Terr -trunks insertion loss:	-3dB
SAT return loss:	10dB
Terr return loss:	8dB
Isolation  V / H:	25dB
Isolation Low/High  band:	30dB
Isolation SAT/Terr:	30dB
Input/Output connector:	75Ω
SAT max output Level:	100dBuV
Terr max output Level:	87dBuV
LNB power supply max:	500mA
Working temperature:	-40∼80°C
Dimension:	165 X 130 X 43MM
Packing:	10PCS/CTN   7.8KGS   MEAS:27X28X28CM



Upgraded version of electrical parameters in 2022

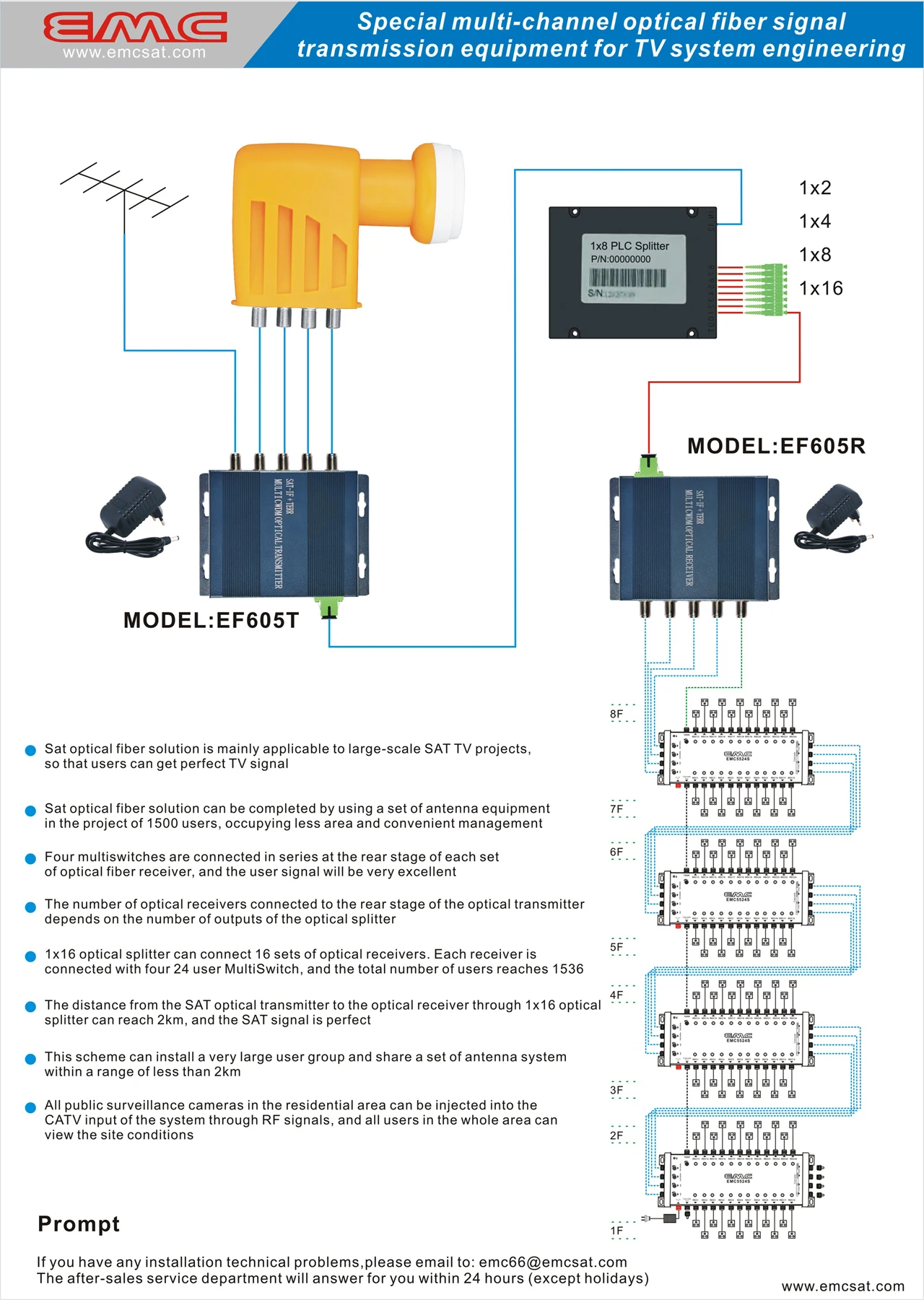

SAT TV optical fiber example
